F-22 R

Sailboat specifications

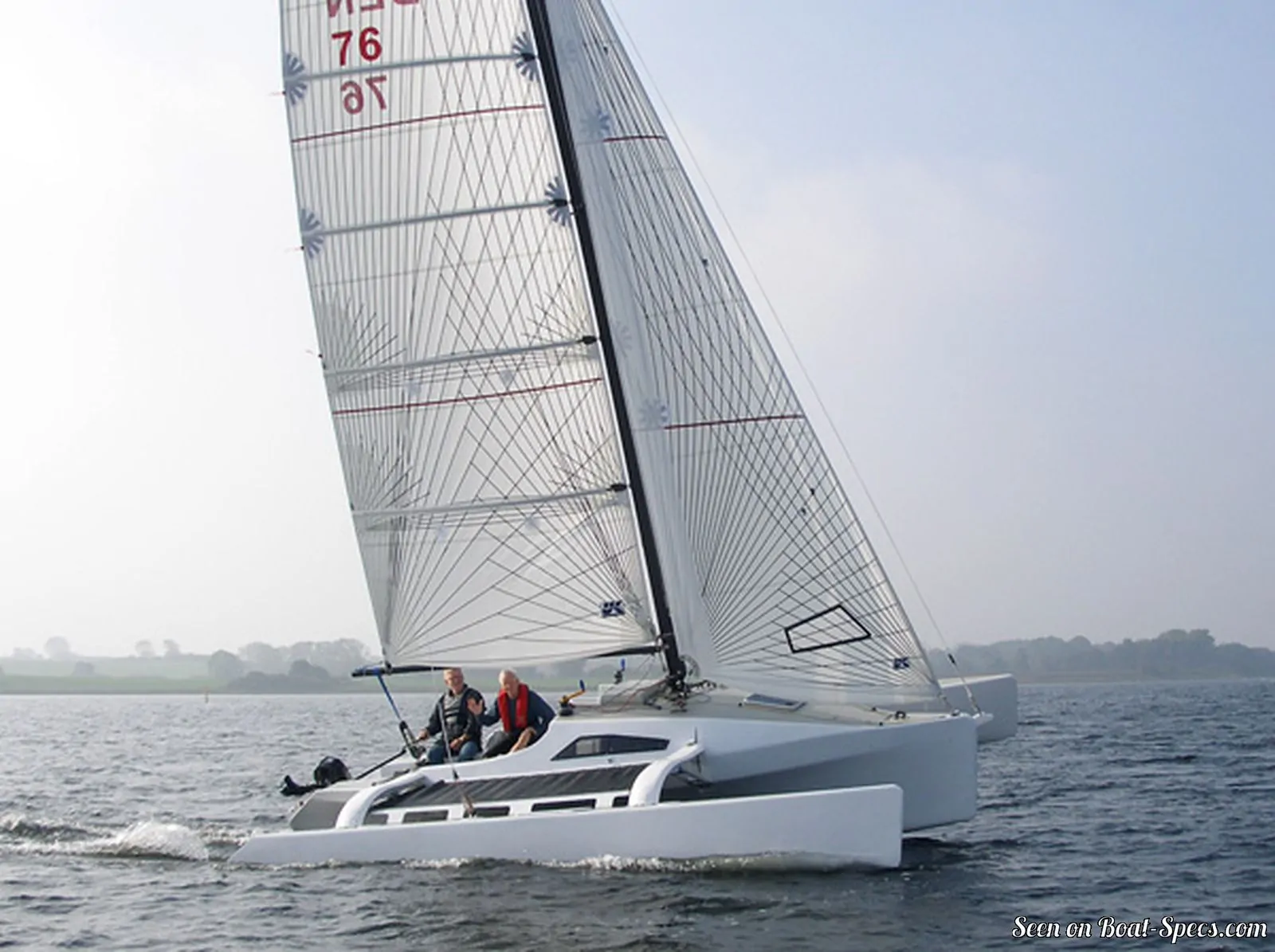

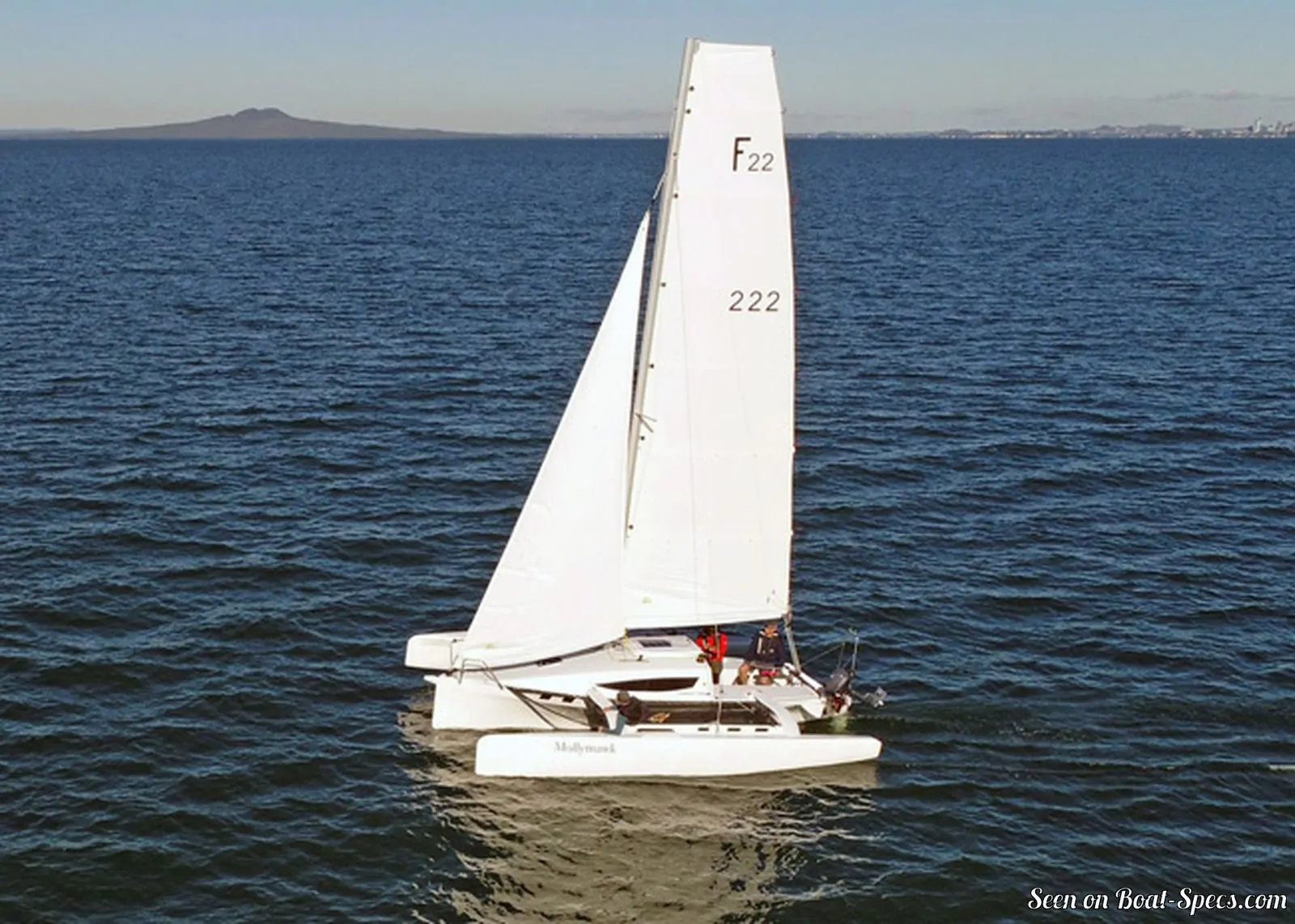

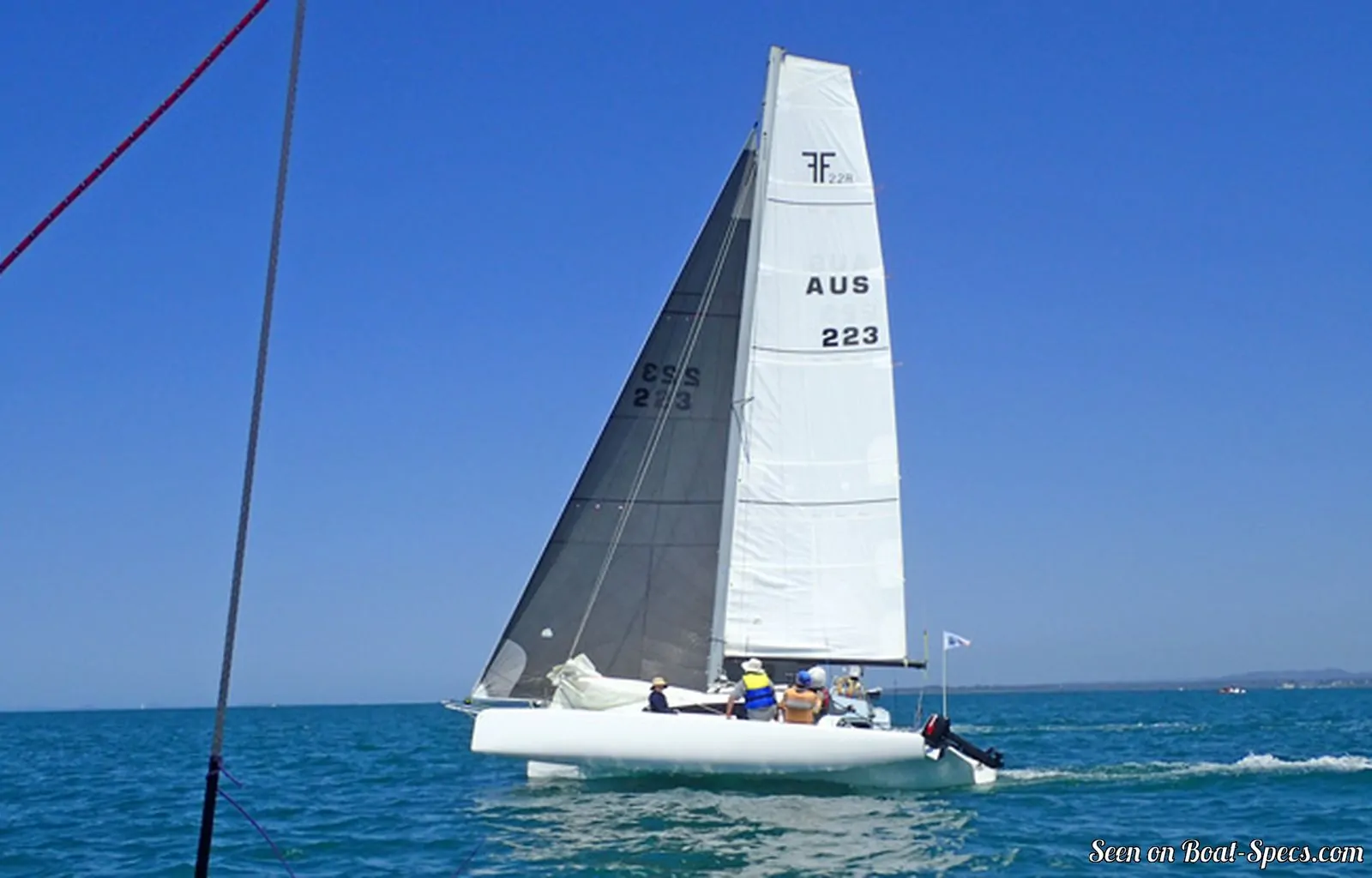

The F-22 is a 23’ (7m) fast cruising trimaran designed by Farrier Marine (New Zealand). She is built since 2011 by Farrier International (New Zealand). The R version displays a taller mast and larger sail area. She has been awarded "2019 - SAIL magazine - Best Small Cruiser".

The F-22 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).

F-22's main features

Model
F-22
Version
R
Hull type
Trimaran
Category
Fast cruising trimaran
Sailboat builder
Sailboat designer
Country
New Zealand
Construction
GRP (glass reinforced polyester):
Sandwich PVC fiberglass polyester (vacuum infusion)
First built hull
2011
Last built hull
Still in production
Award(s)
  • 2019: SAIL magazine - Best Small Cruiser
    Appendages
    Centerboard : pivoting centerboard (main hull)
    Helm
    Single tiller
    Rudder
    Single transom hung rudder (main hull)
    Unsinkable
    No
    Trailerable
    Yes
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    C
    Standard public price ex. VAT (indicative only)
    N/A €

    F-22's main dimensions

    Hull length
    23’7 m
    Waterline length
    22’ 2”6.78 m
    Beam (width)
    18’ 1”5.52 m
    Draft
    5’1.51 m
    Draft when appendages up
    1’0.31 m
    Mast height from DWL
    40’ 5”12.3 m
    Folding type
    Farrier's type, double-hinge with horizontal axis
    Overall width folded
    8’ 2”2.5 m
    Light displacement (MLC)
    1301 lb590 kg
    Maximum displacement (MLDC)
    3084 lb1399 kg

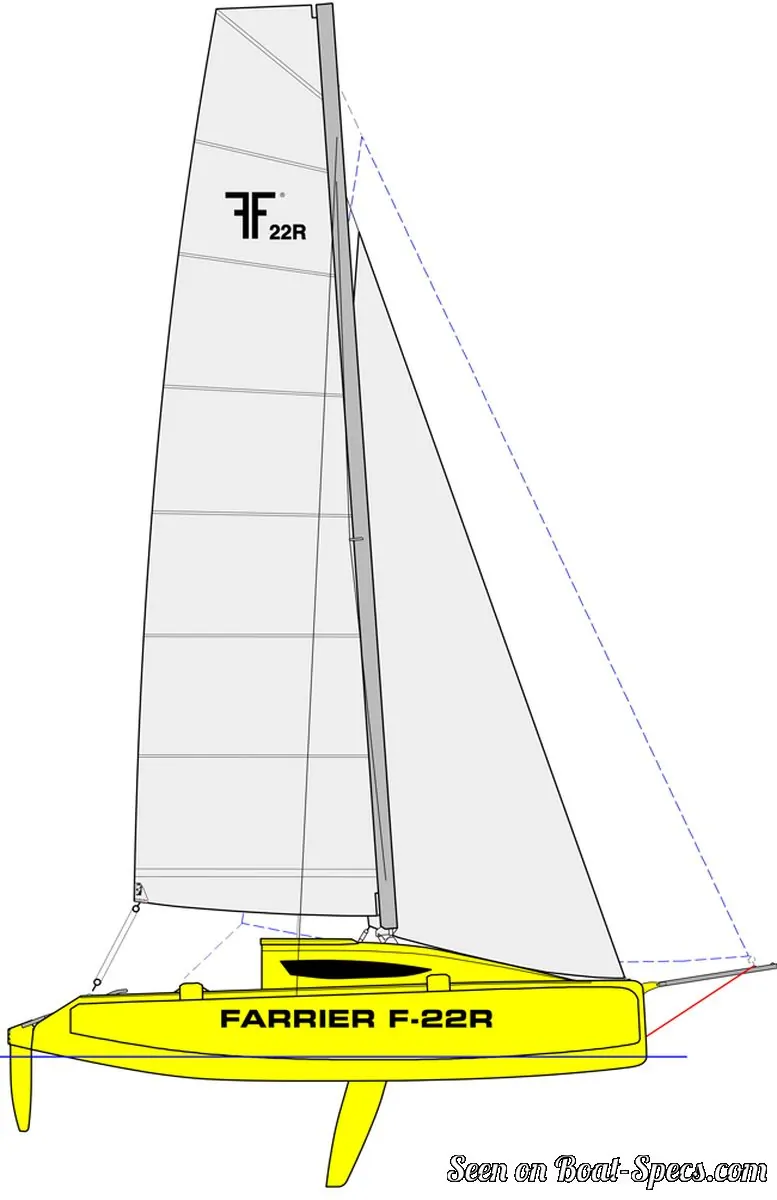

    F-22's rig and sails

    Upwind sail area
    389 ft²36.1 m²

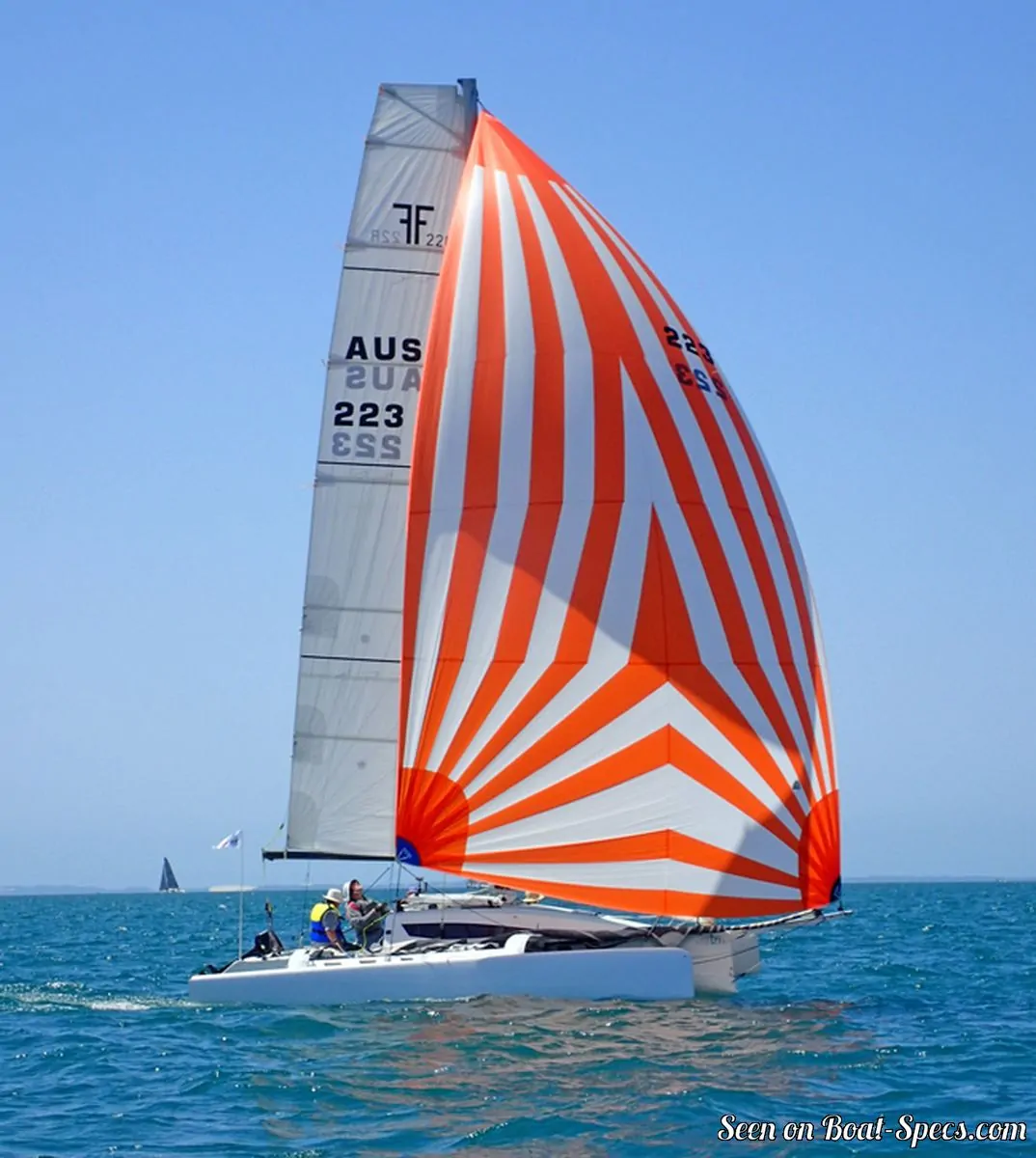

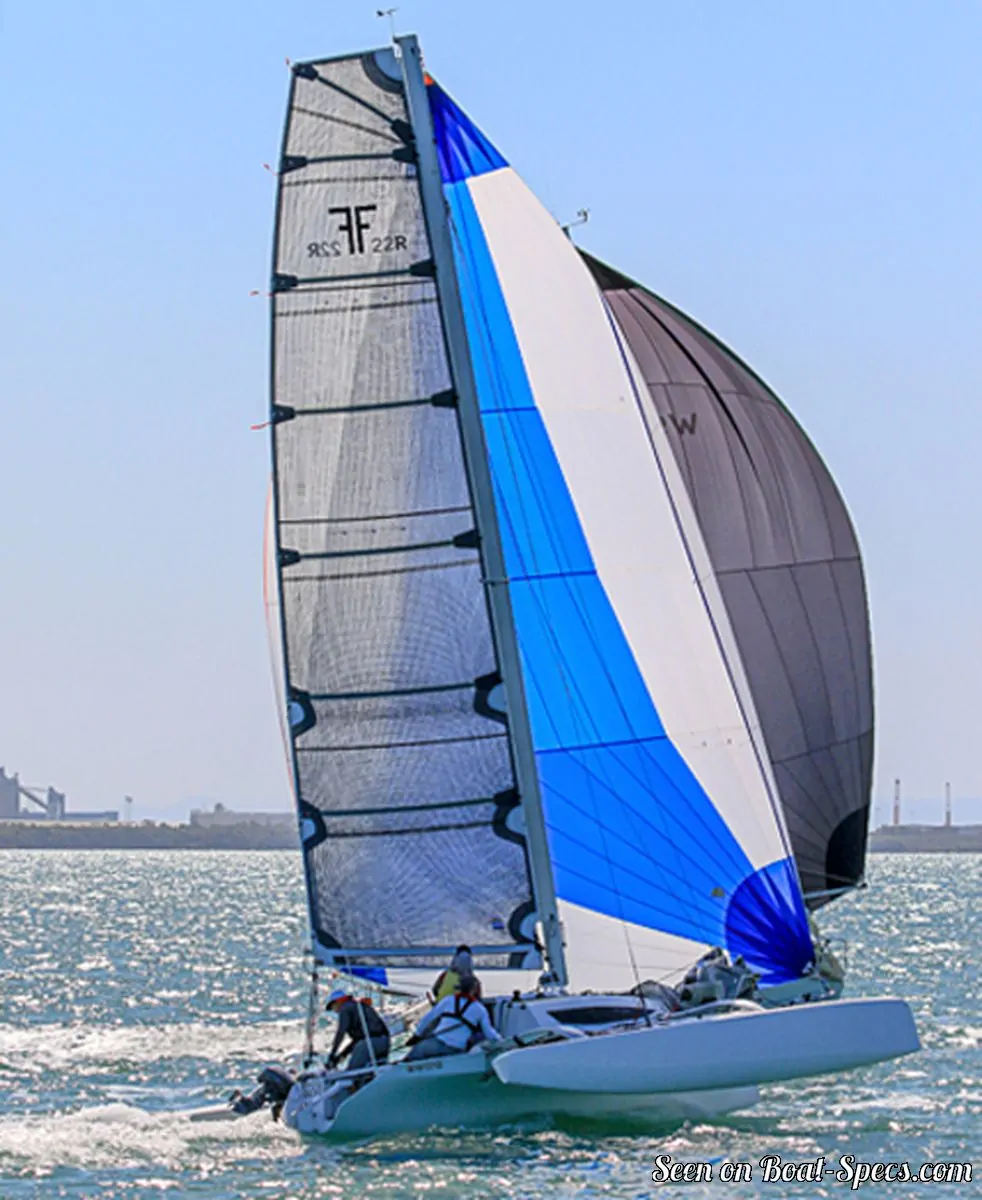

    Downwind sail area
    1000 ft²92.9 m²
    Rigging type
    Sloop Marconi (square top mainsail) fractional
    Mast configuration
    Deck stepped mast
    Rotating spars
    Yes
    Number of levels of spreaders
    1
    Spreaders angle
    Swept-back (diamond)
    Spars construction
    Carbon fiber spars
    Standing rigging
    Textile rig, forestay 1x19 strand wire

    F-22's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    552 ft²/T51.32 m²/T
    Downwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
    1421 ft²/T132.06 m²/T
    Displacement-length ratio (DLR)
     iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
    The DLR can be used to compare the relative mass of different sailboats no matter what their length:

    a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
    54

    F-22's auxiliary engine

    Engine(s)
    1 outboard engine
    Engine(s) power
    8 HP
    Fuel type
    Gas

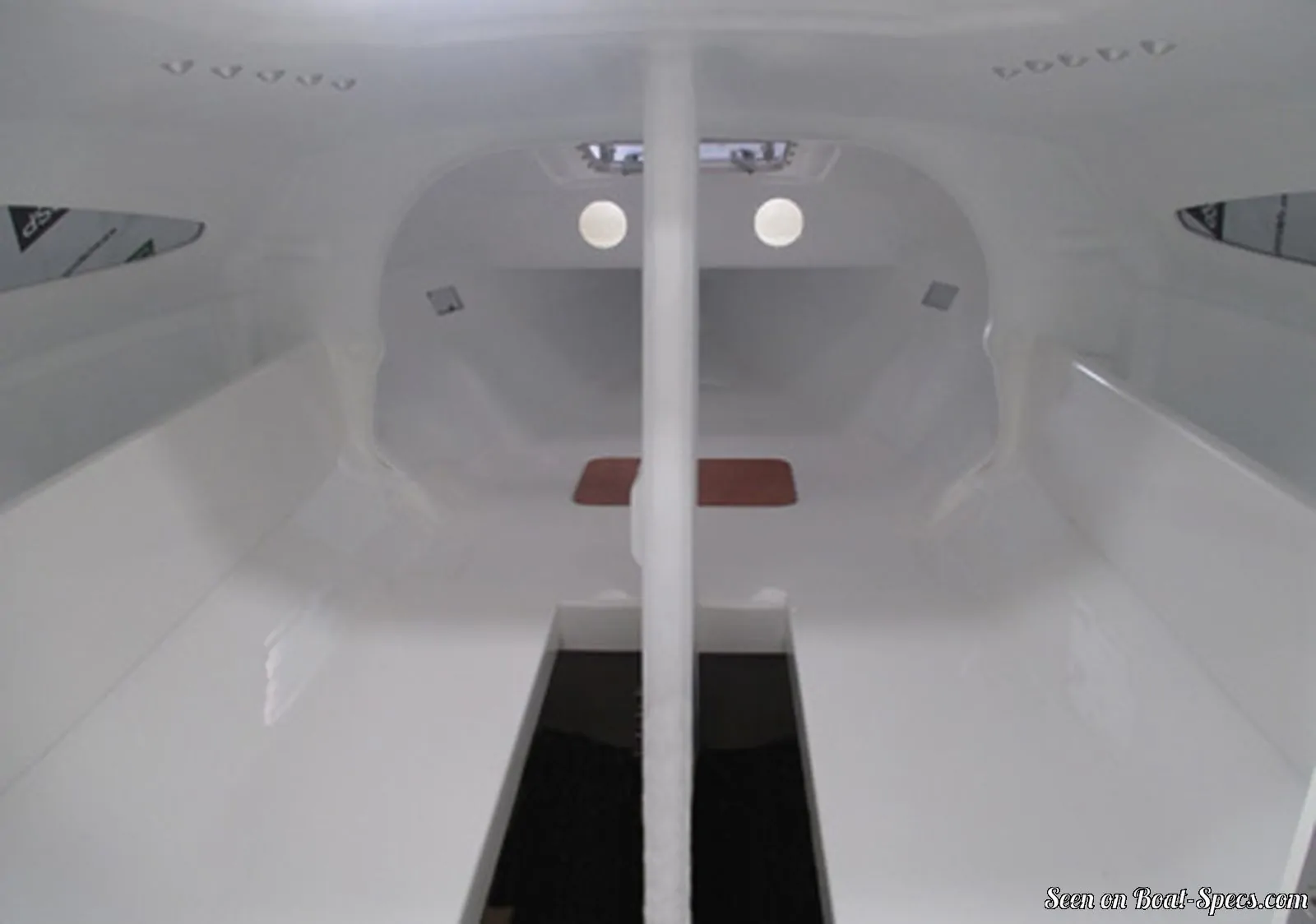

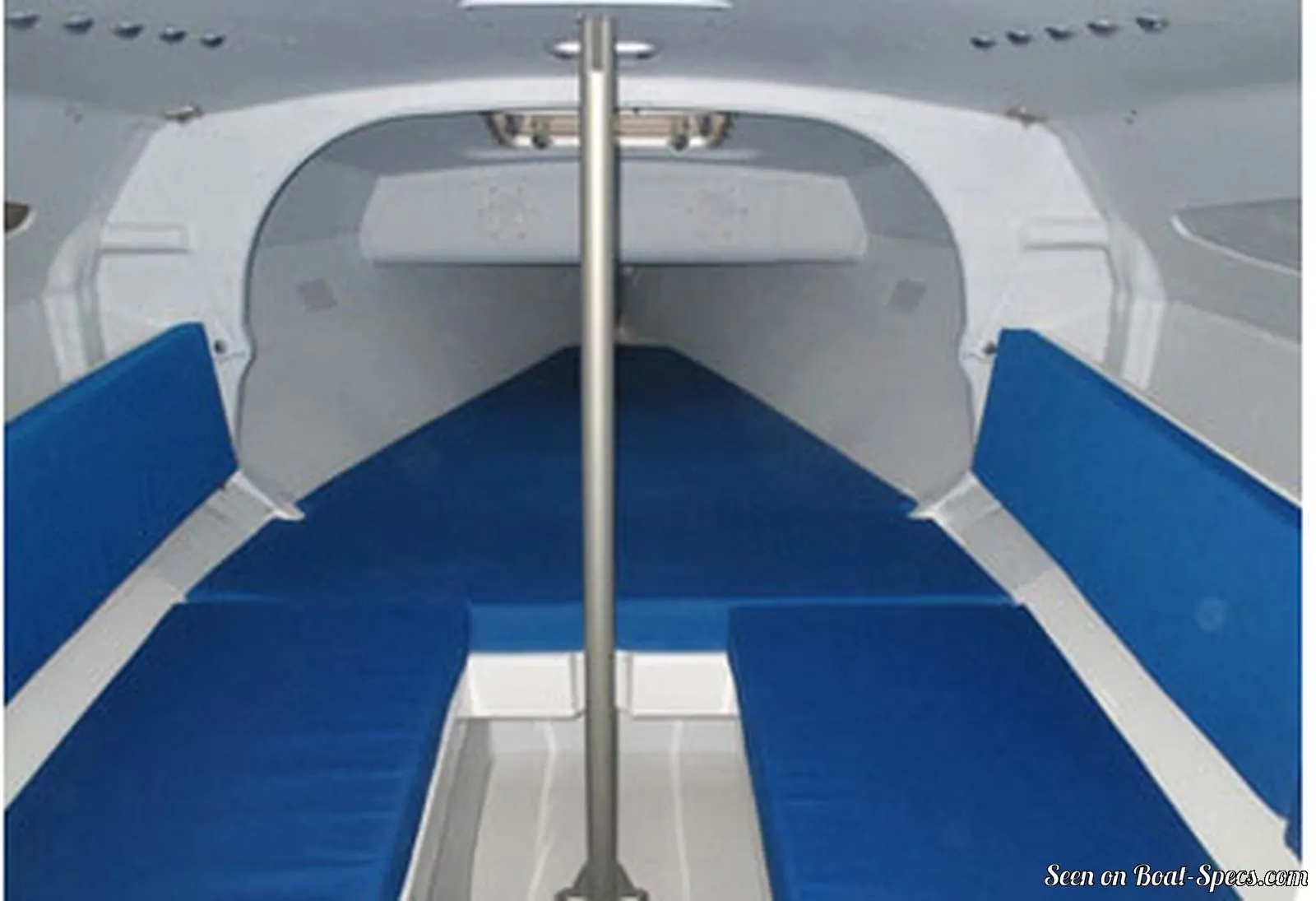

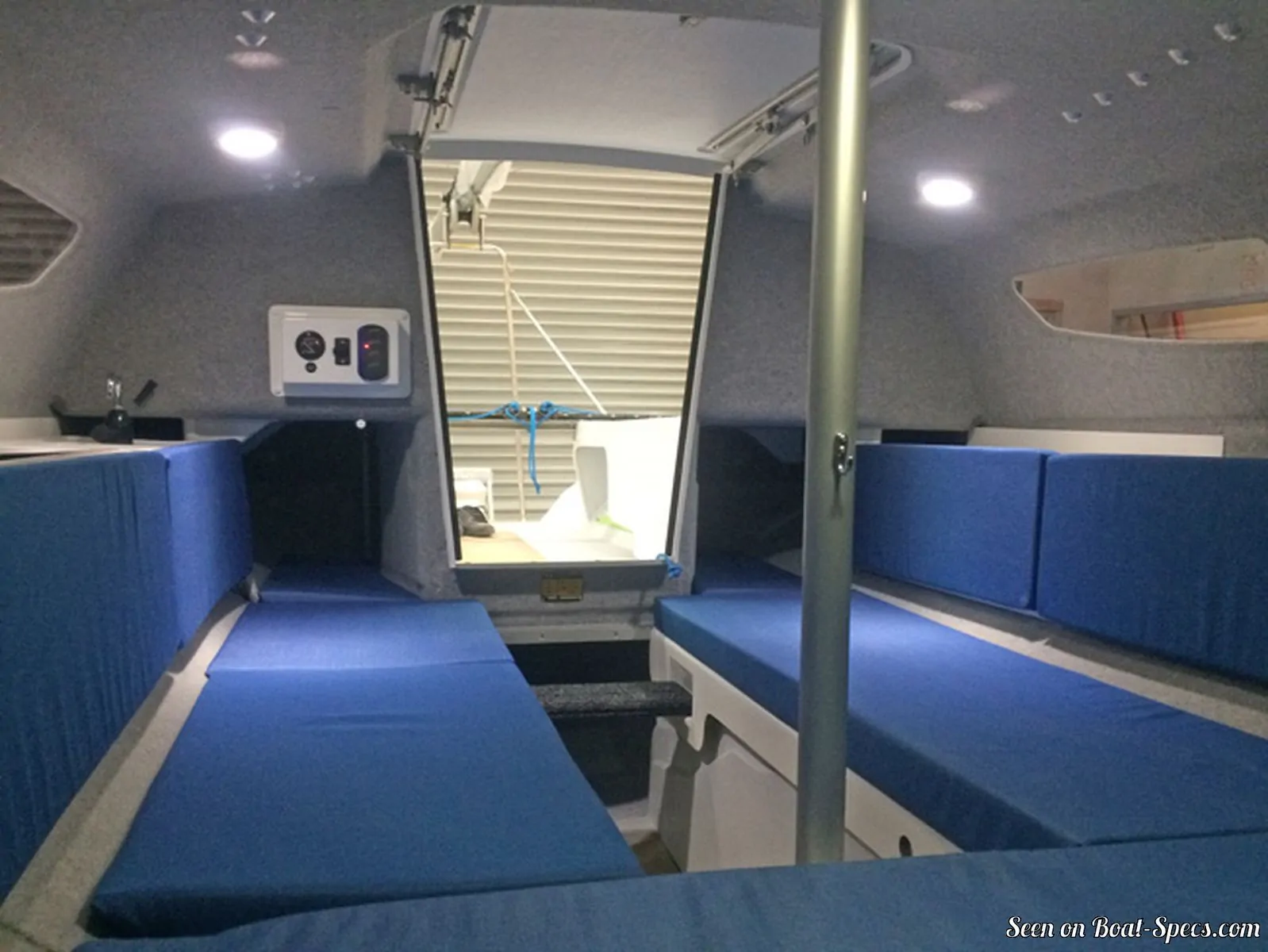

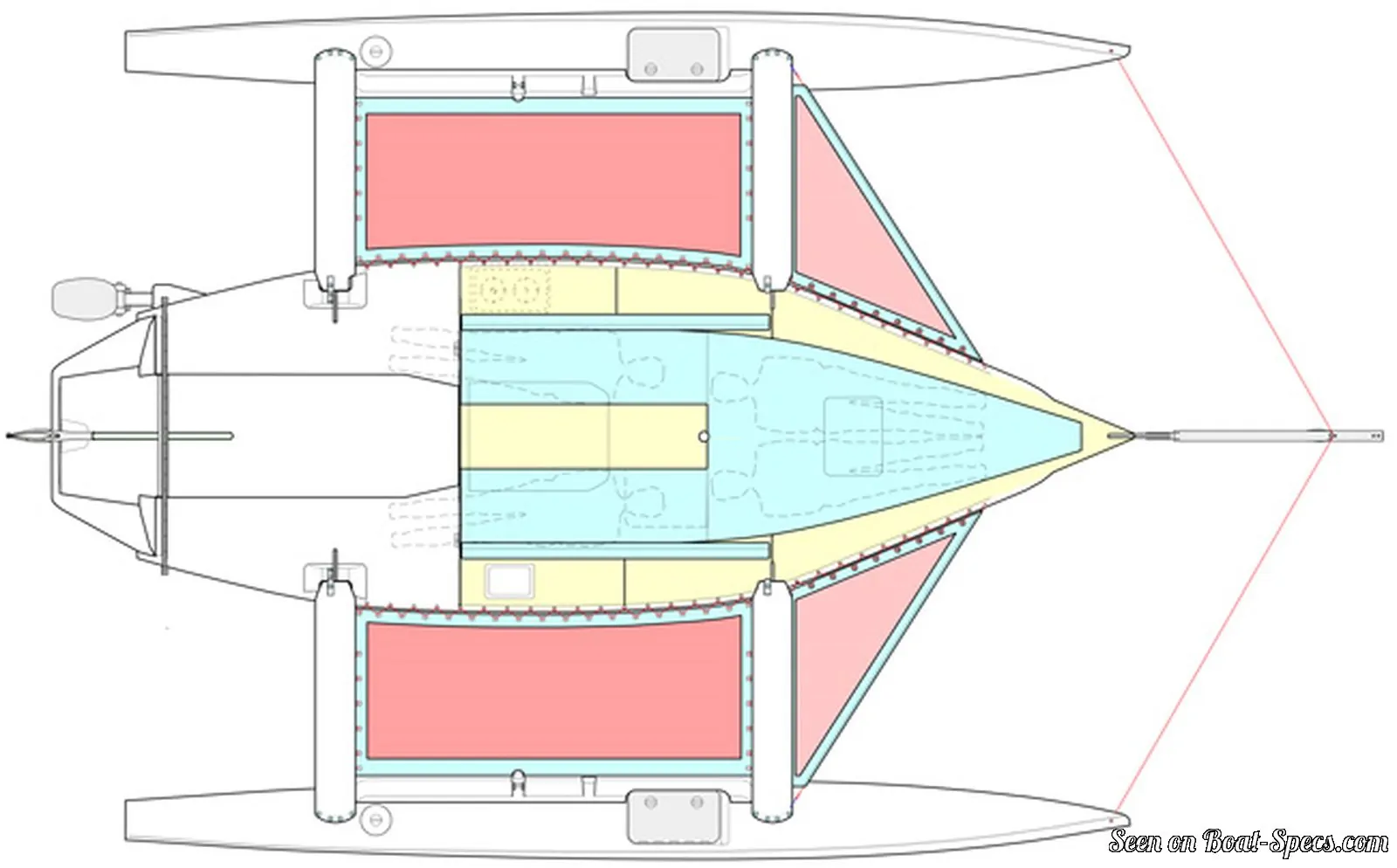

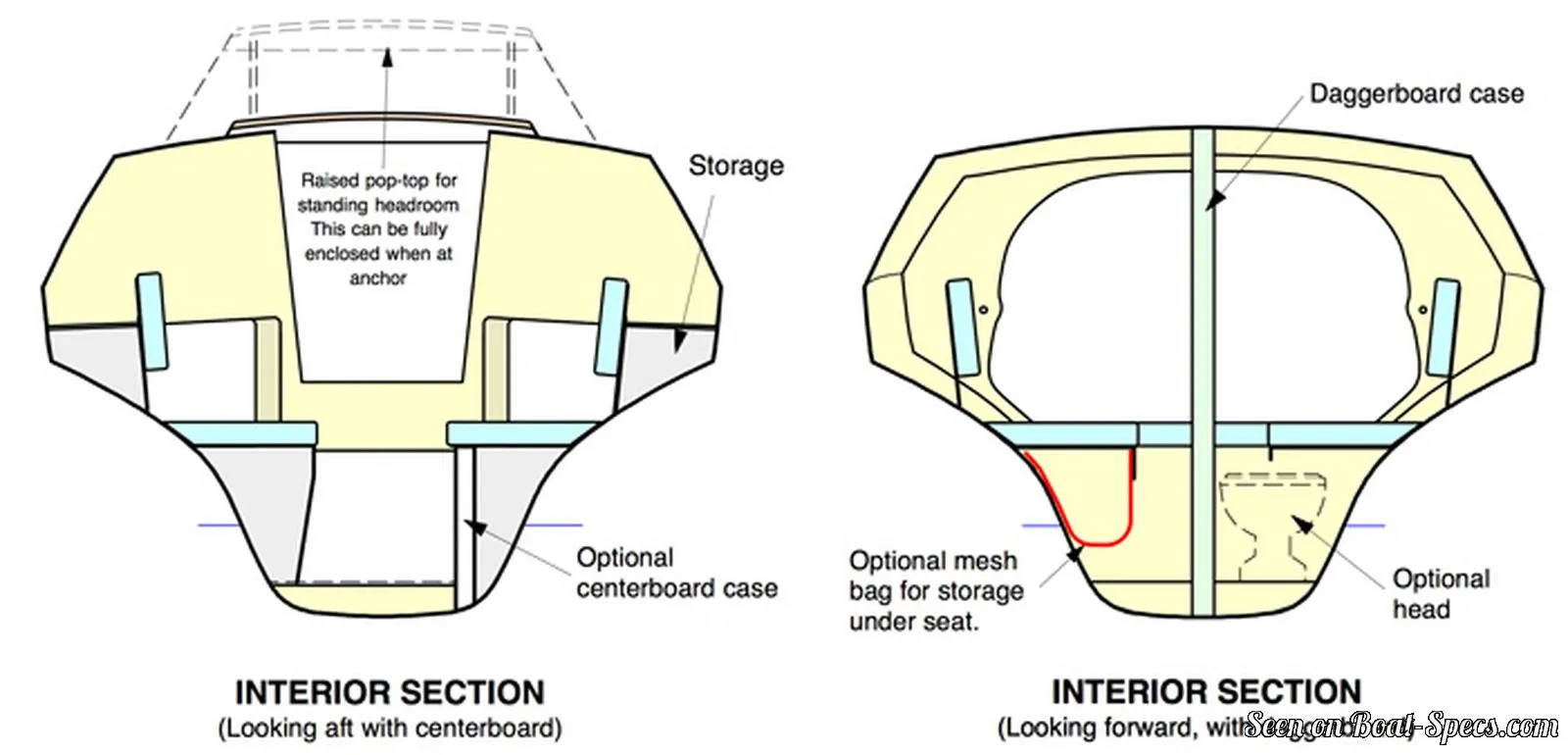

    F-22's accommodations and layout

    Cockpit
    Open aft cockpit
    Berth(s) (min./max.)
    2 / 4
    Maximum headroom
    5’ 5”1.64 m
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
