Diam 24 One-Design

Sailboat specifications

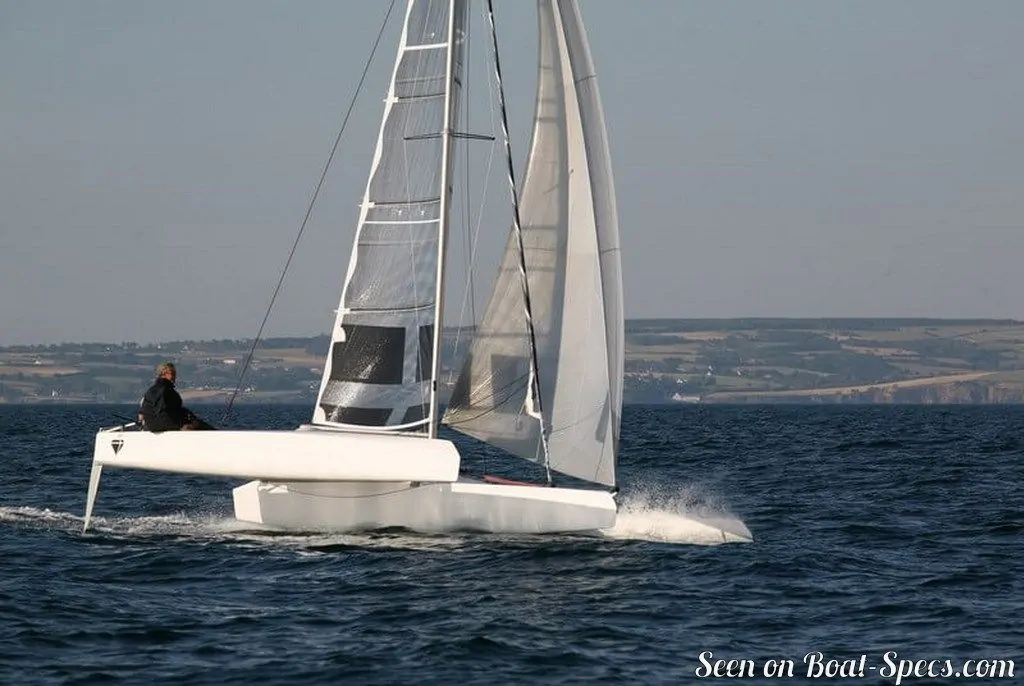

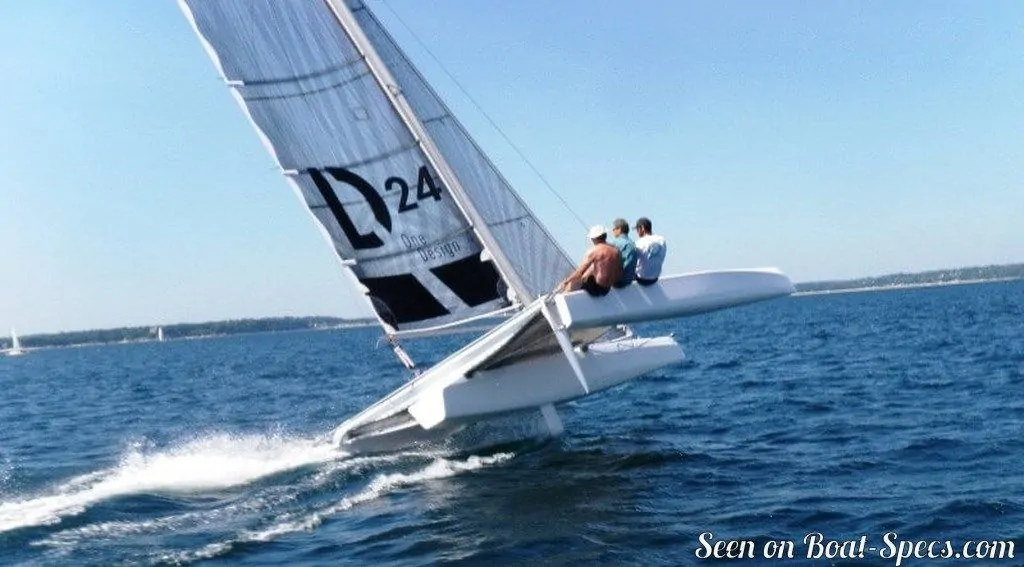

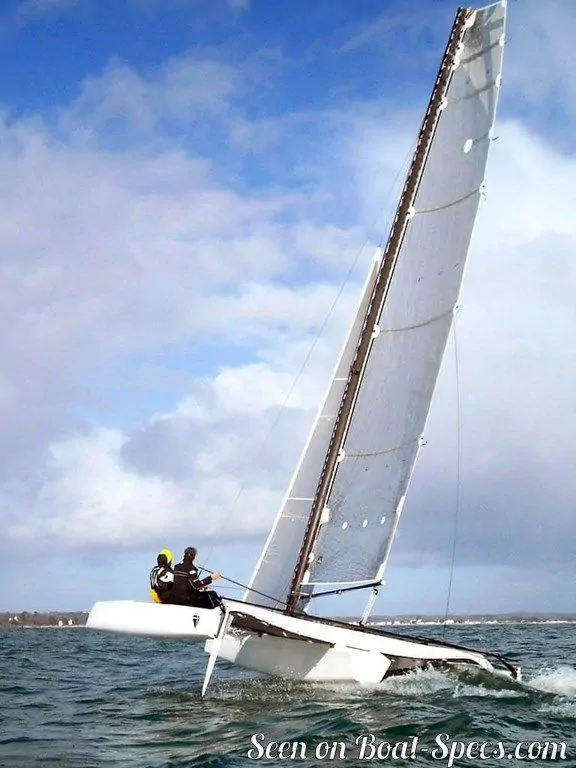

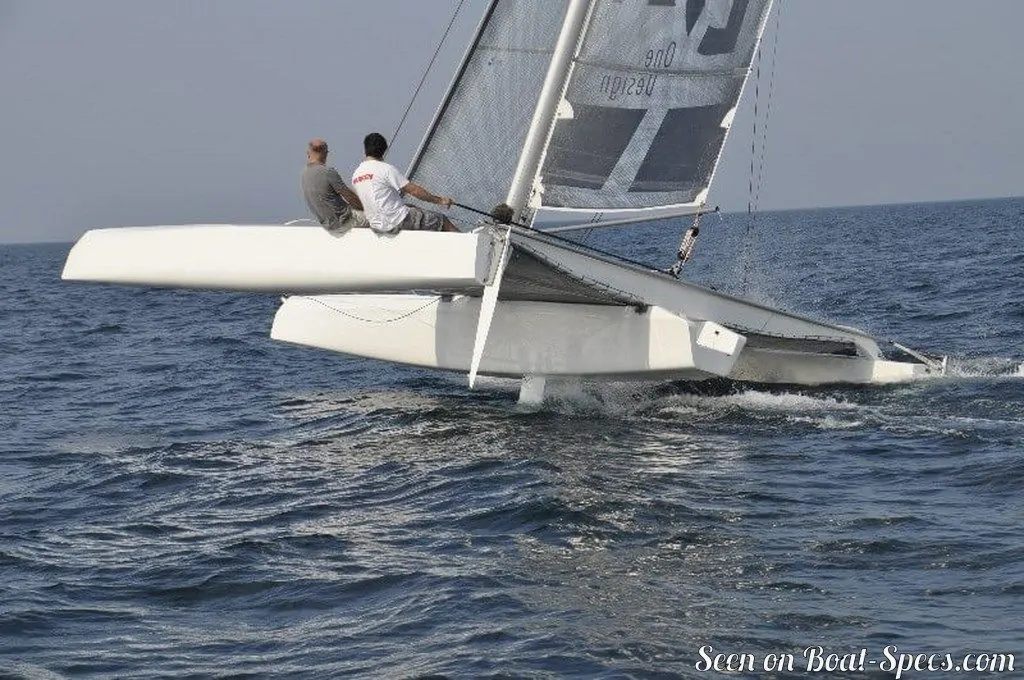

The Diam 24 One-Design is a 23’10” (7.25m) sport/beach trimaran designed by VPLP Design (France). She is built since 2013 by ADH Inotec (France).

Diam 24 One-Design's main features

Model
Diam 24 One-Design
Hull type
Trimaran
Category
Sport/beach trimaran
Sailboat builder
Sailboat designer
Sailboat collection
Country
France
Construction
GRP (glass reinforced polyester):
- Hull: Sandwich PVC fiberglass polyester
- Deck: Sandwich PVC fiberglass polyester
First built hull
2013
Last built hull
Still in production
Appendages
Centerboard : daggerboard (main hull)
Helm
Twin tillers
Rudder
Twin rudders (on amas)
Unsinkable
No
Trailerable
Yes
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
C
Standard public price ex. VAT (indicative only)
About
49 000
 (2020)

Diam 24 One-Design's main dimensions

Hull length
23’ 10”7.25 m
Waterline length
23’ 10”7.25 m
Beam (width)
18’ 5”5.62 m
Draft
4’ 11”1.5 m
Draft when appendages up
0’ 8”0.2 m
Mast height from DWL
40’12.2 m
Folding type
Dismountable
Light displacement (MLC)
992 lb450 kg

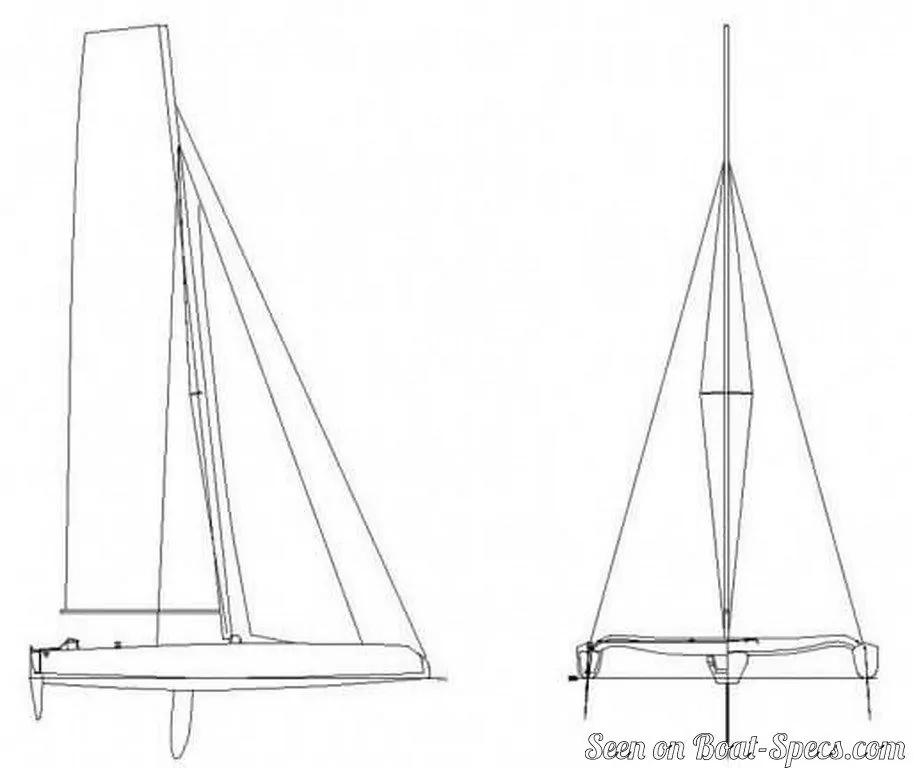

Diam 24 One-Design's rig and sails

Upwind sail area
344 ft²32 m²
Downwind sail area
581 ft²54 m²
Mainsail area
258 ft²24 m²
Jib area
102 ft²9.5 m²
Gennaker area
344 ft²32 m²
P
 iMainsail hoist measurement (from tack to head)
35’ 5”10.8 m
E
 iMainsail foot measurement (from tack to clew)
9’ 6”2.9 m
Rigging type
Sloop Marconi (square top mainsail) fractional
Mast configuration
Deck stepped mast
Rotating spars
Yes
Number of levels of spreaders
1
Spreaders angle
Swept-back (diamond)
Spars construction
Carbon fiber mast and aluminum boom
Standing rigging
1x19 strand wire continuous

Diam 24 One-Design's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
587 ft²/T54.49 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
990 ft²/T91.96 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
33

Diam 24 One-Design's auxiliary engine

Engine(s)
No engine

Diam 24 One-Design's accommodations and layout

Cockpit
No cockpit
