Detailed sailboat specifications and datasheets since 2015
MetricSI (m)
Imperial & Metricboth
ImperialIMP (ft)

Astus 20.5 Sport

Sailboat specifications

The Astus 20.5 is a 19’6” (5.95m) fast cruising trimaran designed by VPLP Design (France). She is built since 2018 by Astus Boats (France). The Sport version comes as standard with better hardware allowing more possibilities to trim sails.

The Astus 20.5 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).

Find out more about the Astus 20.5 on Boat-Spec's blog: European Yacht of the Year 2019 nominated sailboats.

Astus 20.5's main features

Model
Astus 20.5
Version
Sport
Hull type
Trimaran
Category
Coastal fast cruising trimaran
Sailboat builder
Sailboat designer
Country
France
Construction
GRP (glass reinforced polyester):
Single skin fiberglass polyester
First built hull
2018
Last built hull
Still in production
Appendages
Centerboard : pivoting centerboard (main hull)
Helm
Single tiller
Rudder
Single transom hung rudder (main hull)
Unsinkable
No
Trailerable
Yes
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
C
Standard public price ex. VAT (indicative only)
About
25 500
 (2020)

Astus 20.5's main dimensions

Overall length
23’7 m
Hull length
19’ 6”5.95 m
Waterline length
19’ 5”5.9 m
Beam (width)
14’ 10”4.5 m
Draft
4’ 1”1.25 m
Draft when appendages up
0’ 10”0.25 m
Mast height from DWL
30’ 8”9.35 m
Folding type
Sliding arms
Overall width folded
8’ 1”2.48 m
Overall length folded
23’7 m
Light displacement (MLC)
1080 lb490 kg

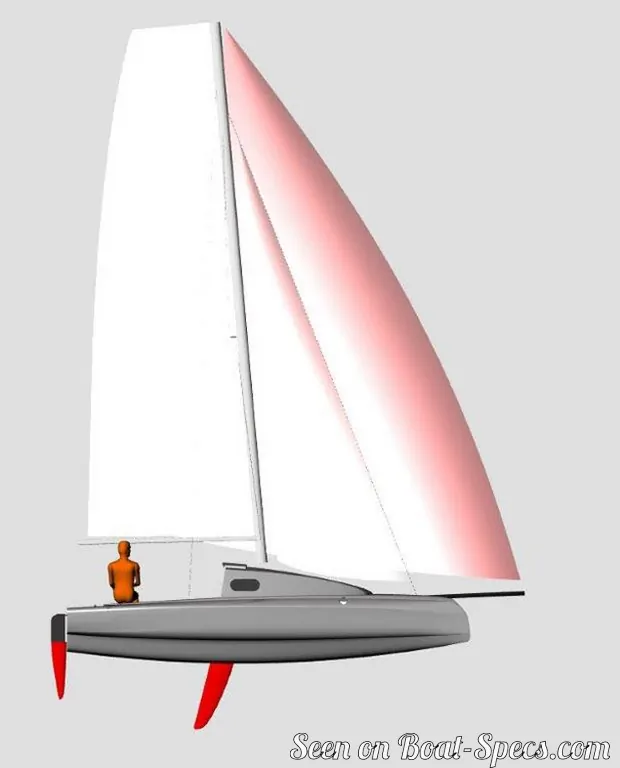

Astus 20.5's rig and sails

Upwind sail area
258 ft²24 m²
Downwind sail area
452 ft²42 m²
Mainsail area
172 ft²16 m²
Jib area
86 ft²8 m²
Gennaker area
280 ft²26 m²
Rigging type
Sloop Marconi (square top mainsail) fractional
Mast configuration
Deck stepped mast
Rotating spars
Optional
Number of levels of spreaders
1
Spreaders angle
Swept-back (diamond)
Spars construction
Aluminum spars (carbon fiber spars as an option)
Standing rigging
1x19 strand wire continuous

Astus 20.5's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
416 ft²/T38.61 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
727 ft²/T67.57 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
68

Astus 20.5's auxiliary engine

Engine(s)
1 outboard engine
Engine(s) power
6 HP
Fuel type
Gas

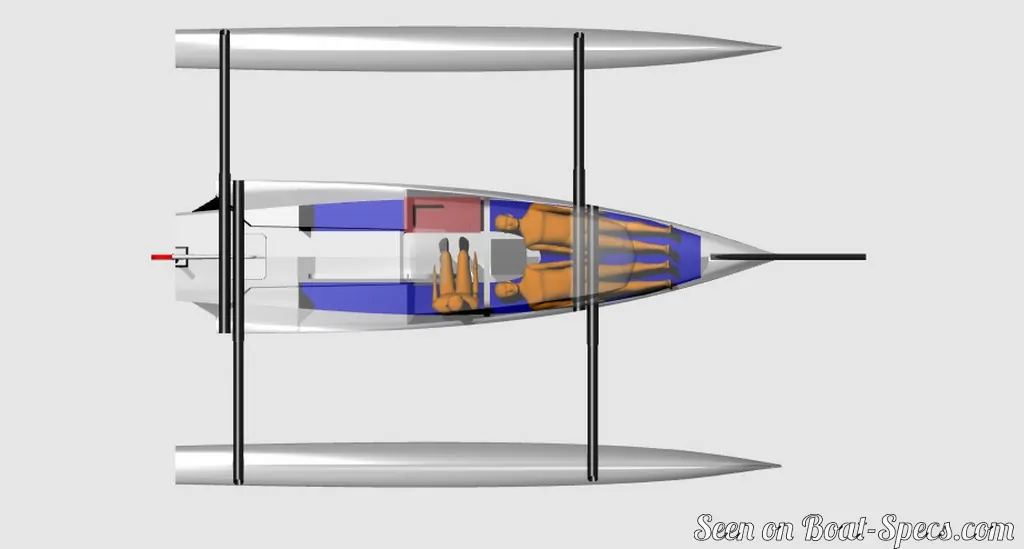

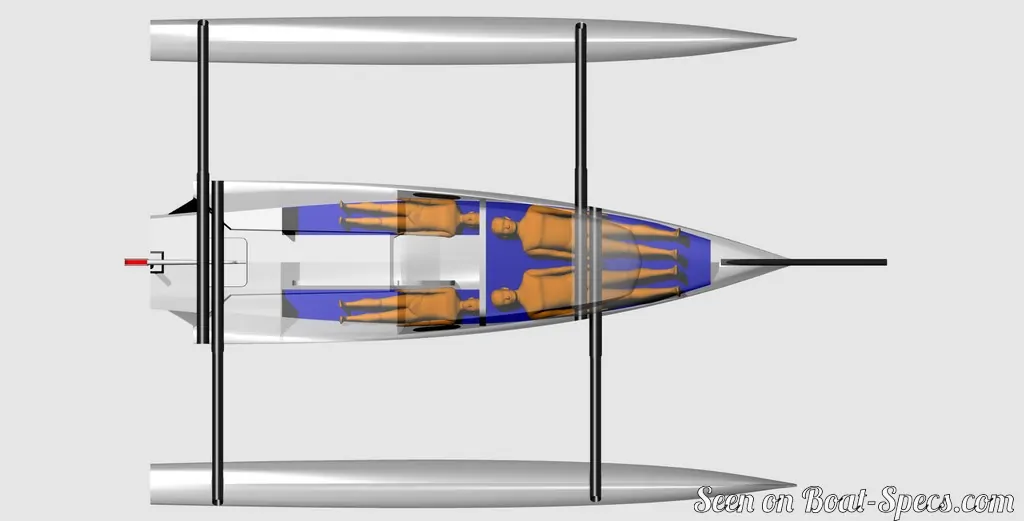

Astus 20.5's accommodations and layout

Cockpit
Open aft cockpit
Berth(s) (min./max.)
2 / 4
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
