Pulse 600

Sailboat specifications

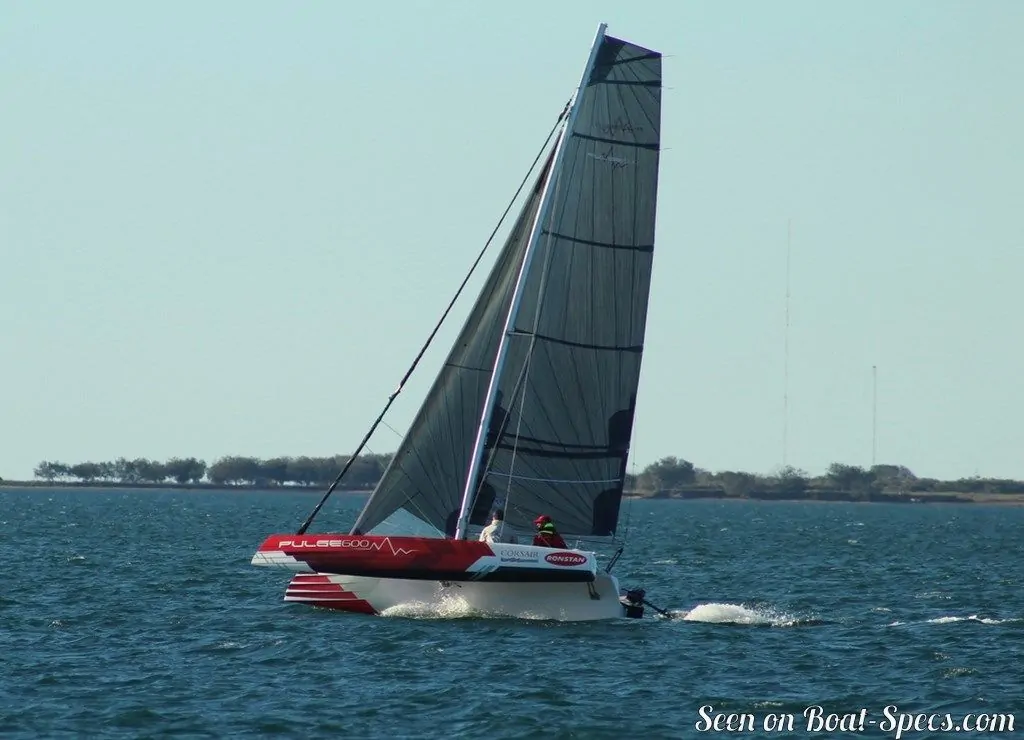

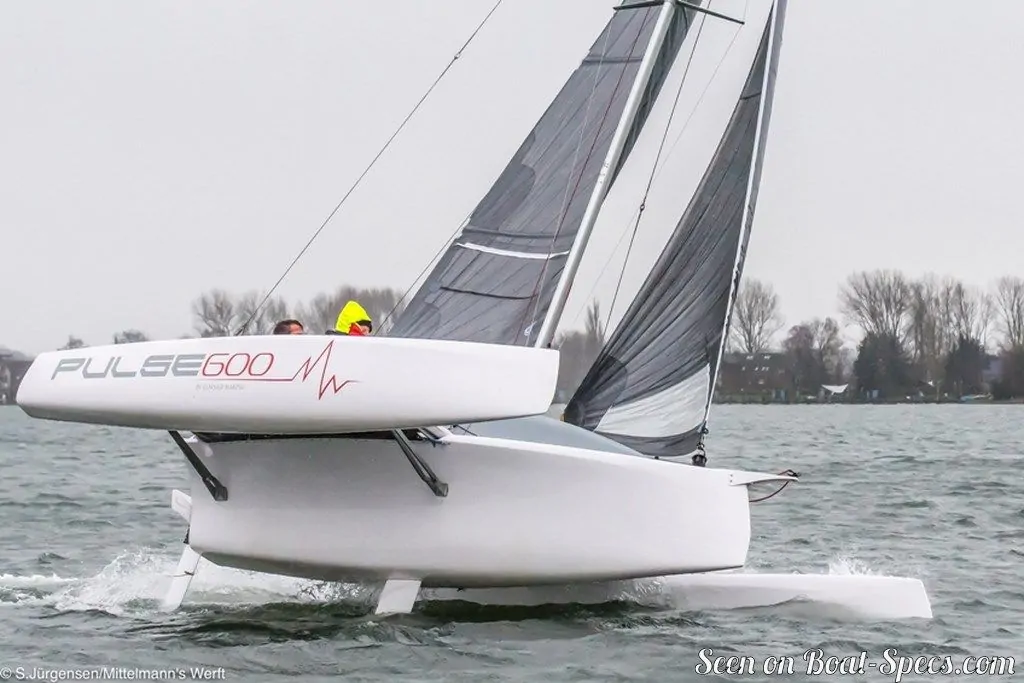

The Pulse 600 is a 19’8” (6m) sport/beach trimaran designed by Design Team Corsair (United States). She is built since 2015 by Corsair Marine (Vietnam).

Pulse 600's main features

Model
Pulse 600
Hull type
Trimaran
Category
Sport/beach trimaran
Sailboat builder
Sailboat designer
Country
Vietnam
Construction
Carbon fiber reinforced epoxy:
Sandwich PVC carbon fiber epoxy
First built hull
2015
Last built hull
Still in production
Appendages
Centerboard : daggerboard (main hull)
Helm
Single tiller
Rudder
Single transom hung rudder (main hull)
Unsinkable
No
Trailerable
Yes
Standard public price ex. VAT (indicative only)
About
32 500
 (2020)

Pulse 600's main dimensions

Hull length
19’ 8”6 m
Beam (width)
14’ 10”4.5 m
Draft
3’ 11”1.2 m
Draft when appendages up
0’ 8”0.22 m
Overall width folded
8’2.45 m
Overall length folded
19’ 8”6 m
Light displacement (MLC)
992 lb450 kg

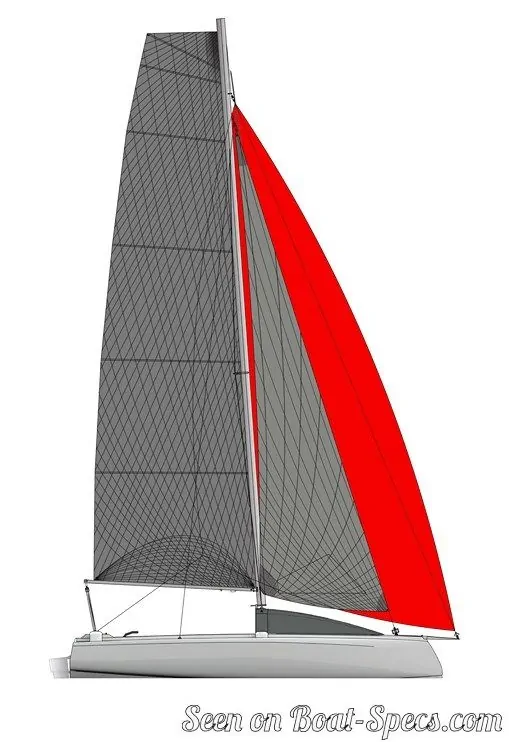

Pulse 600's rig and sails

Upwind sail area
282 ft²26.2 m²
Downwind sail area
550 ft²51.1 m²
Mainsail area
206 ft²19.1 m²
Jib area
76 ft²7.1 m²
Asymmetric spinnaker area
344 ft²32 m²
Rigging type
Sloop Marconi fractional
Mast configuration
Deck stepped mast
Rotating spars
Yes
Number of levels of spreaders
1
Spreaders angle
Swept-back (diamond)
Spars construction
Aluminum spars
Standing rigging
Continuous

Pulse 600's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
480 ft²/T44.62 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
937 ft²/T87.02 m²/T

Pulse 600's auxiliary engine

Engine(s)
1 outboard engine
Fuel type
Gas

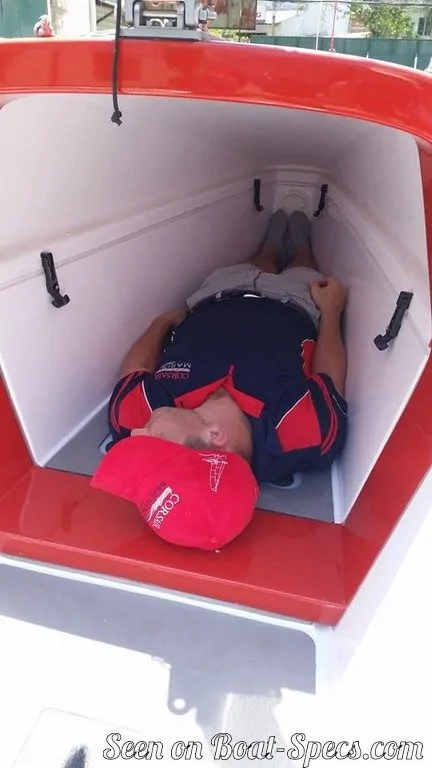

Pulse 600's accommodations and layout

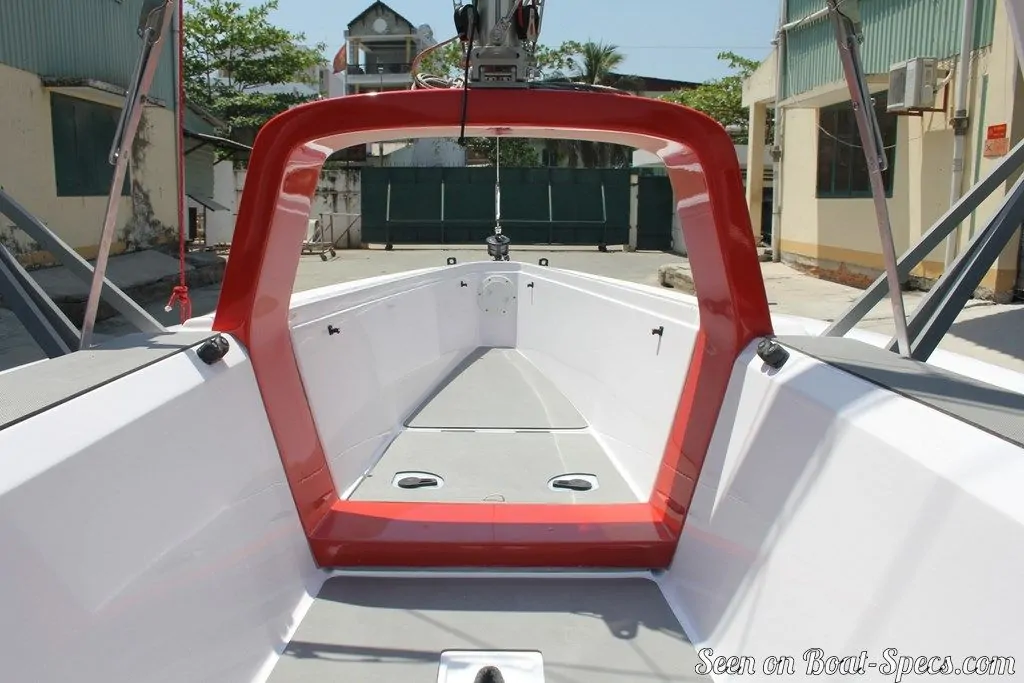

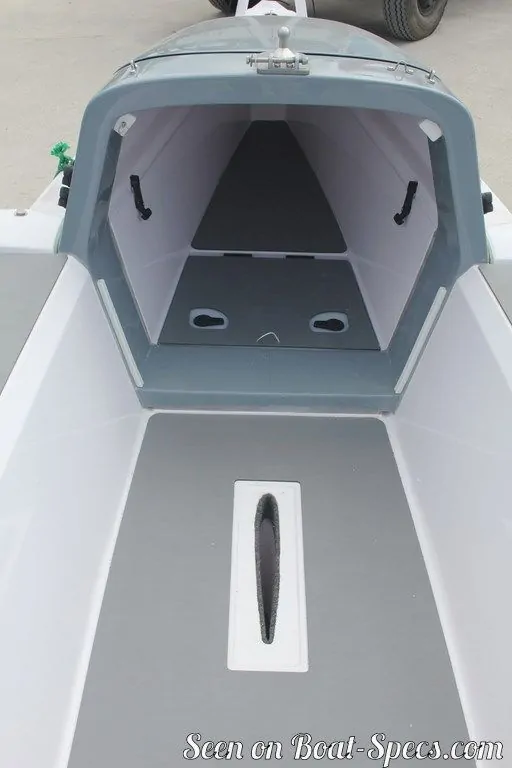

Cockpit
Open aft cockpit
Berth(s)
1
