Xp 55 Standard

Sailboat specifications

The Xp 55 is a 55’ (16.76m) racer-cruiser sailboat designed by X-Yachts Design Group (Denmark). She is built since 2013 by X-Yachts (Denmark). She has been awarded "2019 - SAIL magazine - Best Large Monohull 51ft and Above".

The Xp 55 is as well listed, on Boat-Specs.com, in Deep draft version (see all the versions compared).

Xp 55's main features

Model
Xp 55
Version
Standard
Hull type
Monohull
Category
Offshore racer-cruiser sailboat
Sailboat builder
Sailboat designer
Sailboat range
Country
Denmark
Construction
Fiberglass reinforced epoxy:
Sandwich Core-Cell fiberglass epoxy
First built hull
2013
Last built hull
Still in production
Award(s)
  • 2019: SAIL magazine - Best Large Monohull 51ft and Above
    Appendages
    Keel : T-shaped keel (with bulb)
    Helm
    Twin helm wheels
    Rudder
    Single spade rudder
    Unsinkable
    No
    Trailerable
    No
    Standard public price ex. VAT (indicative only)
    About
    775 000
     (2020)

    Xp 55's main dimensions

    Hull length
    55’16.76 m
    Waterline length
    48’ 10”14.87 m
    Beam (width)
    15’ 7”4.77 m
    Draft
    9’ 5”2.85 m
    Light displacement (MLC)
    37038 lb16800 kg
    Ballast weight
    13889 lb6300 kg
    Ballast type
    Cast iron fin with lead bulb

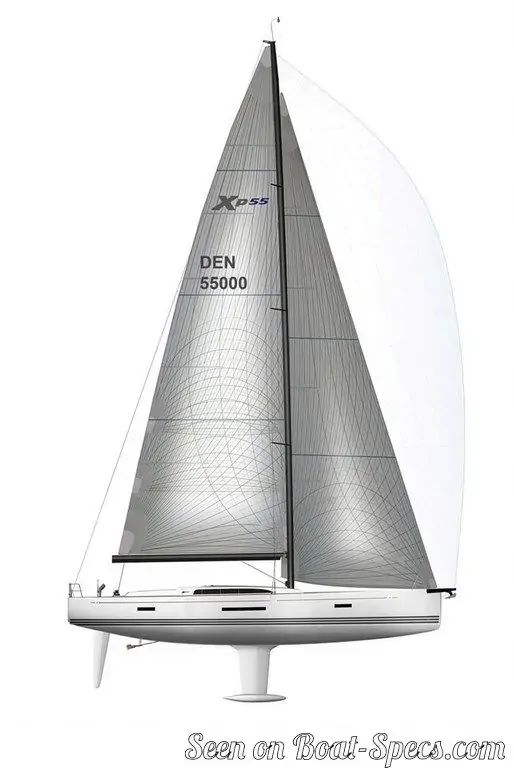

    Xp 55's rig and sails

    Upwind sail area
    1877 ft²174.4 m²
    Downwind sail area
    3655 ft²339.6 m²
    Mainsail area
    1072 ft²99.6 m²
    Genoa area
    805 ft²74.8 m²
    Asymmetric spinnaker area
    2583 ft²240 m²
    Rigging type
    Sloop Marconi 9/10
    Mast configuration
    Keel stepped mast
    Rotating spars
    No
    Number of levels of spreaders
    3
    Spreaders angle
    Swept-back
    Spars construction
    Aluminum spars (carbon boom as an option)
    Standing rigging
    Single-strand (ROD)

    Xp 55's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    286 ft²/T26.59 m²/T
    Downwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
    557 ft²/T51.77 m²/T
    Displacement-length ratio (DLR)
     iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
    The DLR can be used to compare the relative mass of different sailboats no matter what their length:

    a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
    145
    Ballast ratio
     iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

    The higher the ballast ratio is, the greater is the stability.
    38 %
    Critical hull speed
     iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
    The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
    9.36 knots

    Xp 55's auxiliary engine

    Engine(s)
    1 inboard engine
    Engine(s) power
    110 HP
    Fuel type
    Diesel
    Fuel tank capacity
    105.7 gal400 liters

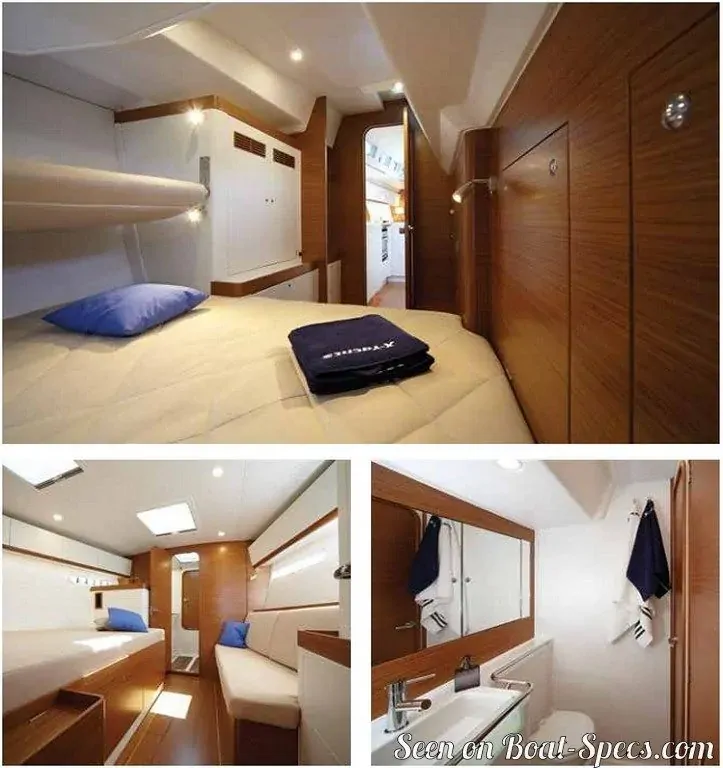

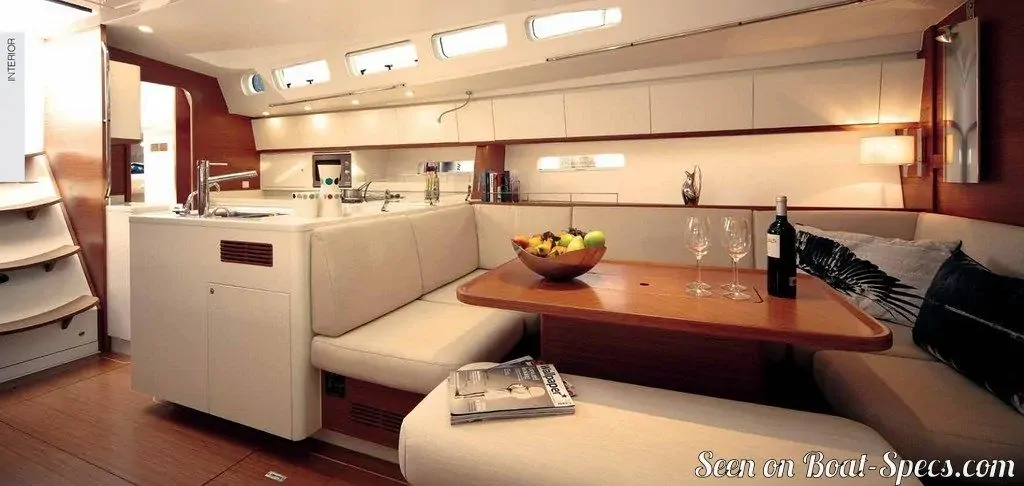

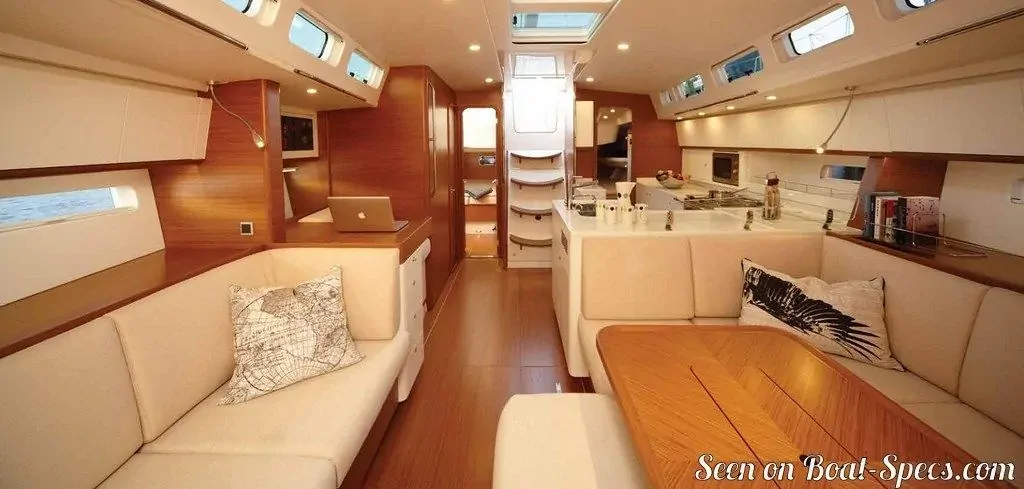

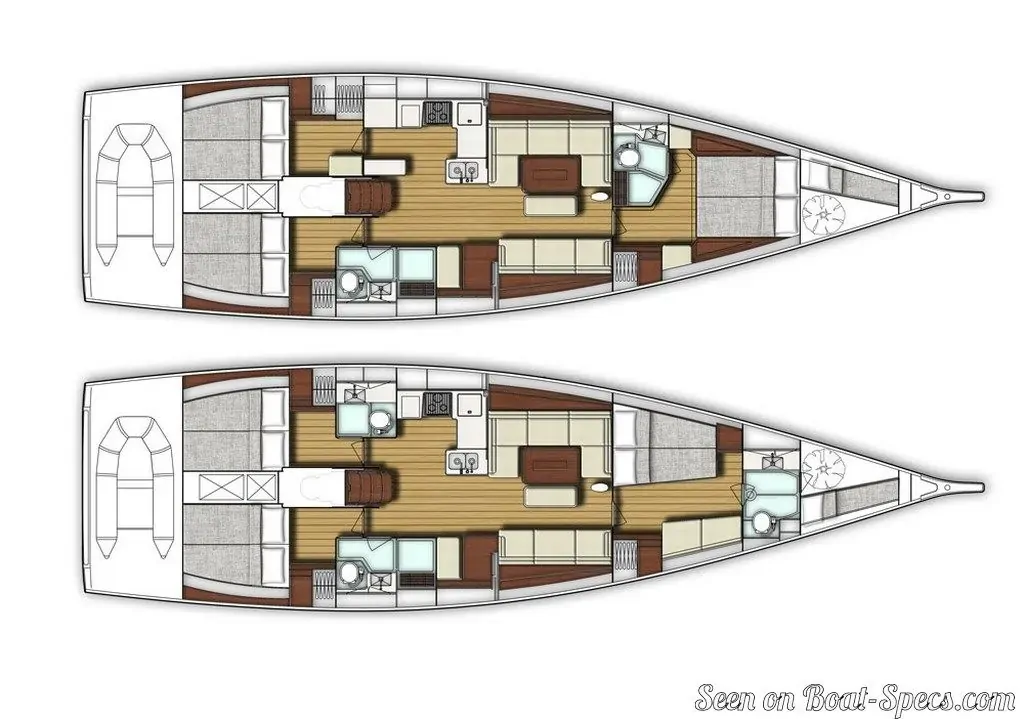

    Xp 55's accommodations and layout

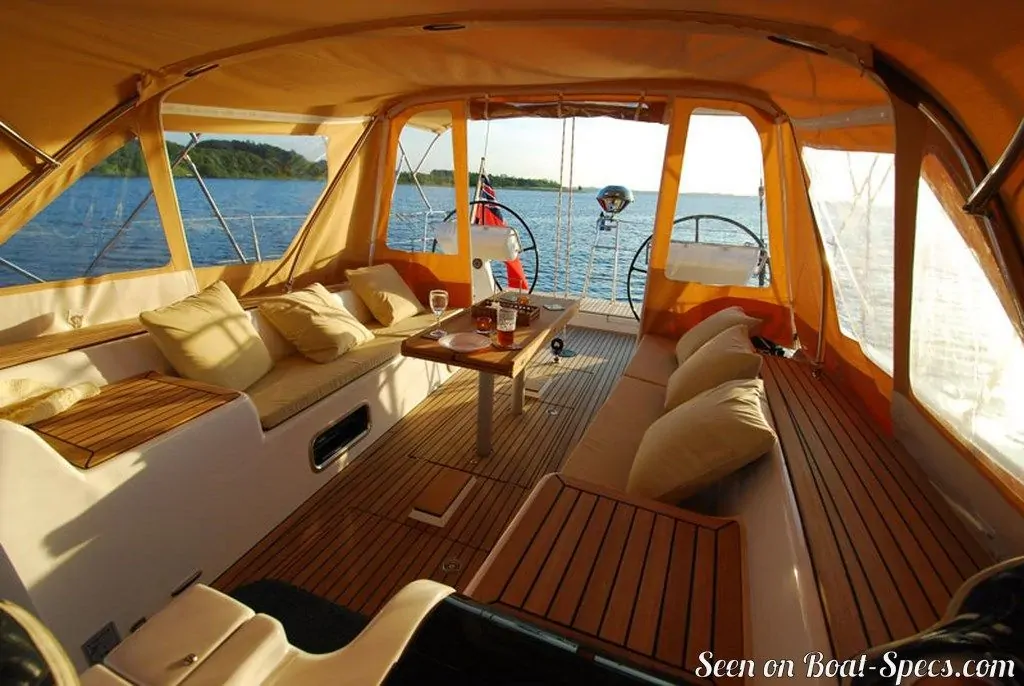

    Cockpit
    Open aft cockpit

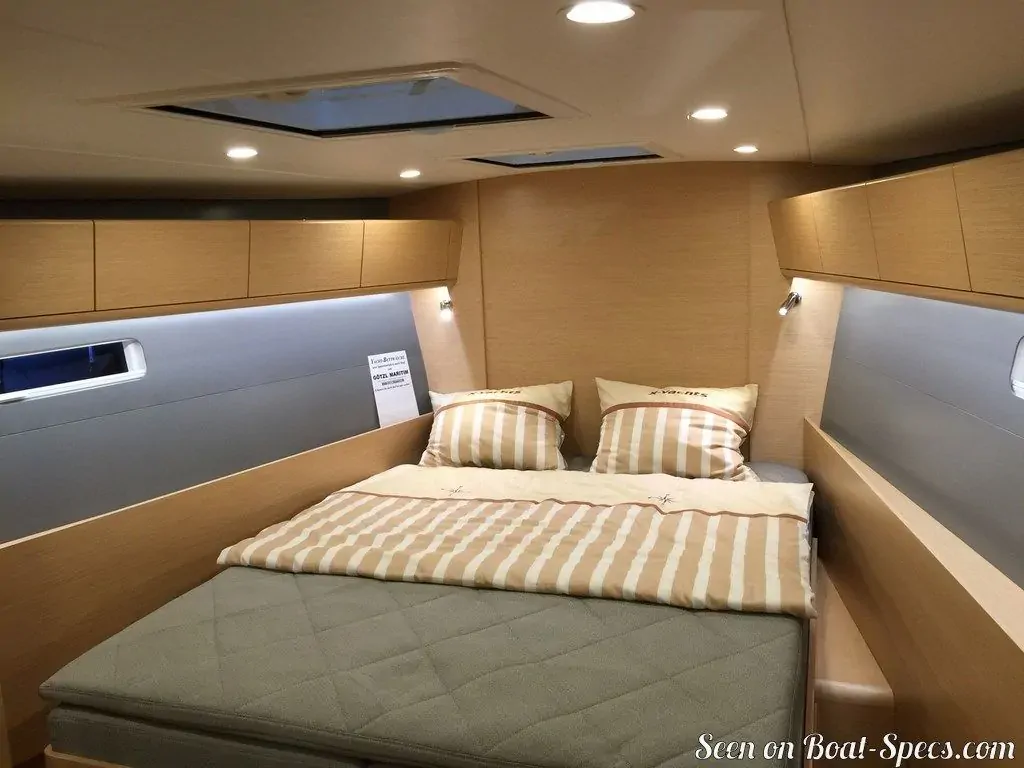

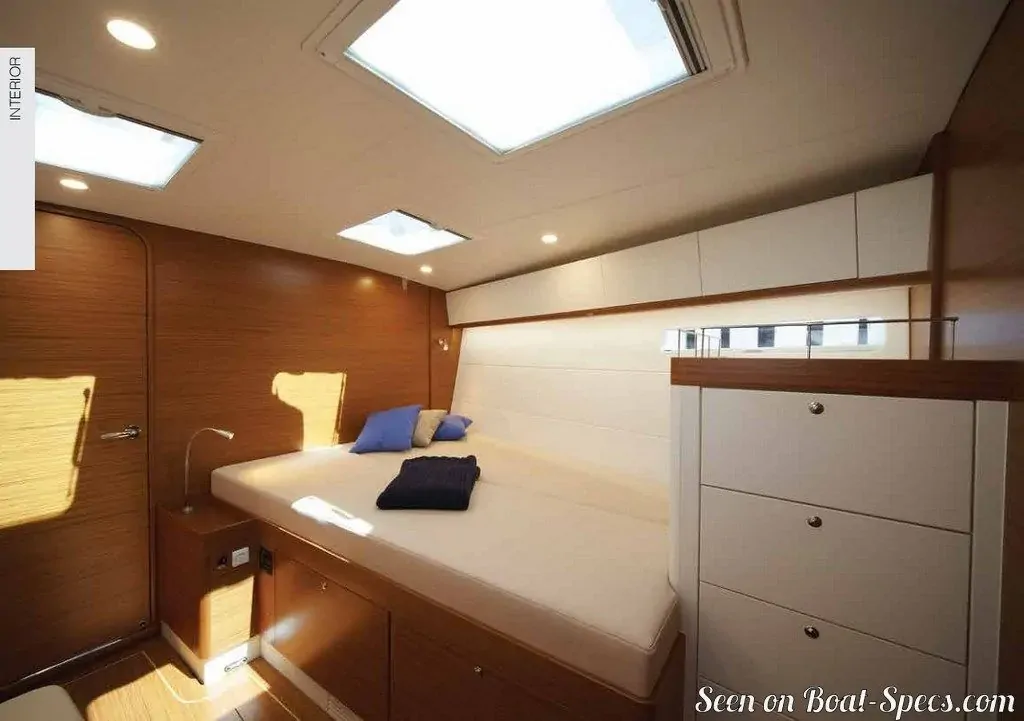

    Cabin(s)
    4
    Berth(s) (min./max.)
    7 / 9
    Head(s) (min./max.)
    2 / 3
    Freshwater tank capacity
    145.3 gal550 liters
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
