Swan 60 S

Sailboat specifications

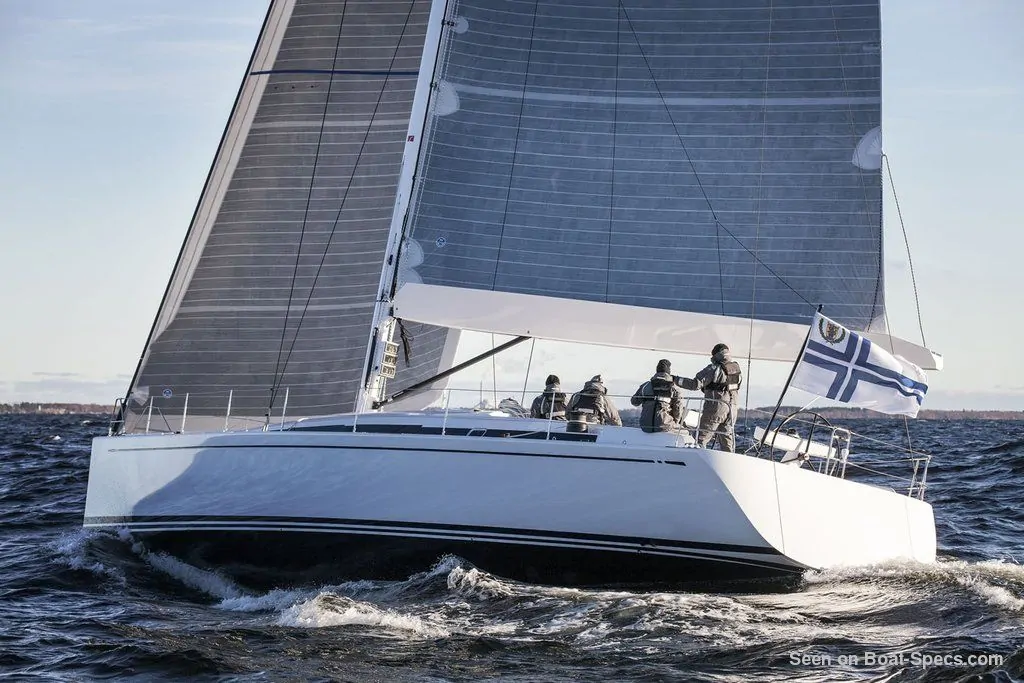

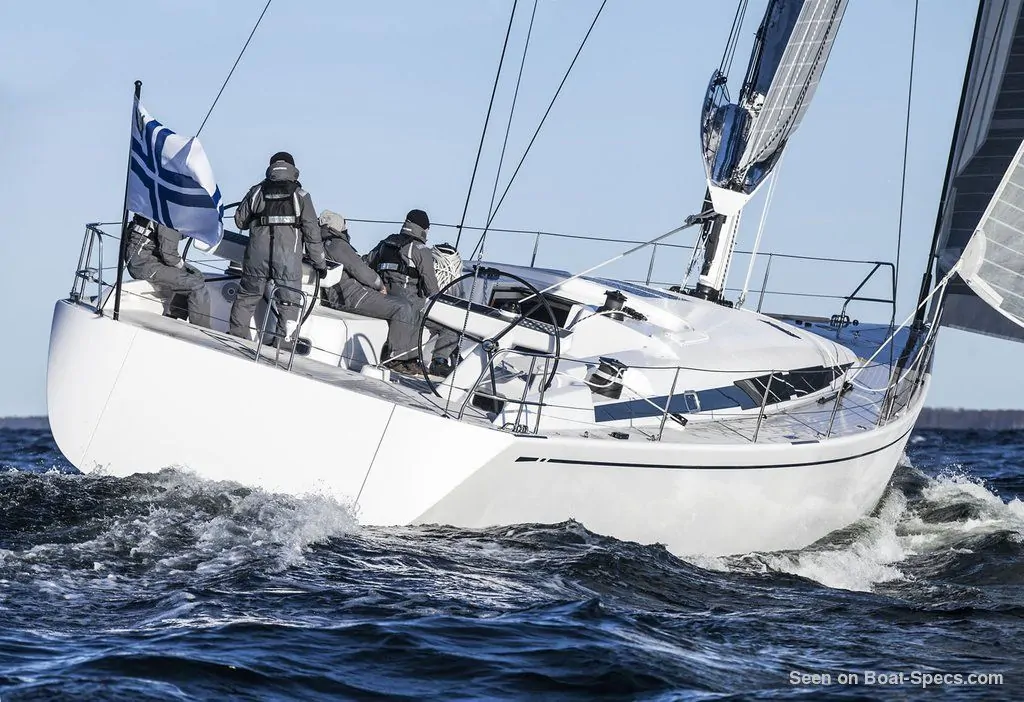

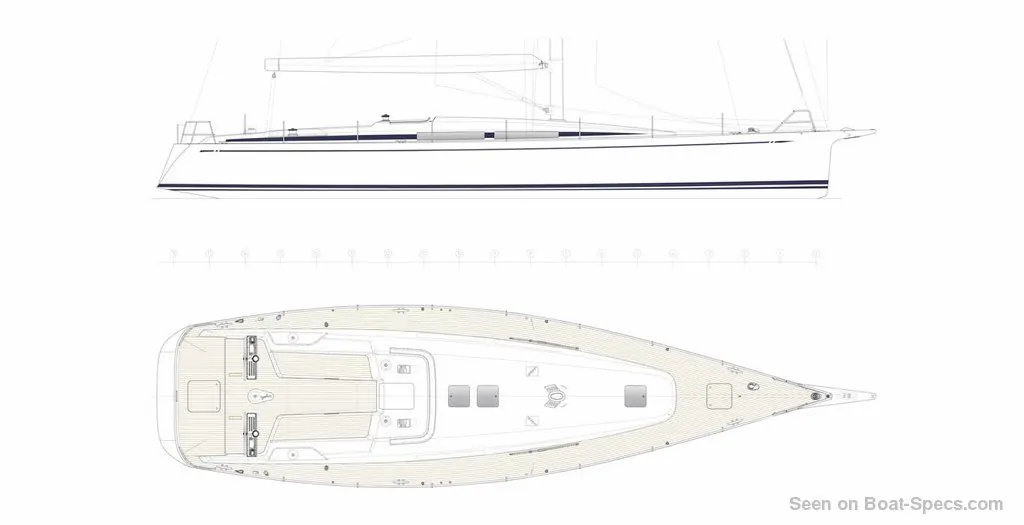

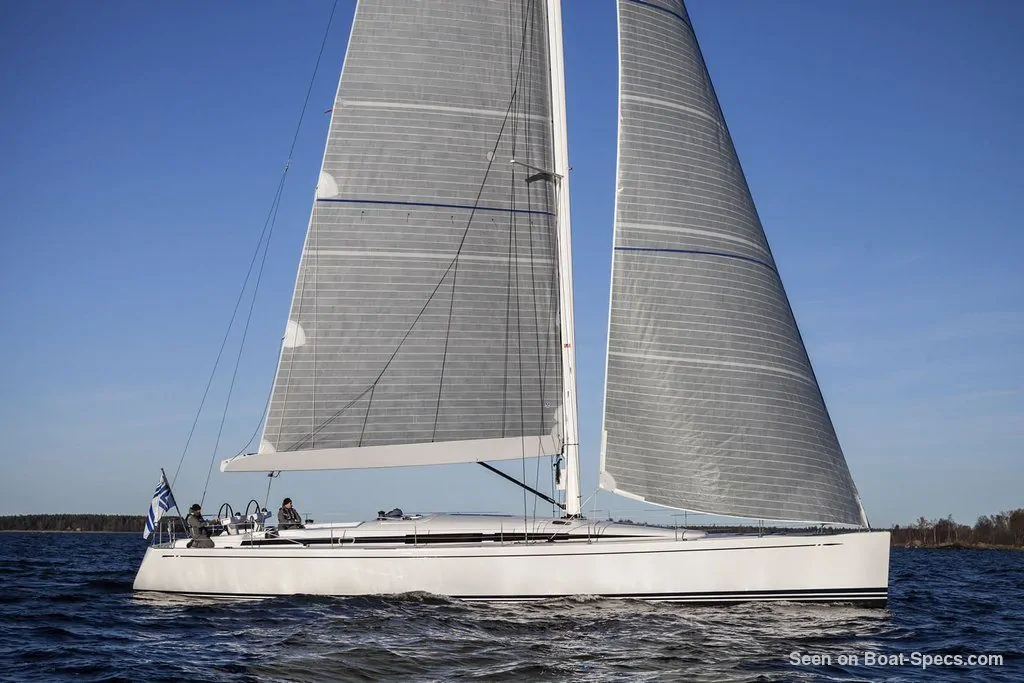

The Swan 60 S is a 61’11” (18.86m) racer-cruiser sailboat designed by Frers Naval Architecture & Engineering (Argentina). She was built between 2009 and 2017 by Nautor's Swan (Finland).

Swan 60 S's main features

Model
Swan 60 S
Hull type
Monohull
Category
Offshore racer-cruiser sailboat
Sailboat builder
Sailboat designer
Country
Finland
Construction
Fiberglass reinforced epoxy:
Sandwich PVC fiberglass epoxy with carbon fiber reinforcements
First built hull
2009
Last built hull
2017
Appendages
Keel : fin with bulb
Helm
Twin helm wheels
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
A
Standard public price ex. VAT (indicative only)
About
2 750 000
 (2017)

Swan 60 S's main dimensions

Hull length
61’ 11”18.86 m
Waterline length
57’ 1”17.4 m
Beam (width)
16’ 8”5.09 m
Draft
9’ 10”3 m
Light displacement (MLC)
52250 lb23700 kg
Ballast weight
18078 lb8200 kg
Ballast type
Lead

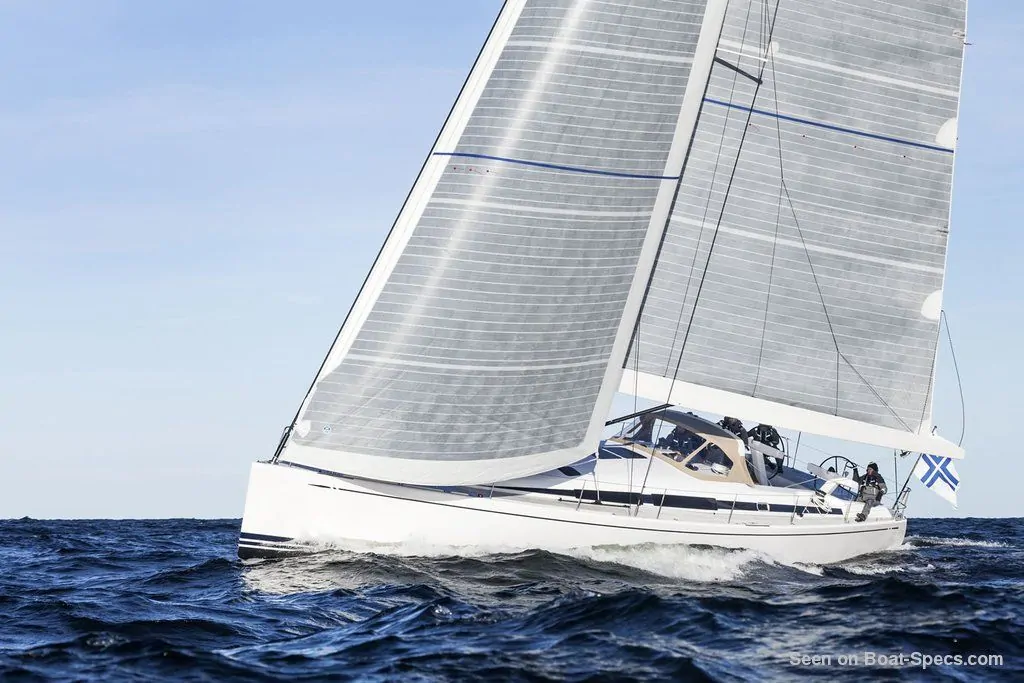

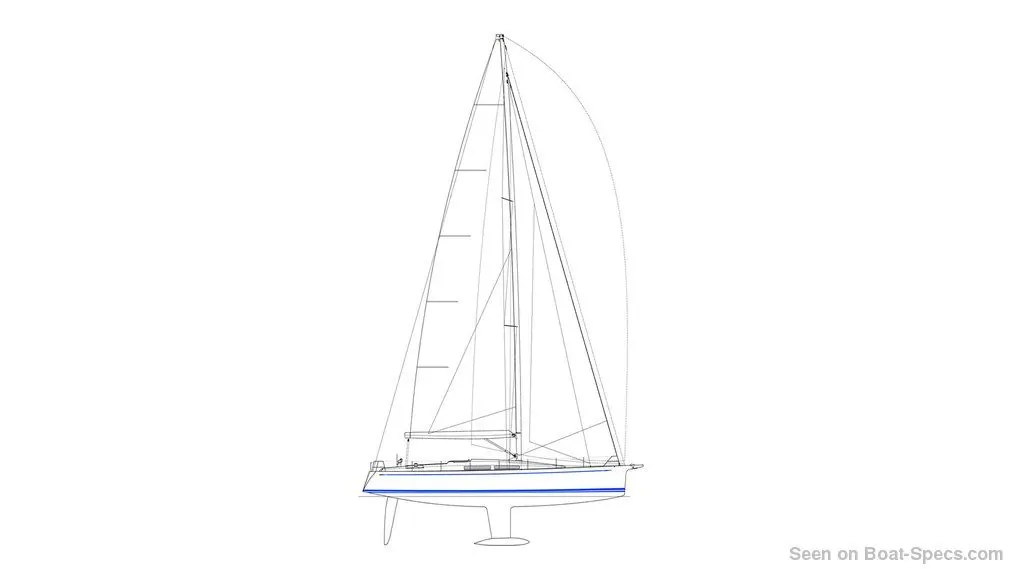

Swan 60 S's rig and sails

Upwind sail area
2222 ft²206.4 m²
Downwind sail area
4359 ft²405 m²
Mainsail area
1238 ft²115 m²
Jib area
984 ft²91.4 m²
Asymmetric spinnaker area
3122 ft²290 m²
I
 iFore triangle height (from mast foot to fore stay top attachment)
79’ 8”24.3 m
J
 iFore triangle base (from mast foot to bottom of forestay)
23’ 2”7.07 m
P
 iMainsail hoist measurement (from tack to head)
79’ 2”24.15 m
E
 iMainsail foot measurement (from tack to clew)
24’ 11”7.6 m
Rigging type
Sloop Marconi 9/10
Mast configuration
Deck stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back
Spars construction
Carbon fiber spars
Standing rigging
Single-strand (ROD)

Swan 60 S's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
269 ft²/T25.02 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
528 ft²/T49.09 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
127
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
35 %
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
10.12 knots

Swan 60 S's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
110 HP
Fuel type
Diesel
Fuel tank capacity
264.2 gal1000 liters

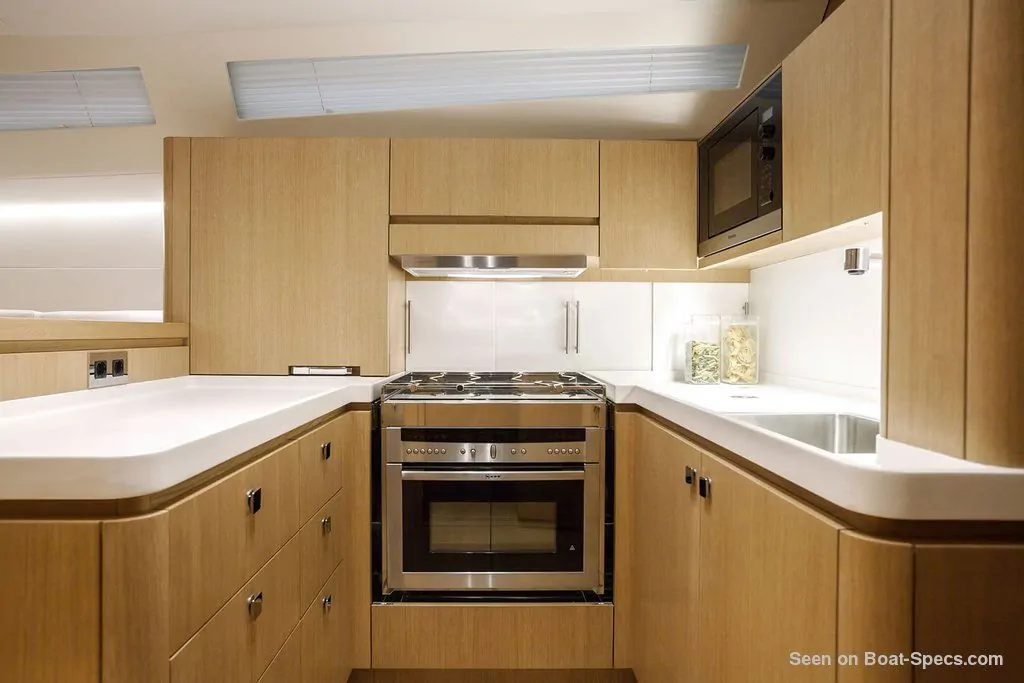

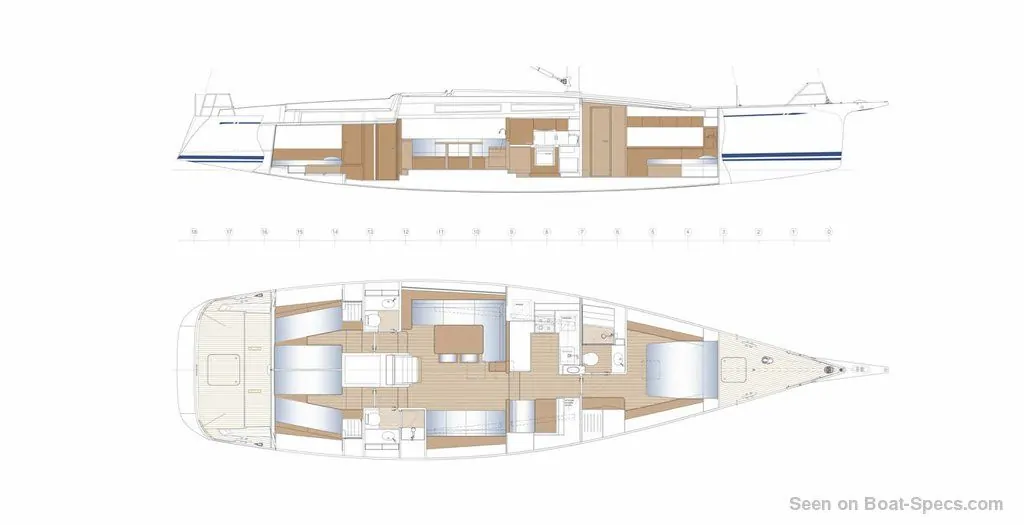

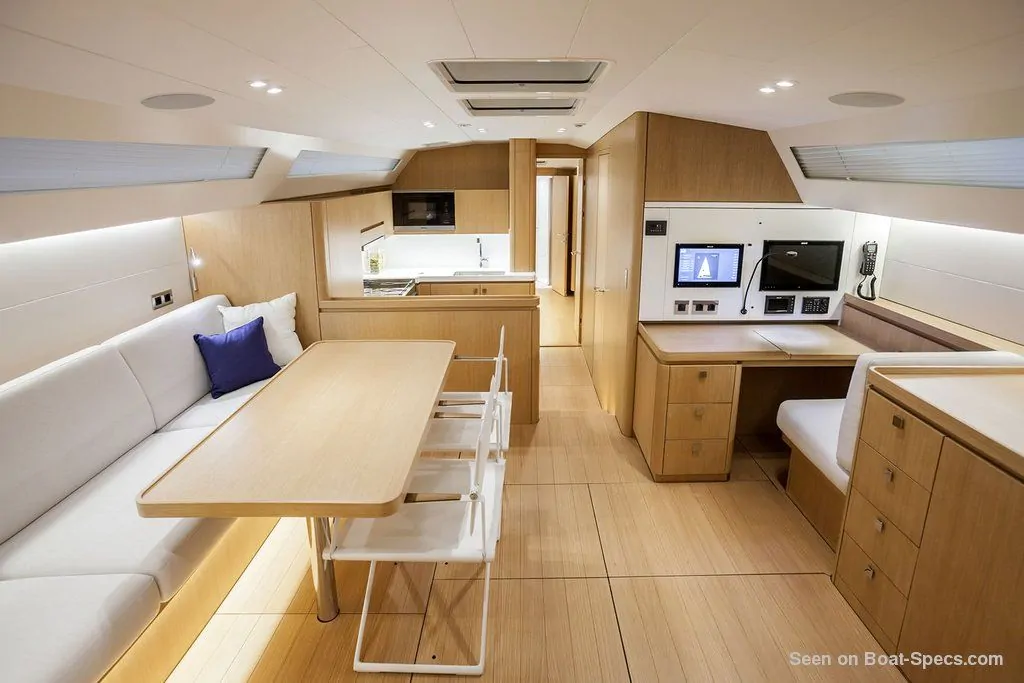

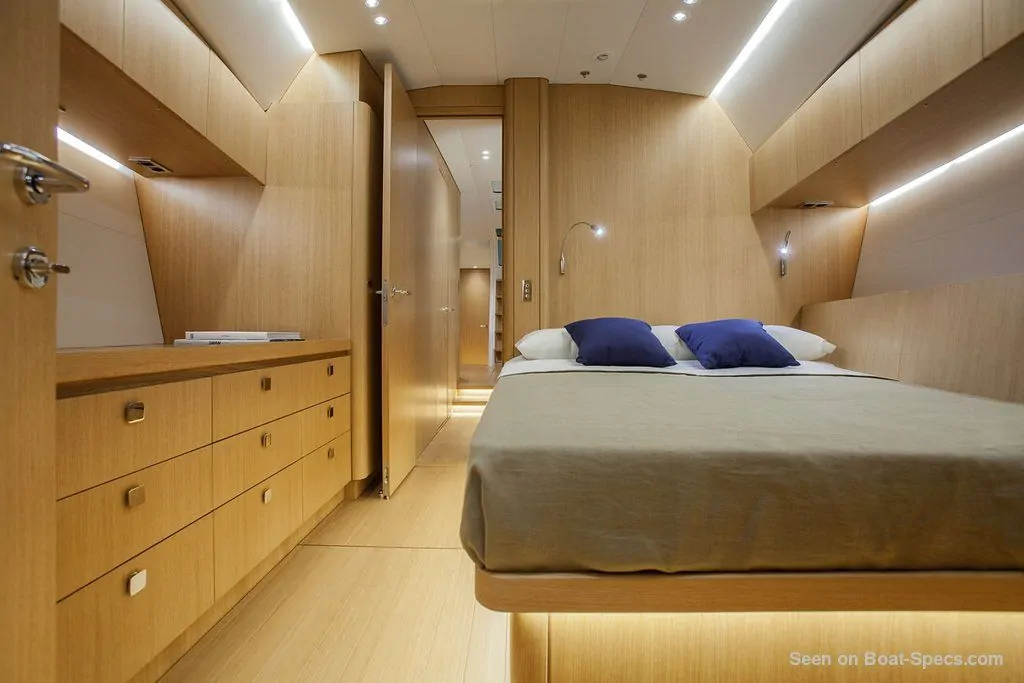

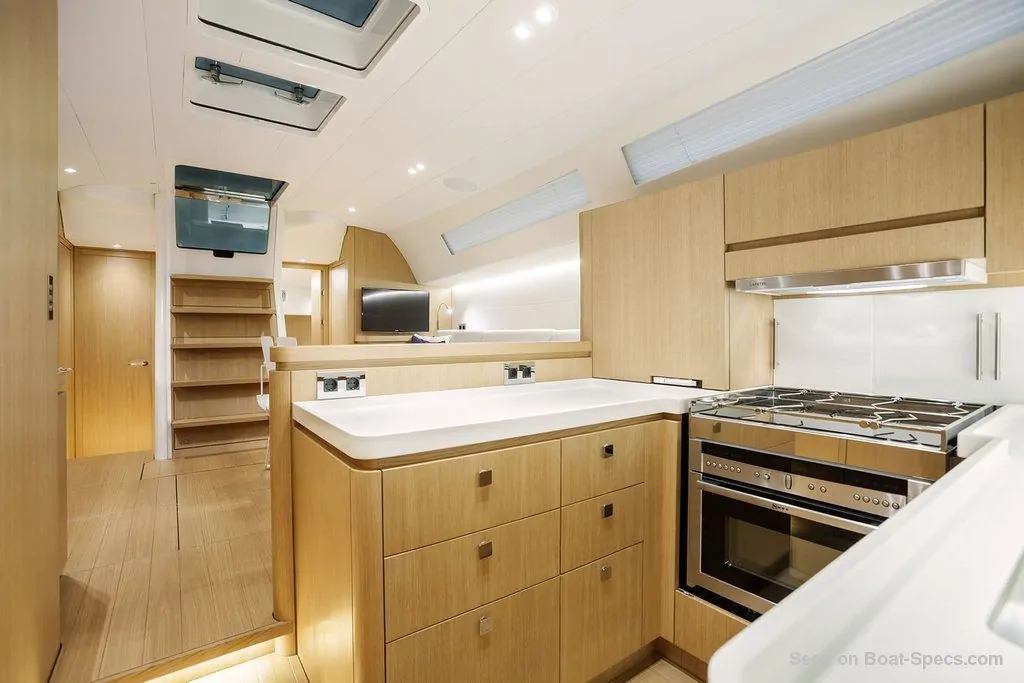

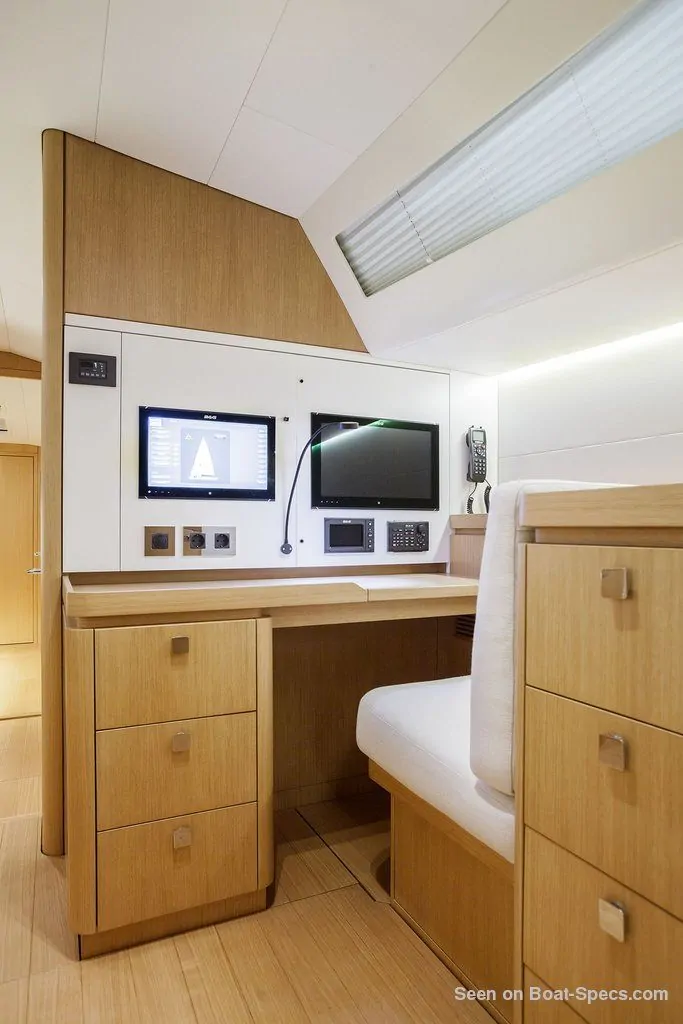

Swan 60 S's accommodations and layout

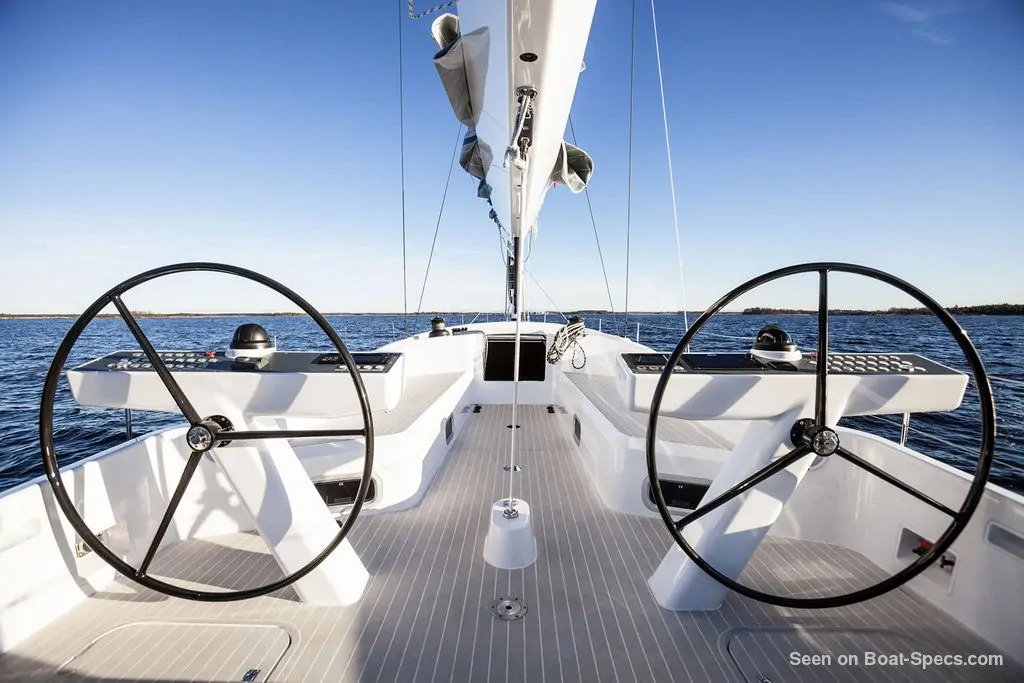

Cockpit
Open aft cockpit
Cabin(s) (min./max.)
3 / 4

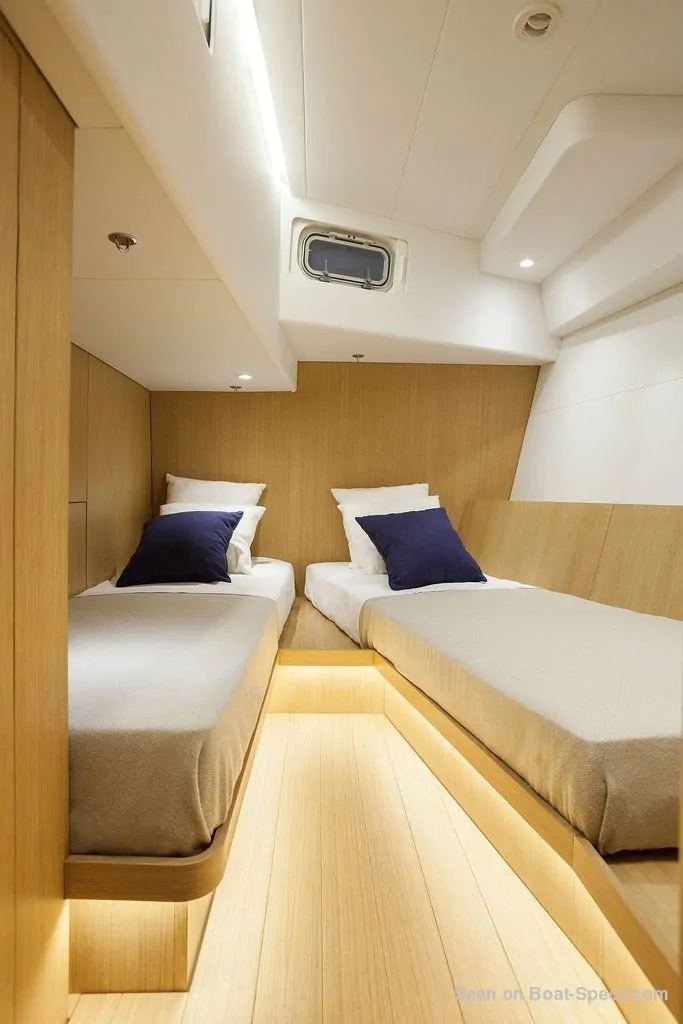

Berth(s) (min./max.)
6 / 10

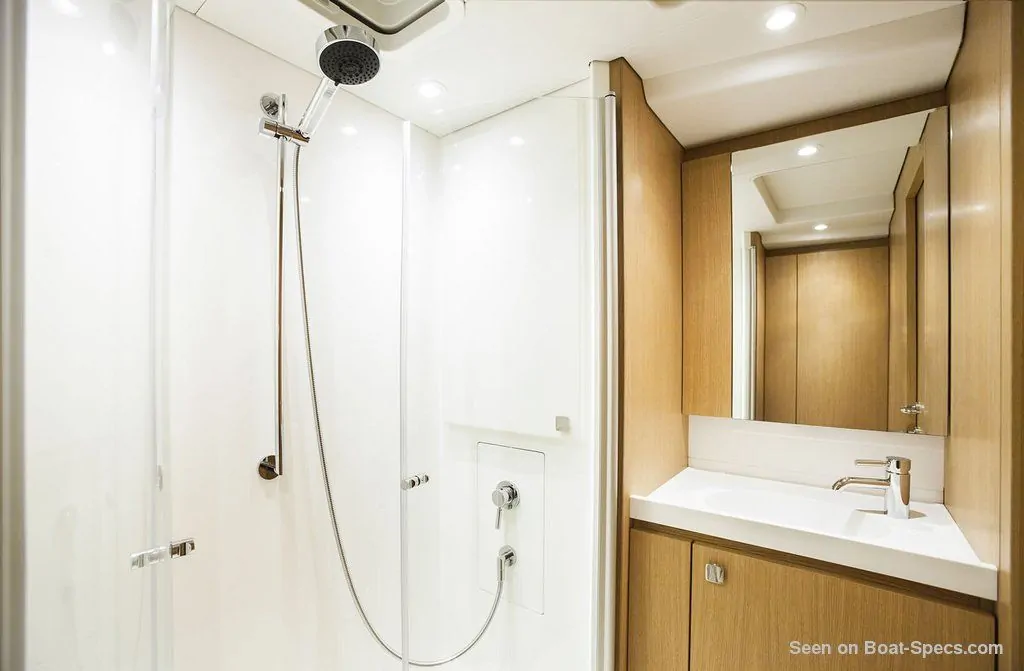

Head(s)
3
Freshwater tank capacity
132.1 gal500 liters
Holding tank capacity
31.7 gal120 liters
Boiler capacity
13.2 gal50 liters
