X-612 Standard

Sailboat specifications

The X-612 is a 60’ (18.29m) racer-cruiser sailboat designed by Niels Jeppesen (Denmark). She was built between 1995 and 2004 by X-Yachts (Denmark) with 12 hulls completed.

The X-612 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

X-612's main features

Model
X-612
Version
Standard
Hull type
Monohull
Category
Offshore racer-cruiser sailboat
Sailboat builder
Sailboat designer
Country
Denmark
Construction
GRP (glass reinforced polyester):
Sandwich fiberglass polyester with galvanized steel frame
Number of hulls built
12
First built hull
1995
Last built hull
2004
Appendages
Keel : L-shaped keel (with bulb)
Helm
Twin helm wheels
Rudder
Single semi-spade rudder
Unsinkable
No
Trailerable
No
Standard public price ex. VAT (indicative only)
N/A

X-612's main dimensions

Hull length
60’18.29 m
Waterline length
53’16.15 m
Beam (width)
16’ 8”5.1 m
Draft
9’ 6”2.9 m
Light displacement (MLC)
42990 lb19500 kg
Ballast weight
20062 lb9100 kg
Ballast type
Cast iron fin with lead bulb

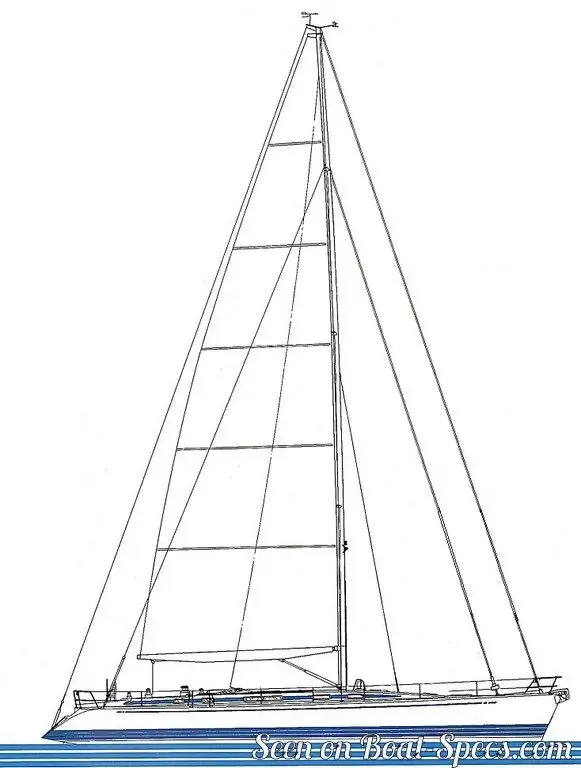

X-612's rig and sails

Upwind sail area
2310 ft²214.6 m²
Downwind sail area
3922 ft²364.4 m²
Mainsail area
935 ft²86.9 m²
Genoa area
1375 ft²127.7 m²
Solent area
916 ft²85.1 m²
Jib area
517 ft²48 m²
Symmetric spinnaker area
2987 ft²277.5 m²
I
 iFore triangle height (from mast foot to fore stay top attachment)
78’ 2”23.85 m
J
 iFore triangle base (from mast foot to bottom of forestay)
22’ 7”6.9 m
P
 iMainsail hoist measurement (from tack to head)
70’ 11”21.6 m
E
 iMainsail foot measurement (from tack to clew)
23’7 m
Rigging type
Sloop Marconi masthead
Mast configuration
Keel stepped mast
Rotating spars
No
Number of levels of spreaders
3
Spreaders angle
0 °
Spars construction
Aluminum spars
Standing rigging
Single-strand (ROD) discontinuous

X-612's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
319 ft²/T29.62 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
541 ft²/T50.3 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
131
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
47 %
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
9.75 knots

X-612's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
110 HP
Fuel type
Diesel
Fuel tank capacity
211.3 gal800 liters

X-612's accommodations and layout

Cockpit
Closed aft cockpit
Cabin(s)
4
Berth(s) (min./max.)
7 / 9
Head(s)
3
Freshwater tank capacity
211.3 gal800 liters
Fridge/ice-box capacity
84.5 gal320 liters
Boiler capacity
10.6 gal40 liters
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
