Dragonfly 32 Evolution
Sailboat specifications
The Dragonfly 32 is a 32’6” (9.9m) fast cruising trimaran designed by Jens Quorning (Denmark) and Olsen Design (Denmark). She is built since 2019 by Quorning Boats (Denmark). The Evolution version features a taller carbon leading to a larger sail area. To bring extra power she also offers high volume wave piercing floats. She has been awarded "2019 - Multihull of the Year: Under 40 feet".
The Dragonfly 32 is as well listed, on Boat-Specs.com, in Supreme and Touring version (see all the versions compared).
The Dragonfly 32 is as well listed, on Boat-Specs.com, in Supreme and Touring version (see all the versions compared).
Dragonfly 32's main features
- Model
- Dragonfly 32
- Version
- Evolution
- Hull type
- Trimaran
- Category
- Fast cruising trimaran
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- Denmark
- Construction
- GRP (glass reinforced polyester):
Sandwich foam fiberglass polyester - First built hull
- 2019
- Last built hull
- Still in production
- Award(s)
- 2019: Multihull of the Year: Under 40 feet
- Appendages
- Centerboard : pivoting centerboard (main hull)
- Helm
- Single tiller (helm wheel in option)
- Rudder
- Single transom hung rudder (main hull)
- Unsinkable
- Yes
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About285 000 €(2020)
Dragonfly 32's main dimensions
- Hull length
- 32’ 6”9.9 m
- Waterline length
- 31’ 2”9.5 m
- Beam (width)
- 27’ 1”8.25 m
- Draft
- 6’ 2”1.9 m
- Draft when appendages up
- 1’ 7”0.5 m
- Folding type
- Horizontal, double-hinge with vertical axis
- Overall width folded
- 12’ 7”3.85 m
- Overall length folded
- 39’11.89 m
- Light displacement (MLC)
- 7540 lb3420 kg
- Maximum displacement (MLDC)
- 10185 lb4620 kg
- Capacity
- 2646 lb1200 kg
Dragonfly 32's rig and sails
- Upwind sail area
- 936 ft²87 m²
- Downwind sail area
- 1808 ft²168 m²
- Mainsail area
- 624 ft²58 m²
- Genoa area
- 312 ft²29 m²
- Asymmetric spinnaker area
- 1184 ft²110 m²
- Code 0 area
- 716 ft²66.5 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- Yes
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Carbon fiber mast and aluminum boom
Dragonfly 32's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 413 ft²/T38.33 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 797 ft²/T74.01 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 113
Dragonfly 32's auxiliary engine
- Engine(s)
- 1 outboard or inboard engine
- Engine(s) power (min./max.)
- 25 HP / 30 HP
- Fuel type
- Gas
- Fuel tank capacity
- 6.6 gal25 liters
Dragonfly 32's accommodations and layout
- Cockpit
- Closed aft cockpit
- Cabin(s)
- 2
- Berth(s) (min./max.)
- 4 / 6
- Head(s)
- 1
- Freshwater tank capacity
- 31.7 gal120 liters
- Holding tank capacity
- 15.9 gal60 liters
- Maximum headroom
- 6’ 4”1.93 m
- Head headroom
- 6’ 1”1.87 m
Dragonfly 32's saloon
- Berth length
- 6’ 2”1.9 m
- Berth width (head/feet)
- 3’ 8”1.14 m / 3’ 6”1.06 m
Dragonfly 32's fore cabin
- Berth length
- 6’ 11”2.1 m
- Berth width (head/feet)
- 5’ 6”1.67 m / 1’ 11”0.58 m
Dragonfly 32's aft cabin
- Berth length
- 6’ 7”2 m
- Berth width (head/feet)
- 5’ 5”1.66 m / 4’ 11”1.5 m

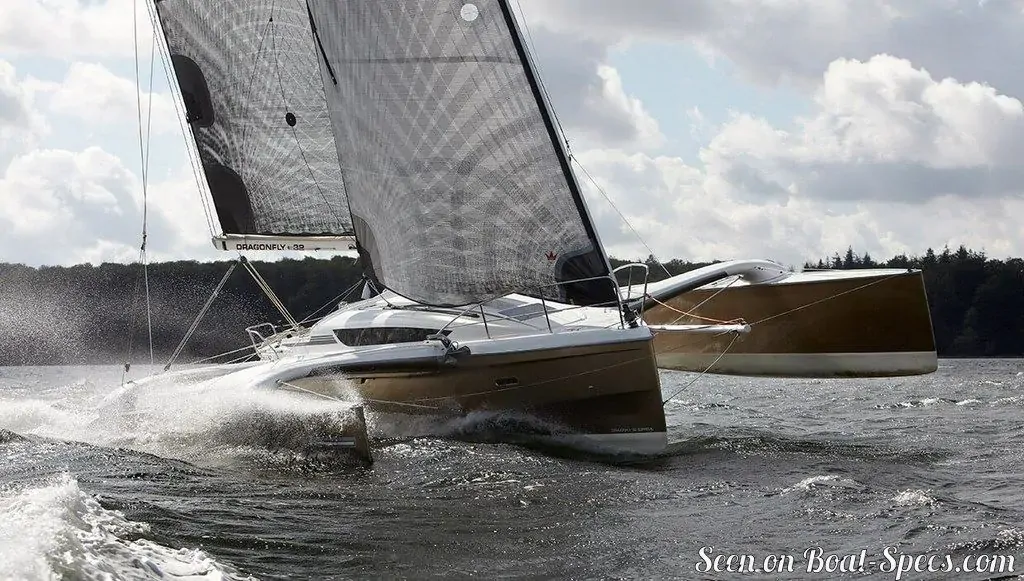

Quorning Boats Dragonfly 32 - - 1/6
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats

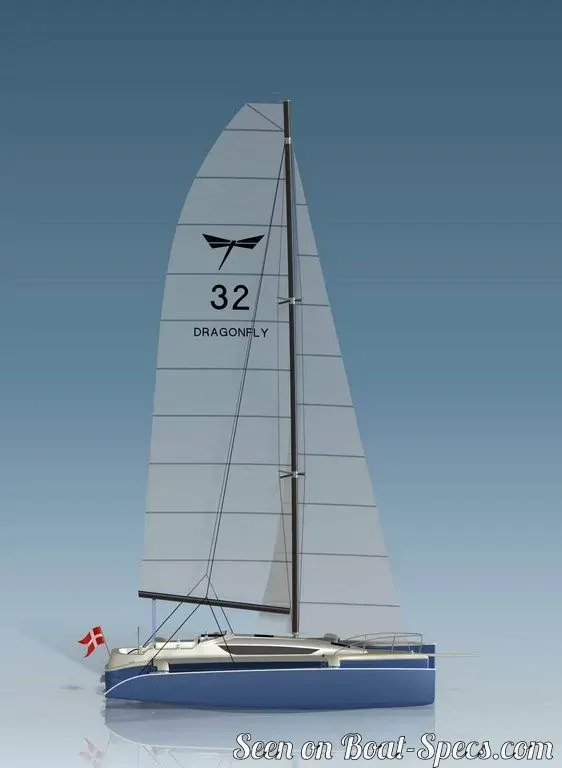

Quorning Boats Dragonfly 32 sailplan - - 2/6
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats

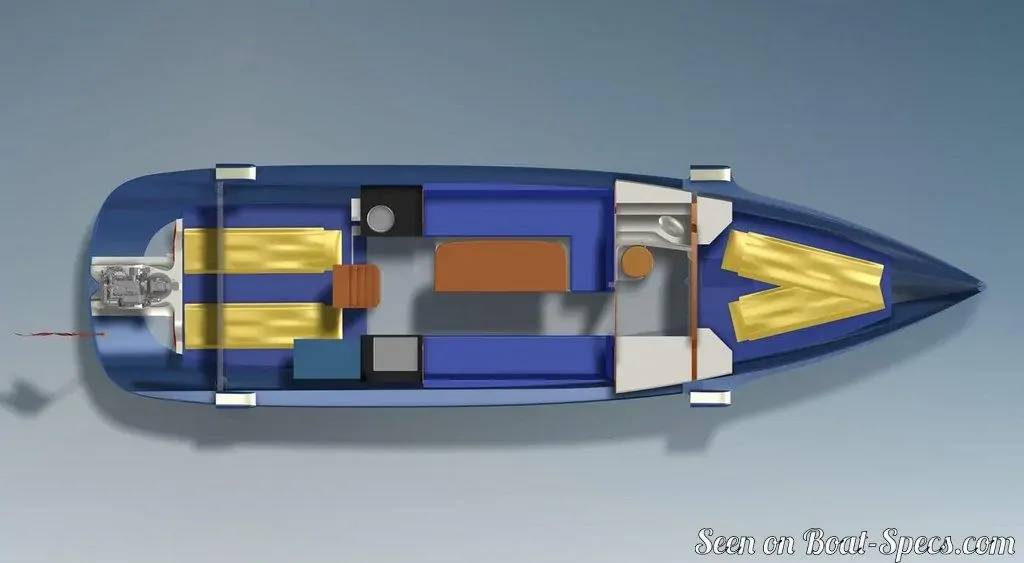

Quorning Boats Dragonfly 32 layout - - 3/6
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats

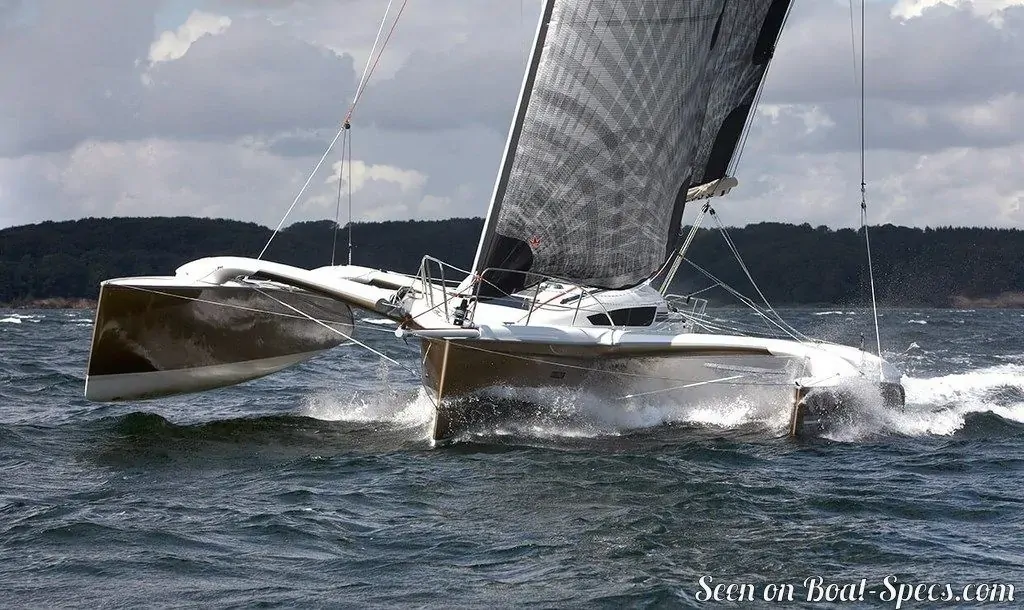

Quorning Boats Dragonfly 32 sailing - - 4/6
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats

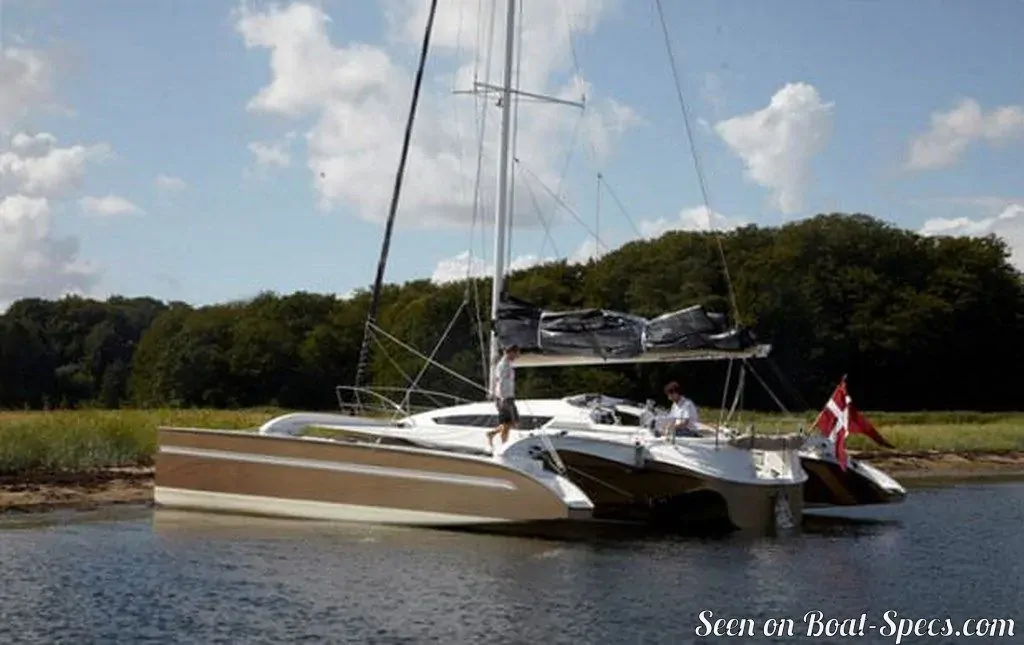

Quorning Boats Dragonfly 32 sailing - - 5/6
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats

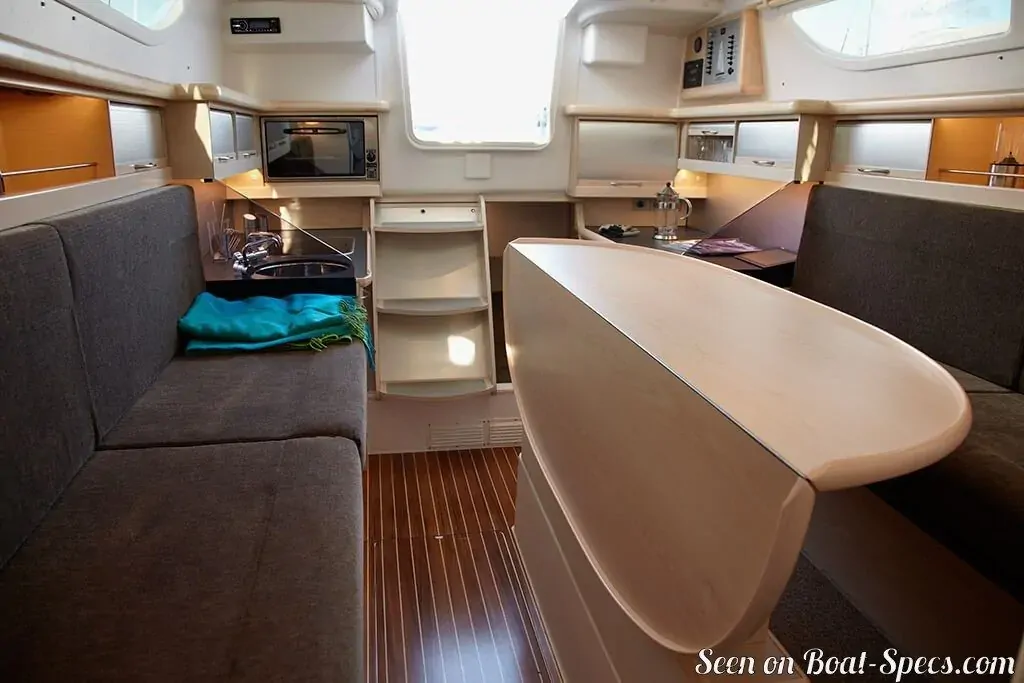

Quorning Boats Dragonfly 32 interior and accommodations - - 6/6
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats
