Corsair 37 Cr

Sailboat specifications

The Corsair 37 is a 37’ (11.27m) fast cruising trimaran designed by Design Team Corsair (United States). She is built since 2008 by Corsair Marine (Vietnam). The Cr version is offered with an equipment and sail plan suitable for cruising.

The Corsair 37 is as well listed, on Boat-Specs.com, in RS version (see all the versions compared).

Corsair 37's main features

Model: Corsair 37
Version: Cr
Hull type: Trimaran
Category: Offshore fast cruising trimaran
Sailboat builder: Corsair Marine
Sailboat designer: Design Team Corsair
Country: Vietnam
Construction: GRP (glass reinforced polyester):
Sandwich PVC fiberglass polyester
First built hull: 2008
Last built hull: Still in production
Appendages: Centerboard : daggerboard (main hull)
Helm: Single tiller
Rudder: Single transom hung rudder (main hull)
Unsinkable: Yes
Trailerable: Yes
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
181 000 €
(2020)

Corsair 37's main dimensions

Hull length: 37’11.27 m
Waterline length: 35’10.66 m
Beam (width): 25’ 7”7.8 m
Draft: 7’ 6”2.3 m
Draft when appendages up: 1’ 7”0.5 m
Mast height from D_WL: 56’ 5”17.2 m
Folding type: Farrier's type, double-hinge with horizontal axis
Overall width folded: 9’ 10”3 m
Overall length folded: 37’11.27 m
Light displacement (M_LC): 6724 lb3050 kg

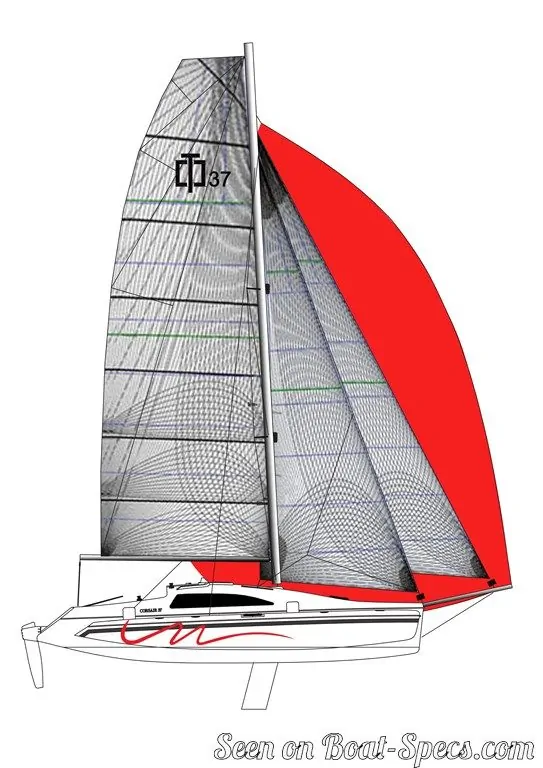

Corsair 37's rig and sails

Upwind sail area: 801 ft²74.4 m²
Downwind sail area: 1958 ft²181.9 m²
Mainsail area: 516 ft²47.9 m²
Jib area: 285 ft²26.5 m²
Asymmetric spinnaker area: 1442 ft²134 m²
Code 5 area: 549 ft²51 m²
Rigging type: Sloop Marconi 7/8
Mast configuration: Deck stepped mast
Rotating spars: Yes
Number of levels of spreaders: 2
Spreaders angle: Swept-back (diamond)
Spars construction: Aluminum spars

Corsair 37's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 381 ft²/T35.38 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 931 ft²/T86.49 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 71
