Dragonfly 28 Performance

Sailboat specifications

The Dragonfly 28 is a 28’8” (8.75m) fast cruising trimaran designed by Jens Quorning (Denmark) and Olsen Design (Denmark). She is built since 2008 by Quorning Boats (Denmark). The Performance version features a taller carbon leading to a larger sail area. To bring extra power she also offers high volume wave piercing floats.

The Dragonfly 28 is as well listed, on Boat-Specs.com, in Touring and Sport version (see all the versions compared).

Dragonfly 28's main features

Model
Dragonfly 28
Version
Performance
Hull type
Trimaran
Category
Fast cruising trimaran
Sailboat builder
Sailboat designer
Sailboat range
Country
Denmark
Construction
GRP (glass reinforced polyester):
Sandwich PVC fiberglass polyester with carbon fiber reinforcements
First built hull
2008
Last built hull
Still in production
Appendages
Centerboard : pivoting centerboard (main hull)
Helm
Single tiller
Rudder
Single transom hung rudder (main hull)
Unsinkable
Yes
Trailerable
Yes
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
B
Standard public price ex. VAT (indicative only)
About
172 000
 (2020)

Dragonfly 28's main dimensions

Overall length
29’ 8”9.05 m
Hull length
28’ 8”8.75 m
Waterline length
28’ 2”8.6 m
Beam (width)
21’ 4”6.5 m
Draft
5’ 7”1.7 m
Draft when appendages up
1’ 4”0.4 m
Mast height from DWL
50’15.25 m

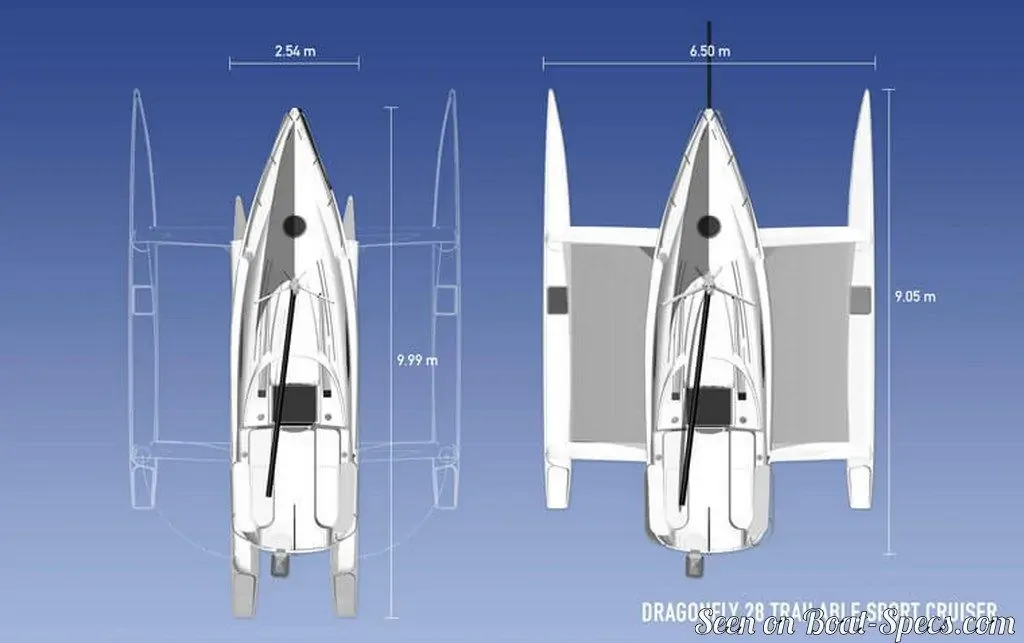

Folding type
Horizontal, double-hinge with vertical axis
Overall width folded
8’ 4”2.54 m
Overall length folded
33’ 10”10.3 m
Light displacement (MLC)
4806 lb2180 kg
Maximum displacement (MLDC)
6460 lb2930 kg
Capacity
1653 lb750 kg

Dragonfly 28's rig and sails

Upwind sail area
689 ft²64 m²
Downwind sail area
1356 ft²126 m²
Mainsail area
463 ft²43 m²
Jib area
231 ft²21.5 m²
Asymmetric spinnaker area
893 ft²83 m²
Code 0 area
484 ft²45 m²
Rigging type
Sloop Marconi fractional
Mast configuration
Deck stepped mast
Rotating spars
Yes
Number of levels of spreaders
2
Spreaders angle
Swept-back (diamond)
Spars construction
Carbon fiber mast and aluminum boom

Dragonfly 28's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
413 ft²/T38.36 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
807 ft²/T74.94 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
97
Righting moment @ 1°
 iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability.
4177 lb.ft578 kg.m
Maximum righting moment
 iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability.
89237 lb.ft12338 kg.m @ 20.00 °

Dragonfly 28's auxiliary engine

Engine(s)
1 outboard engine
Engine(s) power (min./max.)
8 HP / 15 HP
Fuel type
Gas

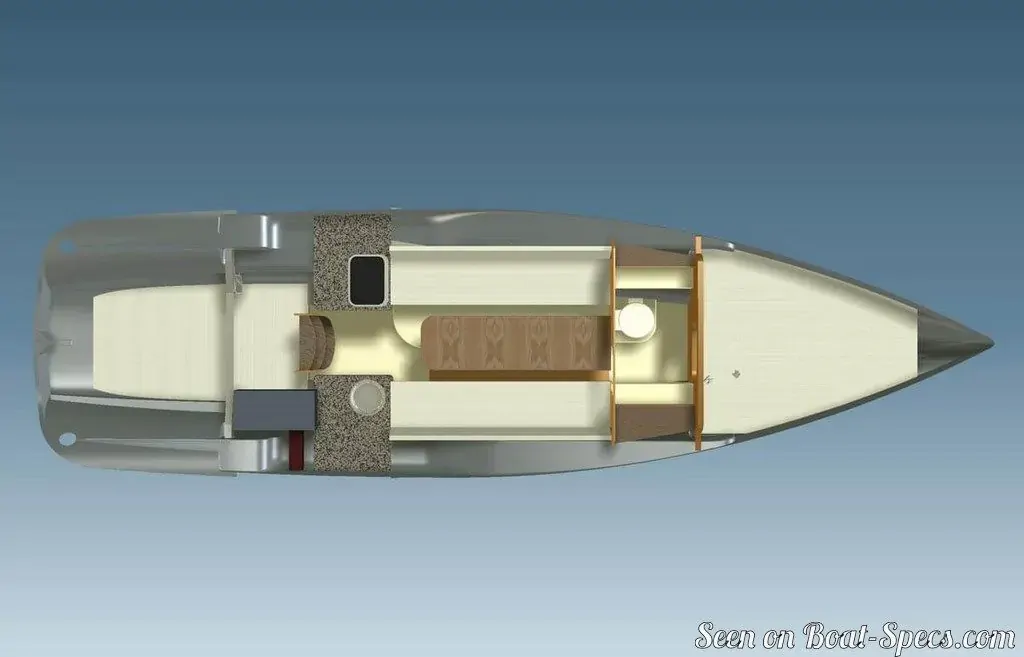

Dragonfly 28's accommodations and layout

Cockpit
Closed aft cockpit
Cabin(s)
2
Berth(s)
6
Head(s)
1
Freshwater tank capacity
21.1 gal80 liters
Holding tank capacity
15.9 gal60 liters
Head headroom
5’ 8”1.75 m

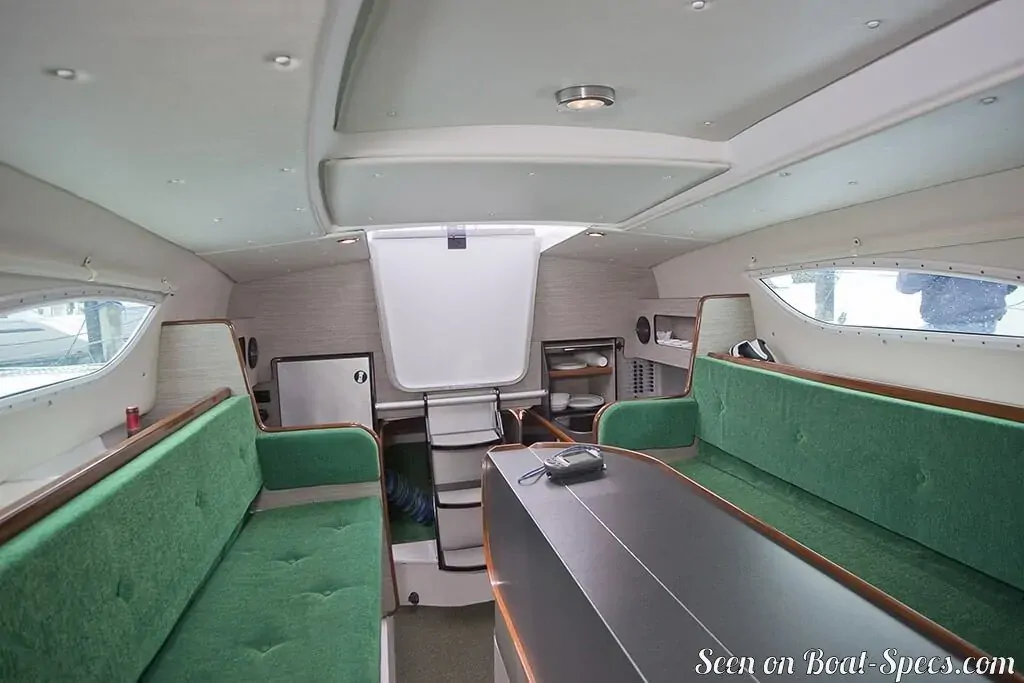

Dragonfly 28's saloon

Maximum headroom
6’ 1”1.85 m
Berth length
6’ 7”2 m
Berth width (head/feet)
2’ 1”0.63 m / 2’ 1”0.63 m

Dragonfly 28's fore cabin

Berth length
6’ 7”2 m
Berth width (head/feet)
5’ 2”1.6 m / 1’ 10”0.54 m

Dragonfly 28's aft cabin

Berth length
6’ 7”2 m
Berth width
2’ 8”0.81 m
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
