Dragonfly 40 Ultimate
Sailboat specifications
The Dragonfly 40 is a 40’8” (12.4m) fast cruising trimaran designed by Jens Quorning (Denmark) and Olsen Design (Denmark). She is built since 2020 by Quorning Boats (Denmark). The Ultimate version features a taller carbon mast and ultimately a larger sail area.
The Dragonfly 40 is as well listed, on Boat-Specs.com, in Touring version (see all the versions compared).
The Dragonfly 40 is as well listed, on Boat-Specs.com, in Touring version (see all the versions compared).
Dragonfly 40's main features
- Model
- Dragonfly 40
- Version
- Ultimate
- Hull type
- Trimaran
- Category
- Offshore fast cruising trimaran
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- Denmark
- Construction
- GRP (glass reinforced polyester):
Sandwich PVC fiberglass polyester - First built hull
- 2020
- Last built hull
- Still in production
- Appendages
- Centerboard : pivoting centerboard (main hull)
- Helm
- Twin helm wheels
- Rudder
- Single transom hung rudder (main hull)
- Unsinkable
- Yes
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About535 000 €(2020)
Dragonfly 40's main dimensions
- Hull length
- 40’ 8”12.4 m
- Beam (width)
- 27’ 7”8.4 m
- Draft
- 7’ 2”2.2 m
- Draft when appendages up
- 2’ 4”0.7 m
- Mast height from DWL
- 67’ 11”20.7 m
- Overall width folded
- 46’ 6”14.17 m
- Overall length folded
- 13’ 1”4 m
- Light displacement (MLC)
- 12787 lb5800 kg
- Capacity
- 3968 lb1800 kg
Dragonfly 40's rig and sails
- Upwind sail area
- 1216 ft²113 m²
- Downwind sail area
- 2314 ft²215 m²
- Mainsail area
- 807 ft²75 m²
- Genoa area
- 409 ft²38 m²
- Solent area
- 291 ft²27 m²
- Asymmetric spinnaker area
- 1507 ft²140 m²
- Code 0 area
- 861 ft²80 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Carbon fiber mast and aluminum boom
- Standing rigging
- Single-strand (ROD) discontinuous
Dragonfly 40's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 377 ft²/T35 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 717 ft²/T66.6 m²/T
Dragonfly 40's auxiliary engine
- Engine(s)
- 1 inboard engine
- Engine(s) power (min./max.)
- 40 HP / 80 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 39.6 gal150 liters
Dragonfly 40's accommodations and layout
- Cockpit
- Aft cockpit
- Cabin(s)
- 2
- Berth(s) (min./max.)
- 4 / 6
- Head(s)
- 1
- Freshwater tank capacity
- 58.1 gal220 liters
- Holding tank capacity
- 19.8 gal75 liters

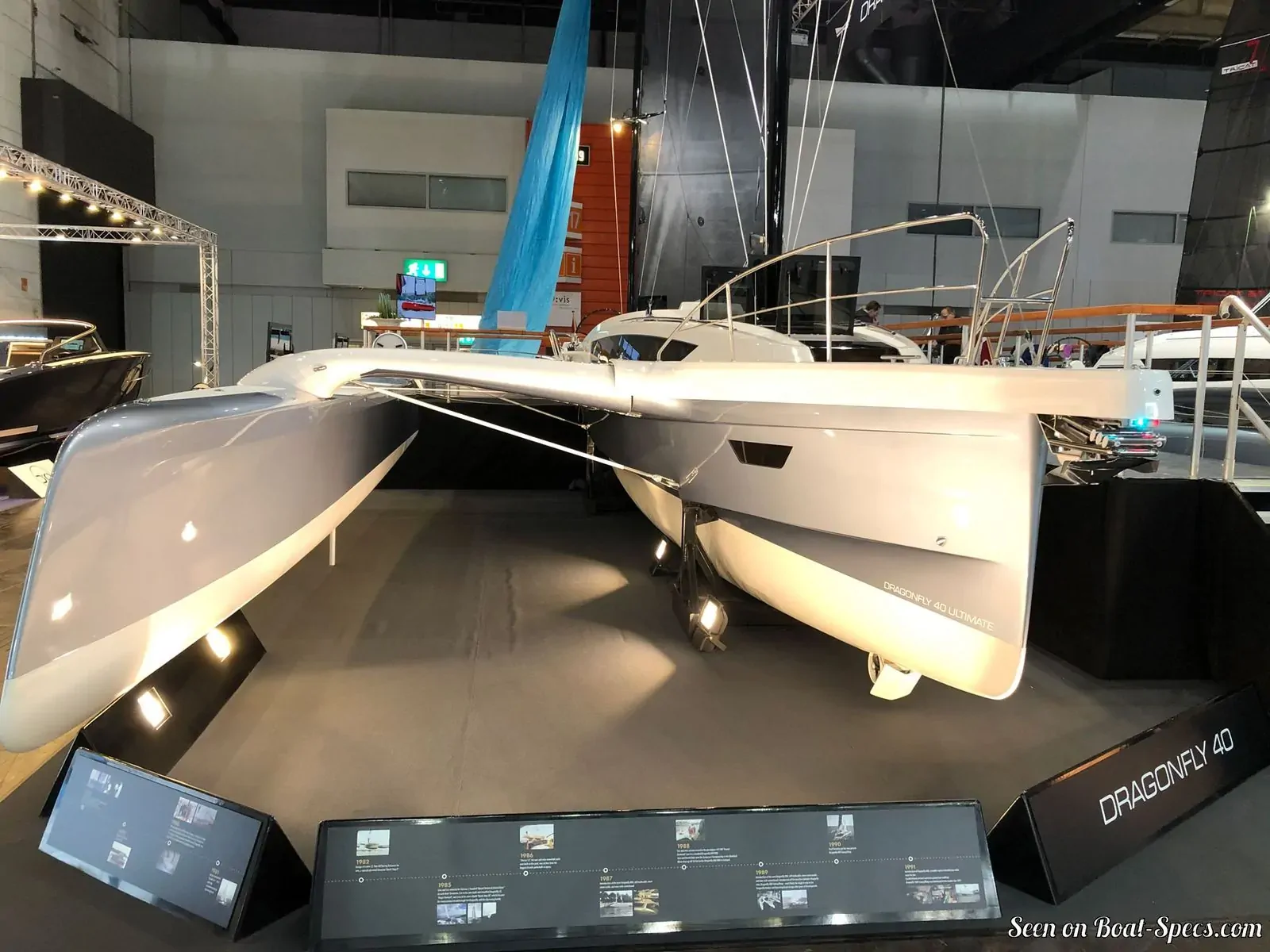

Quorning Boats Dragonfly 40 - - 1/9
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats

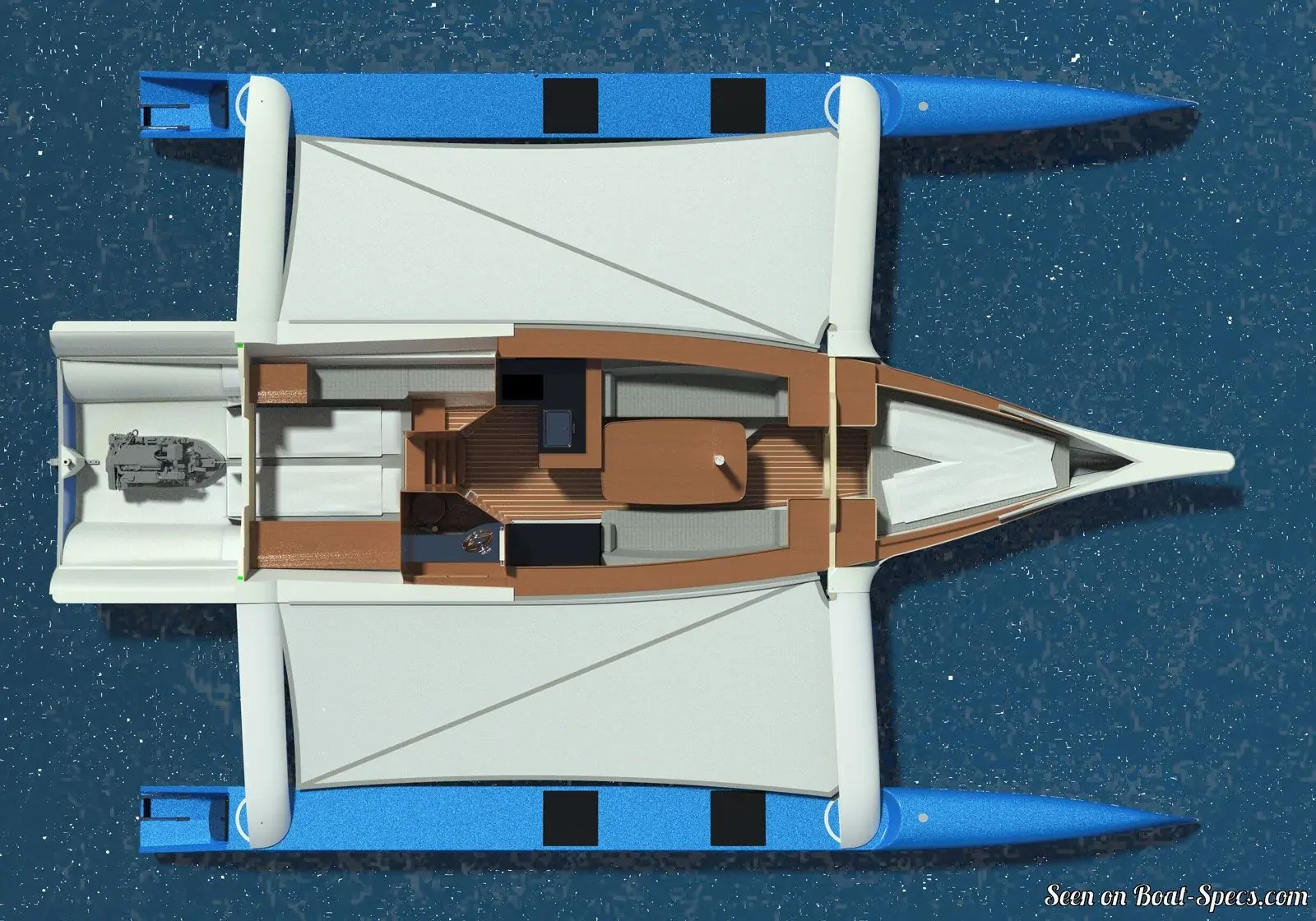

Quorning Boats Dragonfly 40 layout - - 2/9
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats

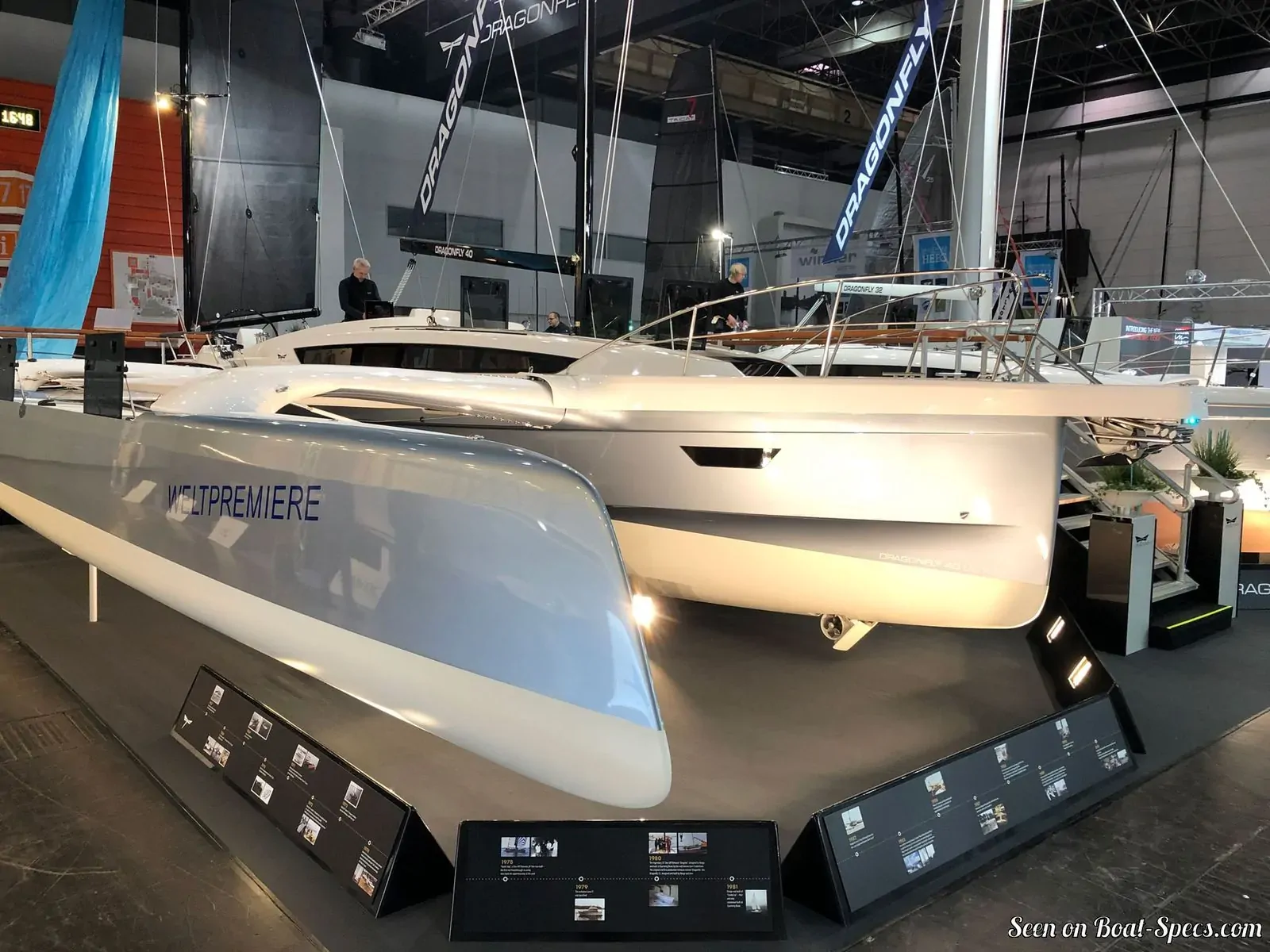

Quorning Boats Dragonfly 40 sailing - - 3/9
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats

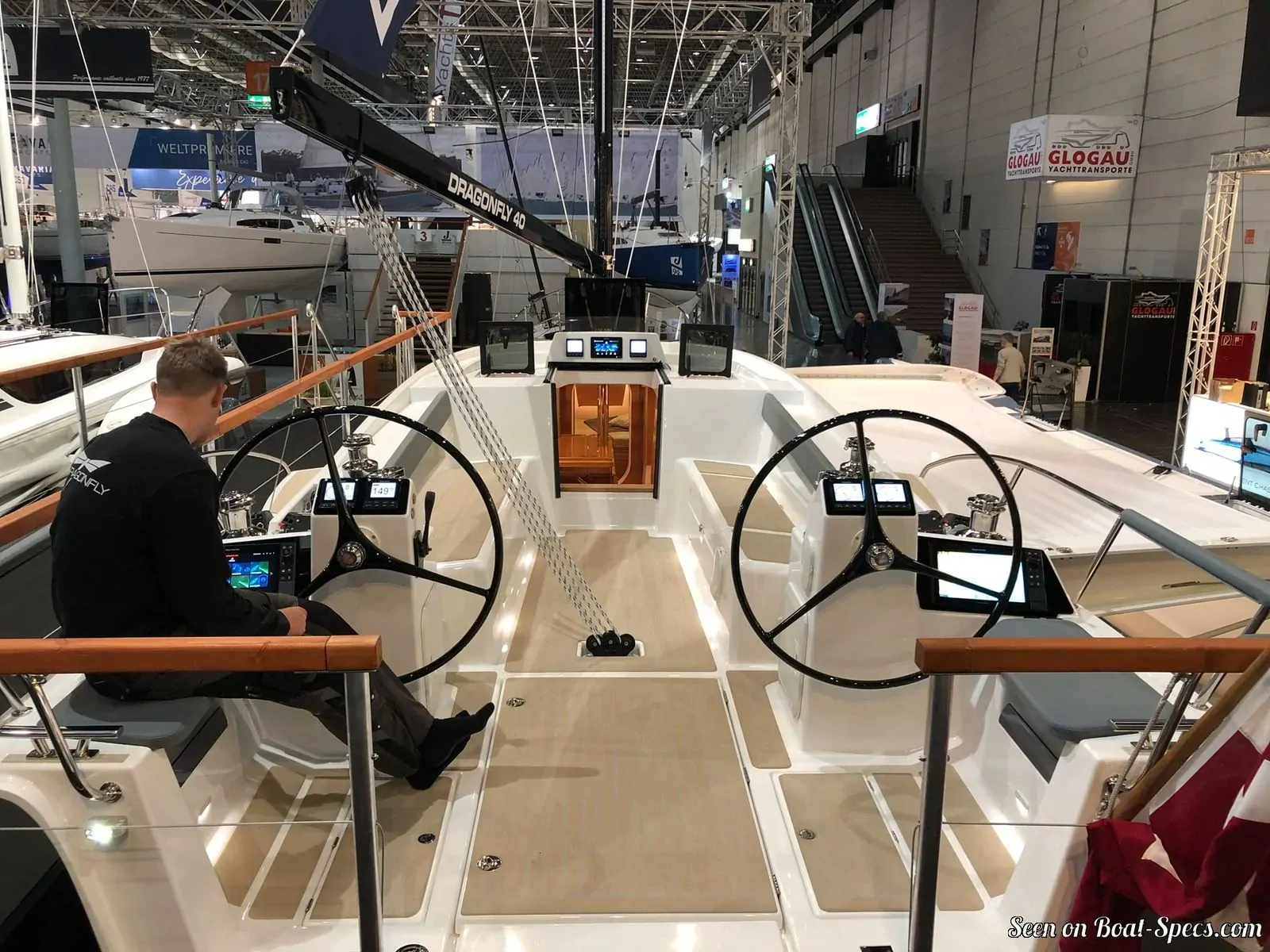

Quorning Boats Dragonfly 40 cockpit - - 4/9
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats

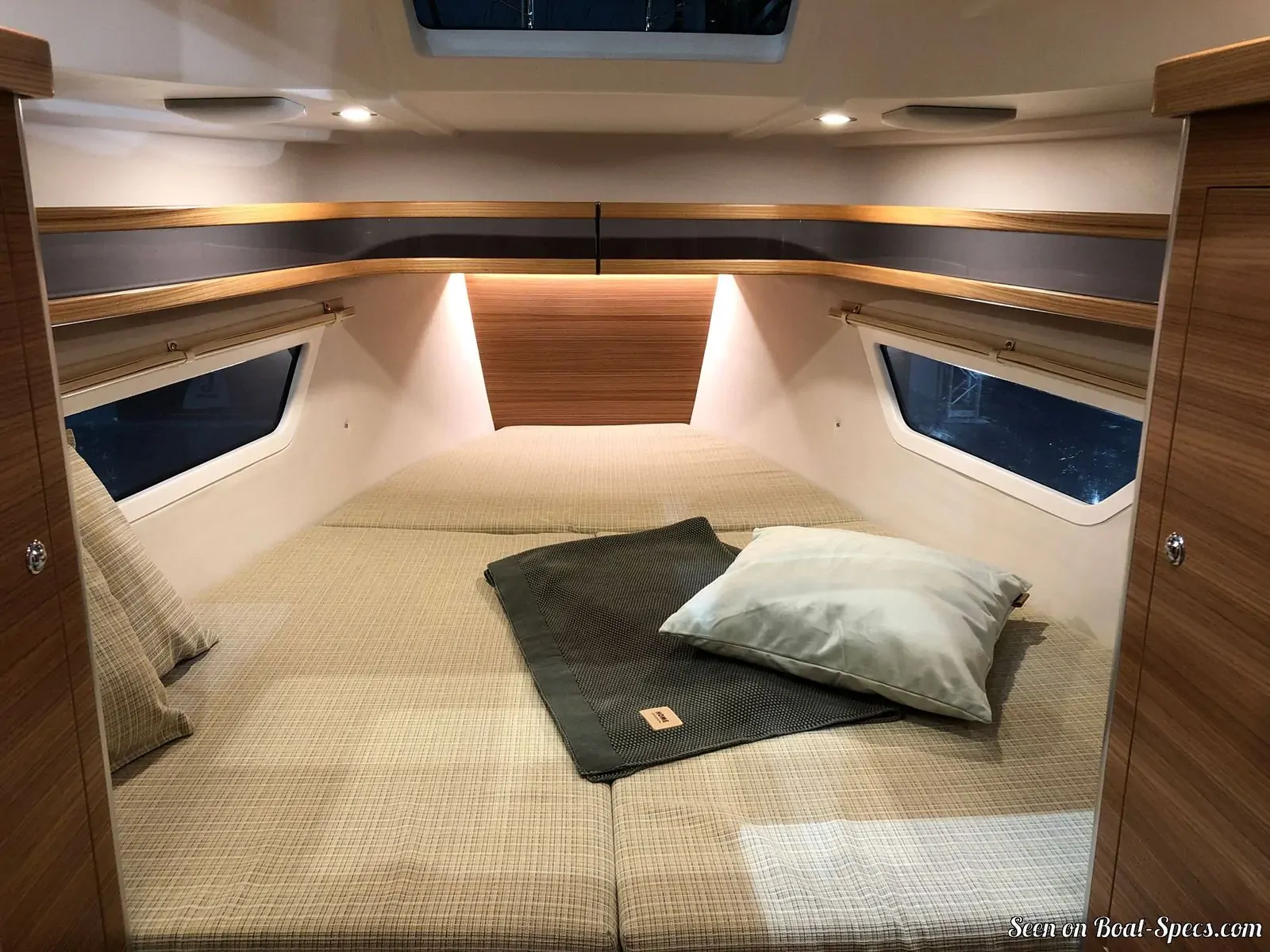

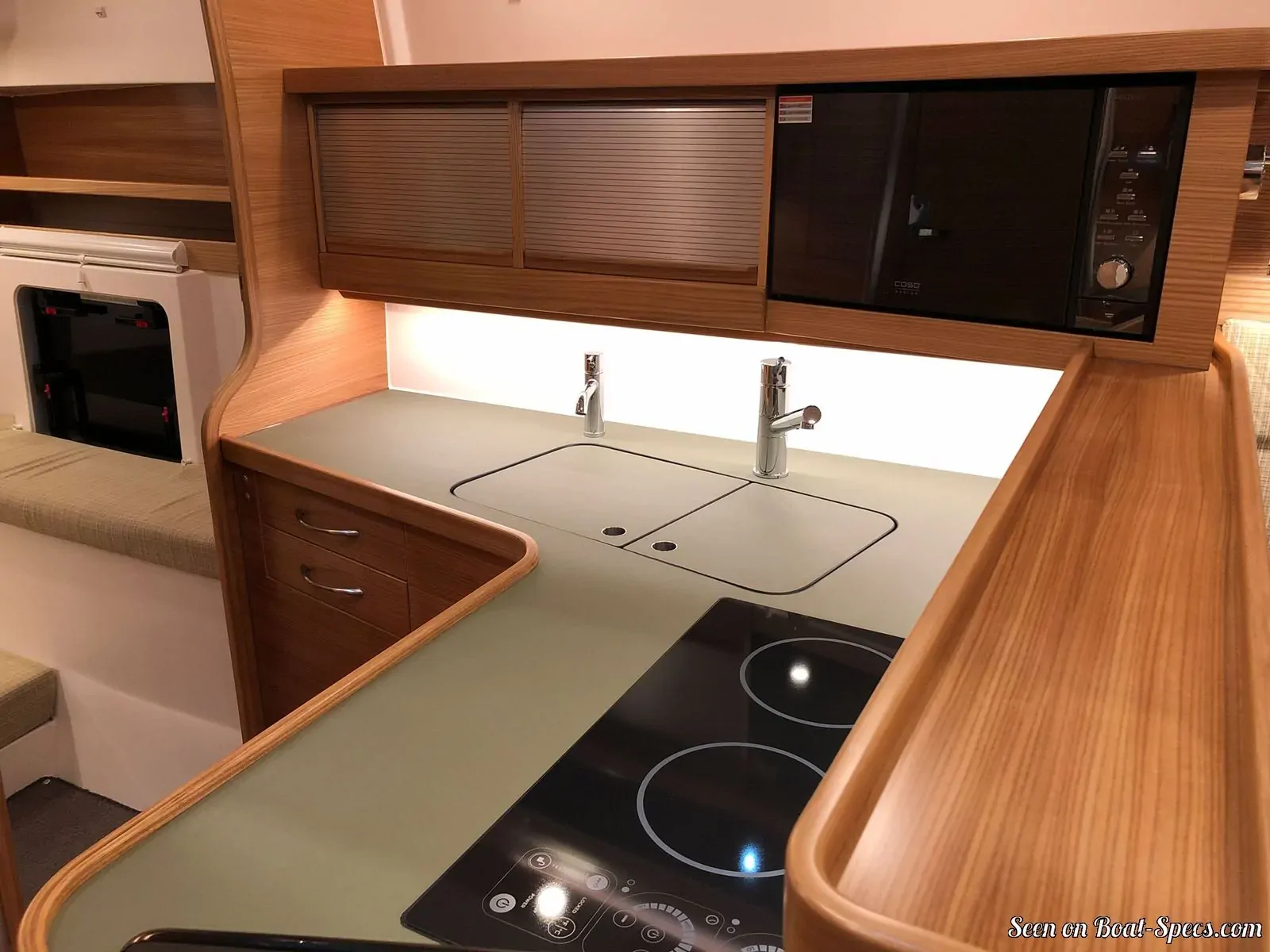

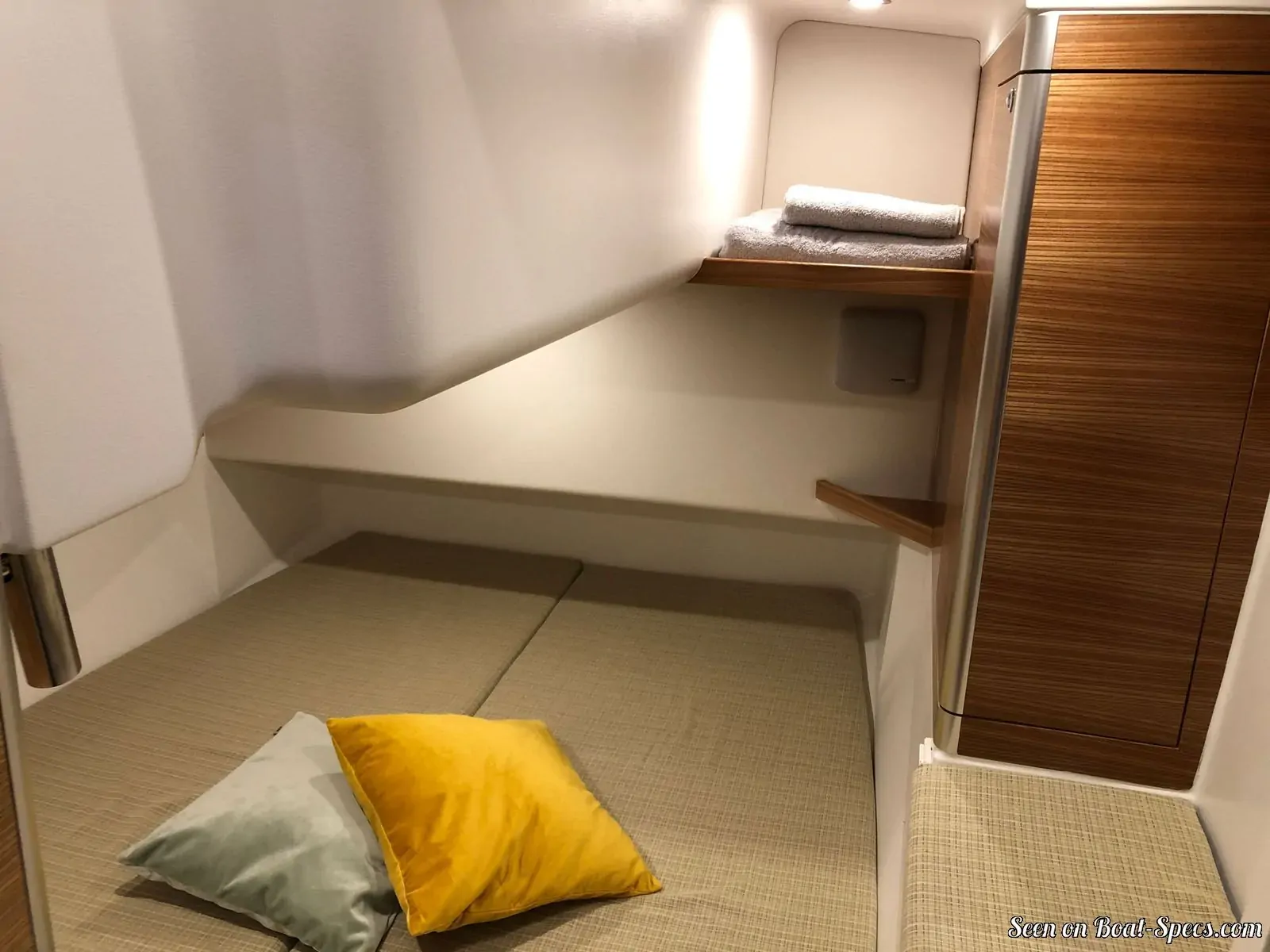

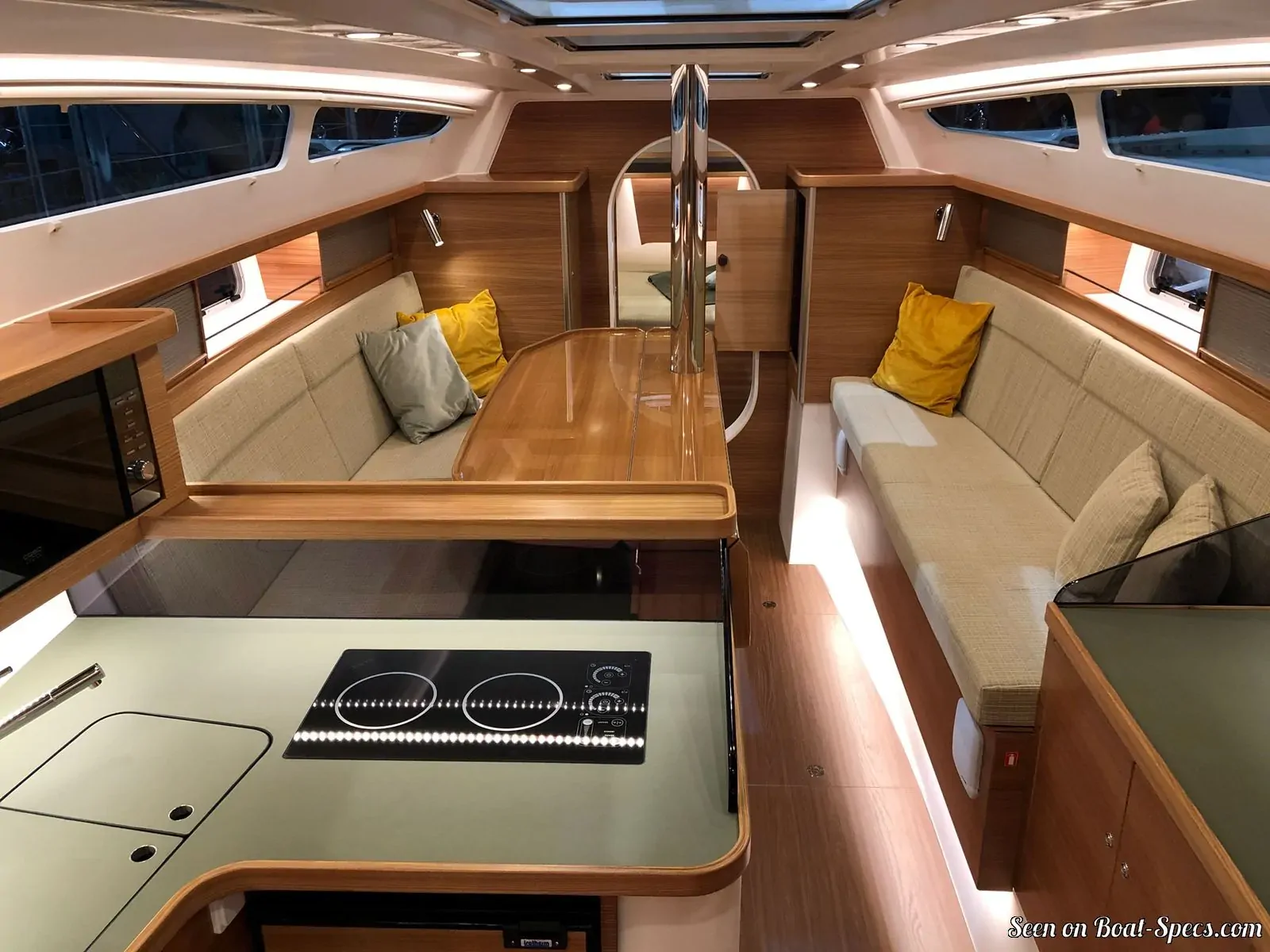

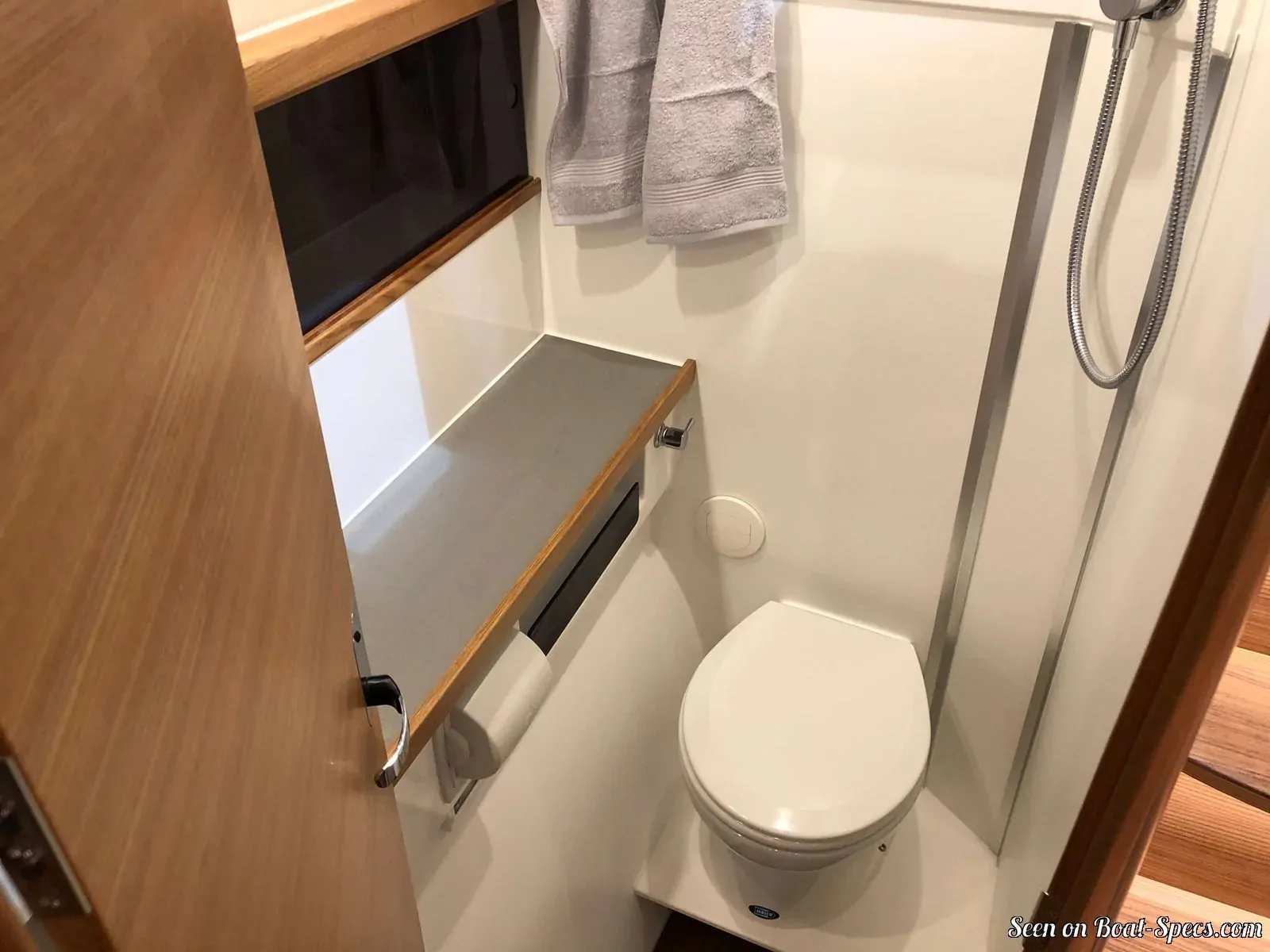

Quorning Boats Dragonfly 40 interior and accommodations - - 5/9
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats
Quorning Boats Dragonfly 40 interior and accommodations - - 6/9
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats
Quorning Boats Dragonfly 40 interior and accommodations - - 7/9
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats
Quorning Boats Dragonfly 40 interior and accommodations - - 8/9
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats
Quorning Boats Dragonfly 40 interior and accommodations - - 9/9
Picture extracted from the commercial documentation © Quorning Boats
Picture extracted from the commercial documentation © Quorning Boats
