Island Packet 525

Sailboat specifications

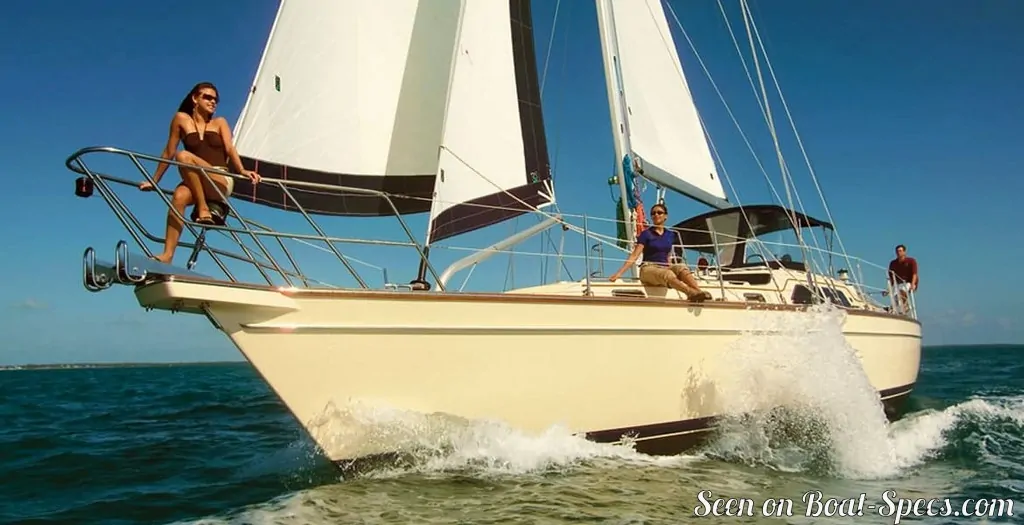

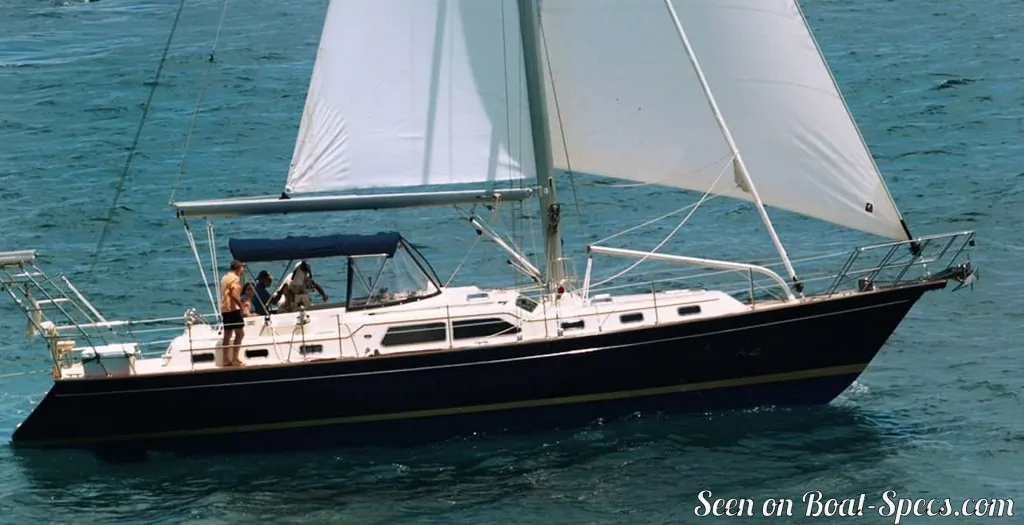

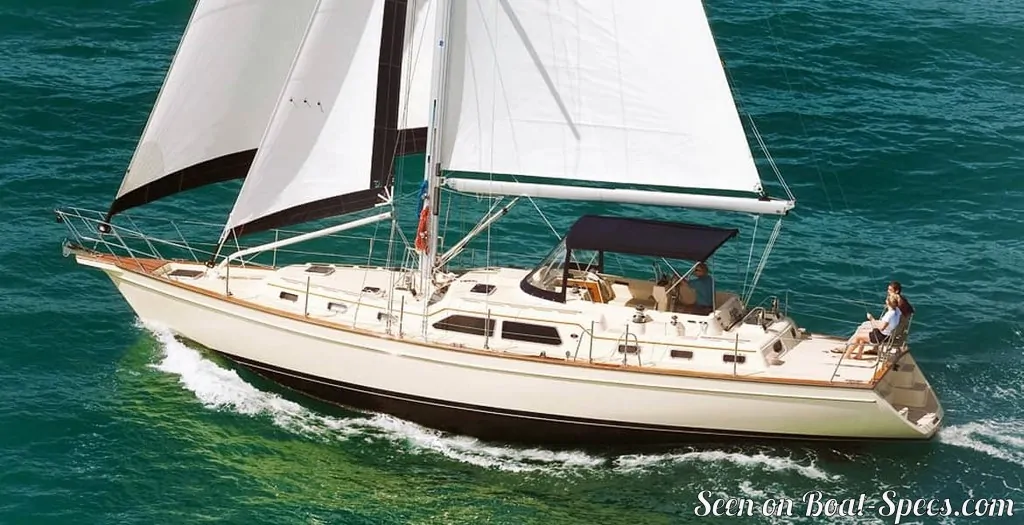

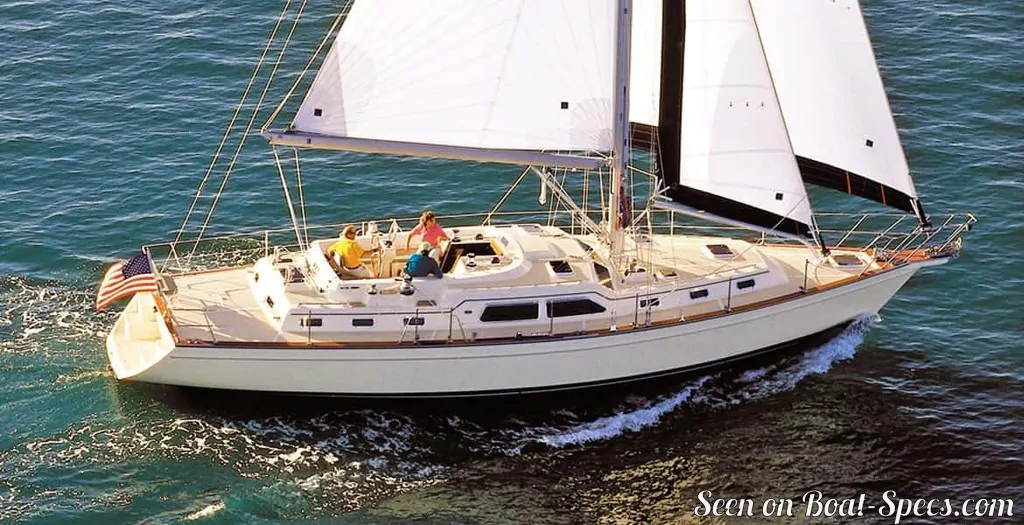

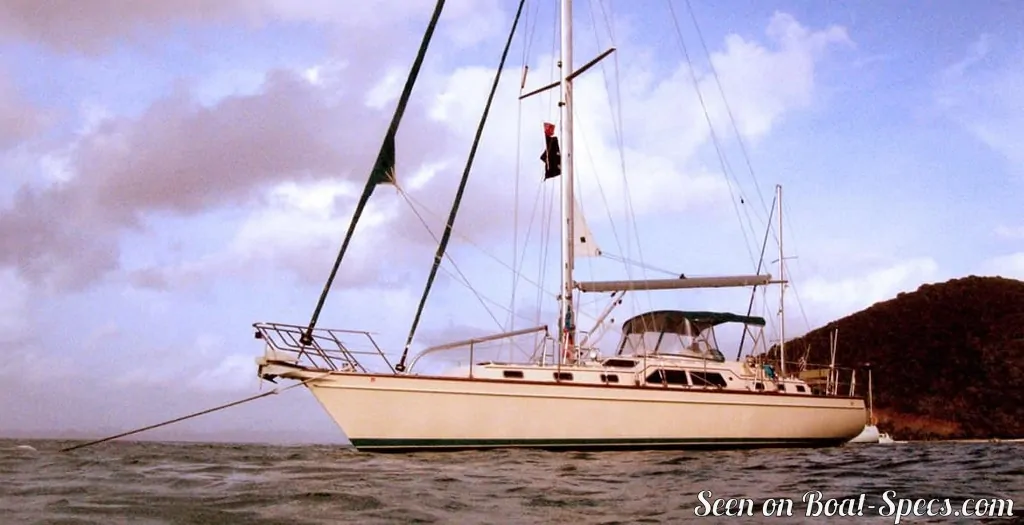

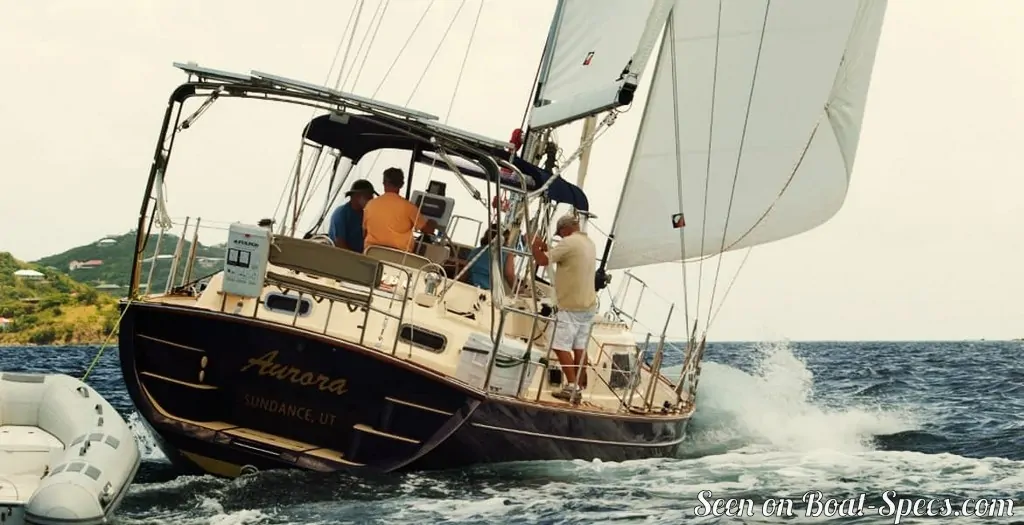

The Island Packet 525 is a 52’2” (15.9m) cruising sailboat designed by Robert Johnson (United States). She is built since 2015 by Island Packet Yachts (United States).

Island Packet 525's main features

Model
Island Packet 525
Hull type
Monohull
Category
Offshore cruising sailboat
Sailboat builder
Sailboat designer
Country
United States
Construction
GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester (vacuum infusion)
- Deck: Sandwich balsa fiberglass polyester vacuum bagged
First built hull
2015
Last built hull
Still in production
Appendages
Keel : semi-full keel
Helm
Single helm wheel
Rudder
Single rudder on skeg
Unsinkable
No
Trailerable
No
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
A
Standard public price ex. VAT (indicative only)
About
665 000
 (2020)

Island Packet 525's main dimensions

Overall length
52’ 2”15.9 m
Hull length
52’ 2”15.9 m
Waterline length
43’ 1”13.15 m
Beam (width)
15’ 4”4.67 m
Draft
5’ 2”1.6 m
Mast height from DWL
63’ 6”19.35 m
Maximum displacement (MLDC)
44092 lb20000 kg
Ballast weight
15984 lb7250 kg
Ballast type
Lead

Island Packet 525's rig and sails

Upwind sail area
1234 ft²114.6 m²
Rigging type
Cutter Marconi (in-mast furling mainsail) masthead
Mast configuration
Keel stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
0 °
Spars construction
Aluminum spars
Standing rigging
1x19 strand wire continuous

Island Packet 525's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
110 HP
Fuel type
Diesel
Fuel tank capacity
299.8 gal1135 liters

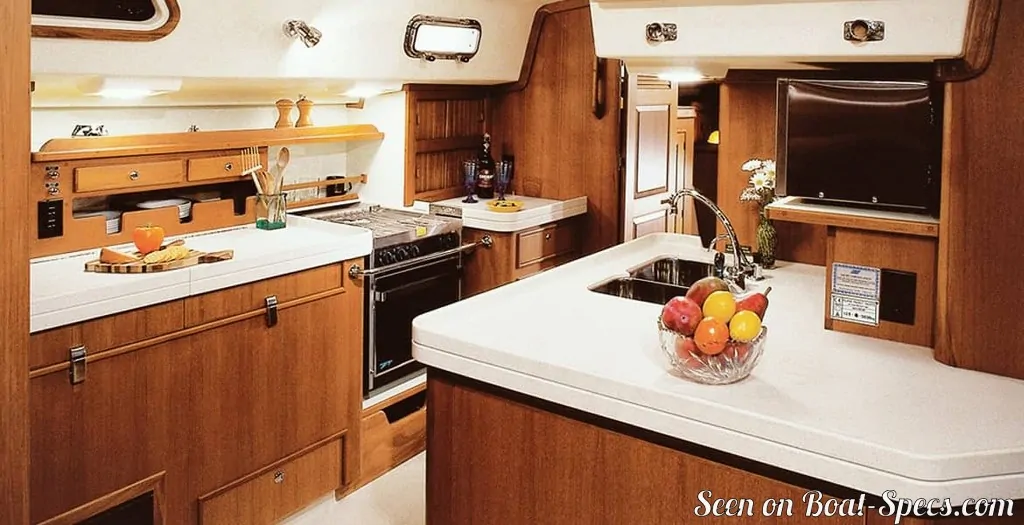

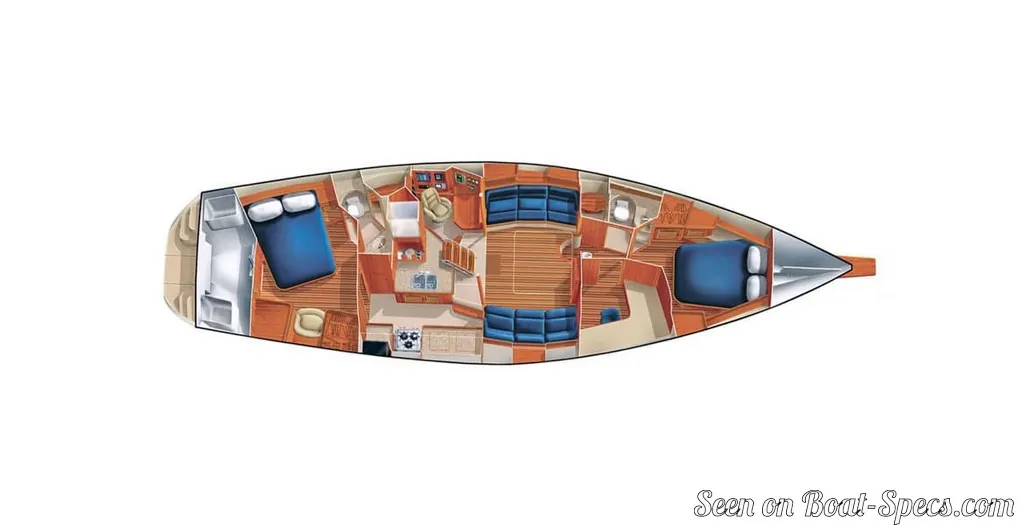

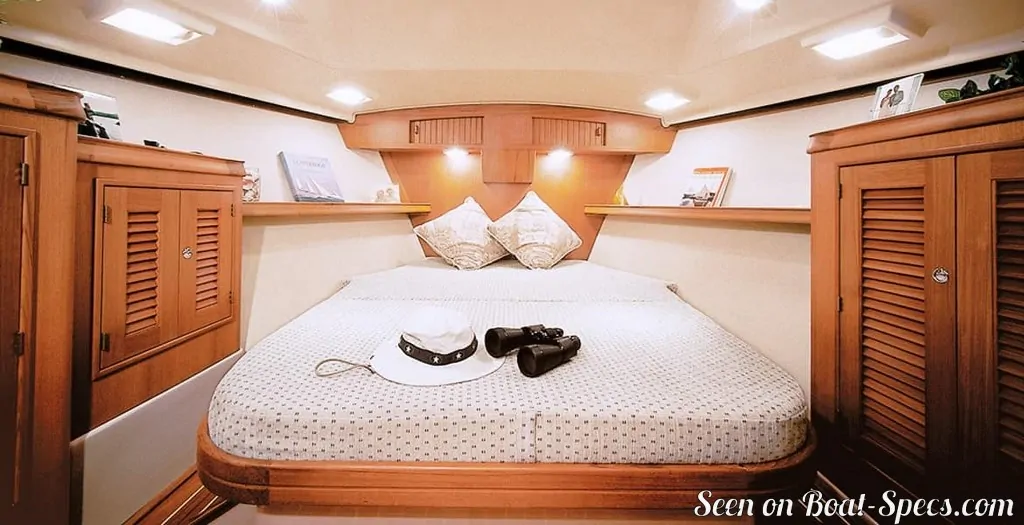

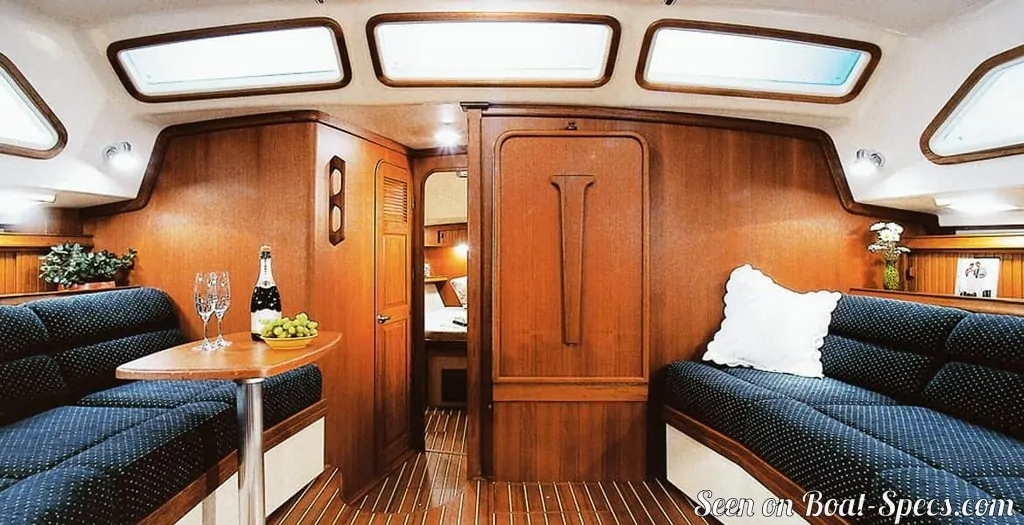

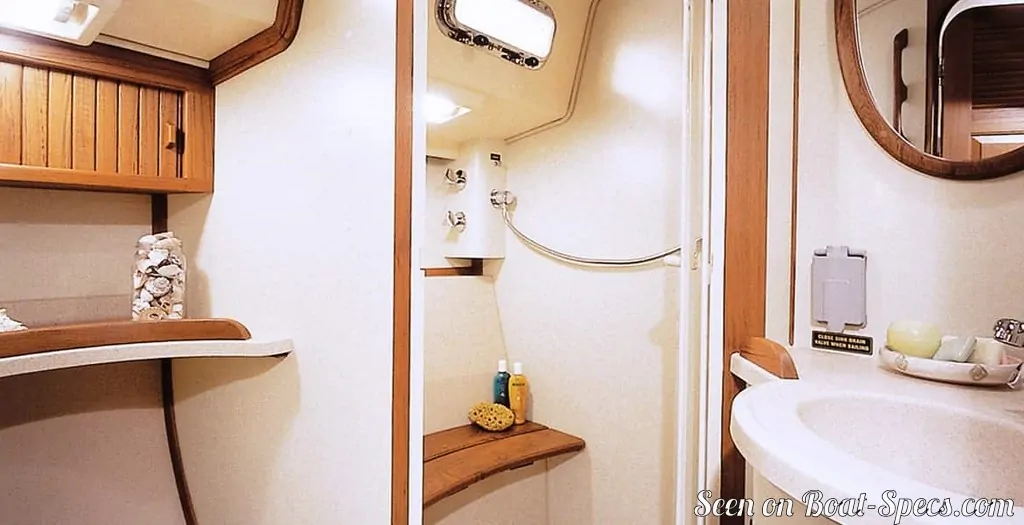

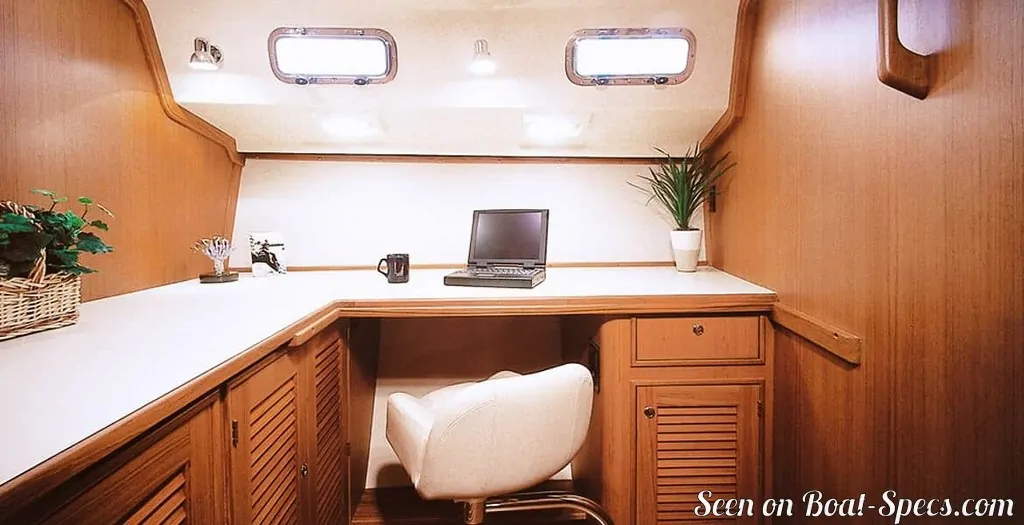

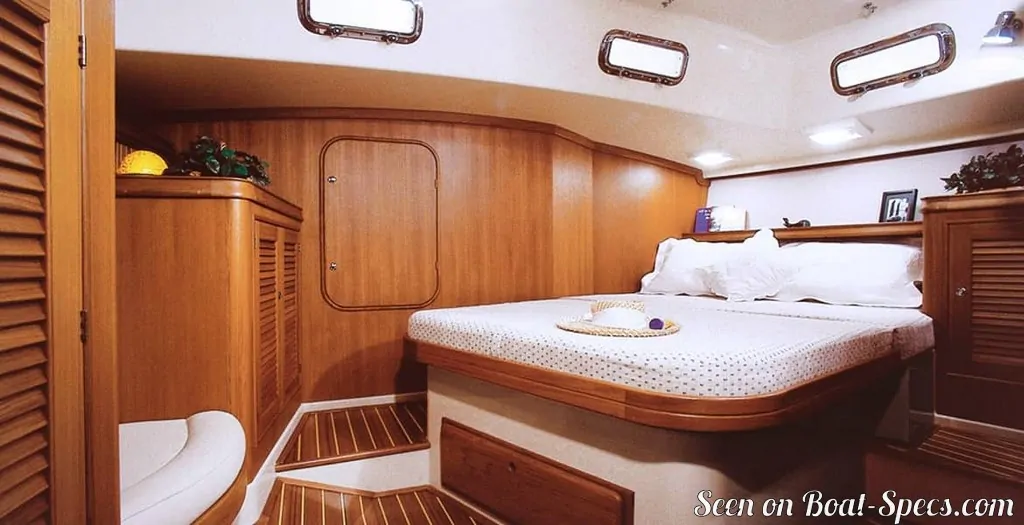

Island Packet 525's accommodations and layout

Cockpit
Center cockpit
Cabin(s) (min./max.)
2 / 3
Berth(s) (min./max.)
4 / 9
Head(s)
2
Freshwater tank capacity
299.8 gal1135 liters
Holding tank capacity
60 gal227 liters
Maximum headroom
6’ 5”1.96 m
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
