Océanis 46.1 Deep draft

Sailboat specifications

The Océanis 46.1 is a 44’10” (13.65m) cruising sailboat designed by Finot Conq Architectes (France). She is built since 2018 by Bénéteau (France). The Deep draft version offers a deeper L-shaped keel bringing extra performance especially upwind. She has been awarded "2019 - European Yacht of the Year: Family Cruiser".

The Océanis 46.1 is as well listed, on, in Furling mainsail and Performance version (see all the versions compared).

Océanis 46.1's main features

Océanis 46.1
Deep draft
Hull type
Cruising sailboat
Sailboat builder
Sailboat designer
Sailboat range
GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich foam fiberglass polyester (injection molding process)
First built hull
Last built hull
Still in production
  • 2019: European Yacht of the Year: Family Cruiser
    Keel : L-shaped keel (with bulb)
    Twin helm wheels
    Twin spade rudders
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    Standard public price ex. VAT (indicative only)
    229 000

    Océanis 46.1's main dimensions

    Overall length
    47’ 11”14.6 m
    Hull length
    44’ 10”13.65 m
    Waterline length
    43’ 5”13.24 m
    Beam (width)
    14’ 10”4.5 m
    7’ 8”2.35 m
    Mast height from DWL
    66’ 7”20.31 m
    Light displacement (MLC)
    23722 lb10760 kg
    Ballast weight
    6030 lb2735 kg
    Ballast type
    Cast iron

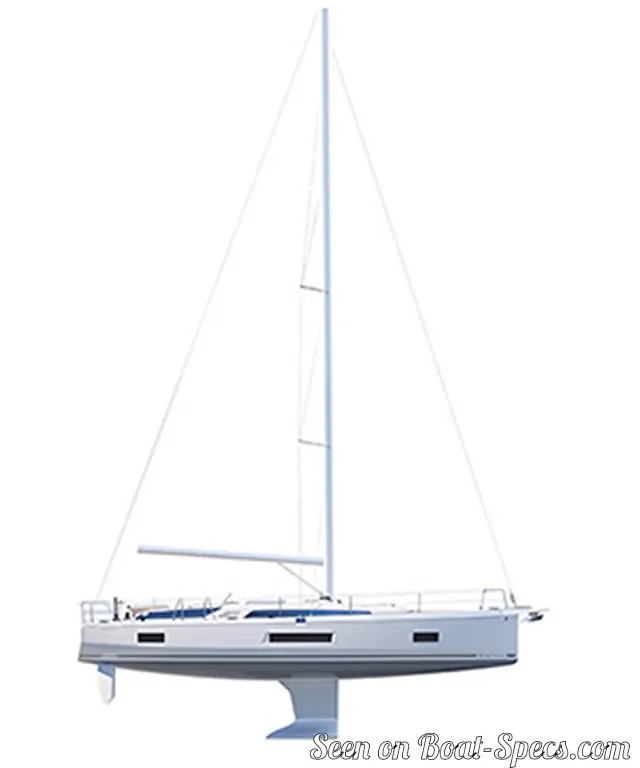

    Océanis 46.1's rig and sails

    Upwind sail area
    1143 ft²106.16 m²
    Downwind sail area
    2217 ft²206 m²
    Mainsail area
    581 ft²54 m²
    Genoa area
    561 ft²52.16 m²
    Solent area
    435 ft²40.42 m²
    Asymmetric spinnaker area
    1636 ft²152 m²
    Code 0 area
    1098 ft²102 m²
     iFore triangle height (from mast foot to fore stay top attachment)
    58’ 1”17.72 m
     iFore triangle base (from mast foot to bottom of forestay)
    18’ 10”5.72 m
     iMainsail hoist measurement (from tack to head)
    55’ 2”16.82 m
     iMainsail foot measurement (from tack to clew)
    18’ 6”5.63 m
    Rigging type
    Sloop Marconi fractional
    Mast configuration
    Deck stepped mast
    Rotating spars
    Number of levels of spreaders
    Spreaders angle
    P °
    Spars construction
    Aluminum spars
    Standing rigging
    1x19 strand wire discontinuous

    Océanis 46.1's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    234 ft²/T21.78 m²/T
    Downwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
    455 ft²/T42.27 m²/T
    Displacement-length ratio (DLR)
     iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
    The DLR can be used to compare the relative mass of different sailboats no matter what their length:

    a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
    Ballast ratio
     iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

    The higher the ballast ratio is, the greater is the stability.
    25 %
    Critical hull speed
     iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
    The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
    8.83 knots

    Océanis 46.1's auxiliary engine

    1 inboard engine
    Engine(s) power (min./max.)
    57 HP / 80 HP
    Fuel type
    Fuel tank capacity
    52.8 gal200 liters

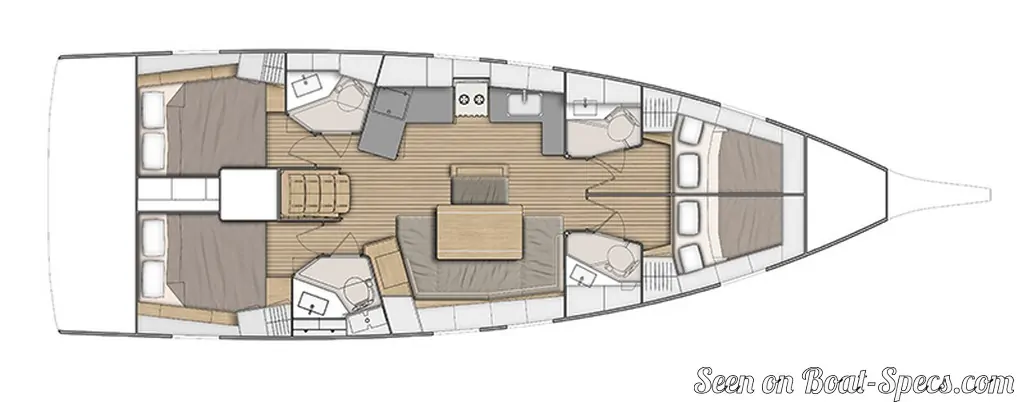

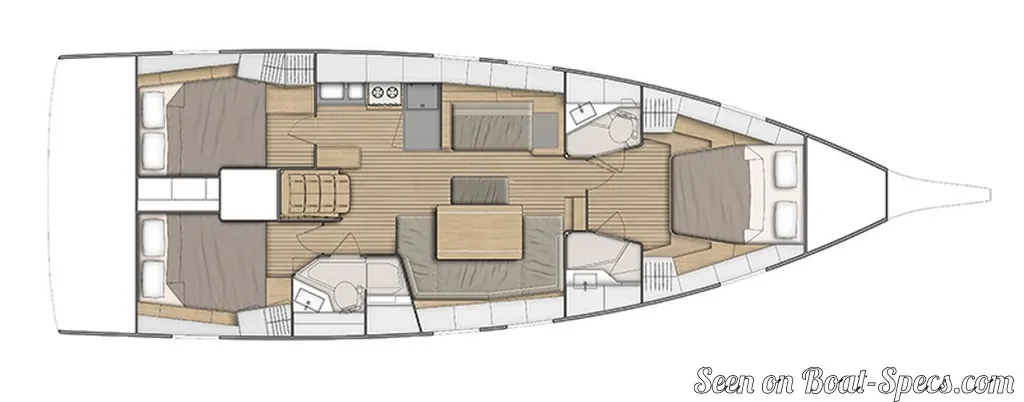

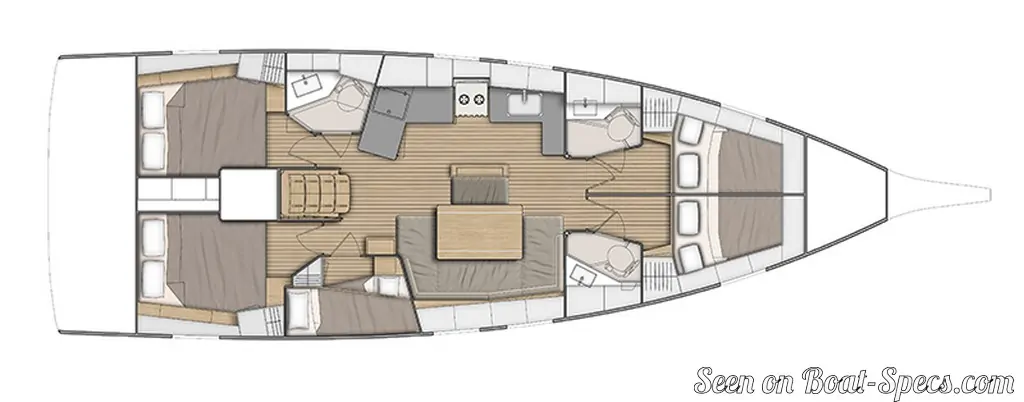

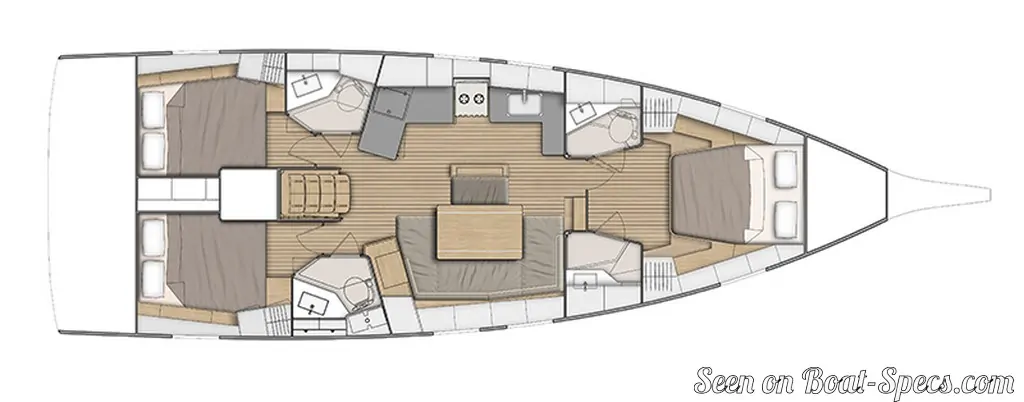

    Océanis 46.1's accommodations and layout

    Closing aft cockpit with opening system
    Cabin(s) (min./max.)
    3 / 5
    Berth(s) (min./max.)
    6 / 12
    Head(s) (min./max.)
    2 / 4
    Freshwater tank capacity
    97.7 gal370 liters
    Holding tank capacity
    30.1 gal114 liters
    Fridge/ice-box capacity
    56.8 gal215 liters
    Boiler capacity
    10.6 gal40 liters

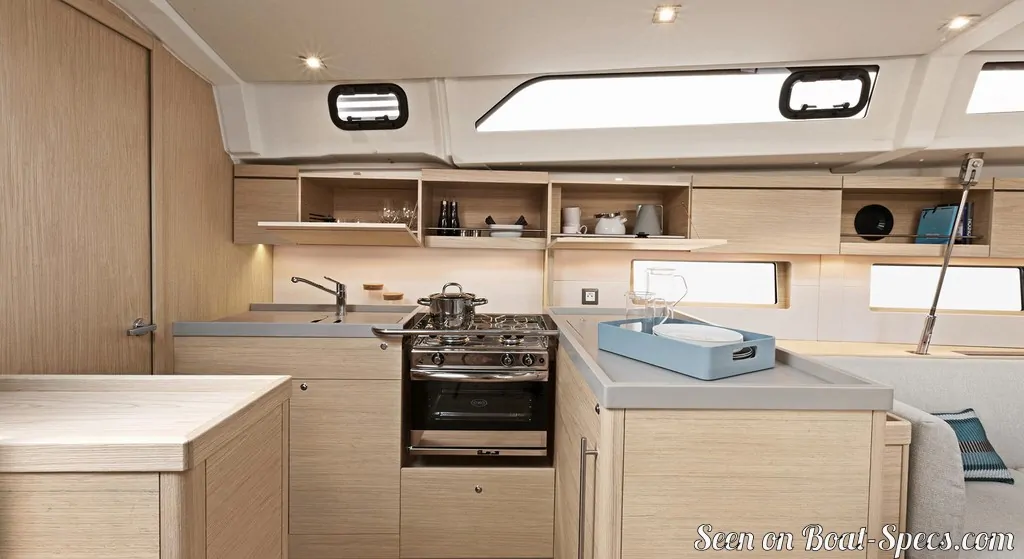

    Galley headroom
    6’ 5”1.94 m

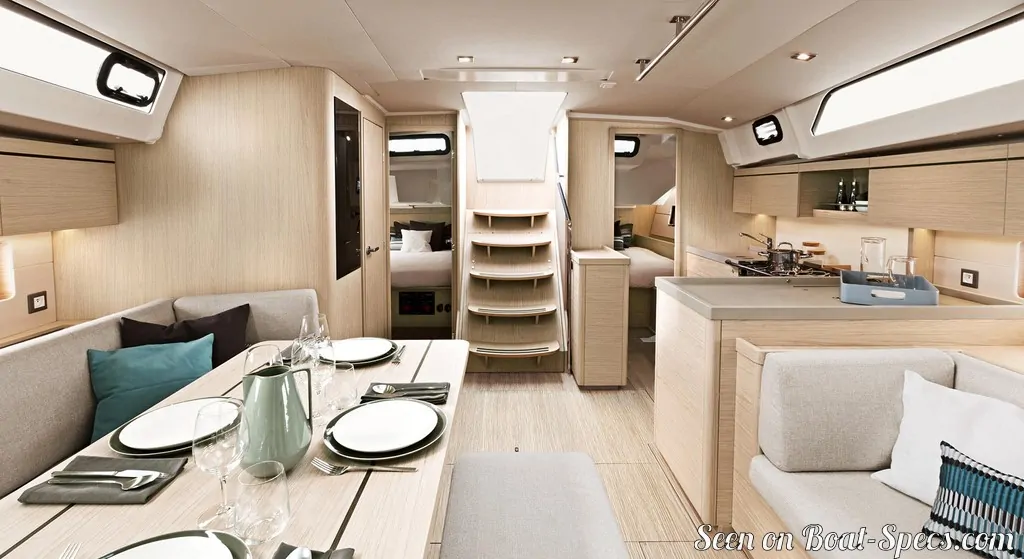

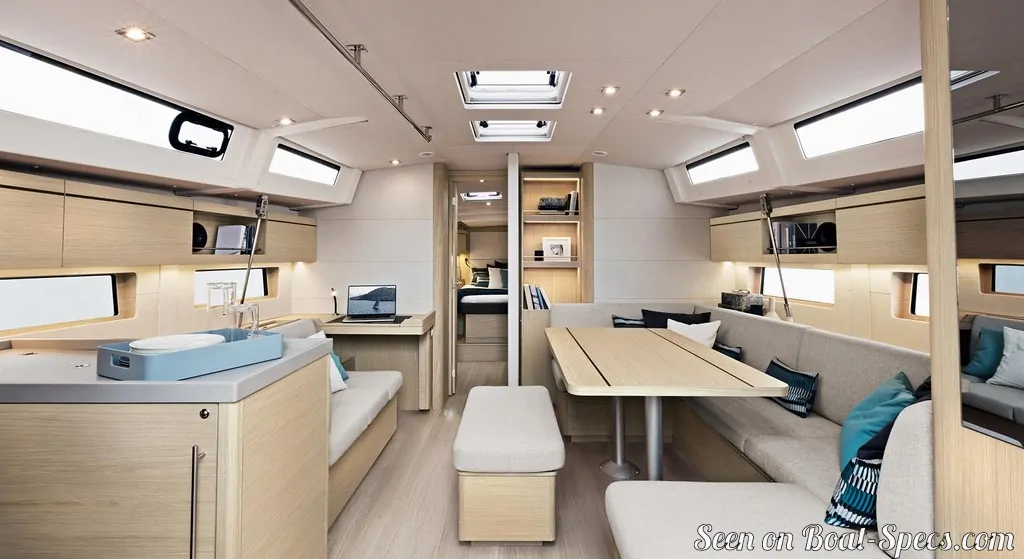

    Océanis 46.1's saloon

    Maximum headroom
    6’ 7”2.01 m

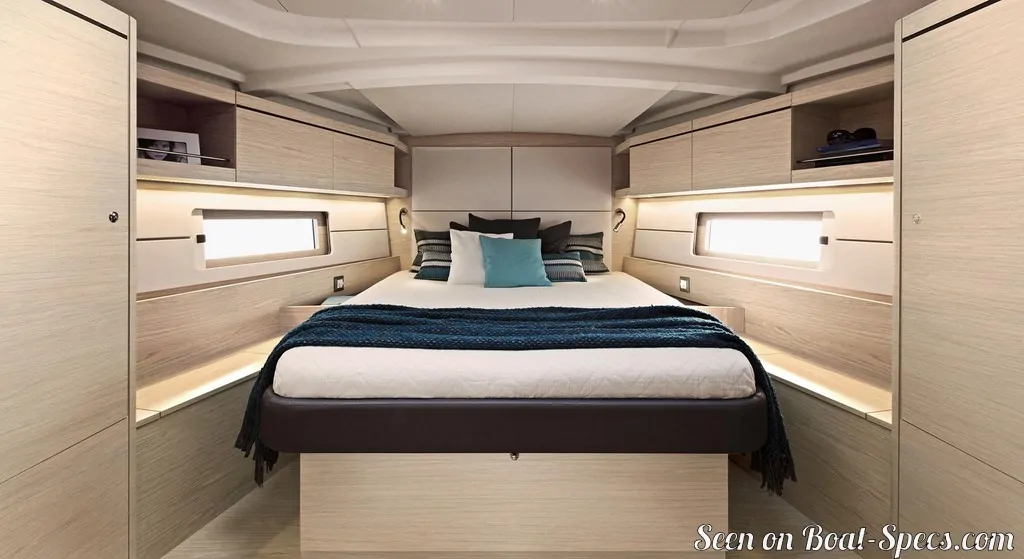

    Océanis 46.1's fore cabin

    Maximum headroom
    6’ 5”1.95 m
    Berth length
    6’ 7”2 m
    Berth width (head/feet)
    5’1.53 m / 4’1.23 m

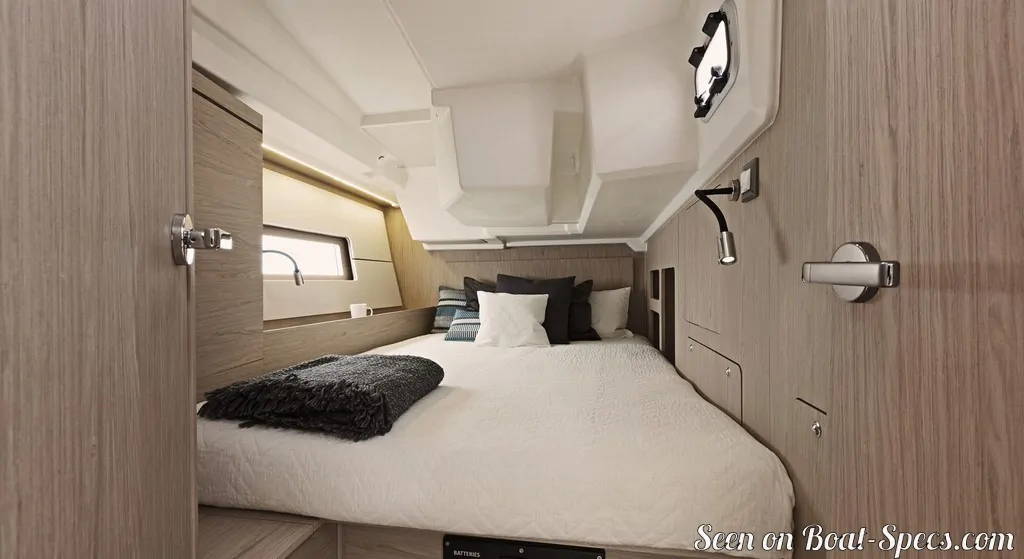

    Océanis 46.1's aft cabin

    Maximum headroom
    6’ 4”1.92 m
    Berth length
    6’ 8”2.05 m
    Berth width
    4’ 7”1.4 m
