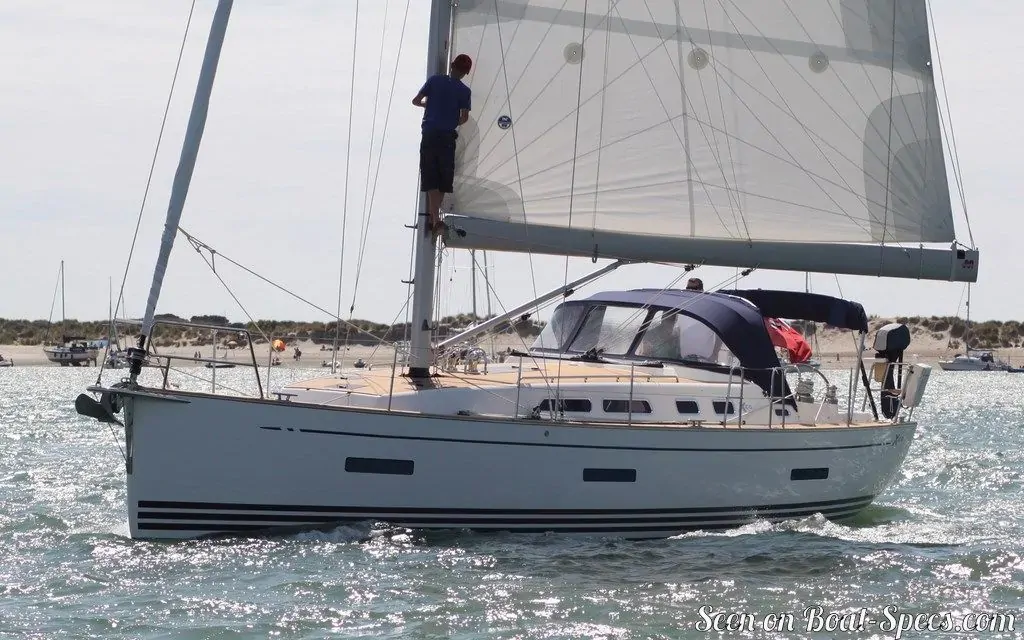

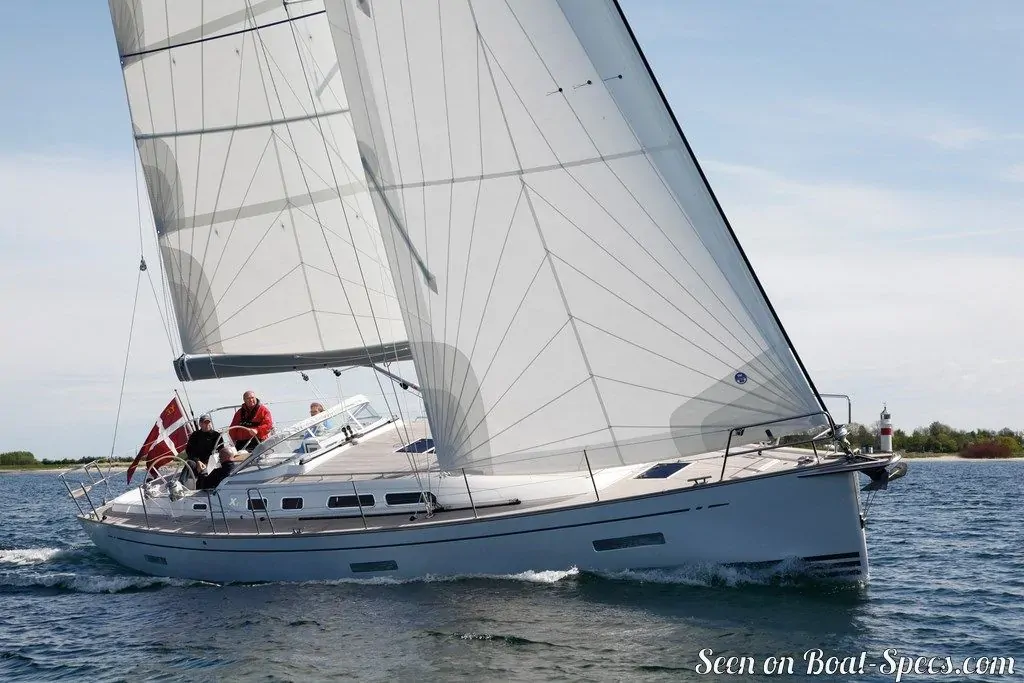

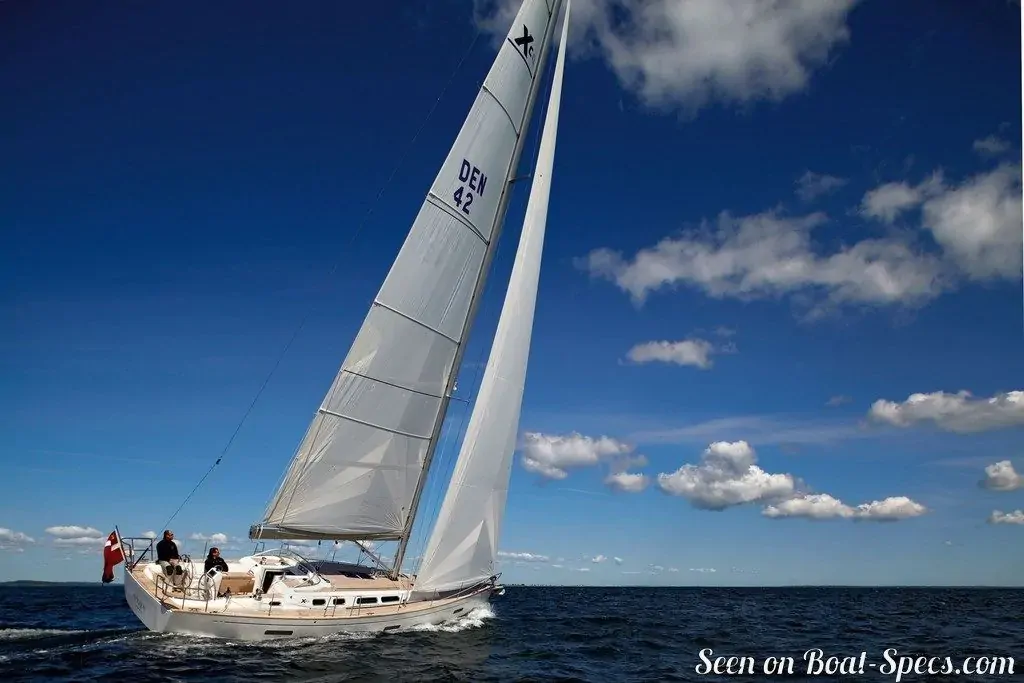

The **Xc 42** is a 42’ (12.81m) fast cruising sailboat designed by *X-Yachts Design Group* (Denmark). She was built between 2009 and 2019 by *X-Yachts* (Denmark).

The**Xc 42** is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

The

- Model
- Xc 42
- Version
- Standard
- Hull type
- Monohull
- Category
- Offshore fast cruising sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- Denmark

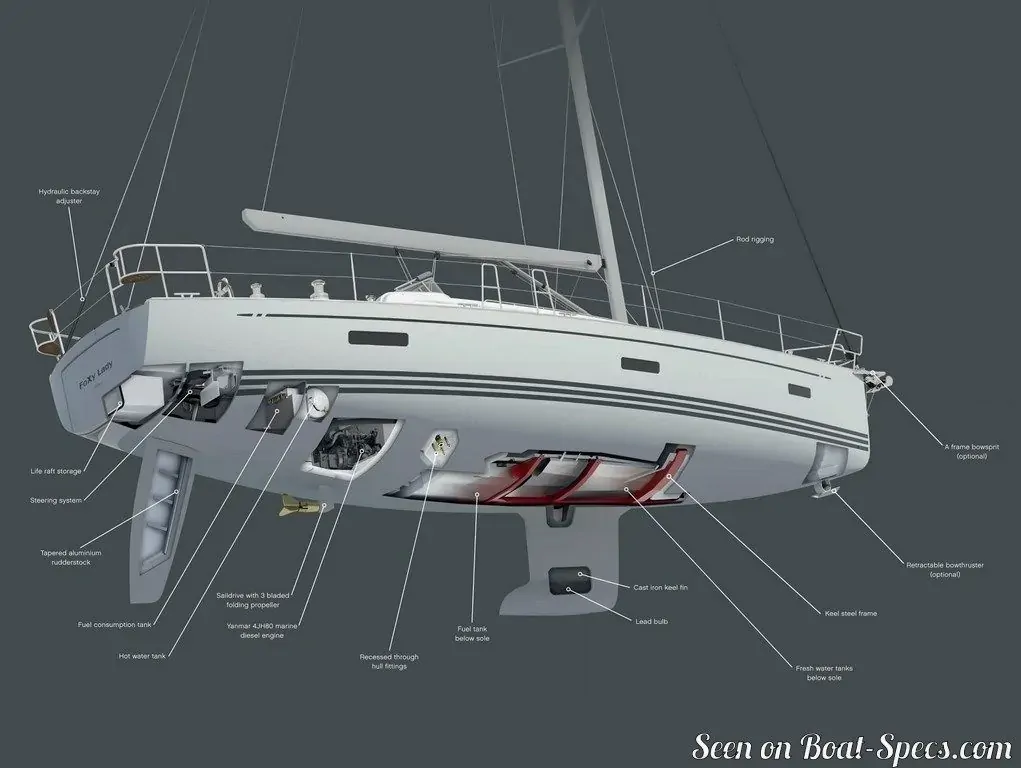

- Construction
- GRP (glass reinforced polyester):

Sandwich fiberglass polyester with galvanized steel frame - First built hull
- 2009
- Last built hull
- 2019
- Appendages
- Keel : L-shaped keel (with bulb) and 2 Chistera foils
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design category
*iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)*

A: Wind < force 9, Waves < 10m

B: Wind < force 8, Waves < 8m

C: Wind < force 6, Waves < 4m

D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- About367 000 €(2017)

- Hull length
- 42’12.81 m
- Waterline length
- 37’ 7”11.47 m
- Beam (width)
- 13’ 6”4.1 m
- Draft
- 6’ 11”2.1 m
- Light displacement (M
_{LC}) - 25133 lb11400 kg
- Ballast weight
- 11376 lb5160 kg
- Ballast type
- Cast iron fin with lead bulb

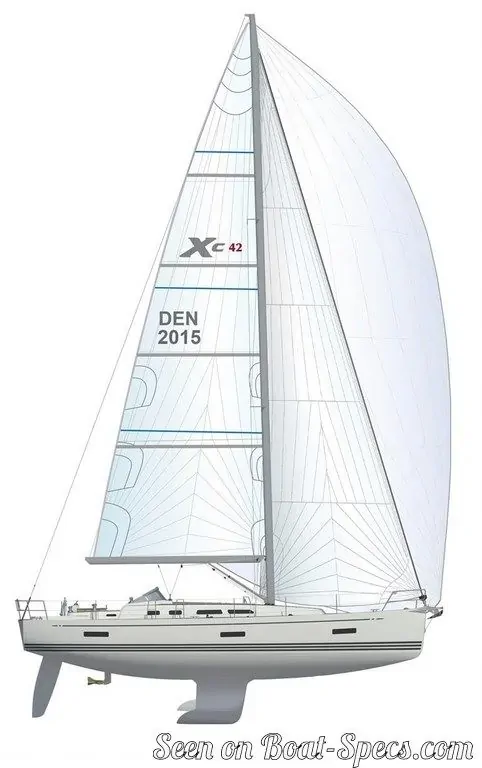

- Upwind sail area
- 1187 ft²110.3 m²
- Downwind sail area
- 2273 ft²211.2 m²
- Mainsail area
- 570 ft²53 m²
- Genoa area
- 617 ft²57.3 m²
- Solent area
- 476 ft²44.2 m²
- Symmetric spinnaker area
- 1611 ft²149.7 m²
- Asymmetric spinnaker area
- 1703 ft²158.2 m²
- Rigging type
- Sloop Marconi 19/20
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 2
- Spreaders angle
- Swept-back
- Spars construction
- Aluminum spars
- Standing rigging
- Single-strand (ROD)

- Upwind sail area to displacement
*iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.*

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 234 ft²/T21.78 m²/T
- Downwind sail area to displacement
*iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.*

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 449 ft²/T41.7 m²/T
- Displacement-length ratio (DLR)
*iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).*

The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 214
- Ballast ratio
*iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.*

The higher the ballast ratio is, the greater is the stability. - 45 %
- Critical hull speed
*iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".*

The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 8.22 knots

- Engine(s)
- 1 inboard engine
- Engine(s) power
- 55 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 66 gal250 liters

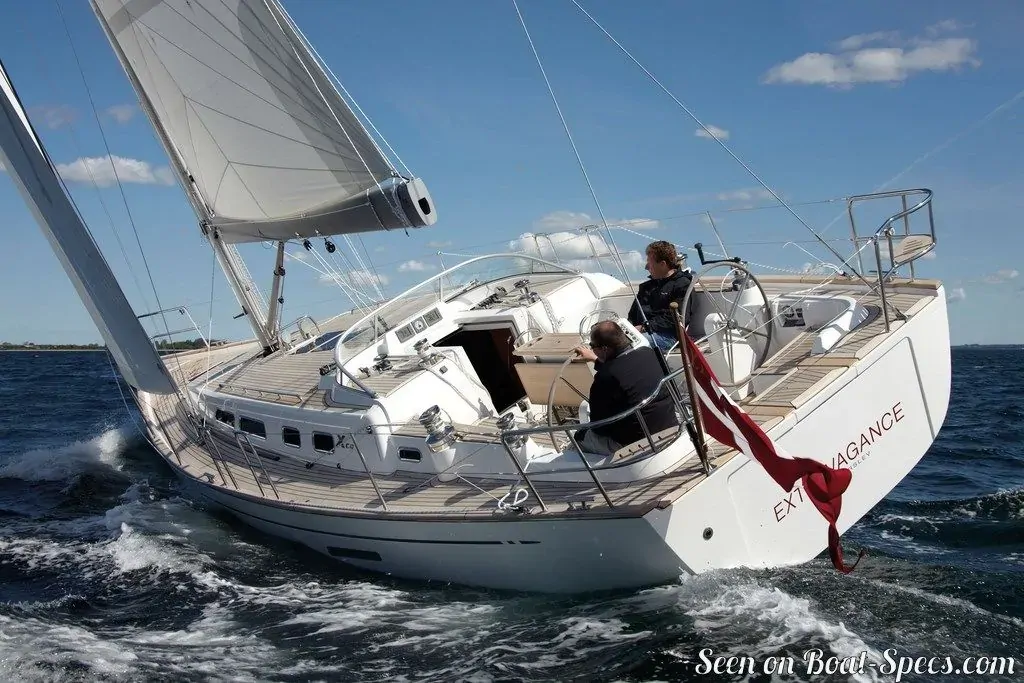

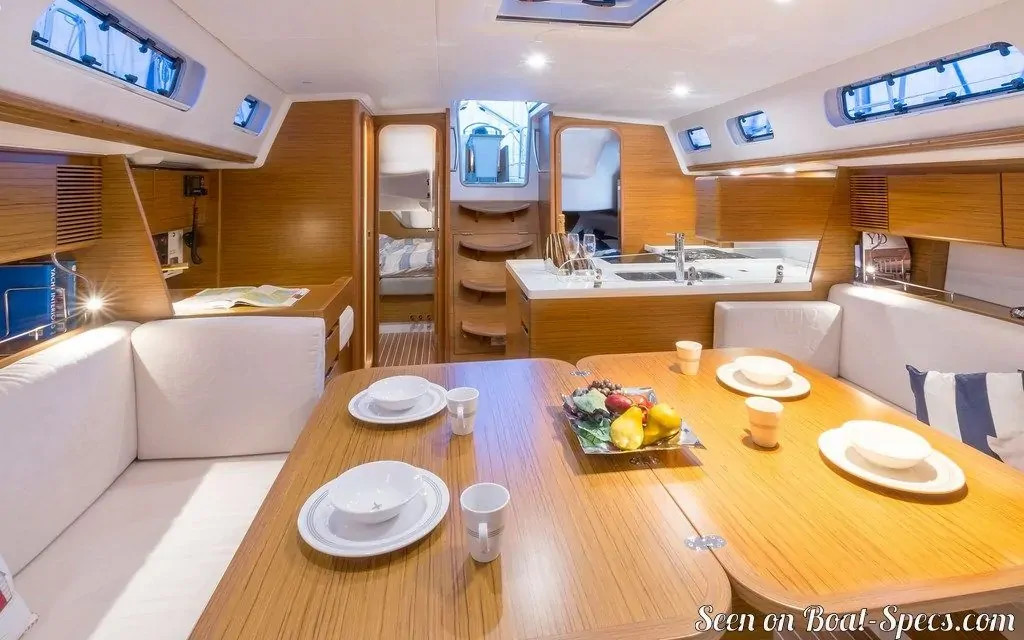

- Cockpit
- Closing aft cockpit with opening system

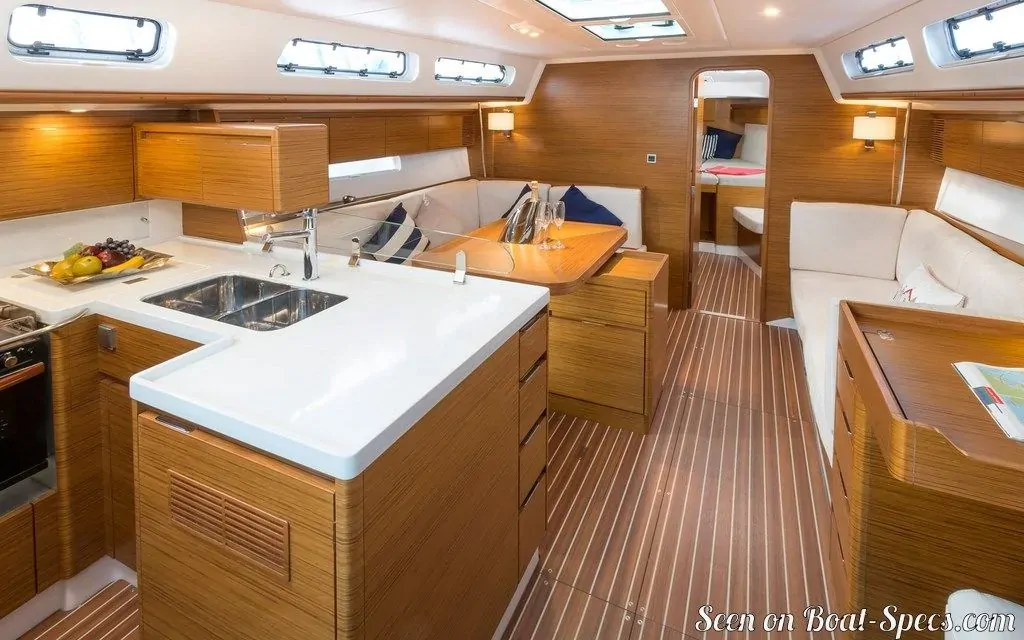

- Cabin(s)
- 3
- Berth(s)
- 6
- Head(s)
- 2
- Freshwater tank capacity
- 137.4 gal520 liters
- Fridge/ice-box capacity
- 37 gal140 liters
- Maximum headroom
- 6’ 2”1.9 m

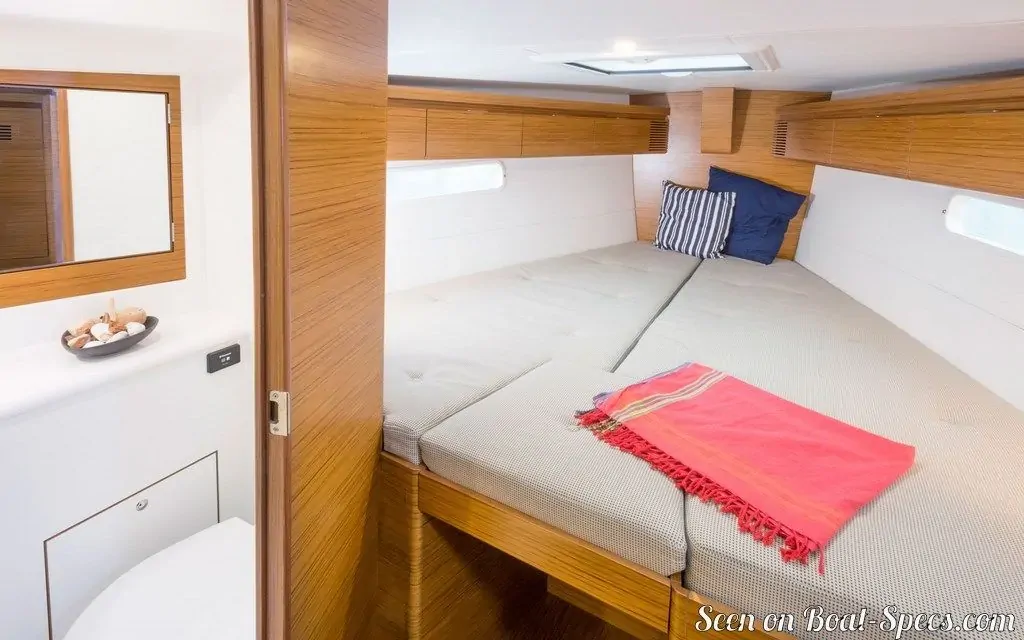

- Berth length
- 6’ 7”2 m
- Berth width
- 5’ 2”1.6 m

- Berth length
- 7’2.14 m
- Berth width
- 4’ 10”1.46 m
