Xc 45 Standard

Sailboat specifications

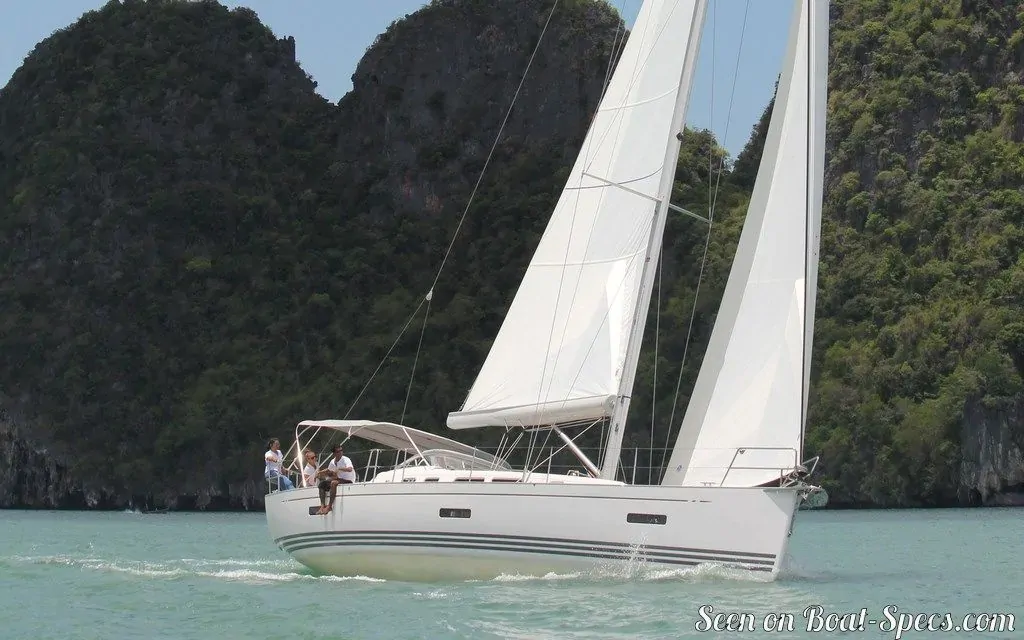

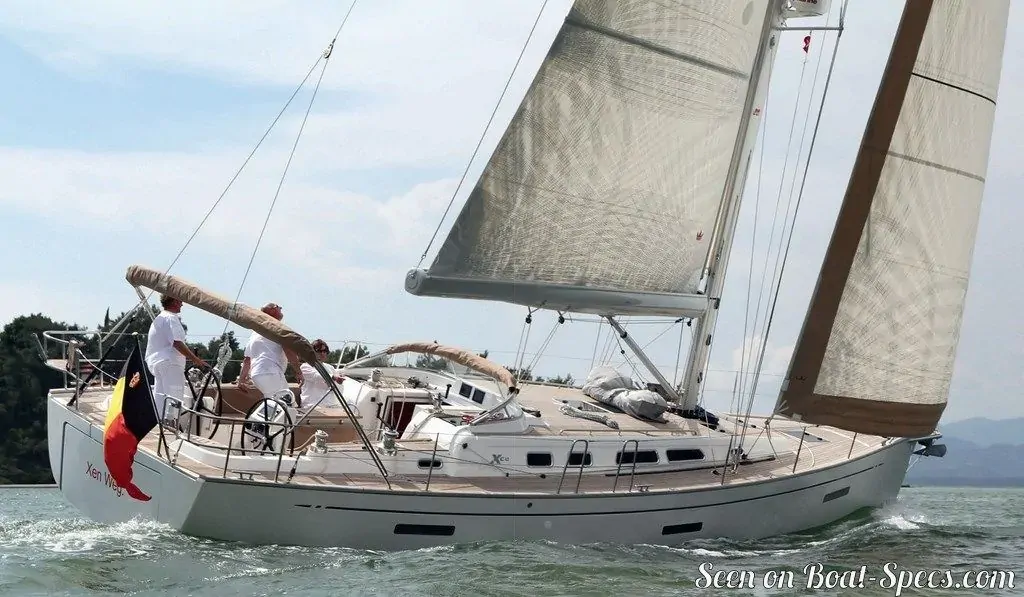

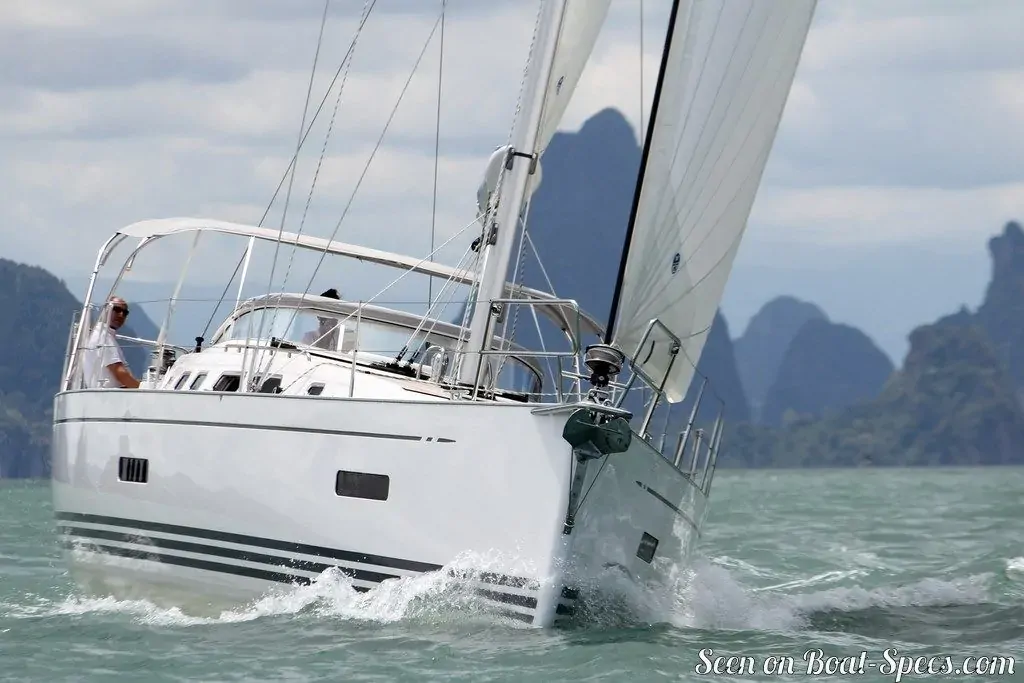

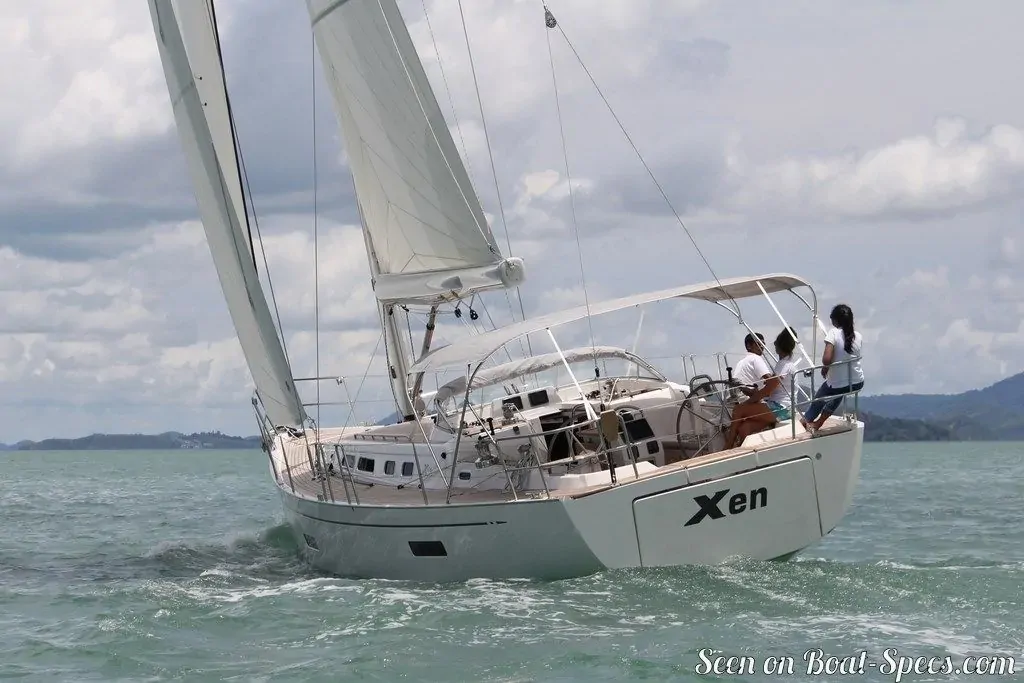

The Xc 45 is a 45’6” (13.86m) fast cruising sailboat designed by X-Yachts Design Group (Denmark). She is built since 2008 by X-Yachts (Denmark). She has been awarded "2009 - European Yacht of the Year: Luxury Cruiser".

The Xc 45 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

Xc 45's main features

Model
Xc 45
Version
Standard
Hull type
Monohull
Category
Offshore fast cruising sailboat
Sailboat builder
Sailboat designer
Sailboat range
Country
Denmark

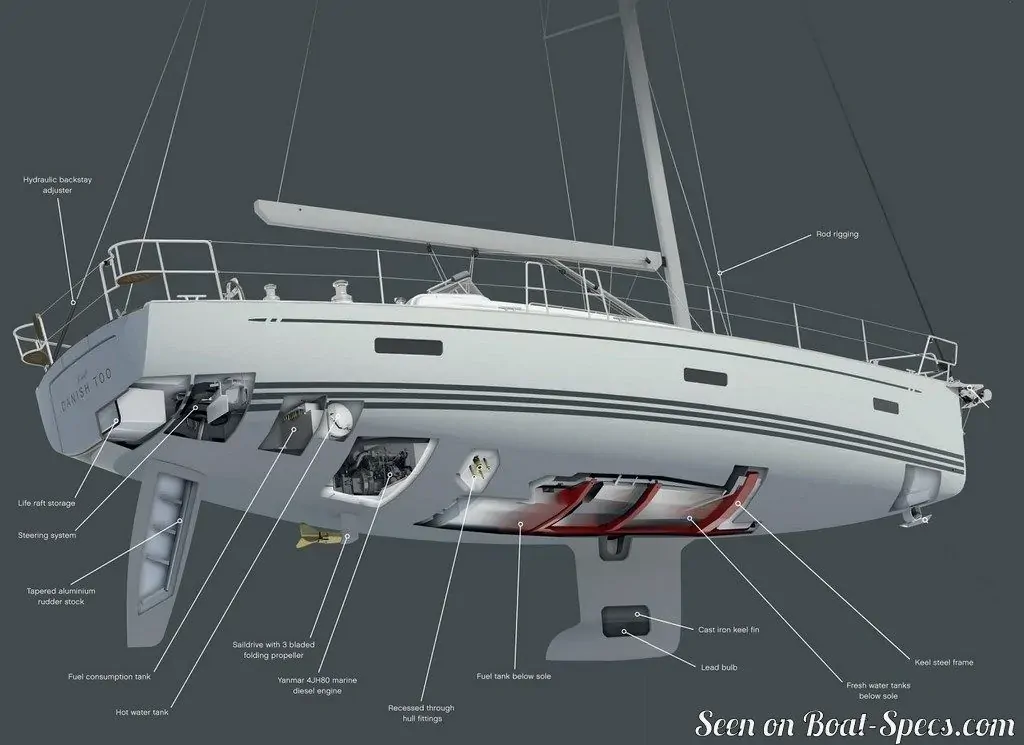

Construction
GRP (glass reinforced polyester):
Sandwich fiberglass polyester with galvanized steel frame
First built hull
2008
Last built hull
Still in production
Award(s)
  • 2009: European Yacht of the Year: Luxury Cruiser
    Appendages
    Keel : L-shaped keel (with bulb)
    Helm
    Twin helm wheels
    Rudder
    Single spade rudder
    Unsinkable
    No
    Trailerable
    No
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    A
    Standard public price ex. VAT (indicative only)
    About
    467 000
     (2020)

    Xc 45's main dimensions

    Hull length
    45’ 6”13.86 m
    Waterline length
    41’ 11”12.76 m
    Beam (width)
    14’ 2”4.32 m
    Draft
    7’ 2”2.2 m
    Light displacement (MLC)
    29145 lb13220 kg
    Ballast weight
    13151 lb5965 kg
    Ballast type
    Cast iron fin with lead bulb

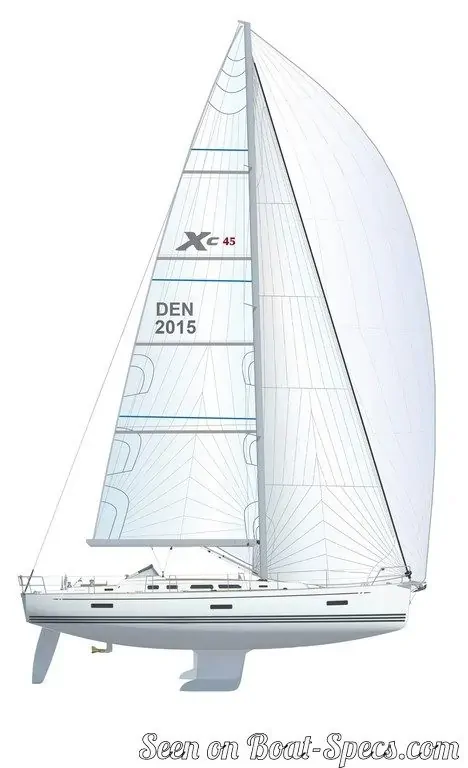

    Xc 45's rig and sails

    Upwind sail area
    1363 ft²126.6 m²
    Downwind sail area
    2597 ft²241.3 m²
    Mainsail area
    660 ft²61.3 m²
    Genoa area
    703 ft²65.3 m²
    Solent area
    546 ft²50.7 m²
    Jib area
    475 ft²44.1 m²
    Asymmetric spinnaker area
    1938 ft²180 m²
    Rigging type
    Sloop Marconi 9/10
    Mast configuration
    Keel stepped mast
    Rotating spars
    No
    Number of levels of spreaders
    3
    Spreaders angle
    Swept-back
    Spars construction
    Aluminum spars
    Standing rigging
    Single-strand (ROD)

    Xc 45's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    244 ft²/T22.64 m²/T
    Downwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
    465 ft²/T43.16 m²/T
    Displacement-length ratio (DLR)
     iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
    The DLR can be used to compare the relative mass of different sailboats no matter what their length:

    a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
    180
    Ballast ratio
     iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

    The higher the ballast ratio is, the greater is the stability.
    45 %
    Critical hull speed
     iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
    The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
    8.67 knots

    Xc 45's auxiliary engine

    Engine(s)
    1 inboard engine
    Engine(s) power
    80 HP
    Fuel type
    Diesel
    Fuel tank capacity
    116.2 gal440 liters

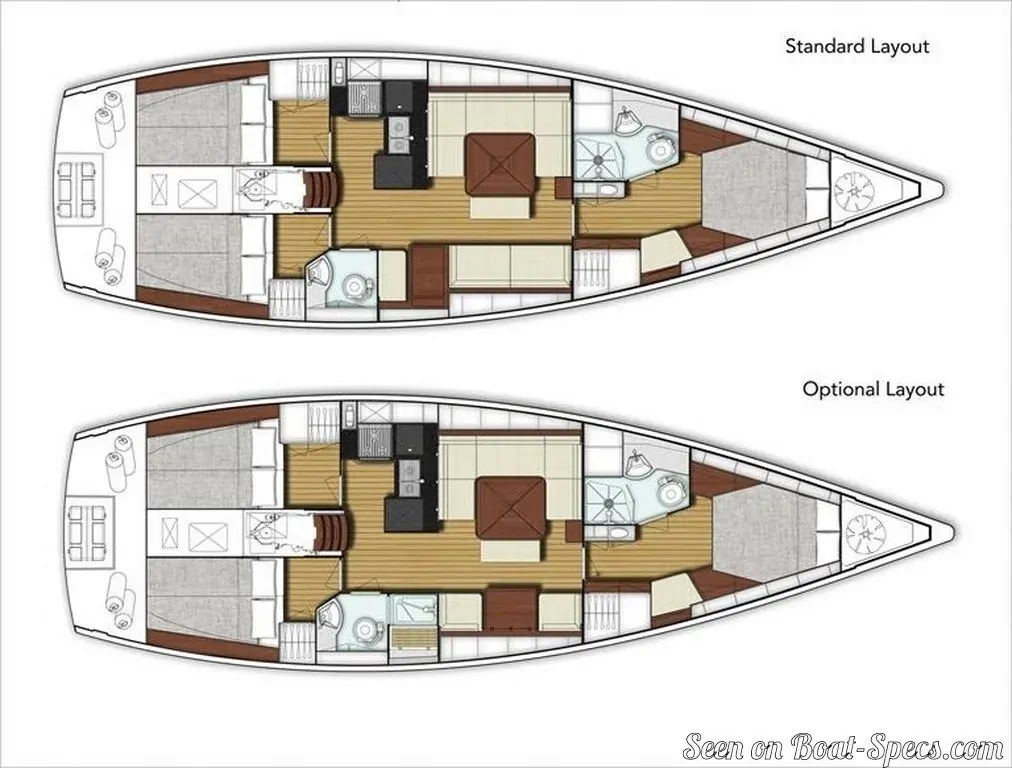

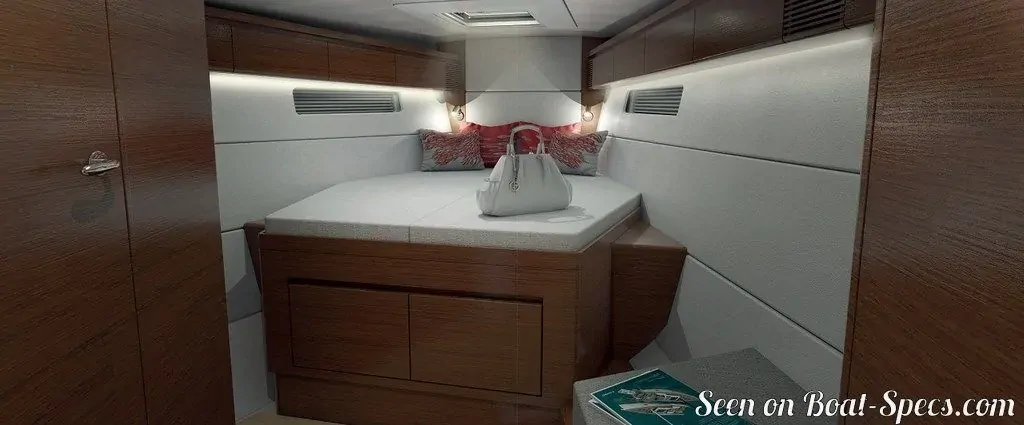

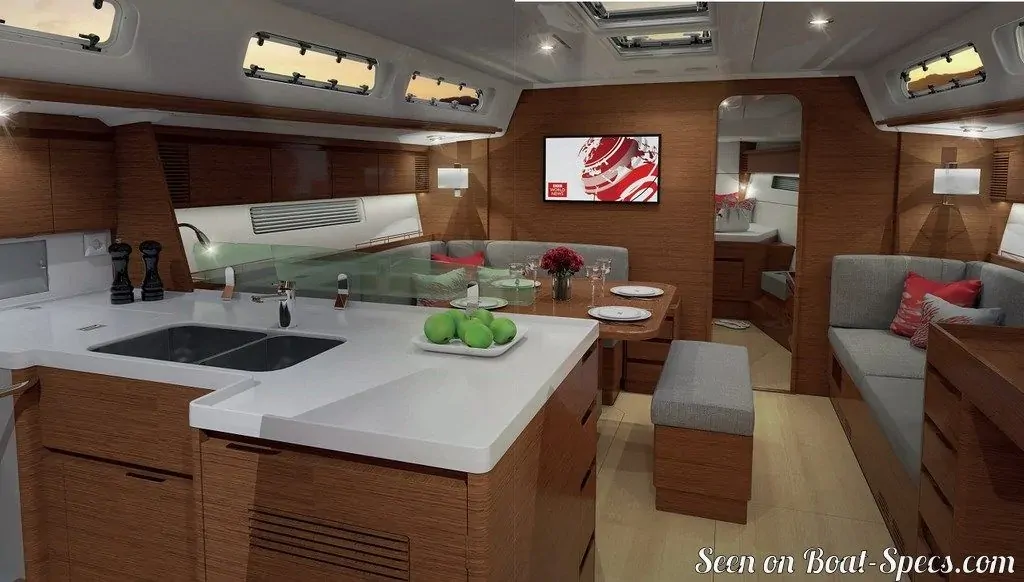

    Xc 45's accommodations and layout

    Cockpit
    Closing aft cockpit with opening system
    Cabin(s)
    3
    Berth(s) (min./max.)
    6 / 8
    Head(s)
    2
    Freshwater tank capacity
    162.5 gal615 liters
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
