IMX 70
Sailboat specifications

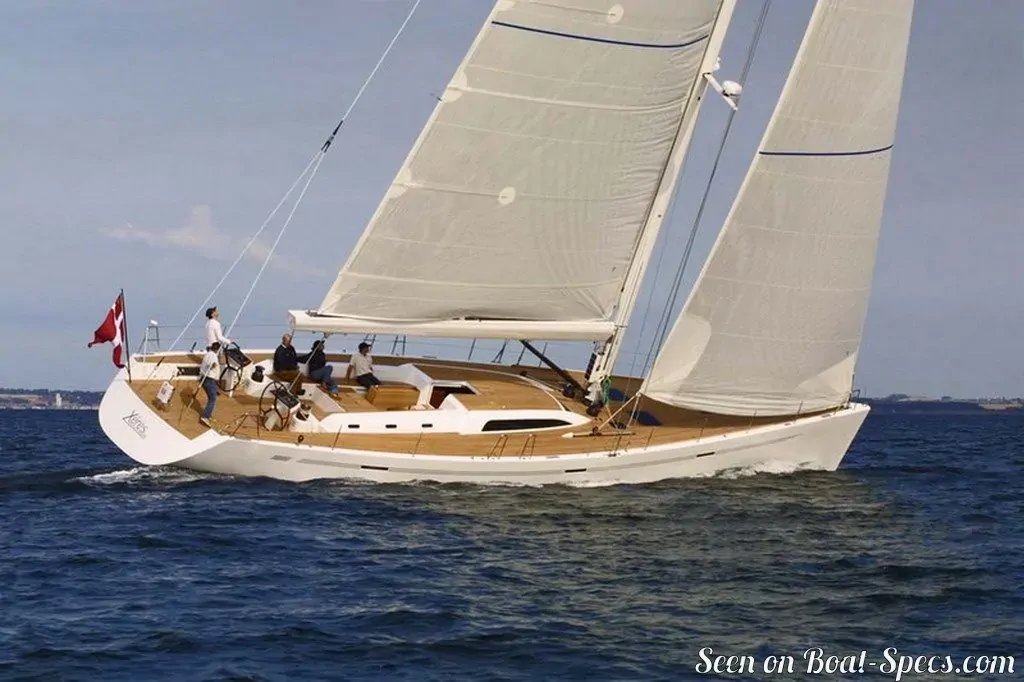

The IMX 70 is a 70’2” (21.4m) racer-cruiser sailboat designed by Niels Jeppesen (Denmark). She was built between 2005 and 2005 by X-Yachts (Denmark).
IMX 70's main features
- Model
- IMX 70
- Hull type
- Monohull
- Category
- Offshore racer-cruiser sailboat
- Sailboat builder
- Sailboat designer
- Sailboat range
- Country
- Denmark
- Construction
- GRP (glass reinforced polyester):
Sandwich fiberglass polyester with galvanized steel frame - Number of hulls built
- 1
- First built hull
- 2005
- Last built hull
- 2005
- Appendages
- Keel : T-shaped keel (with bulb)
- Helm
- Twin helm wheels
- Rudder
- Single spade rudder
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- N/A €
IMX 70's main dimensions
- Hull length
- 70’ 2”21.4 m
- Waterline length
- 61’ 1”18.63 m
- Beam (width)
- 17’ 7”5.37 m
- Draft
- 13’ 1”4 m
- Light displacement (MLC)
- 61729 lb28000 kg
- Ballast weight
- 22708 lb10300 kg
- Ballast type
- Cast iron fin with lead bulb

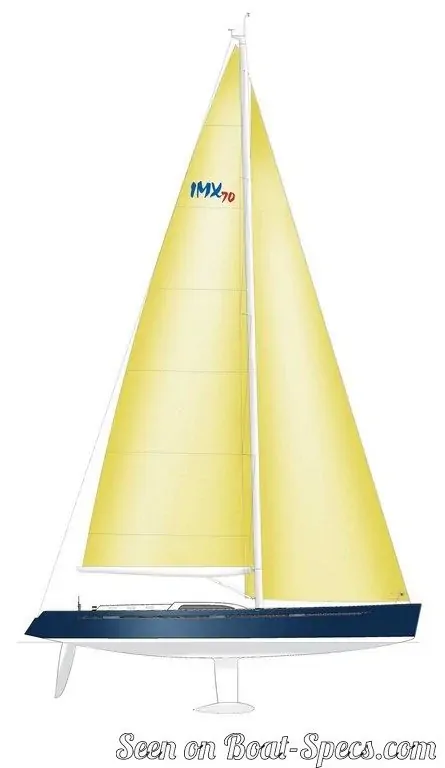

IMX 70's rig and sails
- Upwind sail area
- 2941 ft²273.2 m²
- Downwind sail area
- 5659 ft²525.7 m²
- Mainsail area
- 1601 ft²148.7 m²
- Genoa area
- 1340 ft²124.5 m²
- Asymmetric spinnaker area
- 4058 ft²377 m²
- IiFore triangle height (from mast foot to fore stay top attachment)
- 94’28.65 m
- JiFore triangle base (from mast foot to bottom of forestay)
- 25’ 11”7.9 m
- PiMainsail hoist measurement (from tack to head)
- 92’ 2”28.1 m
- EiMainsail foot measurement (from tack to clew)
- 30’ 2”9.2 m
- Rigging type
- Sloop Marconi 7/8
- Mast configuration
- Keel stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 3
- Spreaders angle
- Swept-back
- Spars construction
- Carbon fiber spars
IMX 70's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 319 ft²/T29.63 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 614 ft²/T57.01 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 123
- Ballast ratioiThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability. - 37 %
- Critical hull speediAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34. - 10.48 knots
IMX 70's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 160 HP
- Fuel type
- Diesel

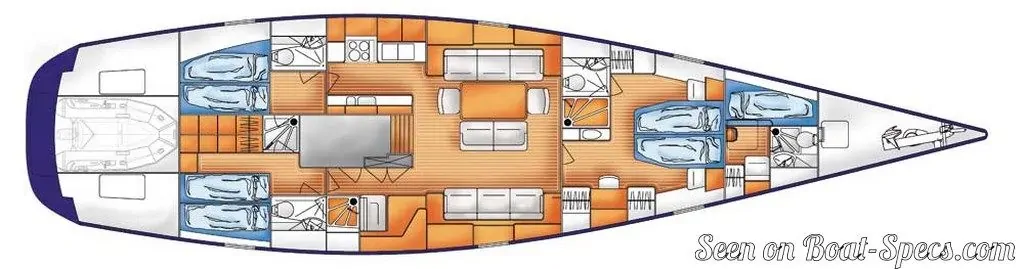

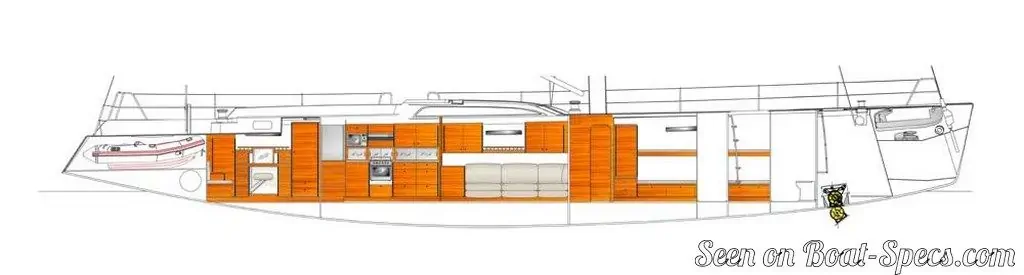

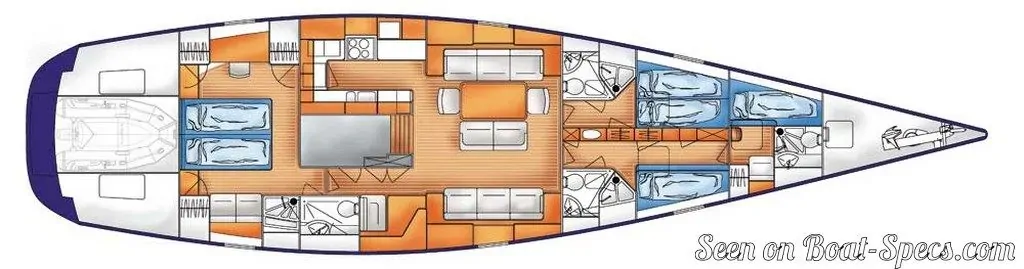

IMX 70's accommodations and layout
- Cockpit
- Open aft cockpit
- Cabin(s)
- 4
- Berth(s) (min./max.)
- 7 / 9
- Head(s)
- 4

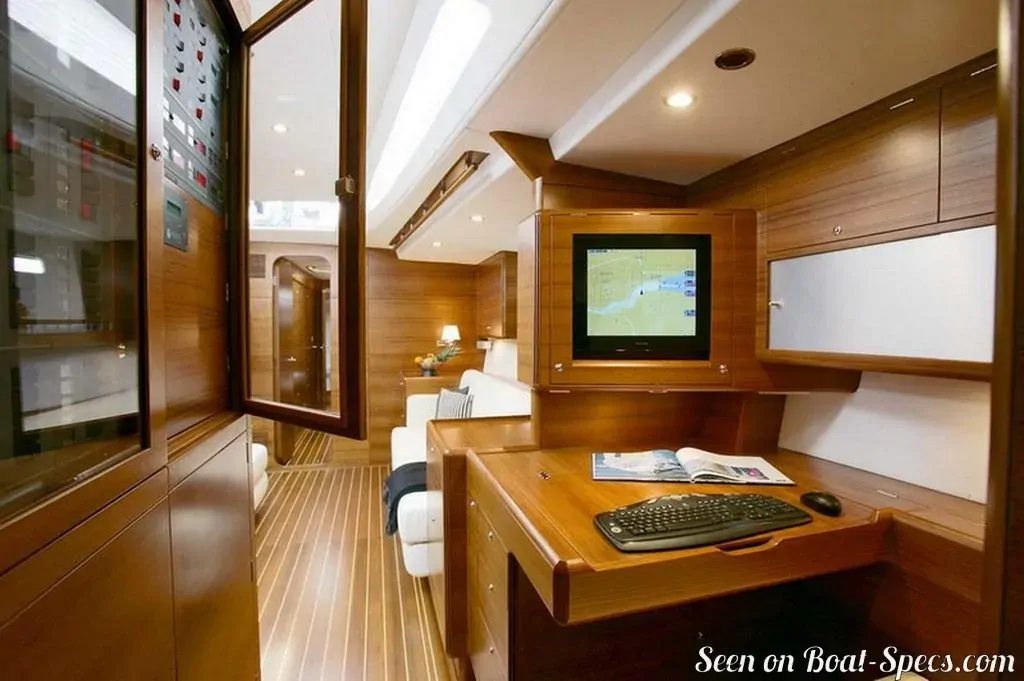

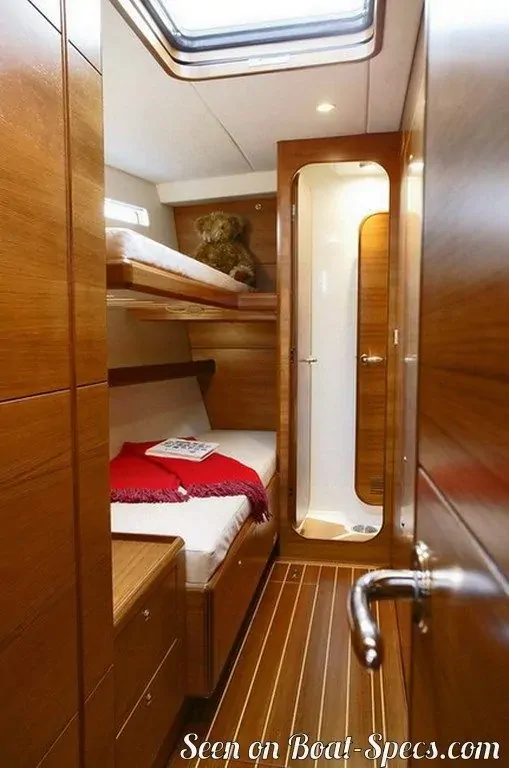

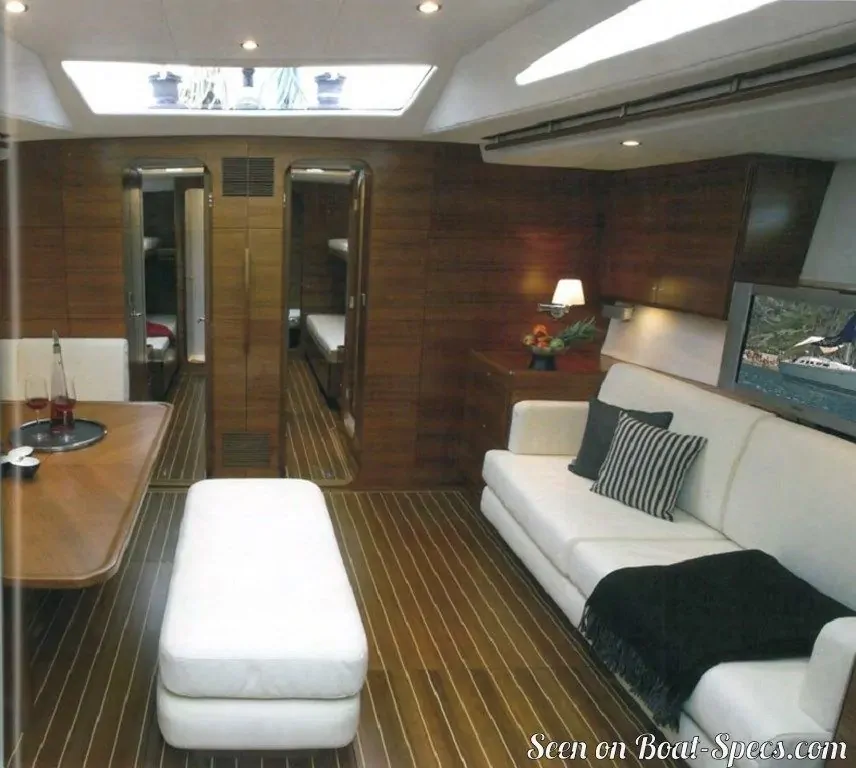

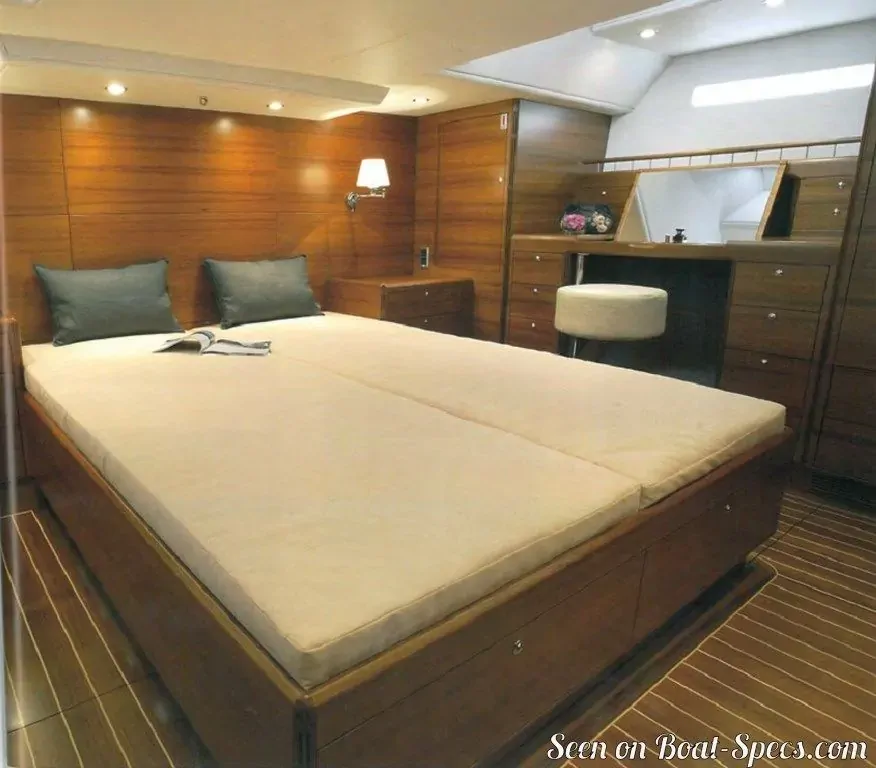

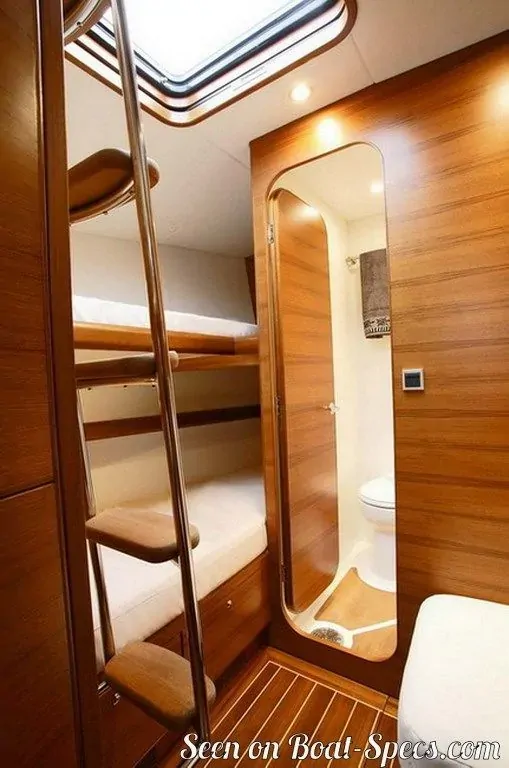

X-Yachts IMX 70 interior and accommodations - - 14/18
Picture extracted from the commercial documentation © X-Yachts
Picture extracted from the commercial documentation © X-Yachts
X-Yachts IMX 70 interior and accommodations - - 15/18
Picture extracted from the commercial documentation © X-Yachts
Picture extracted from the commercial documentation © X-Yachts
X-Yachts IMX 70 interior and accommodations - - 16/18
Picture extracted from the commercial documentation © X-Yachts
Picture extracted from the commercial documentation © X-Yachts
X-Yachts IMX 70 interior and accommodations - - 17/18
Picture extracted from the commercial documentation © X-Yachts
Picture extracted from the commercial documentation © X-Yachts
X-Yachts IMX 70 interior and accommodations - - 18/18
Picture extracted from the commercial documentation © X-Yachts
Picture extracted from the commercial documentation © X-Yachts
