Maine Cat 41
Sailboat specifications
The Maine Cat 41 is a 41’6” (12.65m) fast cruising catamaran designed by Dick Vermeulen (United States). She is built since 2004 by Maine Cat (United States). She has been awarded "2005 - Cruising World - Boat of the Year: Domestic Boat".
Maine Cat 41's main features
- Model
- Maine Cat 41
- Hull type
- Catamaran
- Category
- Fast cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- United States
- Construction
- GRP (glass reinforced polyester):
Sandwich Core-Cell fiberglass vinylester vacuum bagged - First built hull
- 2004
- Last built hull
- Still in production
- Award(s)
- 2005: Cruising World - Boat of the Year: Domestic Boat
- Appendages
- Centerboard : twin daggerboards
- Helm
- Single helm wheel
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- Standard public price ex. VAT (indicative only)
- N/A €
Maine Cat 41's main dimensions
- Hull length
- 41’ 6”12.65 m
- Waterline length
- 40’ 6”12.35 m
- Beam (width)
- 23’7.01 m
- Draft
- 7’2.13 m
- Draft when appendages up
- 2’ 6”0.76 m
- Mast height from DWL
- 59’ 6”18.14 m
- Light displacement (MLC)
- 12200 lb5534 kg
- Maximum displacement (MLDC)
- 19200 lb8709 kg

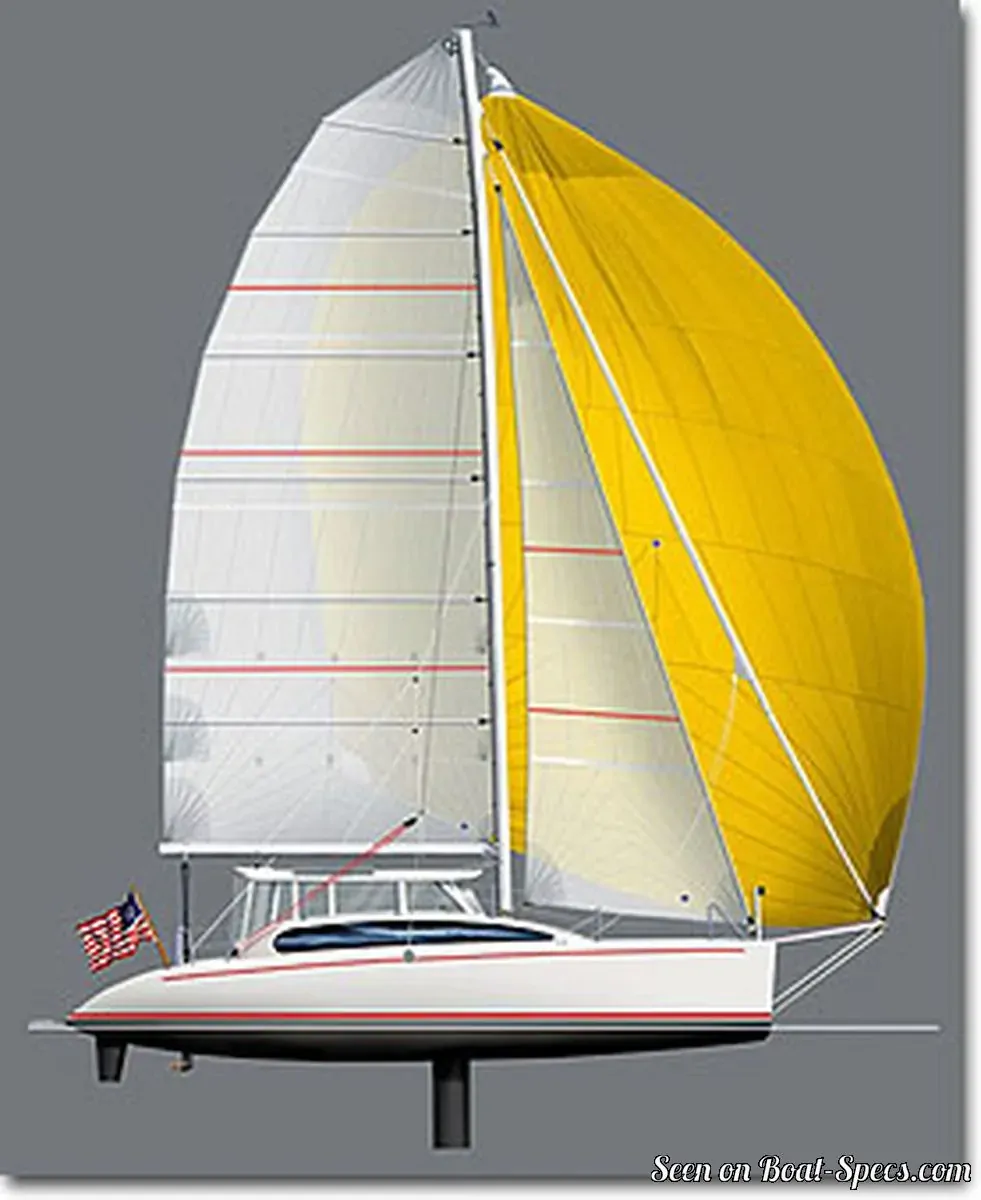

Maine Cat 41's rig and sails
- Upwind sail area
- 996 ft²92.5 m²
- Downwind sail area
- 1915 ft²177.9 m²
- Mainsail area
- 715 ft²66.4 m²
- Solent area
- 281 ft²26.1 m²
- Asymmetric spinnaker area
- 1200 ft²111.5 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Fore beam stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 1
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire discontinuous
Maine Cat 41's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 318 ft²/T29.57 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 612 ft²/T56.87 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 83
Maine Cat 41's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 30 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 91.9 gal348 liters

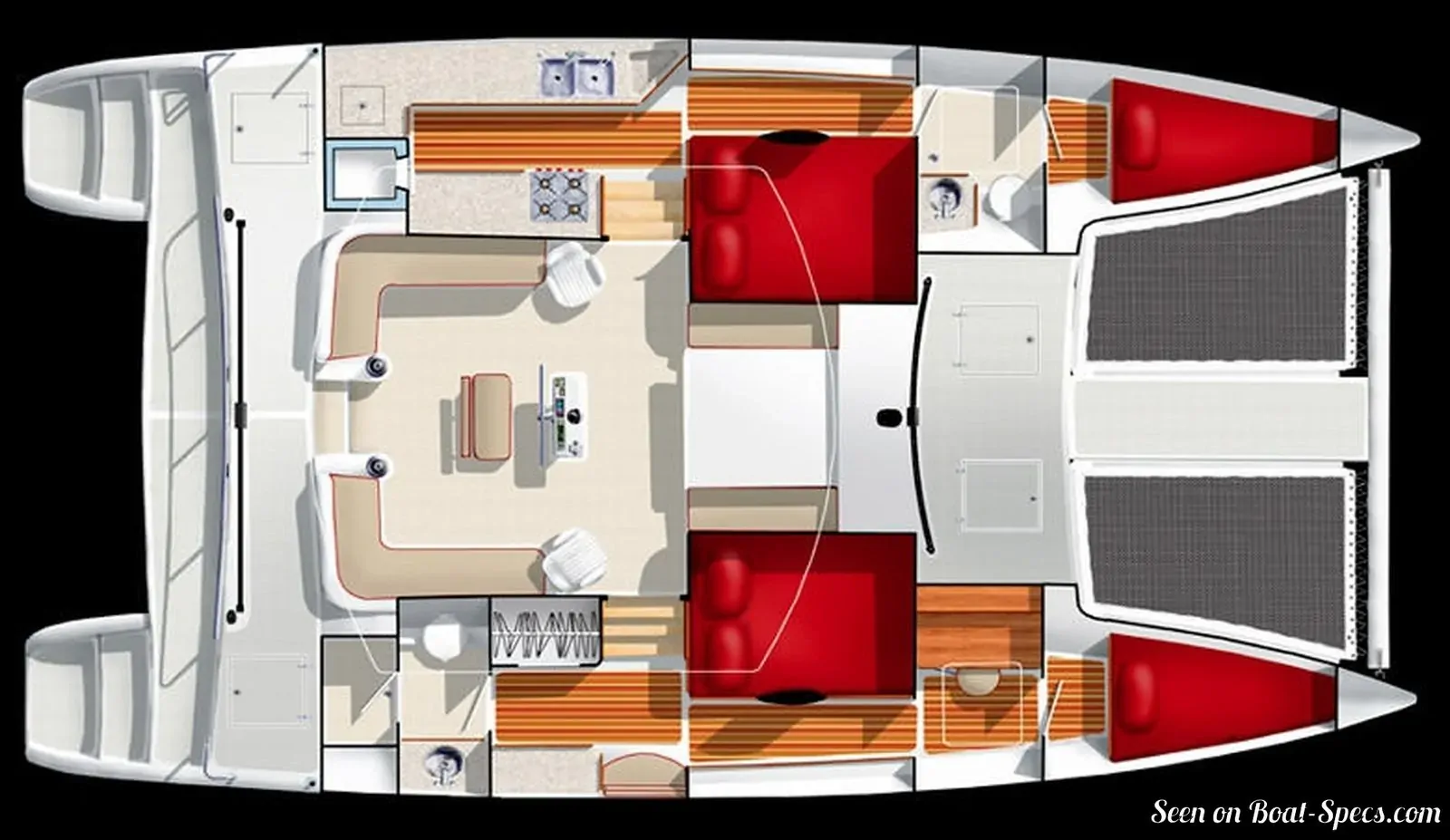

Maine Cat 41's accommodations and layout
- Cockpit
- Aft cockpit
- Cabin(s)
- 4
- Berth(s)
- 6
- Head(s)
- 2
- Freshwater tank capacity
- 119.9 gal454 liters
- Holding tank capacity
- 39.6 gal150 liters
- Boiler capacity
- 13.2 gal50 liters
- Maximum headroom
- 6’ 8”2.03 m
