Swan 95 S's main features

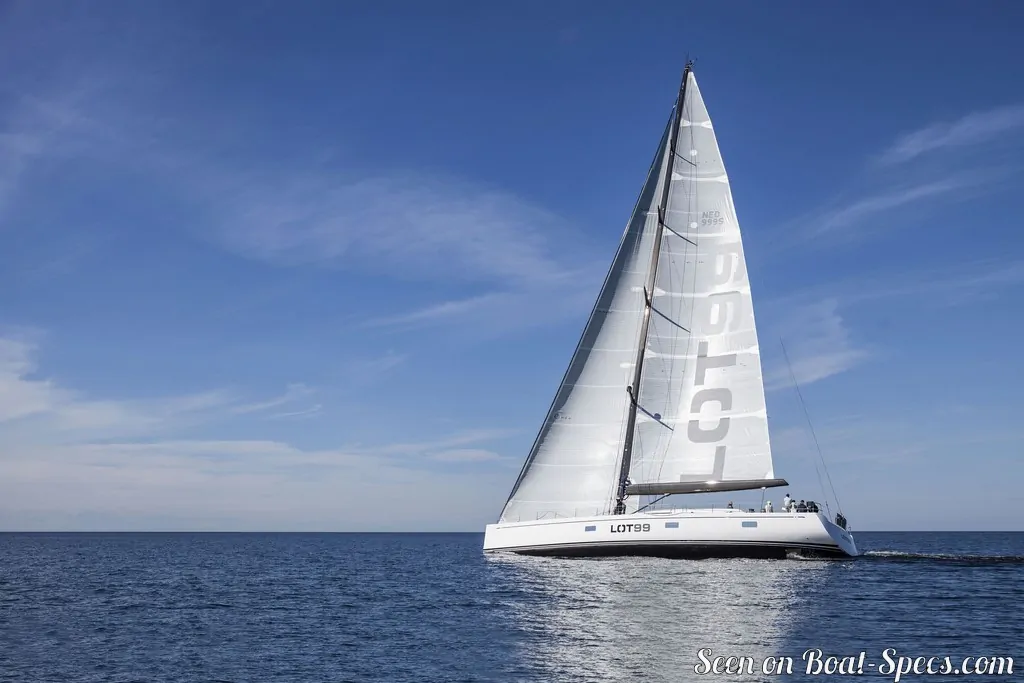

Swan 95 S
Offshore fast cruising sailboat
Carbon fiber reinforced epoxy:
- Hull: Sandwich carbon fiber epoxy
- Deck: Sandwich carbon fiber epoxy
First built hull
Last built hull
Lifting keel : fin with bulb, lifting
Twin helm wheels
Twin spade rudders
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
Standard public price ex. VAT (indicative only)
Swan 95 S's main dimensions
94’ 8”28.87 m
87’ 1”26.56 m
22’ 7”6.9 m
14’ 5”4.4 m
Light displacement (MLC)
130293 lb59100 kg
44092 lb20000 kg

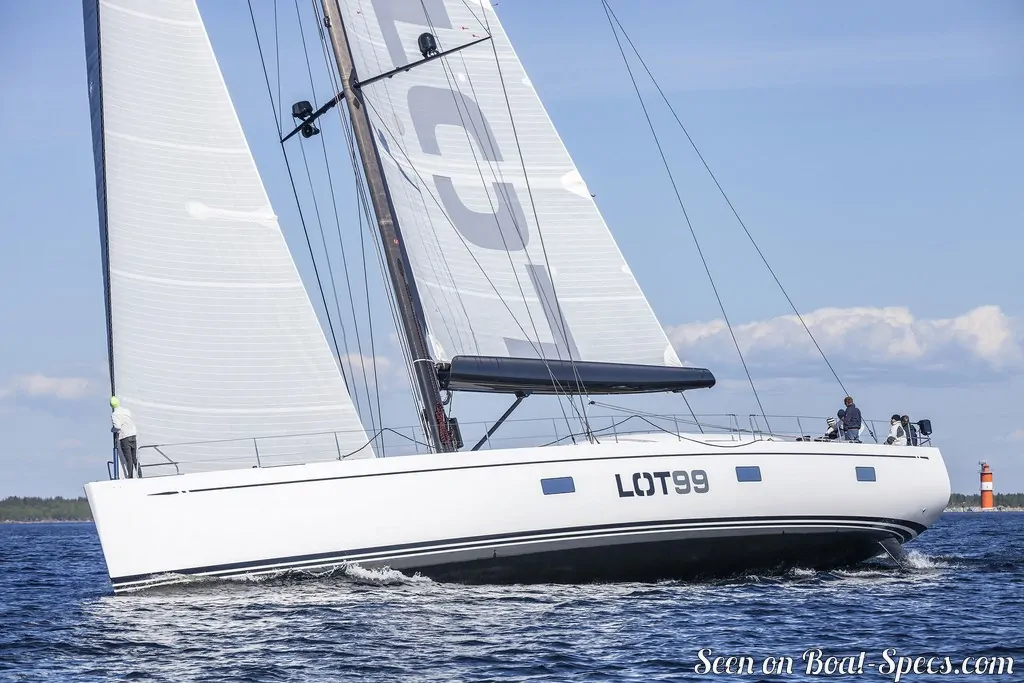

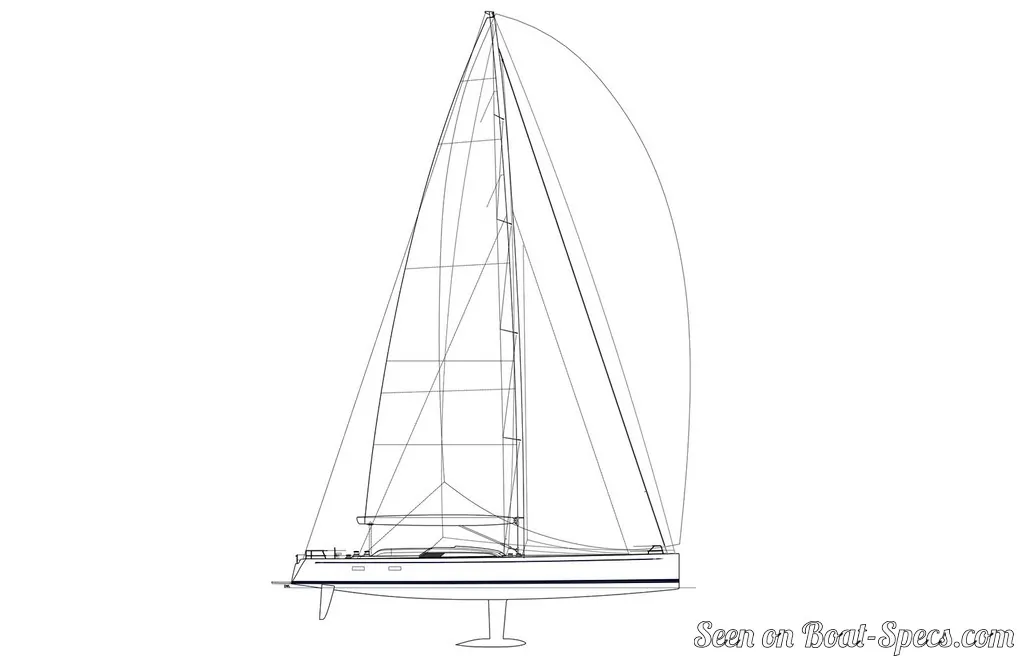

Swan 95 S's rig and sails
Upwind sail area
5284 ft²490.9 m²
2951 ft²274.2 m²
2333 ft²216.7 m²
I iFore triangle height (from mast foot to fore stay top attachment)
125’ 4”38.2 m
J iFore triangle base (from mast foot to bottom of forestay)
38’ 6”11.73 m
P iMainsail hoist measurement (from tack to head)
124’ 5”37.91 m
E iMainsail foot measurement (from tack to clew)
37’ 5”11.4 m
Sloop Marconi 9/10
Keel stepped mast
Number of levels of spreaders
Carbon fiber spars
Swan 95 S's performances
Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
348 ft²/T32.35 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability.
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
Swan 95 S's auxiliary engine
1 inboard engine
Fuel tank capacity
660.4 gal2500 liters

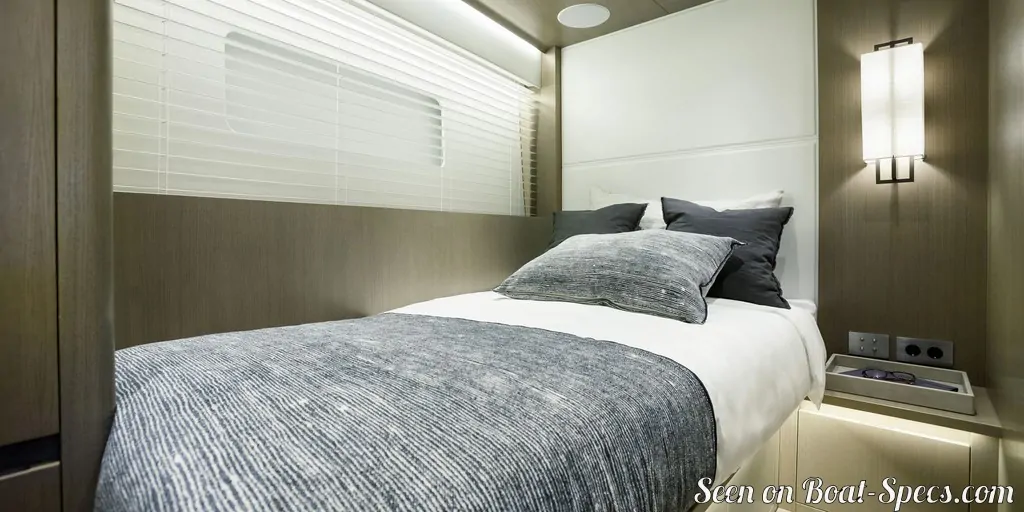

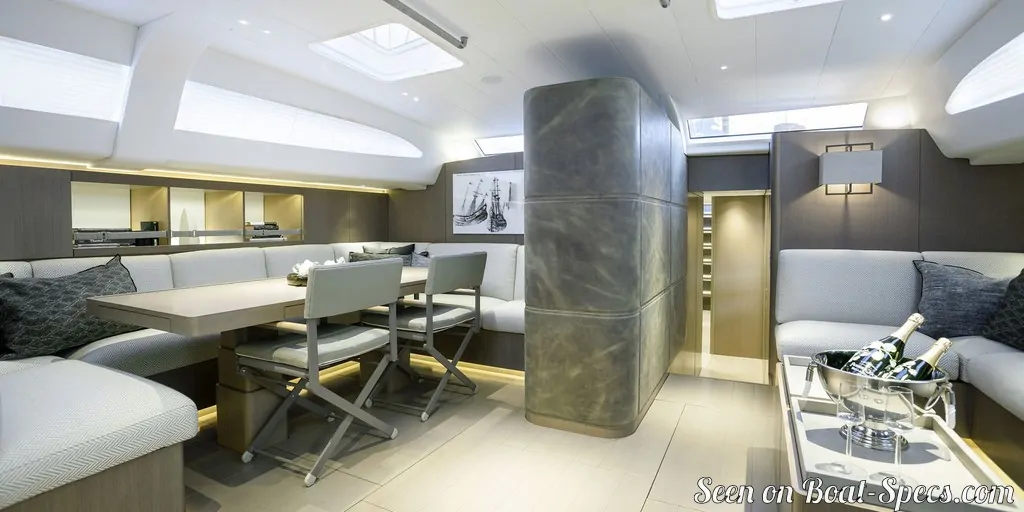

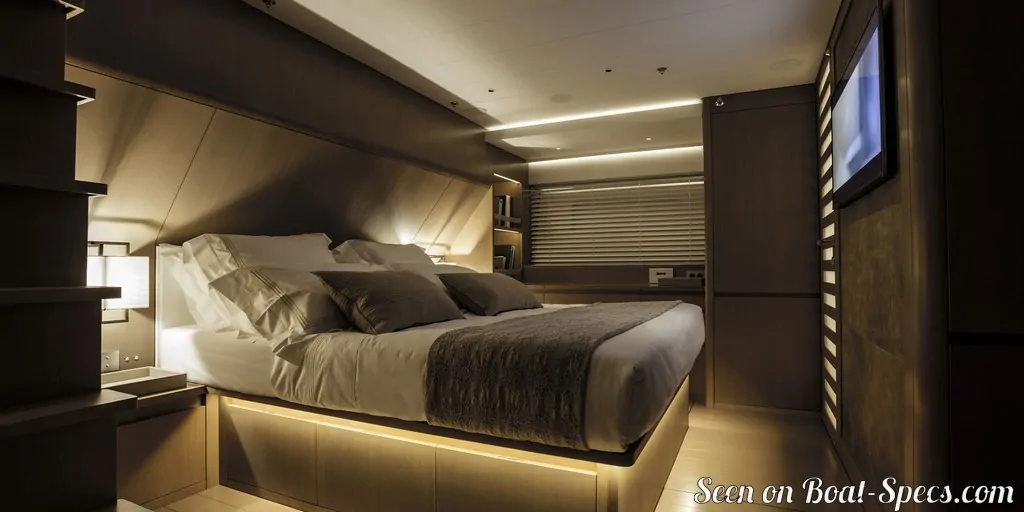

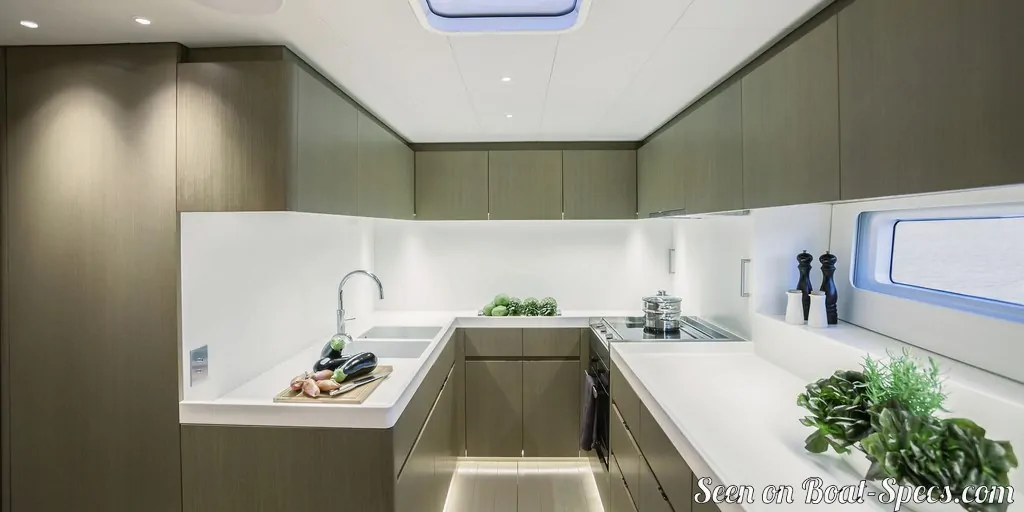

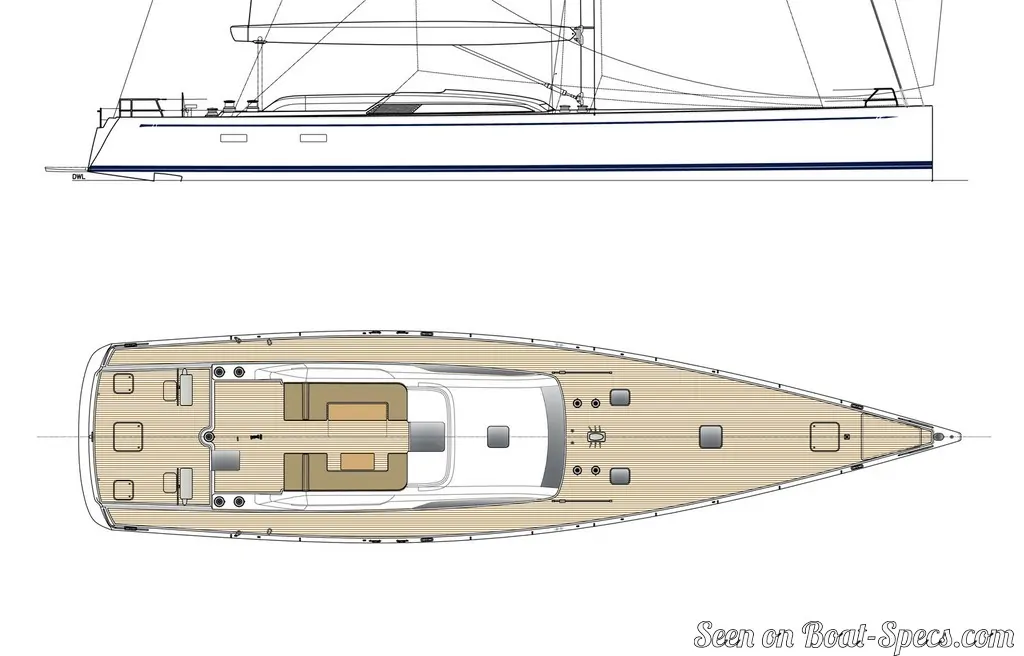

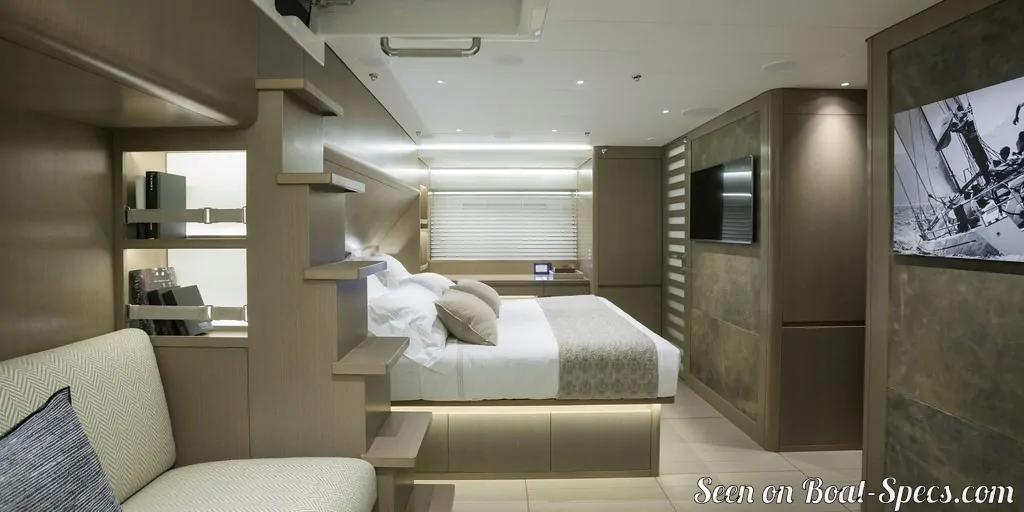

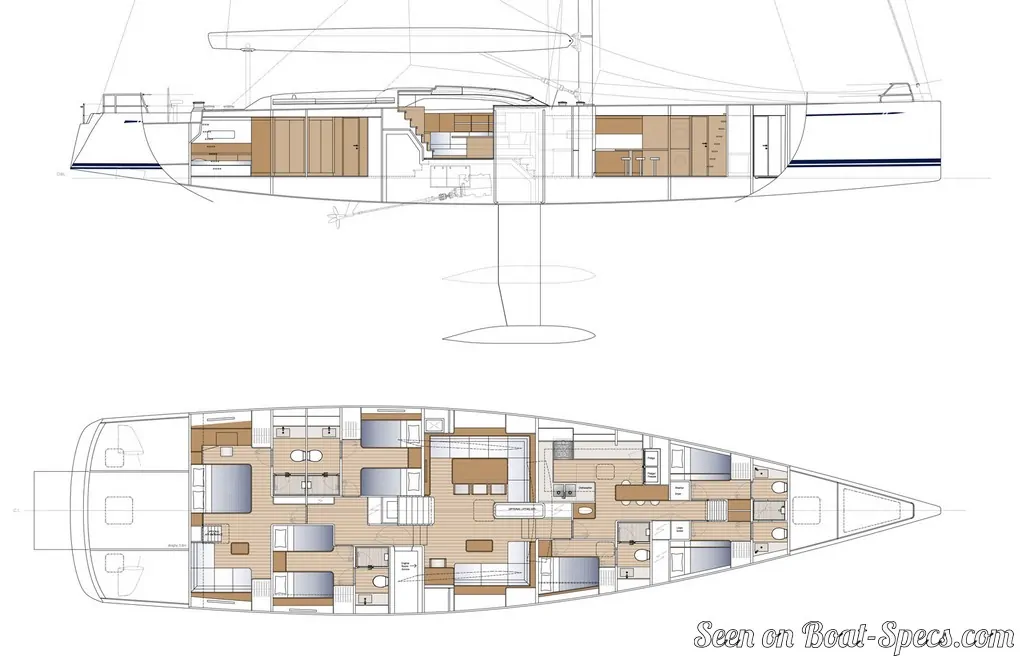

Swan 95 S's accommodations and layout

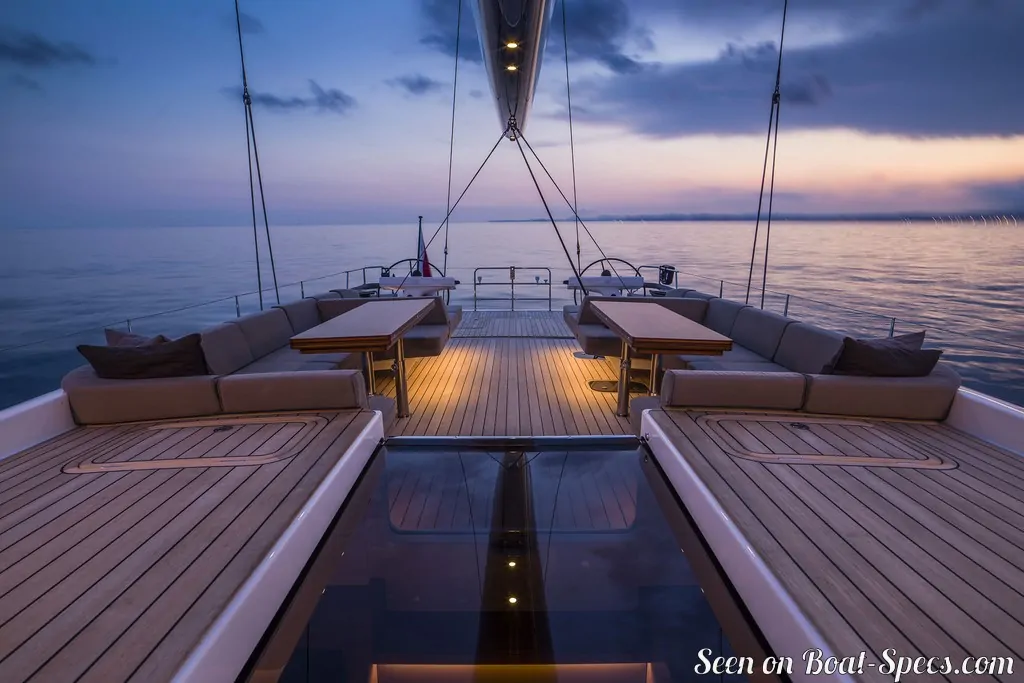

Open aft cockpit
Freshwater tank capacity
317 gal1200 liters
Holding tank capacity
171.7 gal650 liters
26.4 gal100 liters
