Oyster 885 Series II

Sailboat specifications

The Oyster 885 Series II is a 85’6” (26.06m) cruising sailboat designed by Humphreys Yacht Design (United Kingdom). She is built since 2018 by Oyster (United Kingdom).

Oyster 885 Series II's main features

Model
Oyster 885 Series II
Hull type
Monohull
Category
Offshore cruising sailboat
Sailboat builder
Sailboat designer
Country
United Kingdom
Construction
Hull and deck: GRP (glass reinforced polyester)
First built hull
2018
Last built hull
Still in production
Appendages
Keel : L-shaped keel (with bulb)
Helm
Twin helm wheels
Rudder
Twin spade rudders
Unsinkable
No
Trailerable
No
Standard public price ex. VAT (indicative only)
N/A

Oyster 885 Series II's main dimensions

Overall length
88’ 10”27.08 m
Hull length
85’ 6”26.06 m
Waterline length
79’ 4”24.18 m
Beam (width)
20’ 10”6.33 m
Draft
11’ 6”3.5 m
Mast height from DWL
123’ 5”37.6 m
Light displacement (MLC)
157631 lb71500 kg

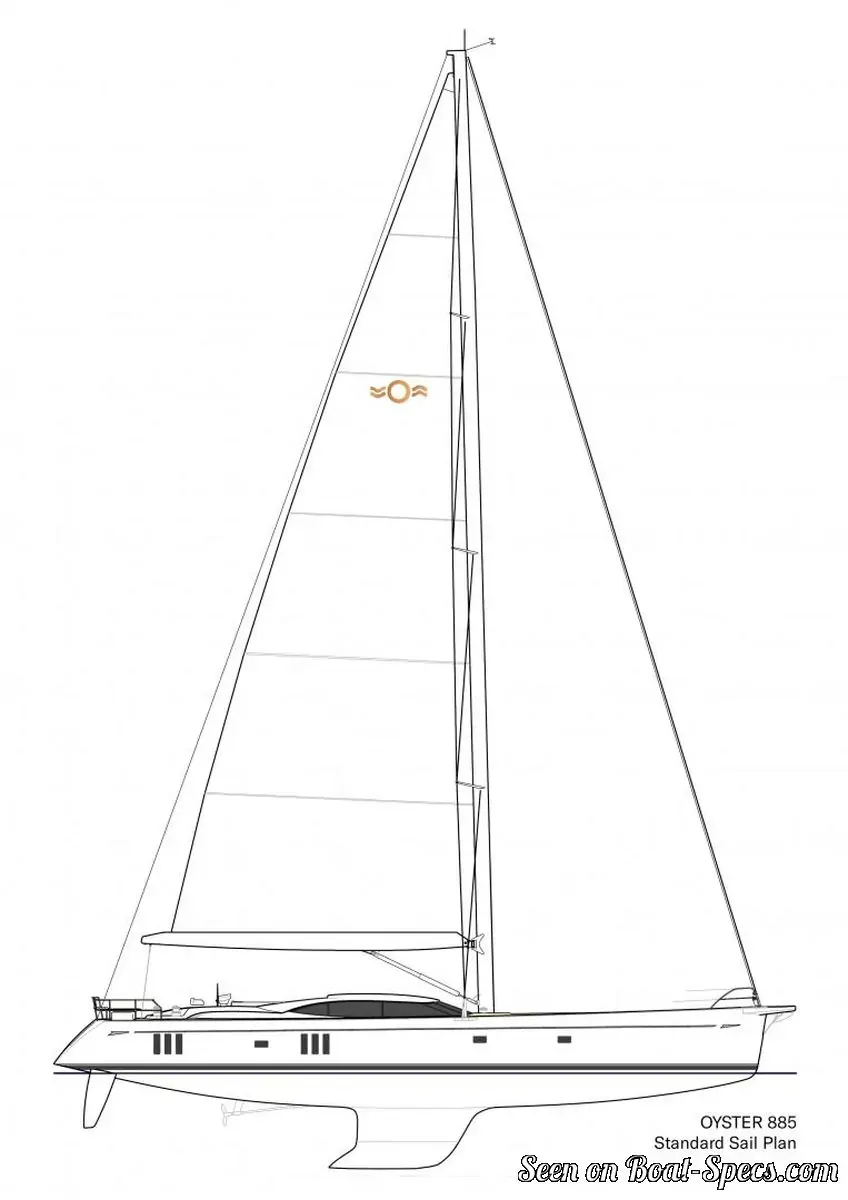

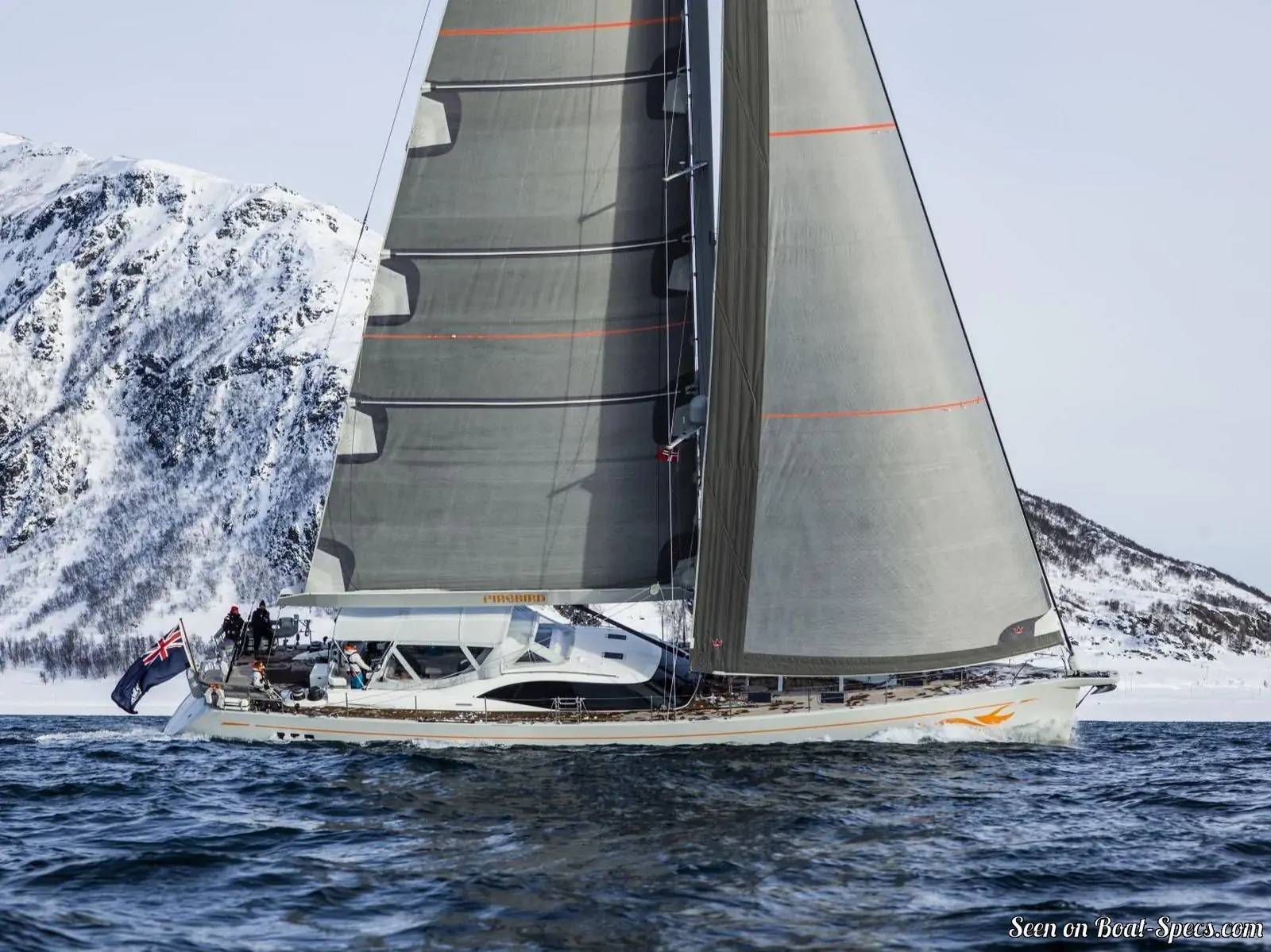

Oyster 885 Series II's rig and sails

Upwind sail area
4214 ft²391.5 m²
Rigging type
Sloop Marconi masthead
Mast configuration
Keel stepped mast
Rotating spars
No
Number of levels of spreaders
3
Spreaders angle
Swept-back
Spars construction
Aluminum spars (carbon fiber spars as an option)
Standing rigging
Single-strand (ROD) discontinuous

Oyster 885 Series II's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
245 ft²/T22.73 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
143
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
11.94 knots

Oyster 885 Series II's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
330 HP
Fuel type
Diesel
Fuel tank capacity
924.6 gal3500 liters

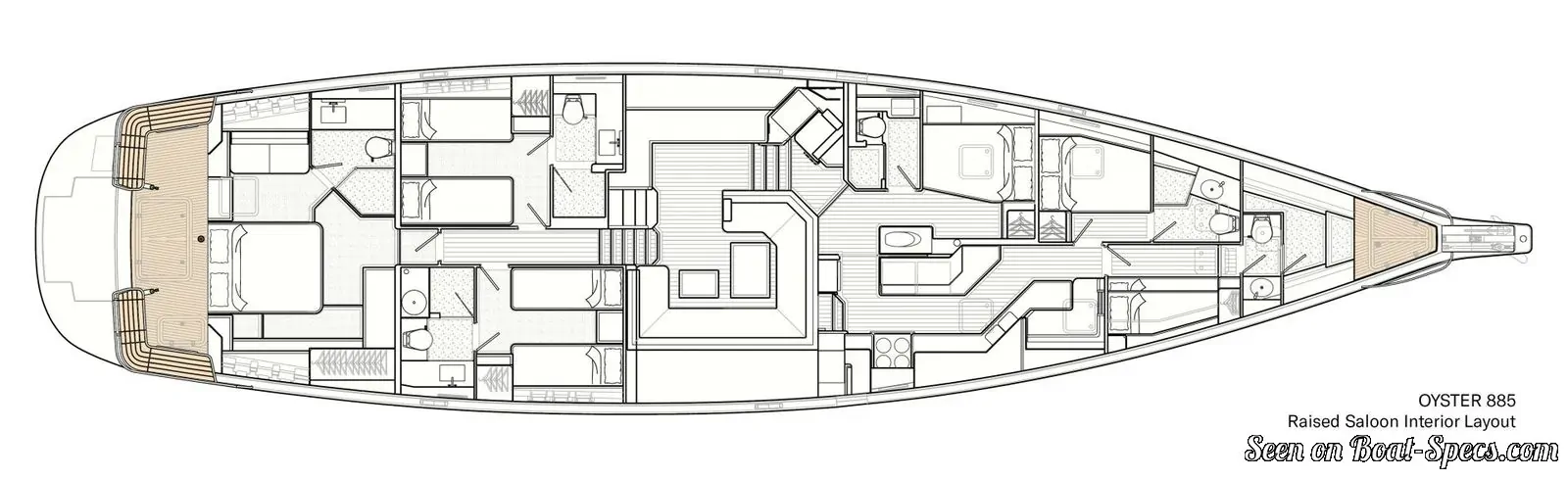

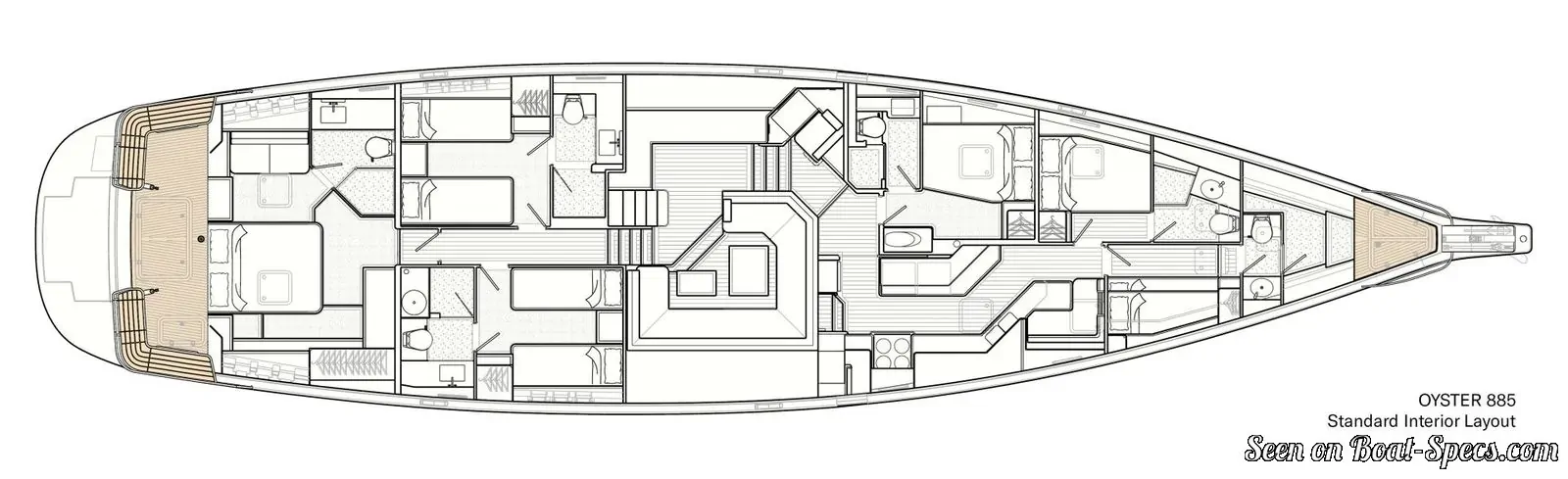

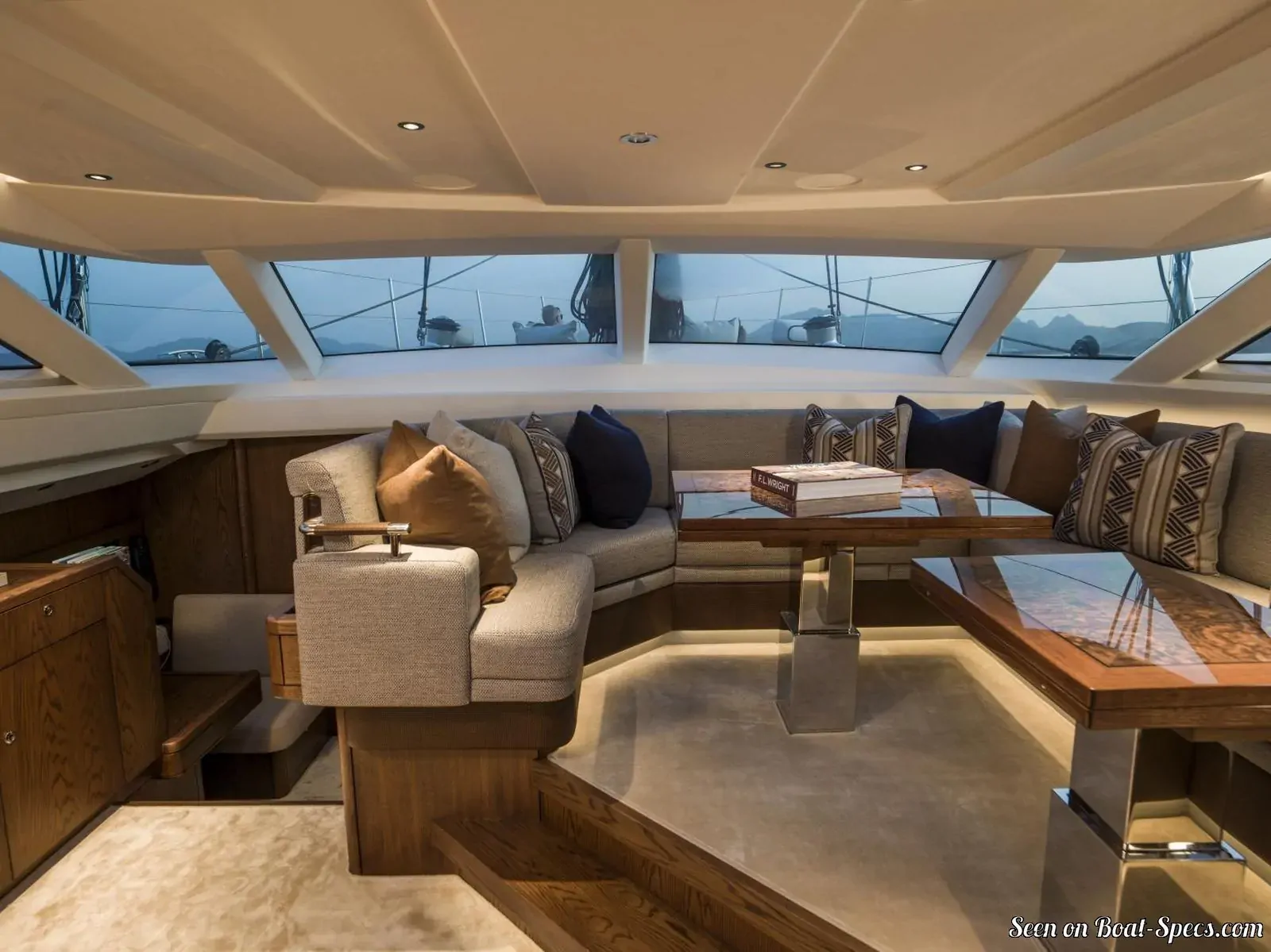

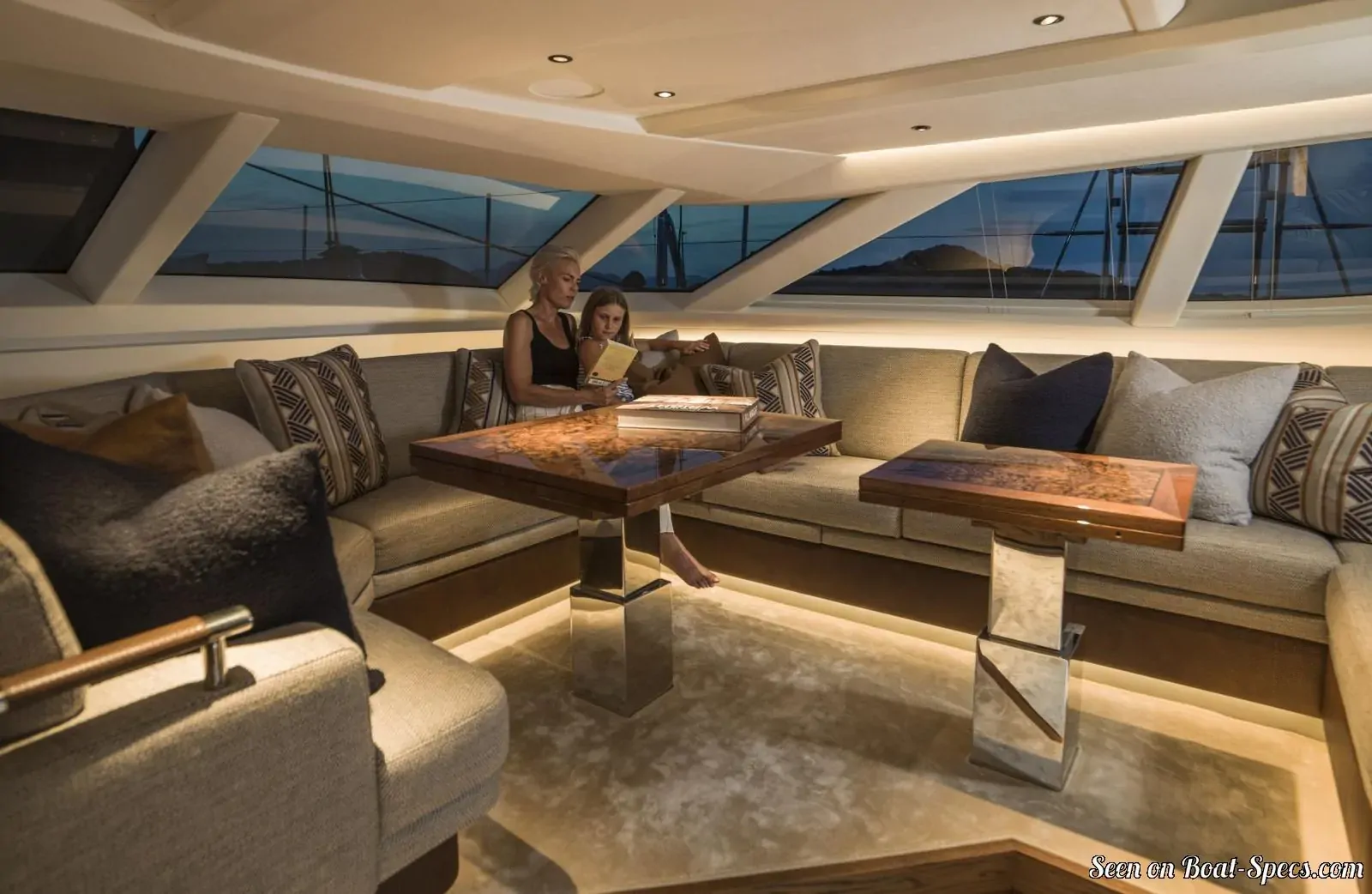

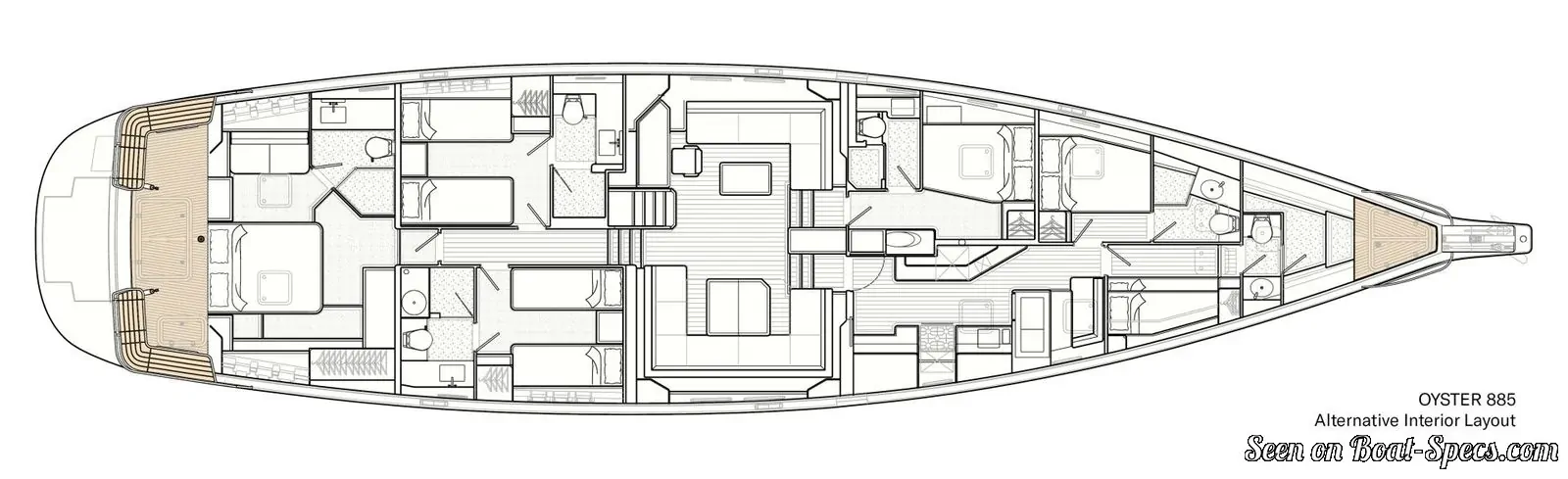

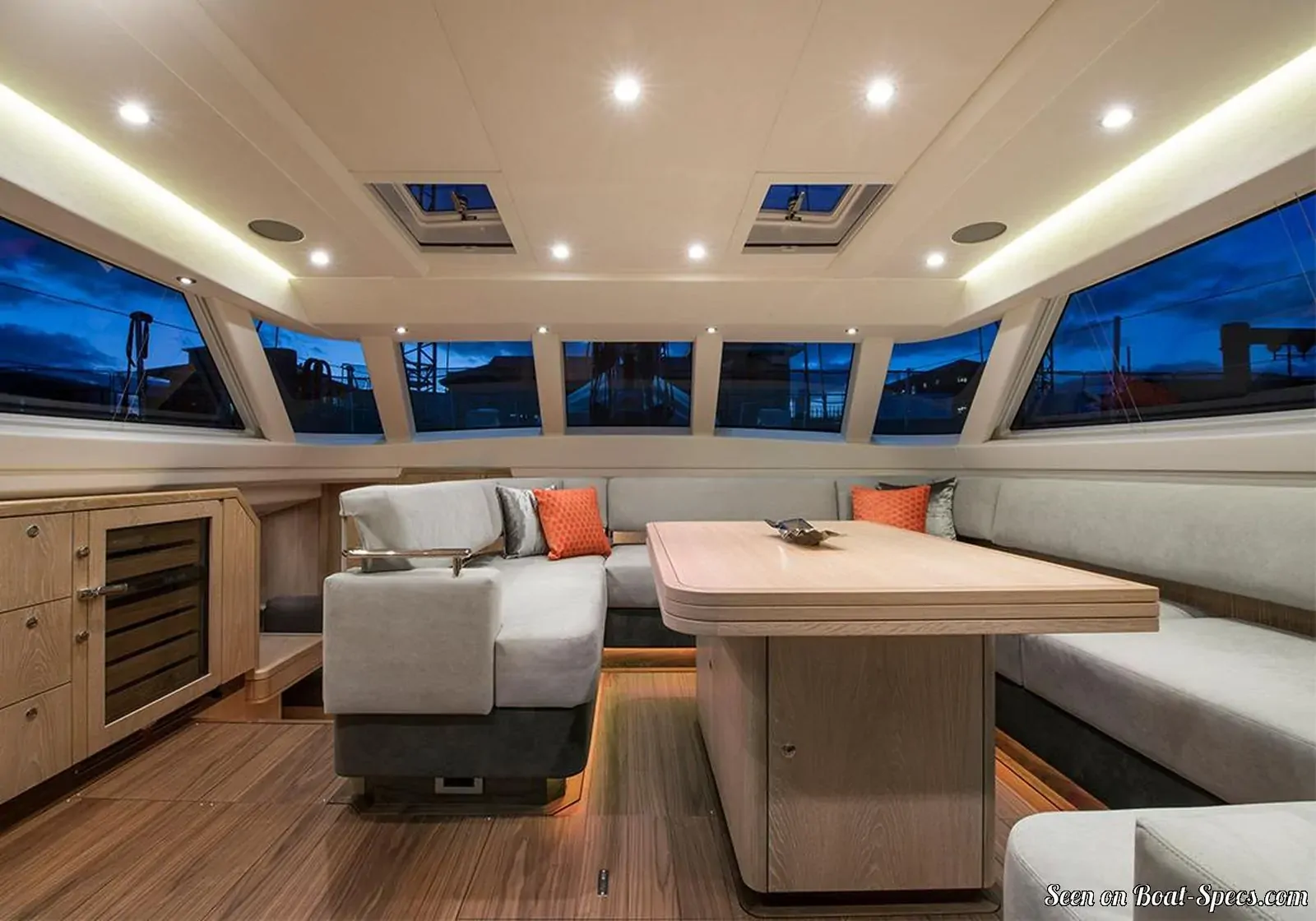

Oyster 885 Series II's accommodations and layout

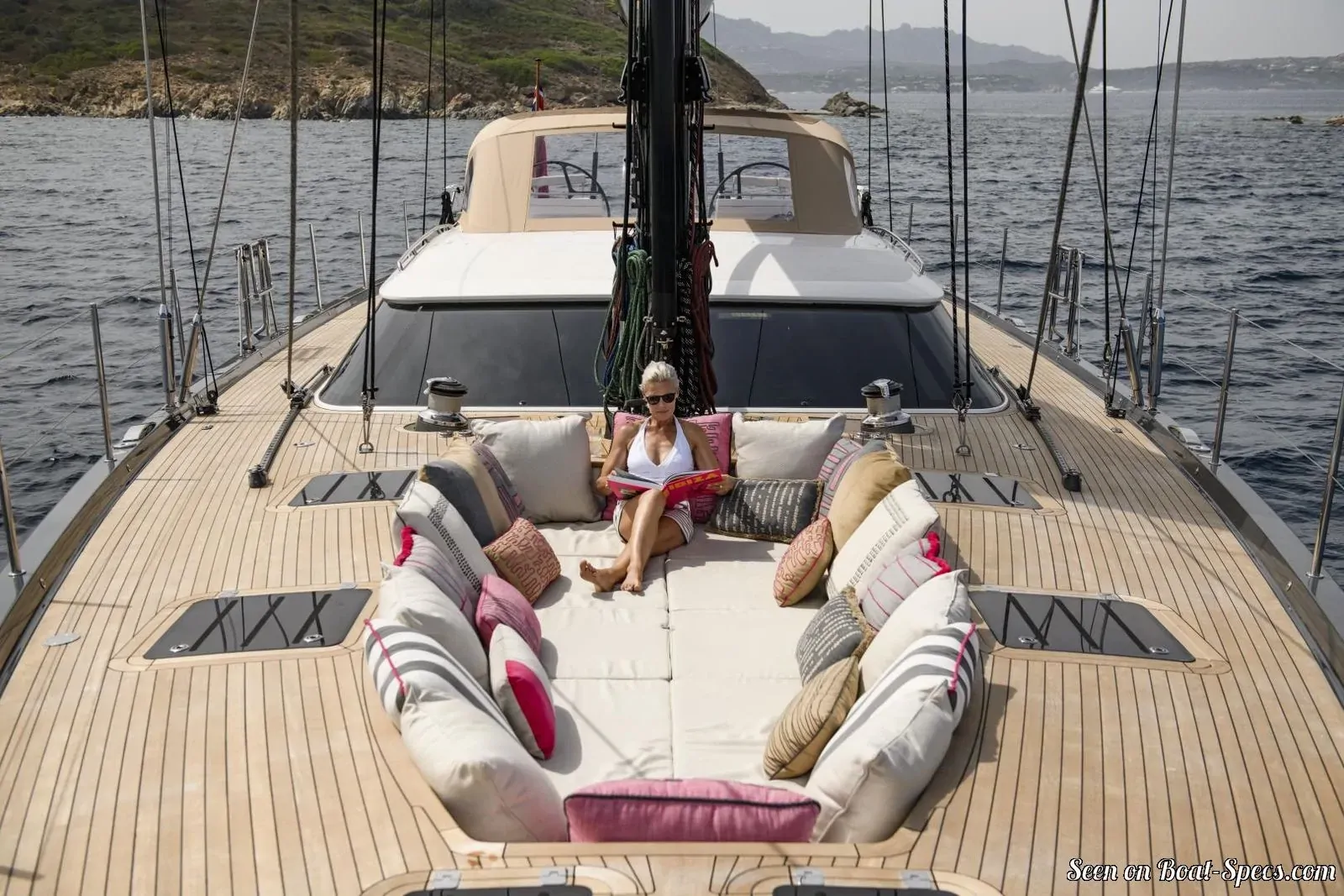

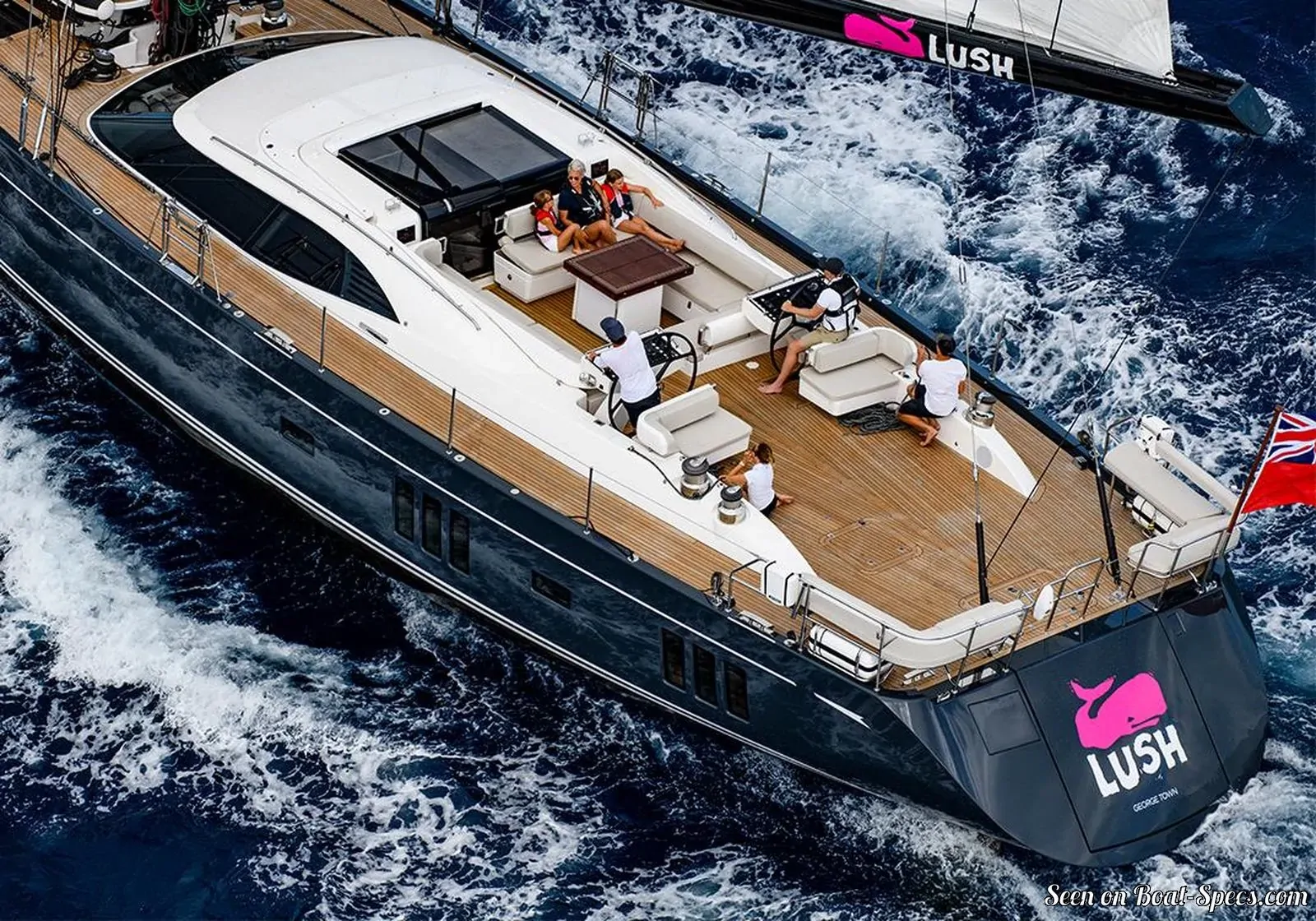

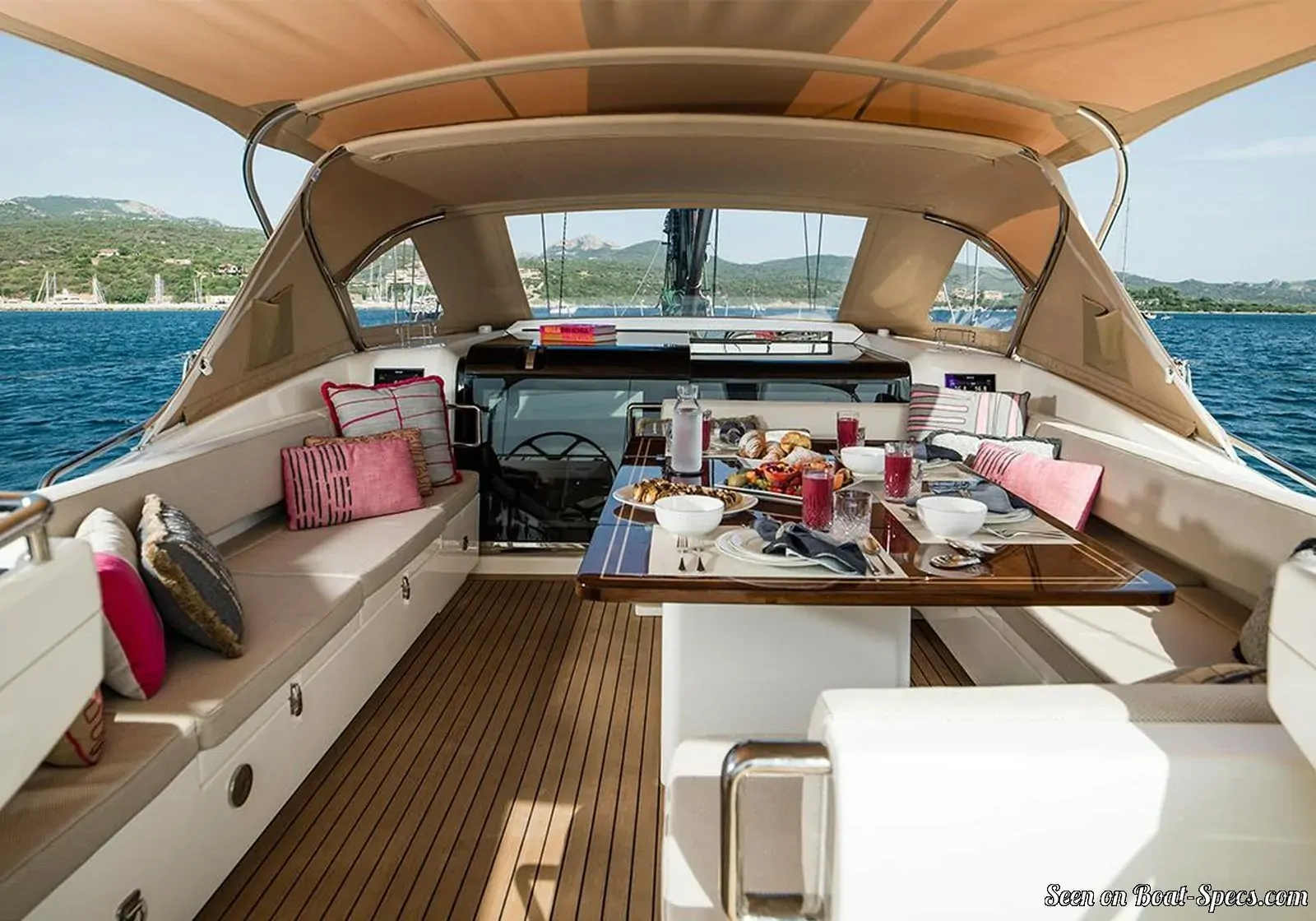

Cockpit
Aft cockpit and front cockpit

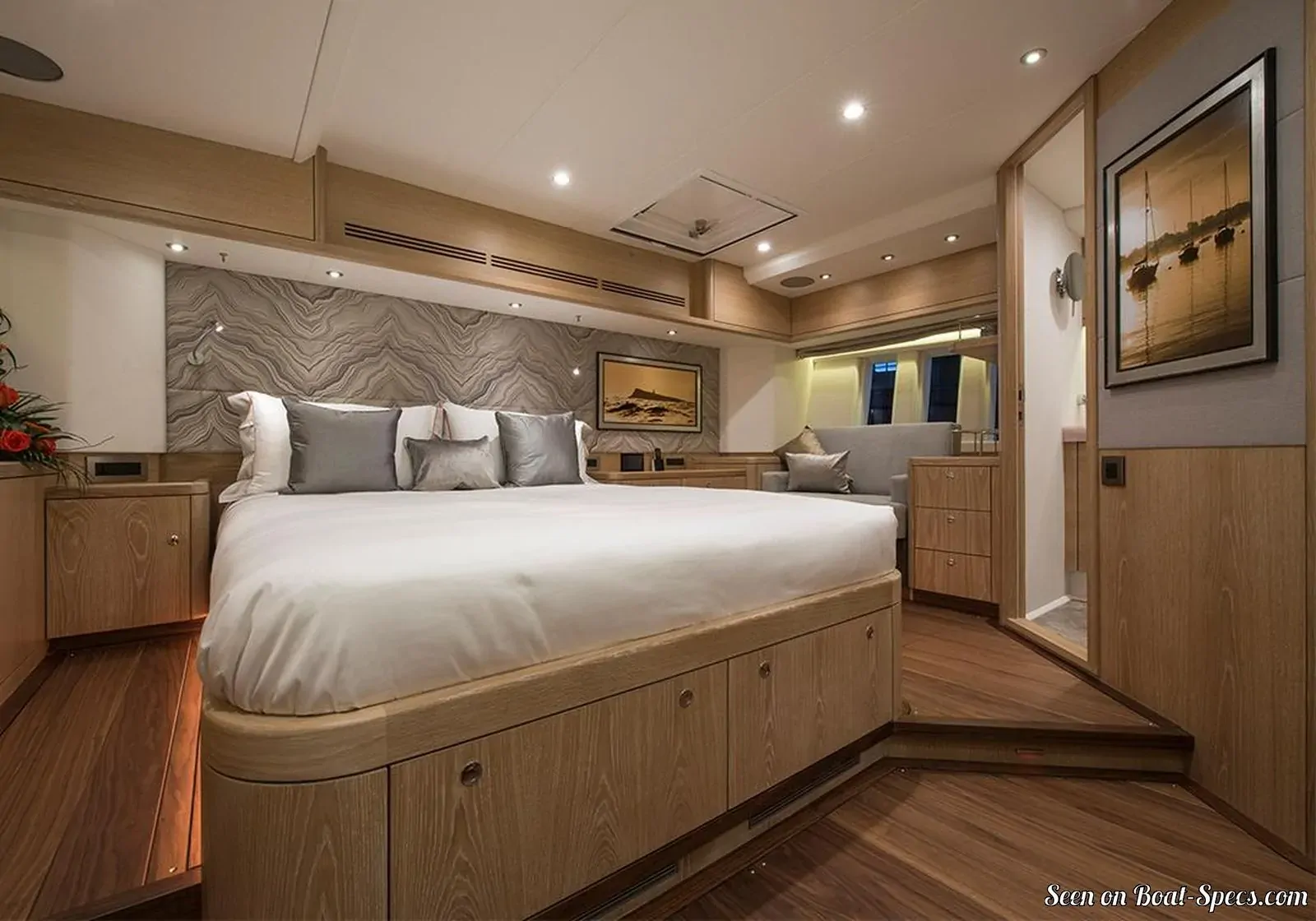

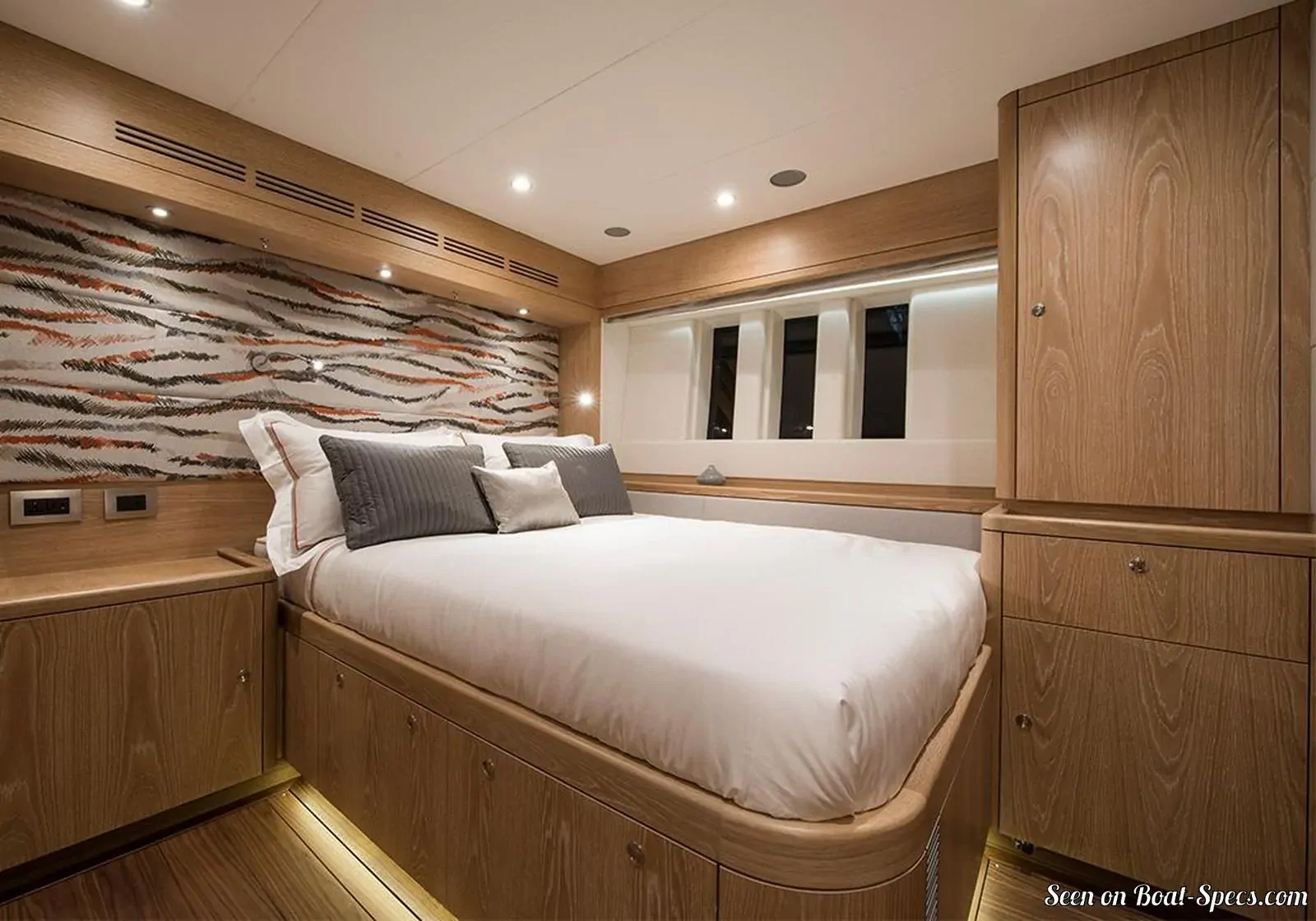

Cabin(s)
6
Berth(s)
12
Head(s)
6
Freshwater tank capacity
528.3 gal2000 liters
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
