Maine Cat 30
Sailboat specifications
The Maine Cat 30 is a 30’ (9.14m) fast cruising catamaran designed by Dick Vermeulen (United States). She is built since 1996 by Maine Cat (United States).
Maine Cat 30's main features
- Model
- Maine Cat 30
- Hull type
- Catamaran
- Category
- Coastal fast cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- United States
- Construction
- GRP (glass reinforced polyester):
Sandwich Core-Cell fiberglass polyester - First built hull
- 1996
- Last built hull
- Still in production
- Appendages
- Centerboard : twin daggerboards
- Helm
- Single helm wheel
- Rudder
- Twin spade rudders
- Unsinkable
- Yes
- Trailerable
- No
- Standard public price ex. VAT (indicative only)
- N/A €
Maine Cat 30's main dimensions
- Hull length
- 30’9.14 m
- Waterline length
- 29’ 4”8.92 m
- Beam (width)
- 18’5.49 m
- Draft
- 5’1.52 m
- Draft when appendages up
- 2’0.61 m
- Mast height from DWL
- 48’14.63 m
- Light displacement (MLC)
- 4500 lb2041 kg
- Maximum displacement (MLDC)
- 5999 lb2721 kg
Maine Cat 30's rig and sails
- Upwind sail area
- 500 ft²46.45 m²
- Downwind sail area
- 725 ft²67.4 m²
- Mainsail area
- 366 ft²34 m²
- Solent area
- 134 ft²12.45 m²
- Code 5 area
- 360 ft²33.4 m²
- Rigging type
- Sloop Marconi fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 1
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire discontinuous
Maine Cat 30's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 311 ft²/T28.87 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 451 ft²/T41.89 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 81
Maine Cat 30's auxiliary engine
- Engine(s)
- 2 outboard engine
- Engine(s) power
- 10 HP
- Fuel type
- Gas
- Fuel tank capacity
- 25.9 gal98 liters

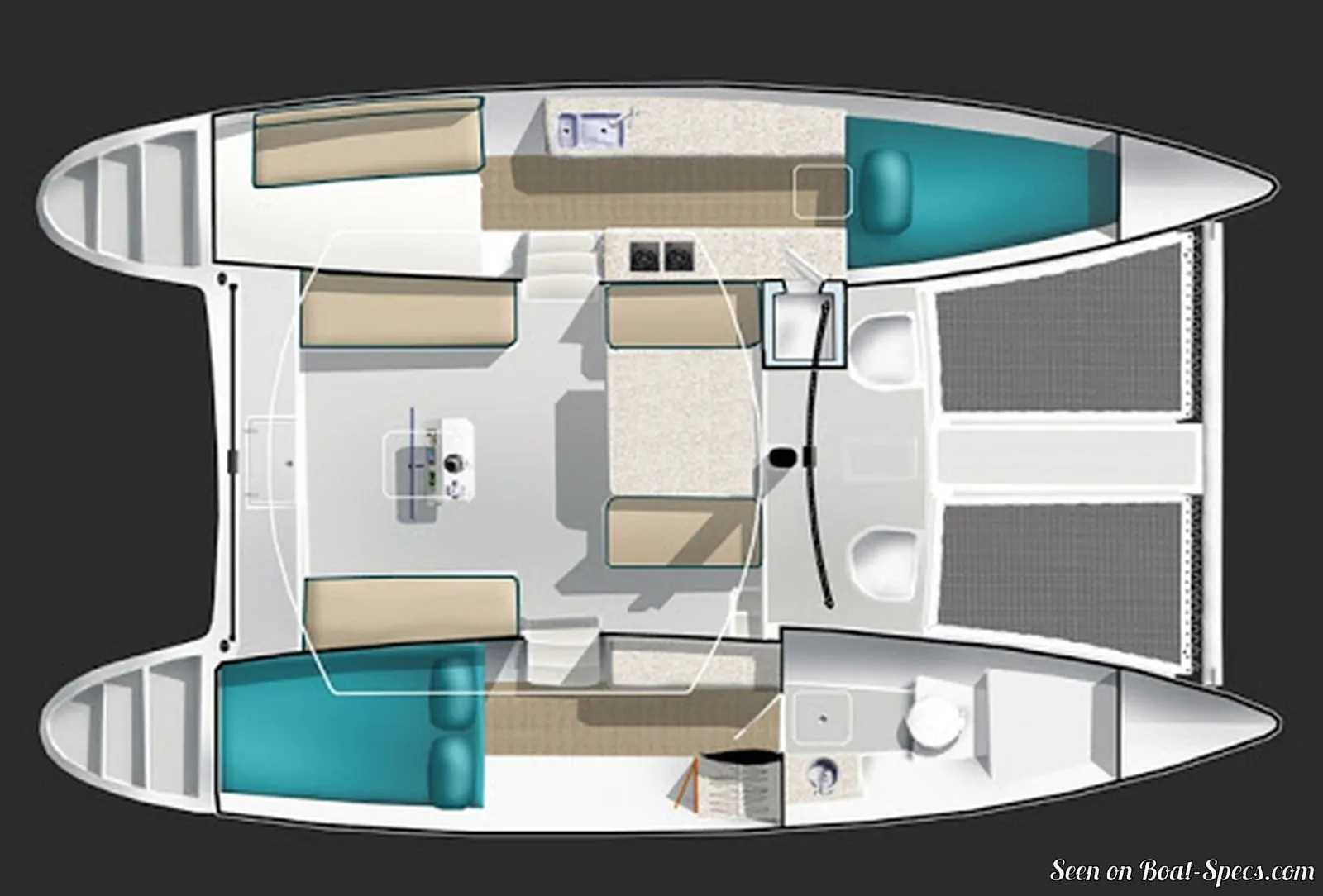

Maine Cat 30's accommodations and layout
- Cockpit
- Aft cockpit
- Cabin(s)
- 2
- Berth(s) (min./max.)
- 3 / 5
- Head(s)
- 1
- Freshwater tank capacity
- 62.9 gal238 liters
- Maximum headroom
- 6’ 2”1.9 m

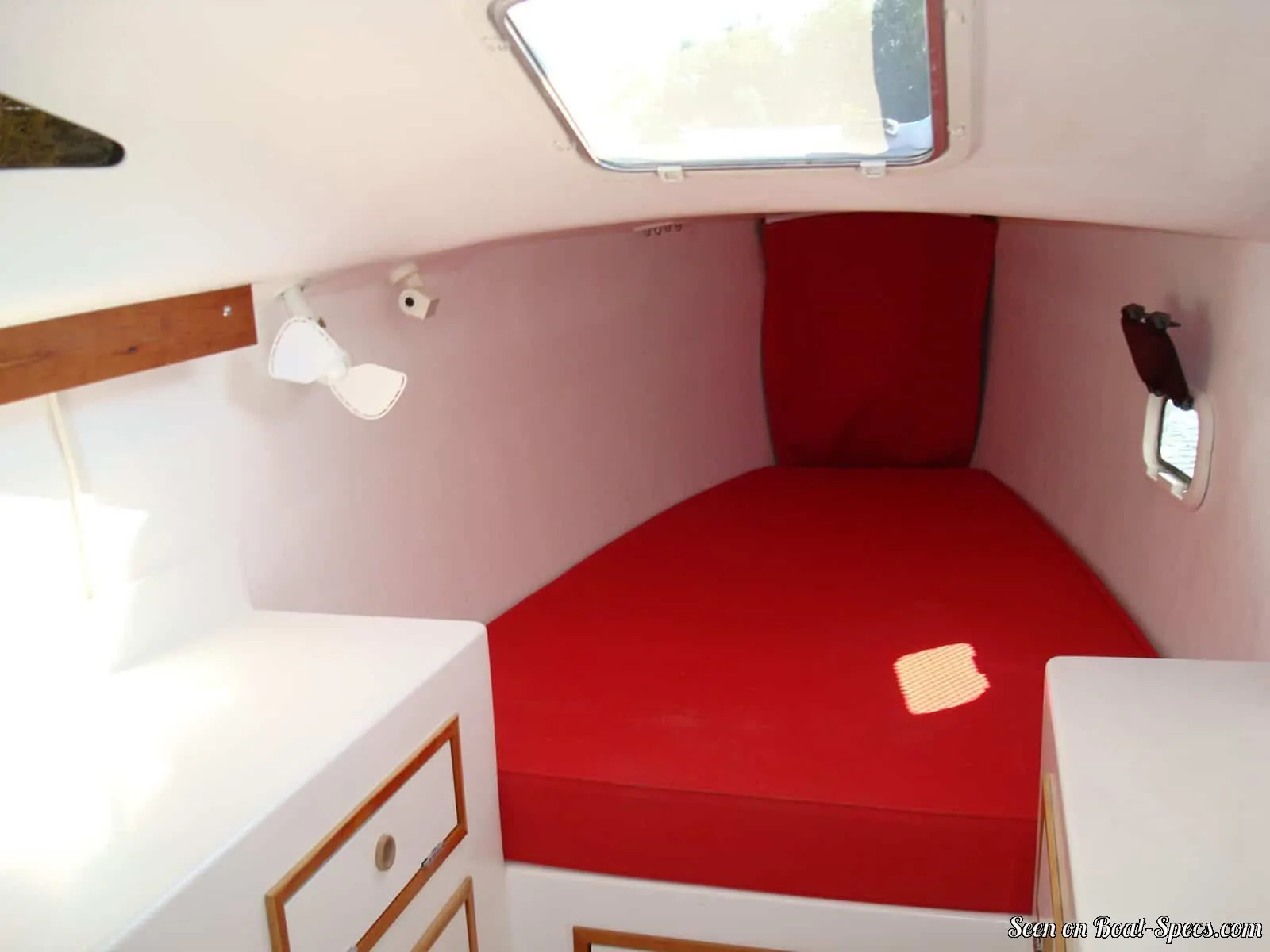

Maine Cat 30 interior and accommodations - - 8/9
Picture extracted from the commercial documentation © Maine Cat
Picture extracted from the commercial documentation © Maine Cat
