Catana 42
Sailboat specifications

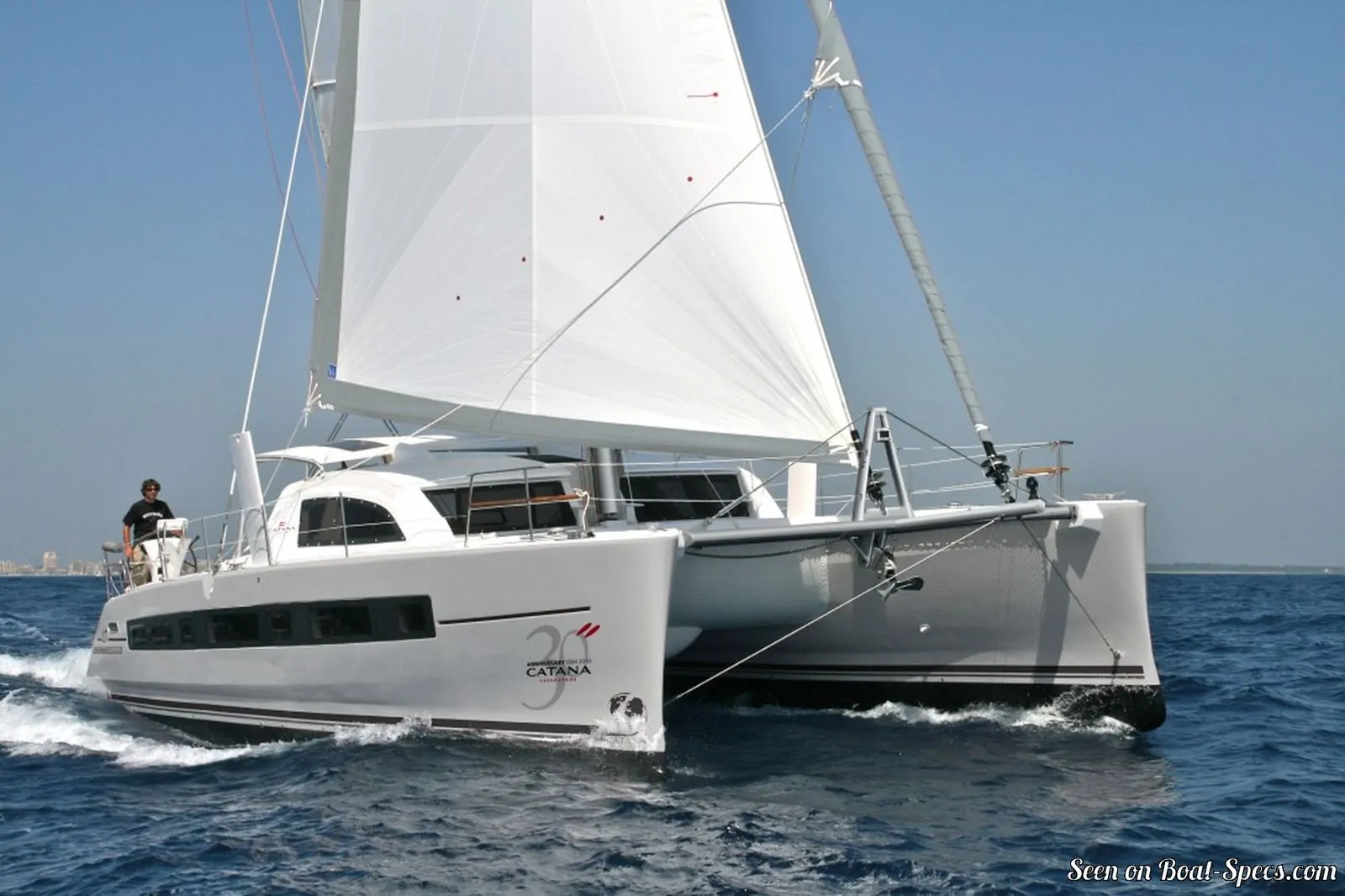

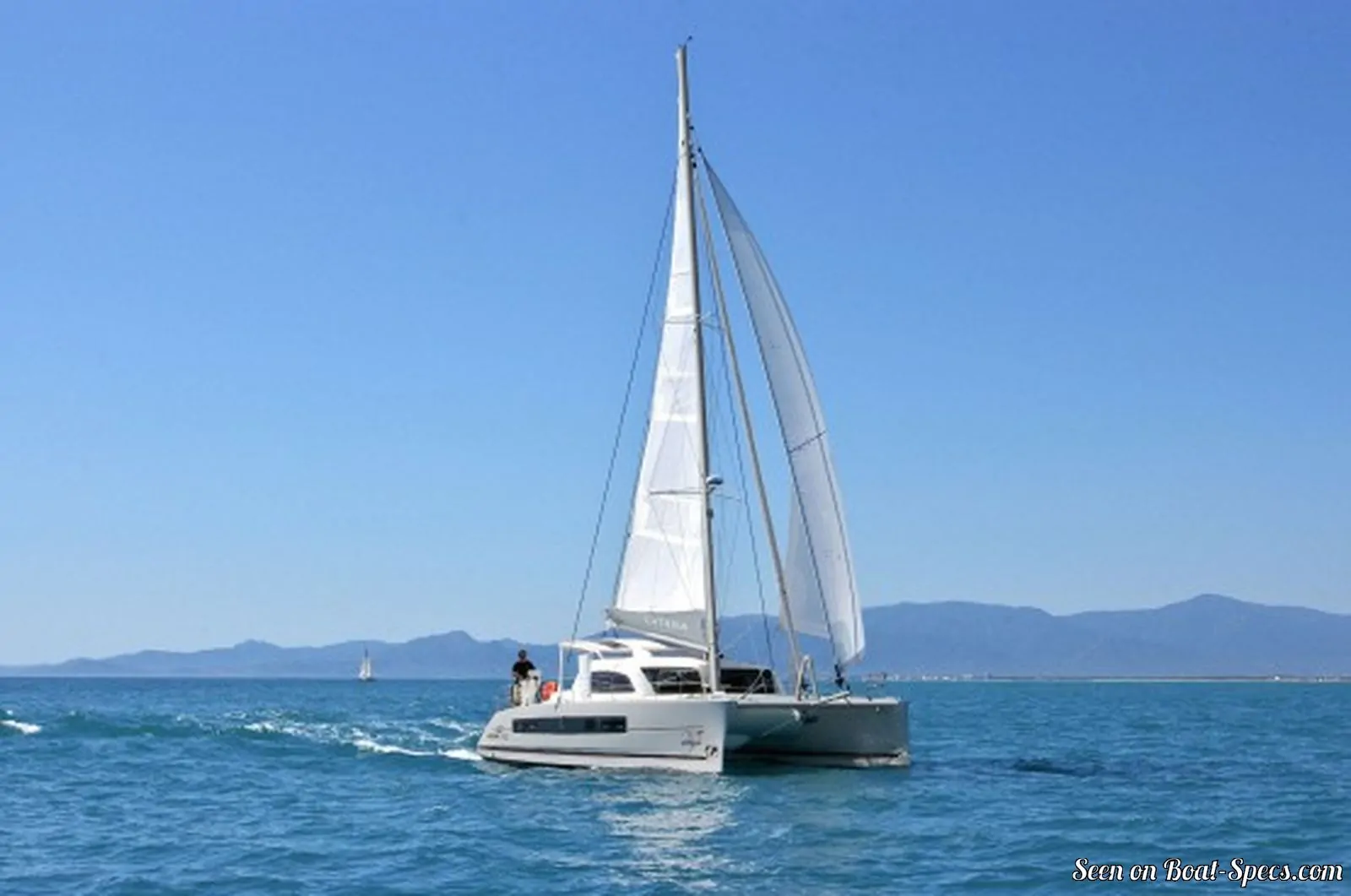

The Catana 42 is a 41’4” (12.58m) fast cruising catamaran designed by Christophe Barreau (France). She was built between 2008 and 2019 by Catana (France).
Catana 42's main features
- Model
- Catana 42
- Hull type
- Catamaran
- Category
- Fast cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- GRP (glass reinforced polyester):
Sandwich fiberglass polyester - First built hull
- 2008
- Last built hull
- 2019
- Appendages
- Centerboard : twin daggerboards
- Helm
- Twin helm wheels
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- N/A €
Catana 42's main dimensions
- Overall length
- 45’13.73 m
- Hull length
- 41’ 4”12.58 m
- Waterline length
- 40’ 8”12.4 m
- Beam (width)
- 22’ 7”6.9 m
- Draft
- 8’ 11”2.7 m
- Draft when appendages up
- 2’ 7”0.8 m
- Mast height from DWL
- 64’19.5 m
- Light displacement (MLC)
- 19621 lb8900 kg
Catana 42's rig and sails
- Upwind sail area
- 1206 ft²112 m²
- Downwind sail area
- 1399 ft²130 m²
- Mainsail area
- 753 ft²70 m²
- Genoa area
- 452 ft²42 m²
- Gennaker area
- 646 ft²60 m²
- Rigging type
- Sloop Marconi (square top mainsail) fractional
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 1
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire discontinuous
Catana 42's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 281 ft²/T26.08 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 326 ft²/T30.27 m²/T
- Displacement-length ratio (DLR)iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat. - 132
Catana 42's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 30 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 113.6 gal430 liters

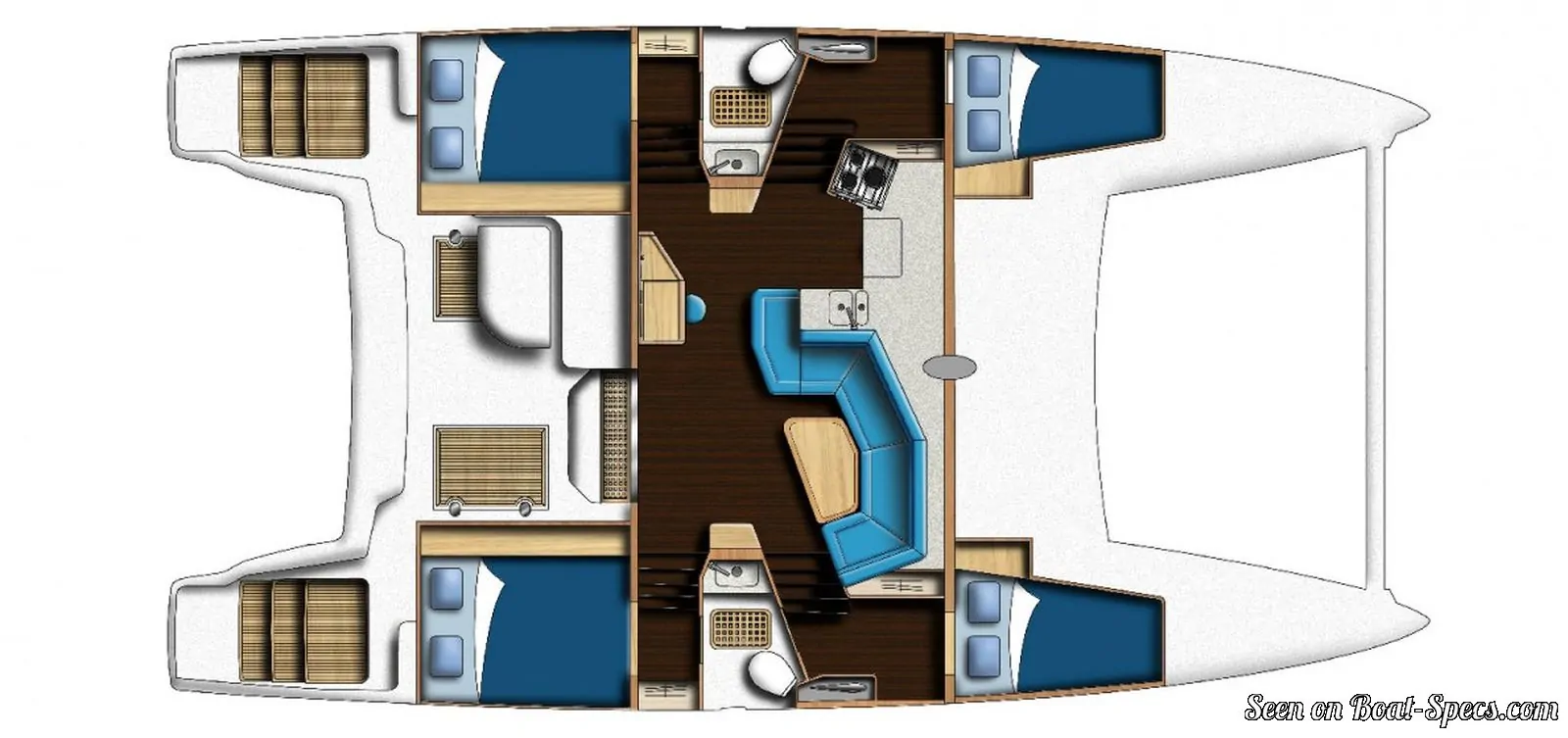

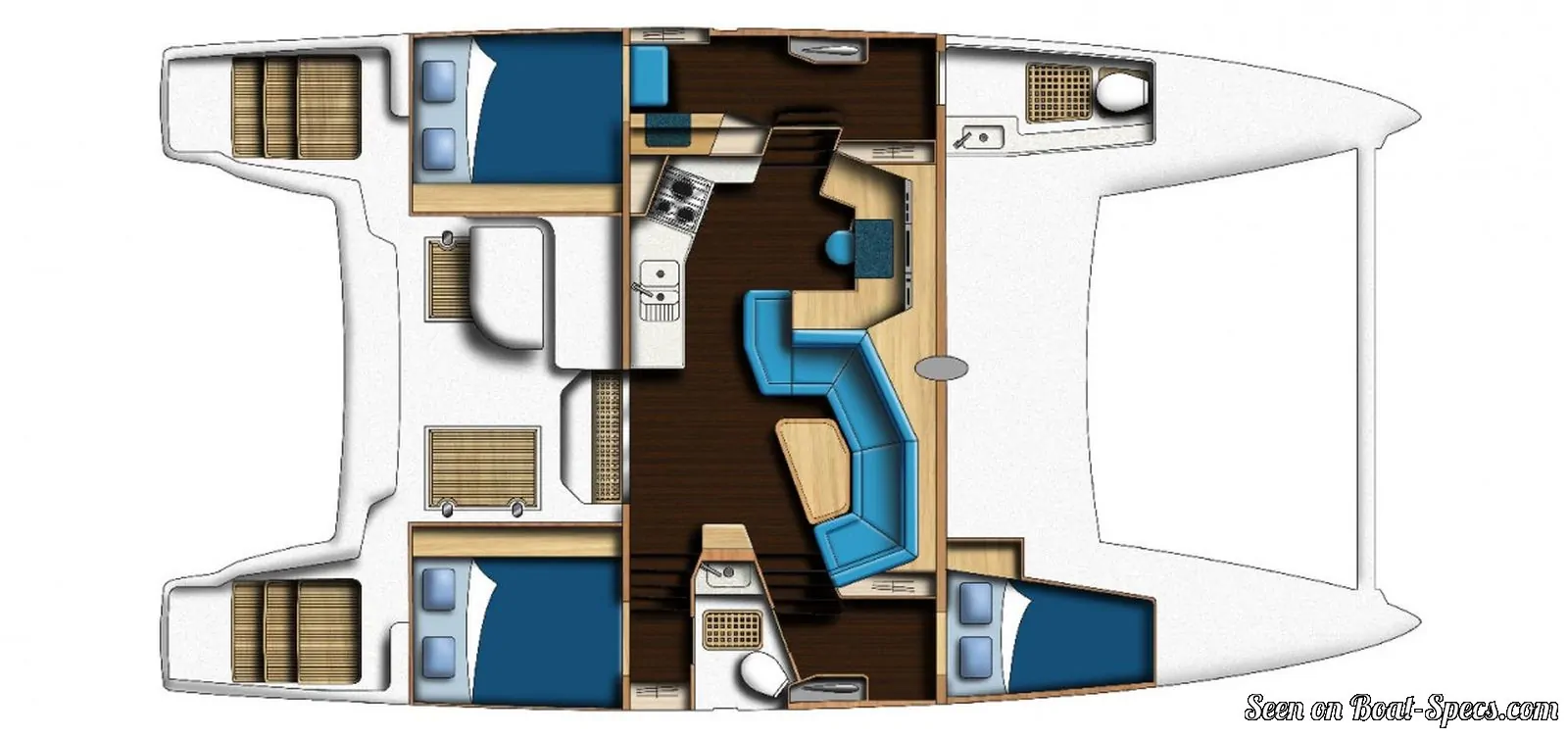

Catana 42's accommodations and layout
- Cockpit
- Aft cockpit
- Cabin(s) (min./max.)
- 3 / 4
- Berth(s) (min./max.)
- 6 / 9
- Freshwater tank capacity
- 177 gal670 liters
- Fridge/ice-box capacity
- 34.3 gal130 liters

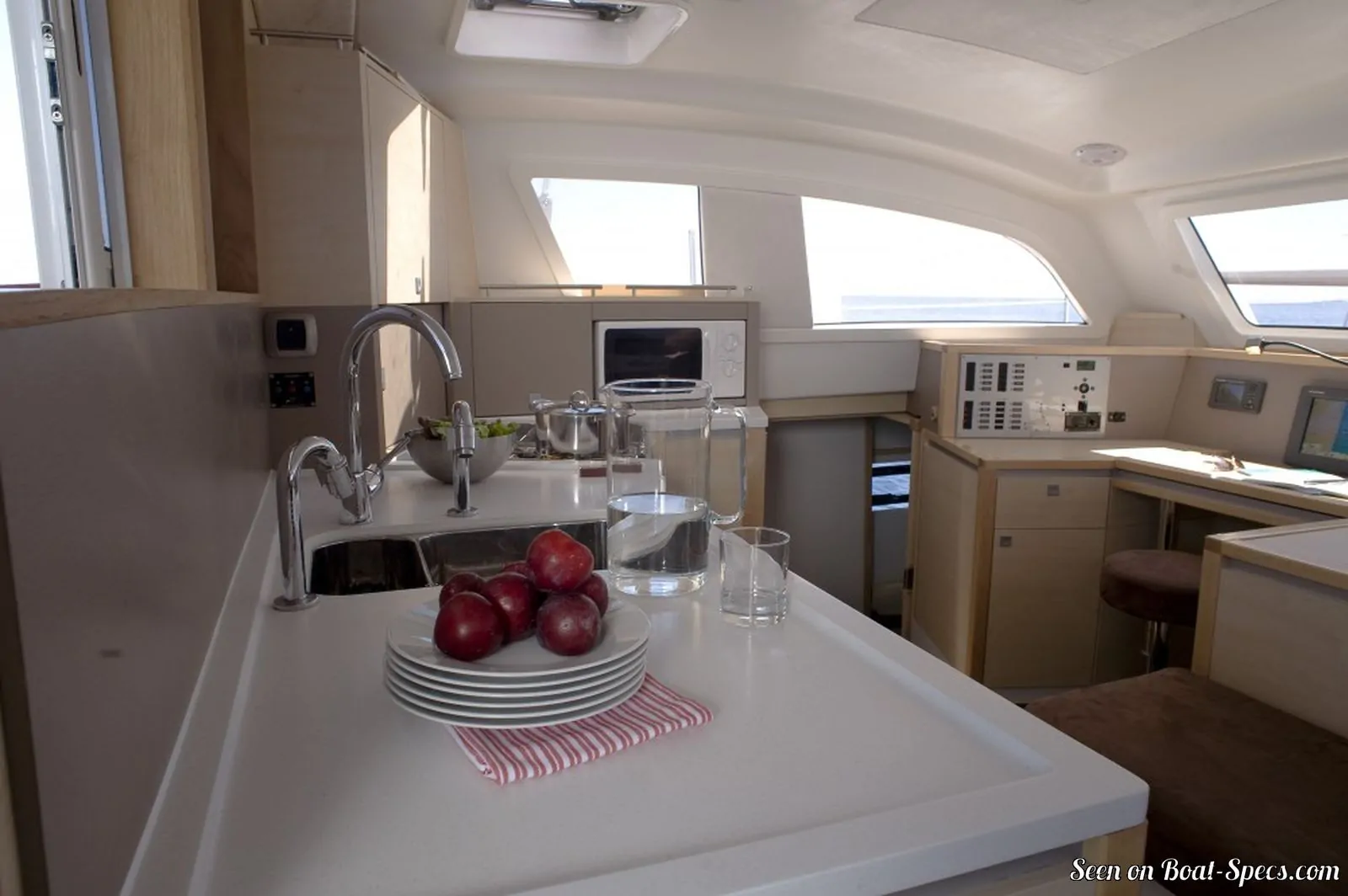

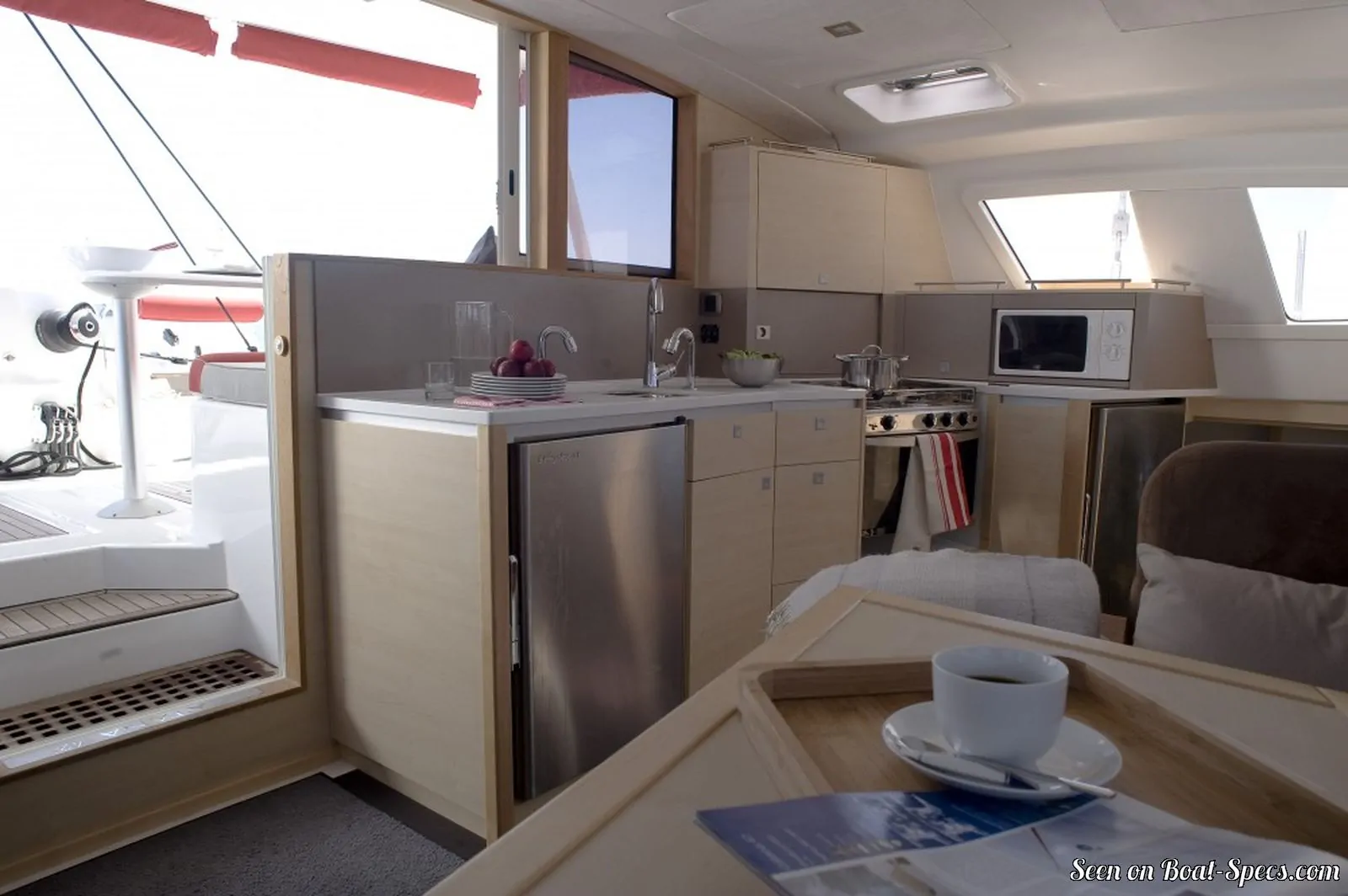

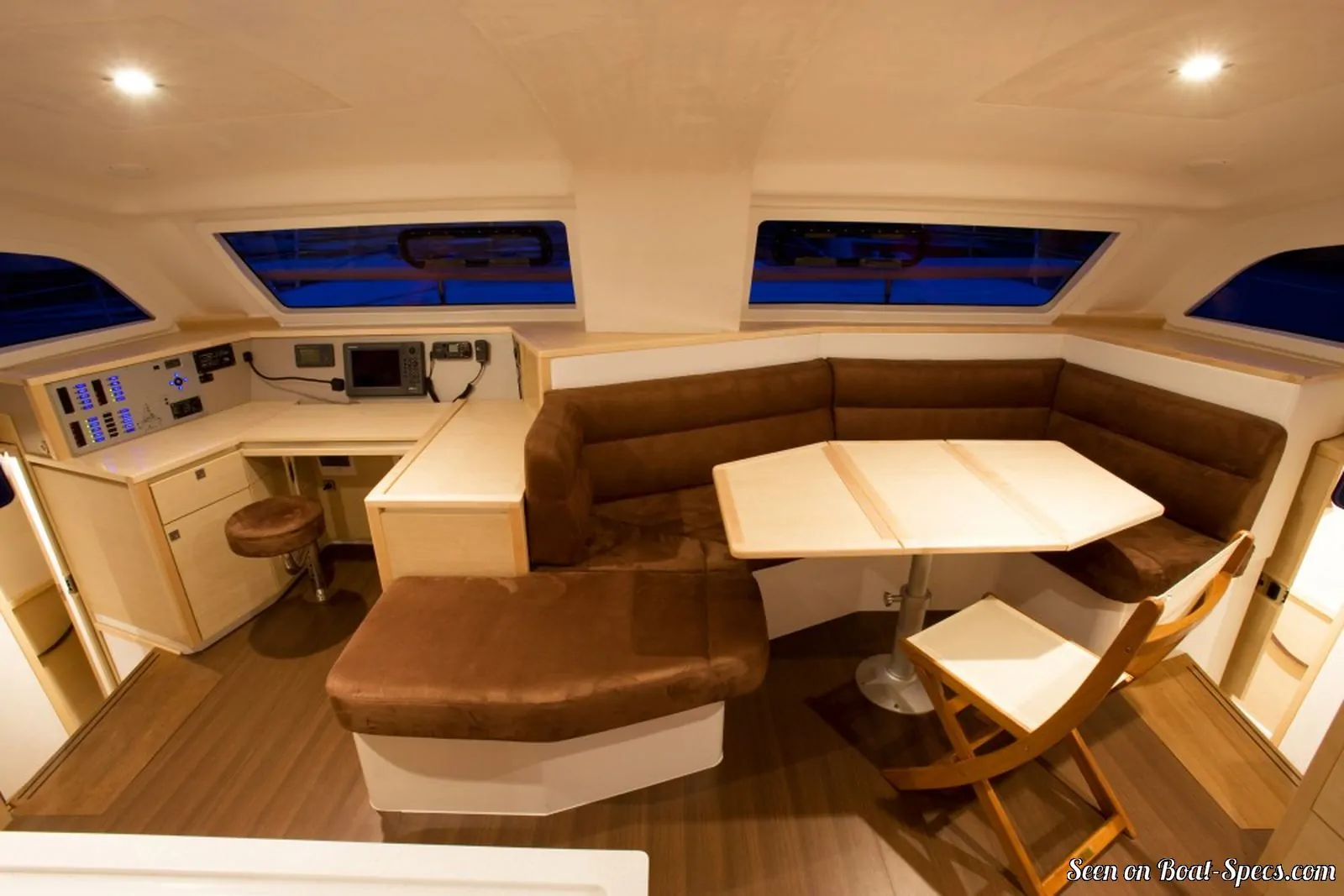

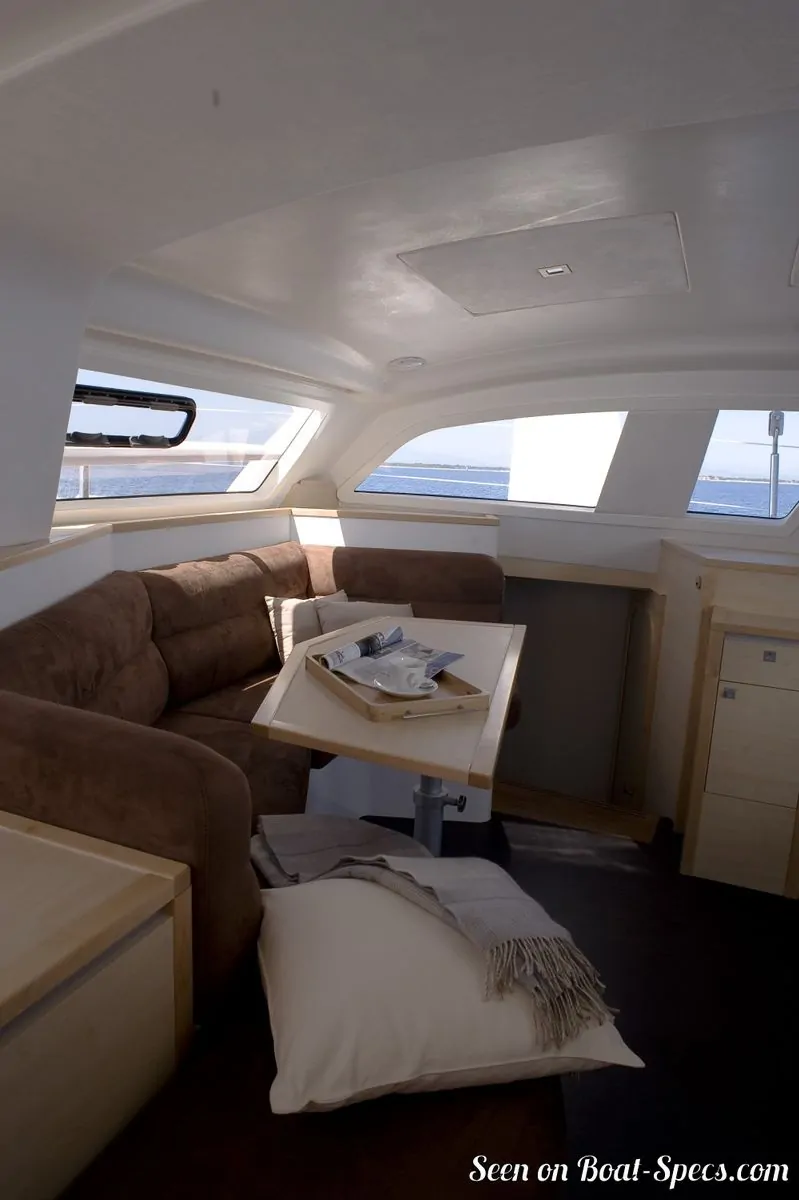

Catana 42 interior and accommodations - - 5/9
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
Catana 42 interior and accommodations - - 6/9
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
Catana 42 interior and accommodations - - 7/9
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
Catana 42 interior and accommodations - - 8/9
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
