The
Ice 52 is a 51’10” (15.8m) cruiser-racer sailboat designed by
Felci Yachts (Italy). She is built since 2016 by
Ice Yachts (Italy). The
Medium draft version offers a compromise between draft and performance.
The
Ice 52 is as well listed, on Boat-Specs.com, in
Deep draft and
RS version (
see all the versions compared).
Ice 52's main features
Model
Ice 52
Version
Medium draft
Hull type
Monohull
Category
Cruiser-racer sailboat
Sailboat builder
Sailboat designer
Country
Italy
Construction
Fiberglass reinforced epoxy:
- Hull: Sandwich PVC fiberglass epoxy with carbon fiber reinforcements
- Deck: Sandwich PVC fiberglass epoxy with carbon fiber reinforcements
First built hull
2016
Last built hull
Still in production
Appendages
Keel : T-shaped keel (with bulb)
Helm
Twin helm wheels
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5mA
Standard public price ex. VAT (indicative only)
Ice 52's main dimensions
Hull length
51’ 10”15.8 m
Waterline length
48’ 8”14.84 m
Beam (width)
15’ 4”4.65 m
Draft
8’2.45 m
Light displacement (MLC)
27558 lb12500 kg
Ballast weight
10141 lb4600 kg
Ballast type
Steel fin with lead bulb

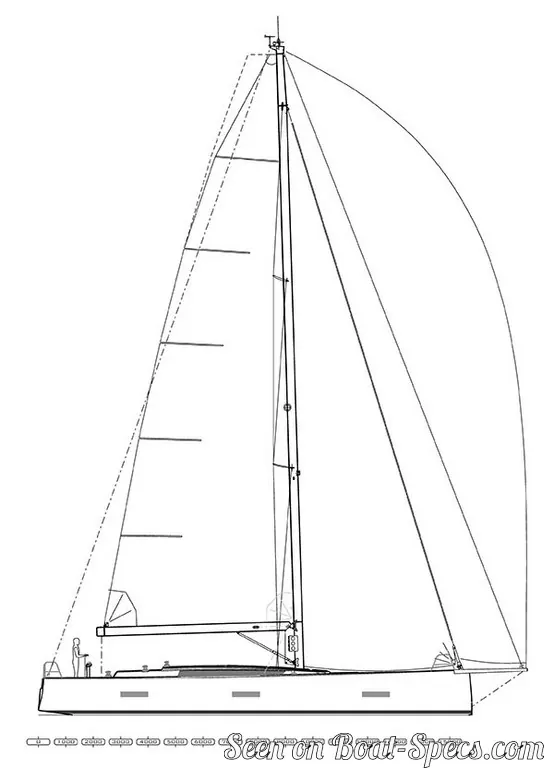

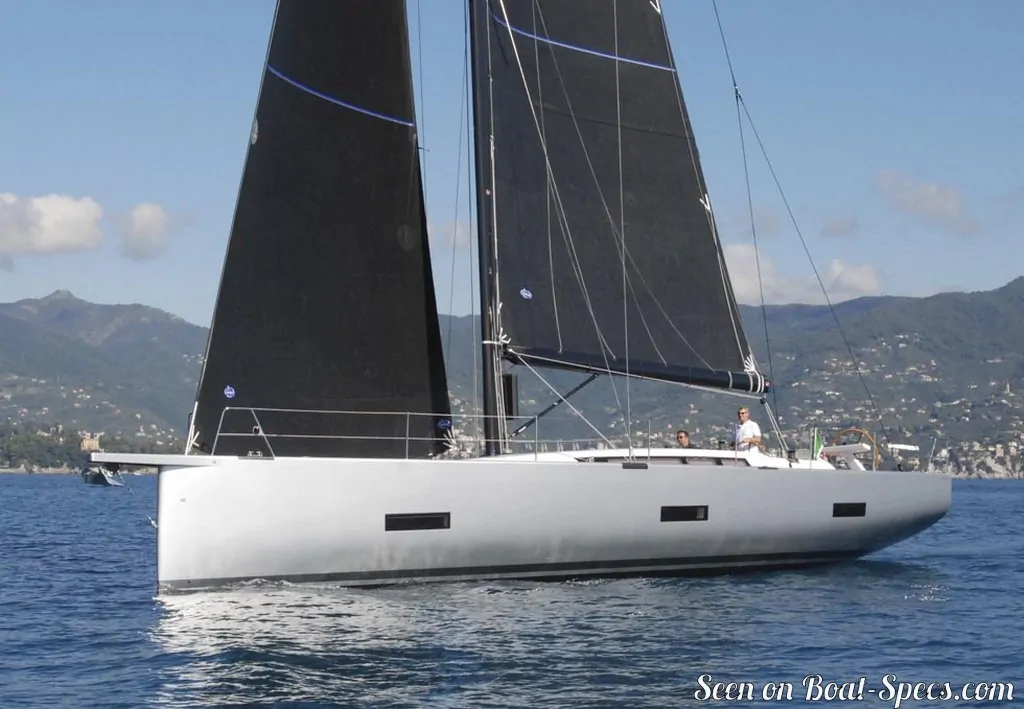

Ice 52's rig and sails
Upwind sail area
1690 ft²157 m²
Downwind sail area
4198 ft²390 m²
Mainsail area
969 ft²90 m²
Genoa area
721 ft²67 m²
Asymmetric spinnaker area
3229 ft²300 m²
I
iFore triangle height (from mast foot to fore stay top attachment)68’ 2”20.8 m
J
iFore triangle base (from mast foot to bottom of forestay)18’ 8”5.7 m
P
iMainsail hoist measurement (from tack to head)67’ 11”20.7 m
E
iMainsail foot measurement (from tack to clew)22’ 7”6.9 m
Rigging type
Sloop Marconi 9/10
Mast configuration
Keel stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back
Spars construction
Carbon fiber spars
Ice 52's performances
Upwind sail area to displacement
iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.314 ft²/T29.15 m²/T
Downwind sail area to displacement
iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.779 ft²/T72.41 m²/T
Displacement-length ratio (DLR)
iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.108
Ballast ratio
iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability.37 %
Critical hull speed
iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.9.35 knots
Ice 52's auxiliary engine
Engine(s)
1 inboard engine
Engine(s) power
75 HP
Fuel type
Diesel
Fuel tank capacity
95.1 gal360 liters

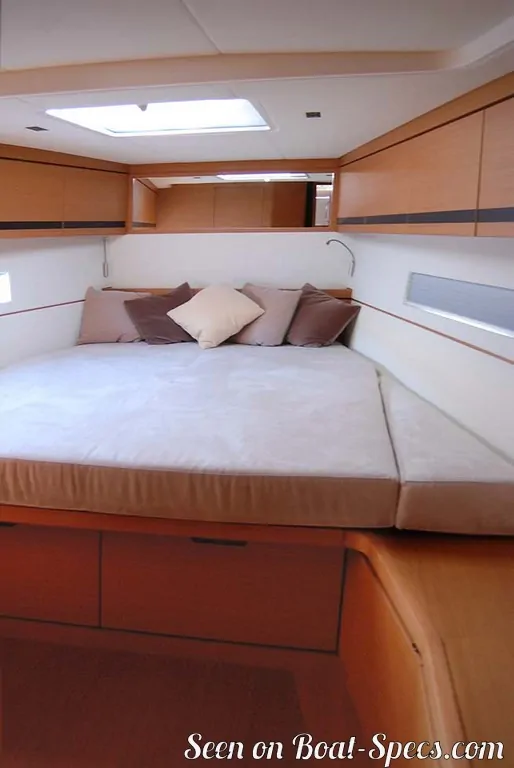

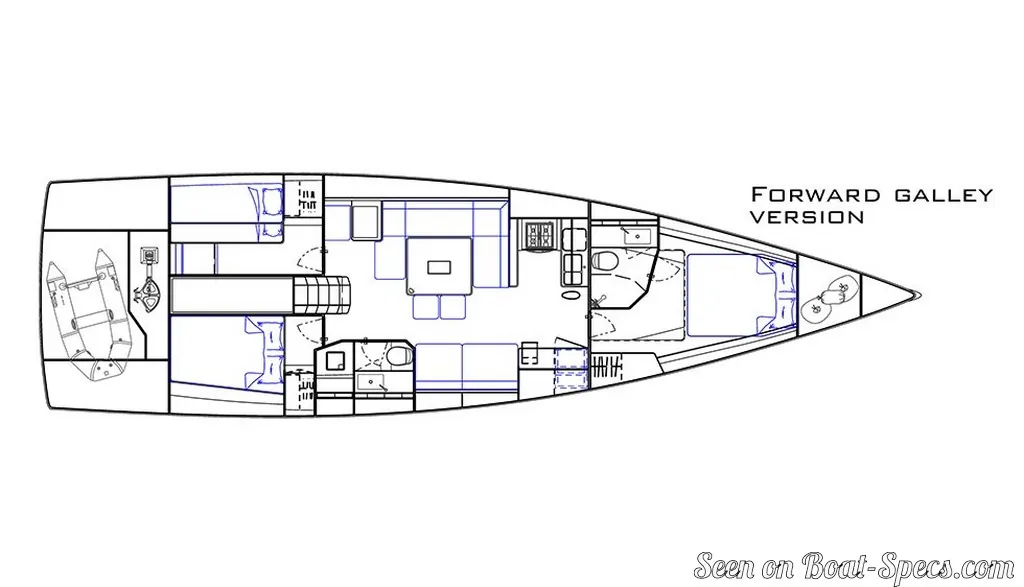

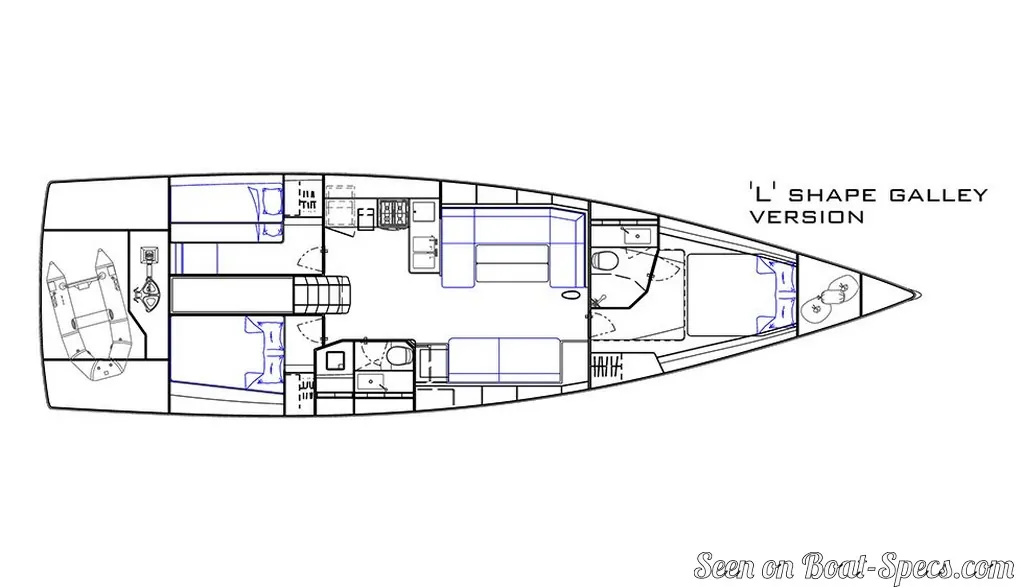

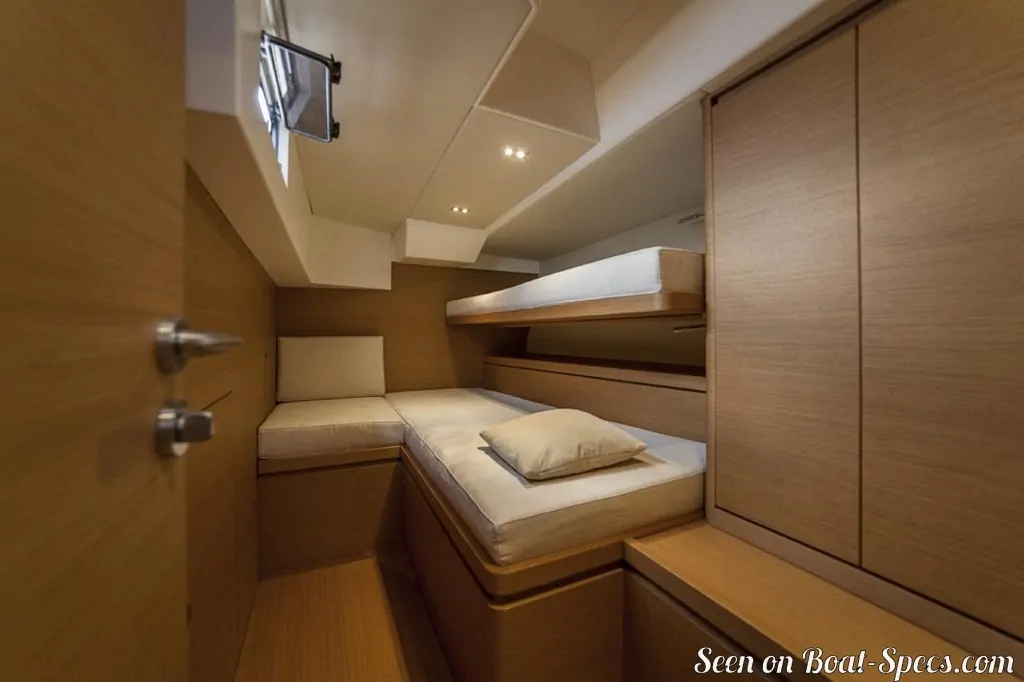

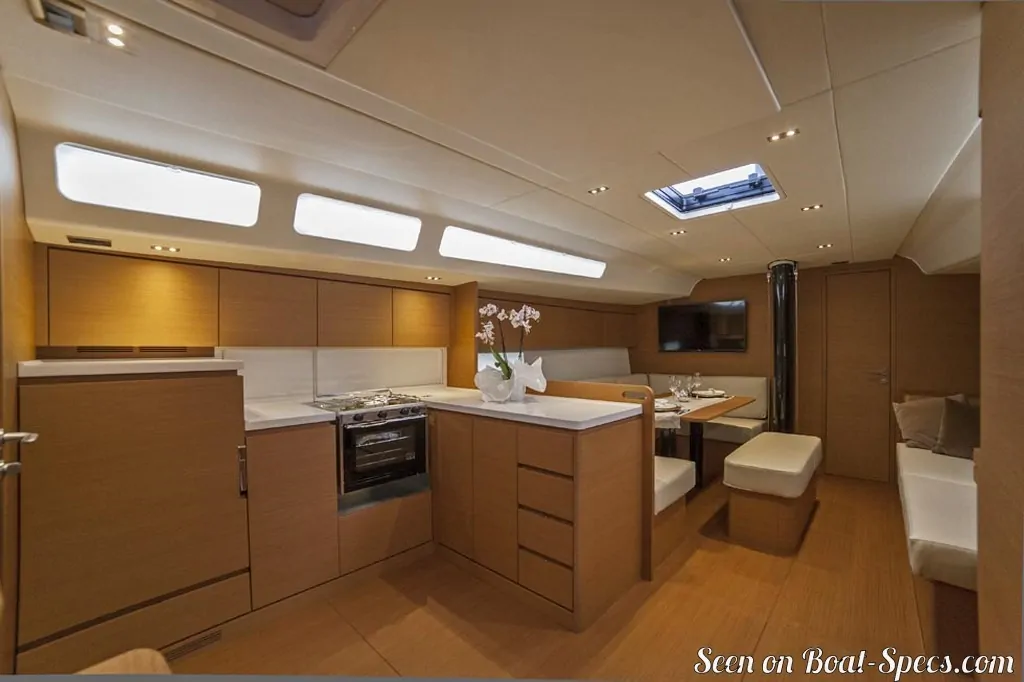

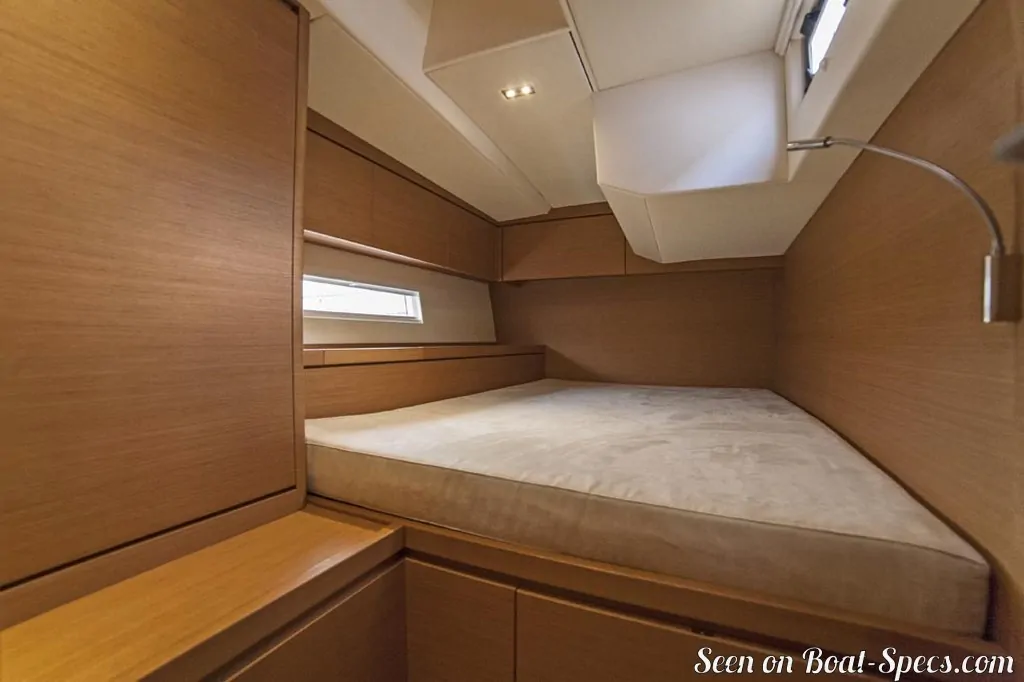

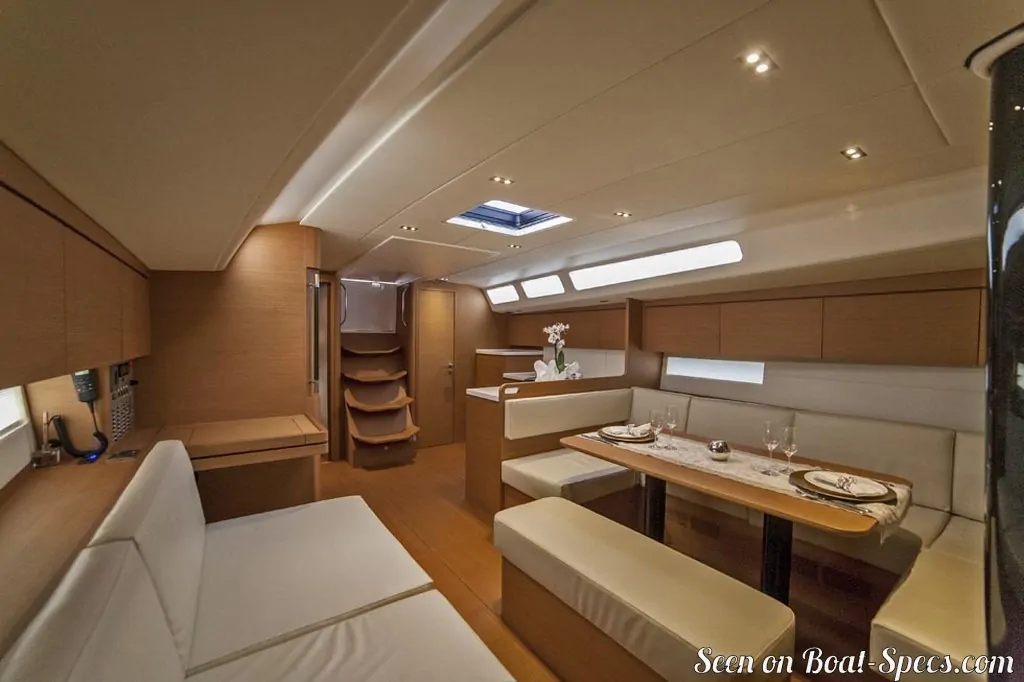

Ice 52's accommodations and layout
Cockpit
Open aft cockpit
Cabin(s)
3
Berth(s) (min./max.)
6 / 8
Head(s)
2
Freshwater tank capacity
132.1 gal500 liters
