X4⁶ Standard

Sailboat specifications

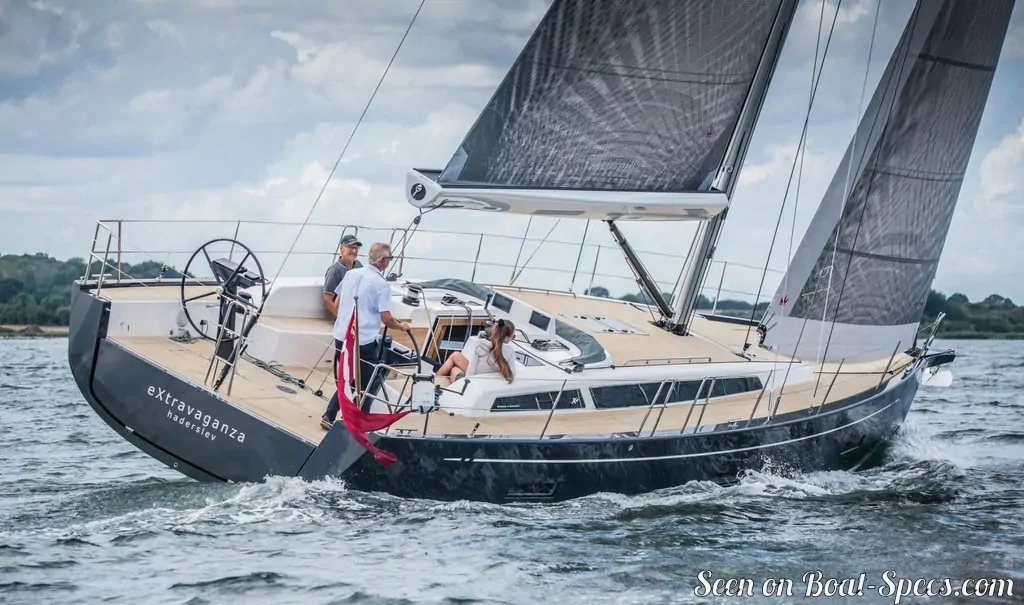

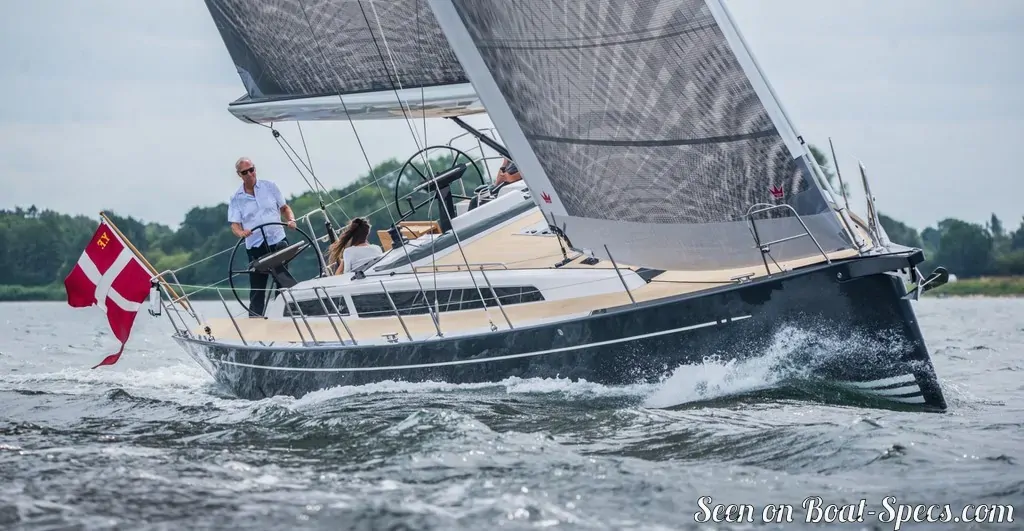

The X4⁶ is a 44’4” (13.5m) cruiser-racer sailboat designed by X-Yachts Design Group (Denmark). She is built since 2018 by X-Yachts (Denmark). She has been awarded "2020 - Cruising World - Boat of the Year: Full-Size Cruiser 45 to 55 Feet".

The X4⁶ is as well listed, on Boat-Specs.com, in Deep draft version (see all the versions compared).

Find out more about the X4⁶ on Boat-Spec's blog: European Yacht of the Year 2019 nominated sailboats.

X4⁶'s main features

Model

X4⁶

Version

Standard

Hull type

Monohull

Category

Offshore cruiser-racer sailboat

Sailboat builder

X-Yachts

Sailboat designer

X-Yachts Design Group

Sailboat range

Country

Denmark

Construction

Fiberglass reinforced epoxy:
- Hull: Sandwich fiberglass epoxy with galvanized steel frame
- Deck: Sandwich fiberglass epoxy (vacuum infusion)

First built hull

2018

Last built hull

Still in production

Award(s)

2020: Cruising World - Boat of the Year: Full-Size Cruiser 45 to 55 Feet

Appendages

Keel : T-shaped keel (with bulb)

Helm

Twin helm wheels

Rudder

Single spade rudder

Unsinkable

Trailerable

EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m

Standard public price ex. VAT (indicative only)

About

408 000 €

(2020)

X4⁶'s main dimensions

Overall length: 46’ 2”14.08 m
Hull length: 44’ 4”13.5 m
Waterline length: 40’ 6”12.33 m
Beam (width): 14’4.27 m
Draft: 7’ 6”2.3 m
Mast height from D_WL: 71’21.65 m
Light displacement (M_LC): 24030 lb10900 kg
Ballast weight: 9921 lb4500 kg
Ballast type: Cast iron fin with lead bulb

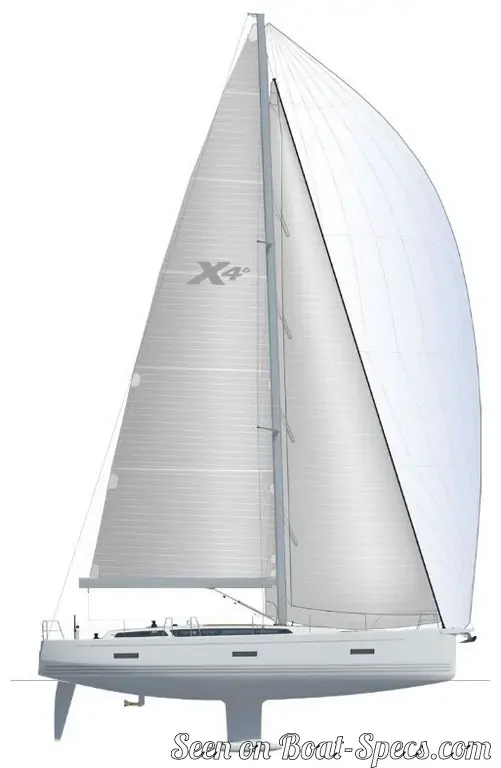

X4⁶'s rig and sails

Upwind sail area: 1227 ft²114 m²
Downwind sail area: 2519 ft²234 m²
Mainsail area: 689 ft²64 m²
Genoa area: 538 ft²50 m²

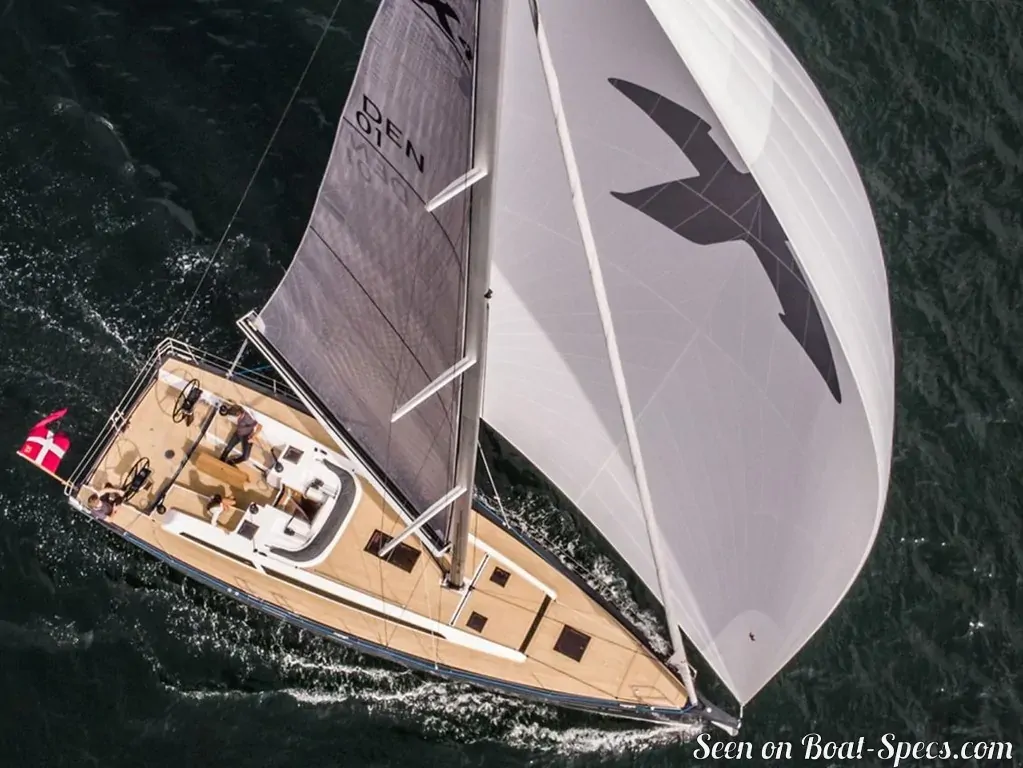

Asymmetric spinnaker area: 1830 ft²170 m²
I iFore triangle height (from mast foot to fore stay top attachment): 61’18.6 m
J iFore triangle base (from mast foot to bottom of forestay): 16’ 10”5.12 m
P iMainsail hoist measurement (from tack to head): 60’18.3 m
E iMainsail foot measurement (from tack to clew): 20’ 2”6.15 m
Rigging type: Sloop Marconi 9/10
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 3
Spreaders angle: Swept-back
Spars construction: Aluminum spars (carbon fiber spars as an option)
Standing rigging: Single-strand (ROD) discontinuous

X4⁶'s performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 250 ft²/T23.19 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 512 ft²/T47.6 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 165
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 41 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.52 knots
