The Catalina 470
is a 46’4” (14.12m) cruising sailboat designed by Gerry Douglas
(United States). She was built since 1998 (and now discontinued) by Catalina Yachts
(United States). The Fin keel
version features an L-shaped keel providing a good performance/price trade-off.
The Catalina 470
is as well listed, on Boat-Specs.com, in Wing keel
and Tall rig
version (see all the versions compared
Catalina 470's main features
Offshore cruising sailboat
Hull and deck: GRP (glass reinforced polyester)
First built hull
Last built hull
Keel : L-shaped keel (with bulb)
Twin helm wheels
Single spade rudder
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
Standard public price ex. VAT (indicative only)
Catalina 470's main dimensions
47’ 11”14.6 m
46’ 4”14.12 m
7’ 10”2.39 m
Mast height from DWL
63’ 4”19.3 m
Light displacement (MLC)
27271 lb12370 kg
9019 lb4091 kg

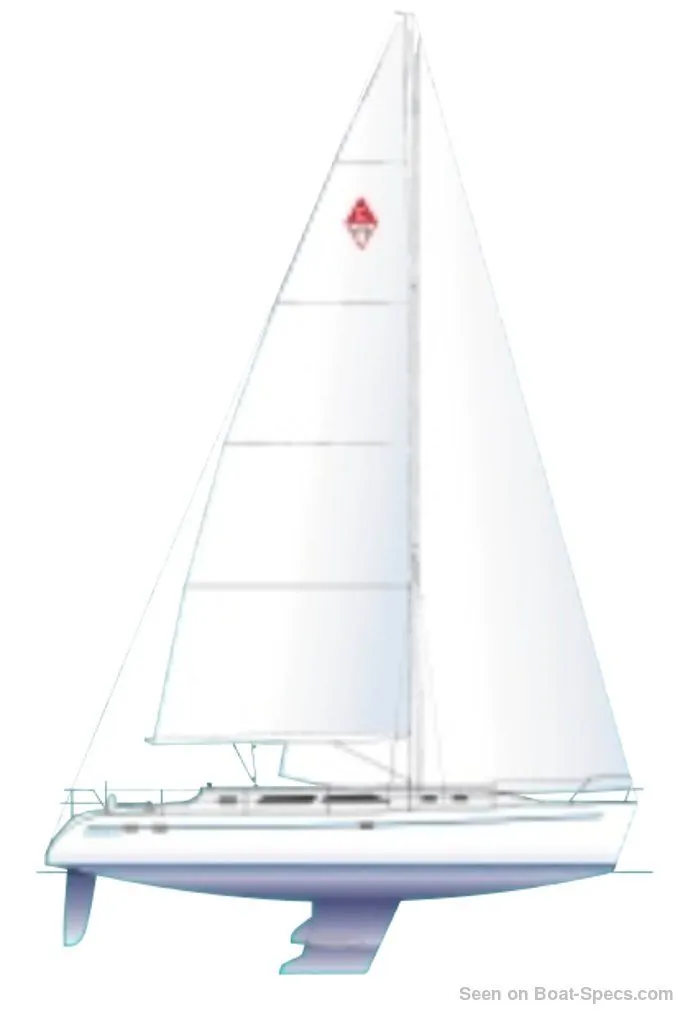

Catalina 470's rig and sails
Upwind sail area
1010 ft²93.83 m²
I iFore triangle height (from mast foot to fore stay top attachment)
58’ 2”17.75 m
J iFore triangle base (from mast foot to bottom of forestay)
P iMainsail hoist measurement (from tack to head)
51’ 6”15.7 m
E iMainsail foot measurement (from tack to clew)
Sloop Marconi masthead
Deck stepped mast
Number of levels of spreaders
1x19 strand wire
Catalina 470's performances
Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
189 ft²/T17.54 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability.
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
Catalina 470's auxiliary engine
1 inboard engine
Fuel tank capacity
88 gal333 liters

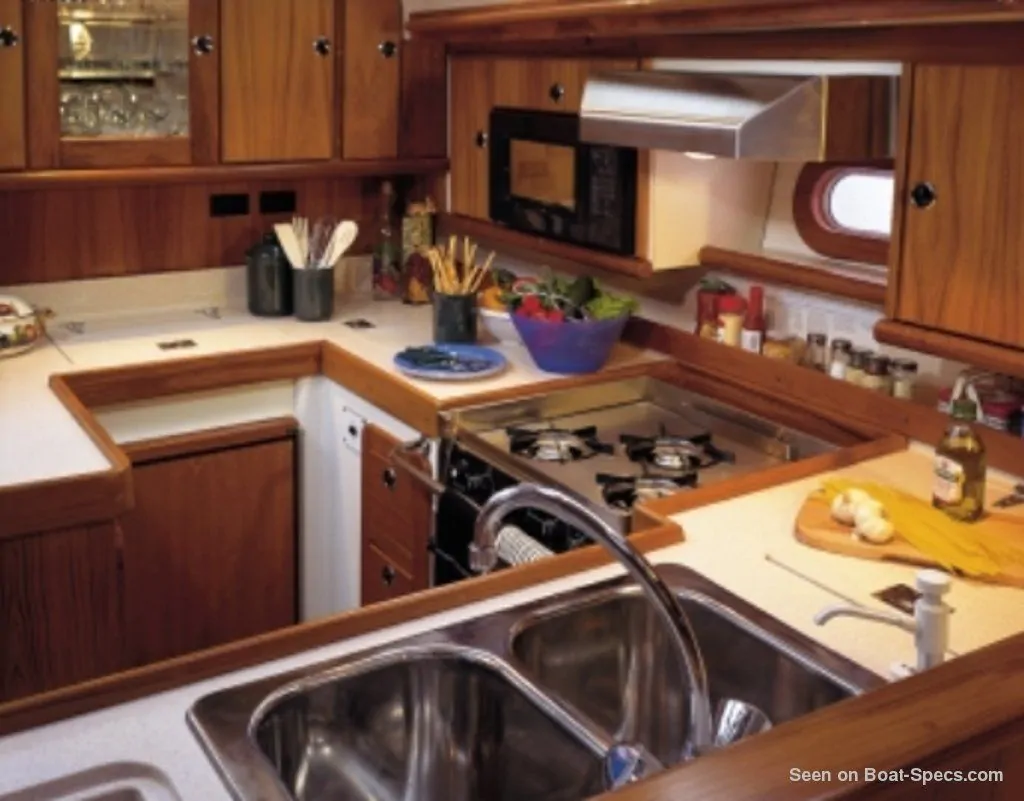

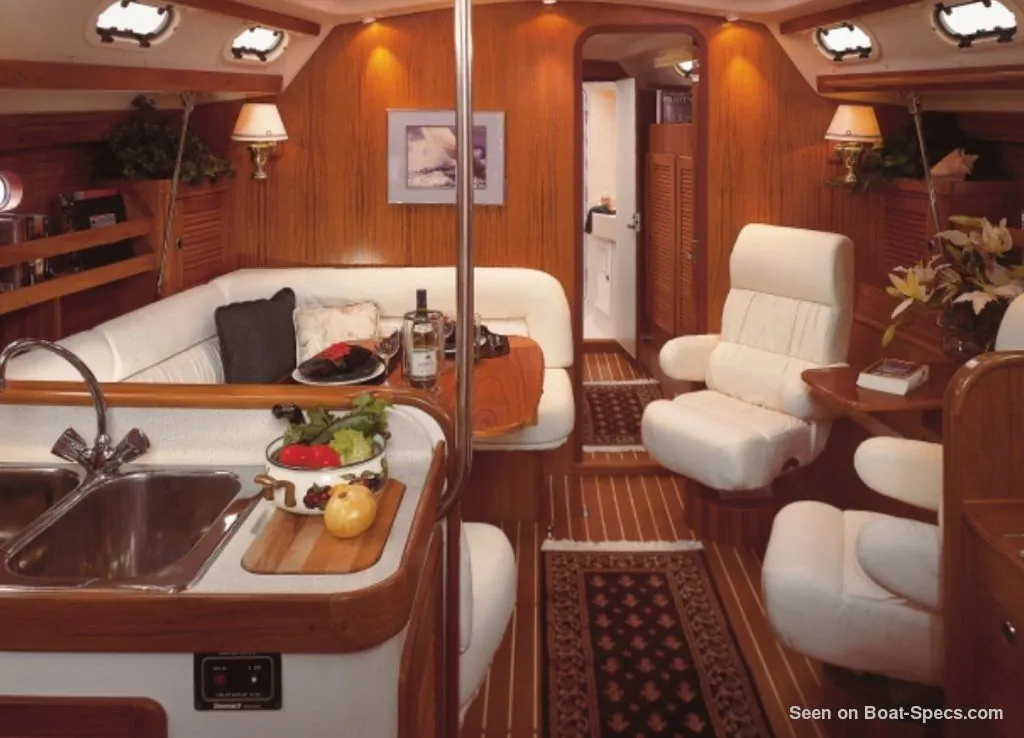

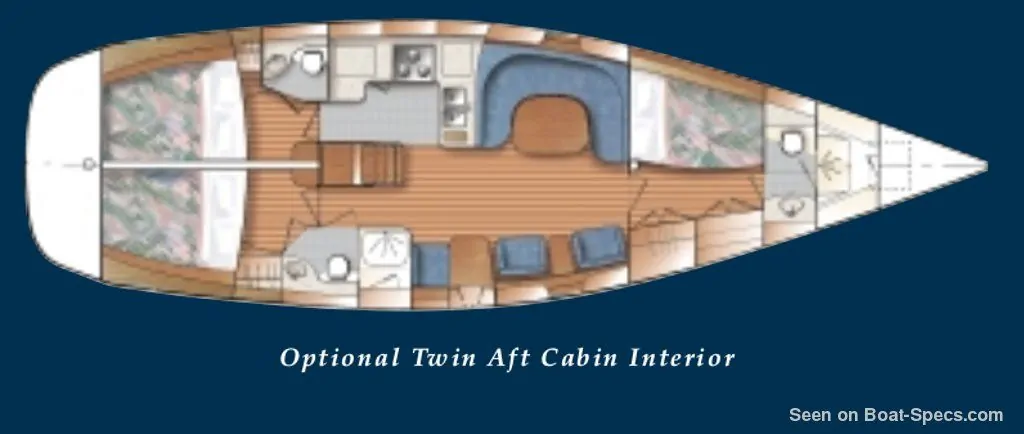

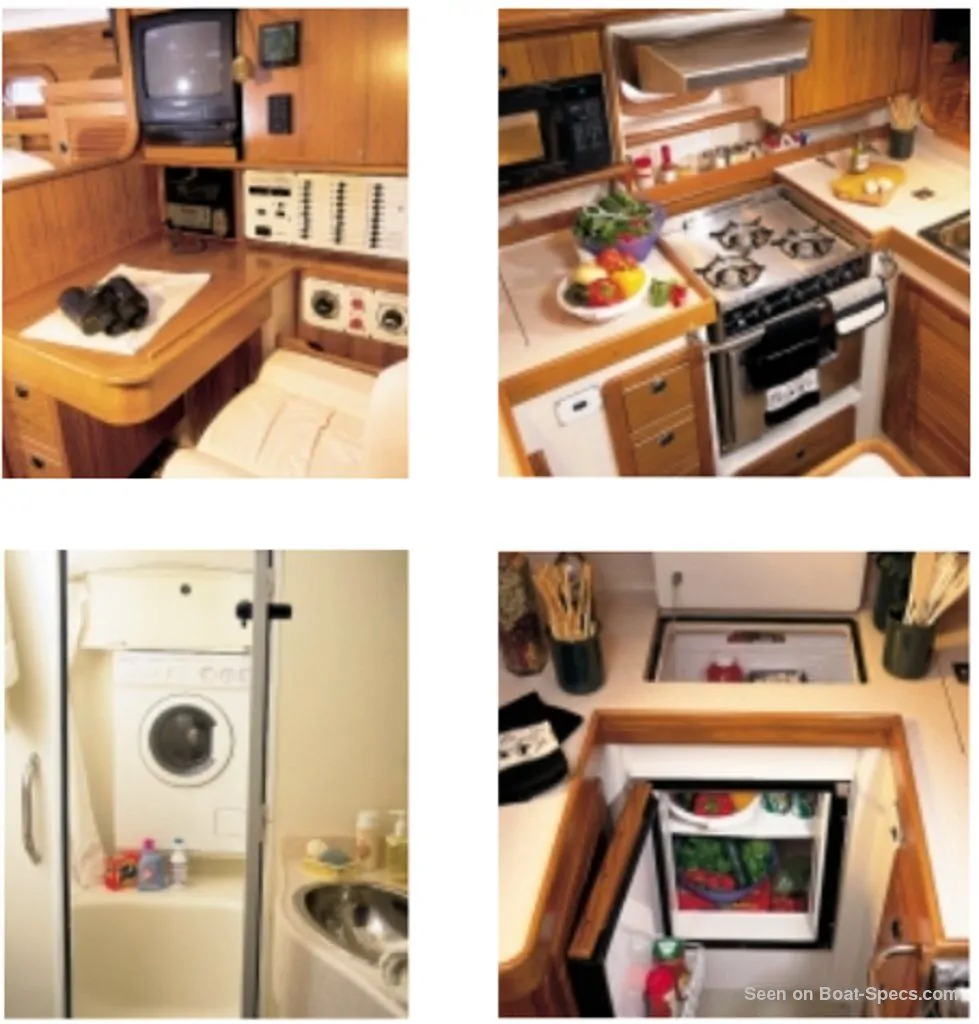

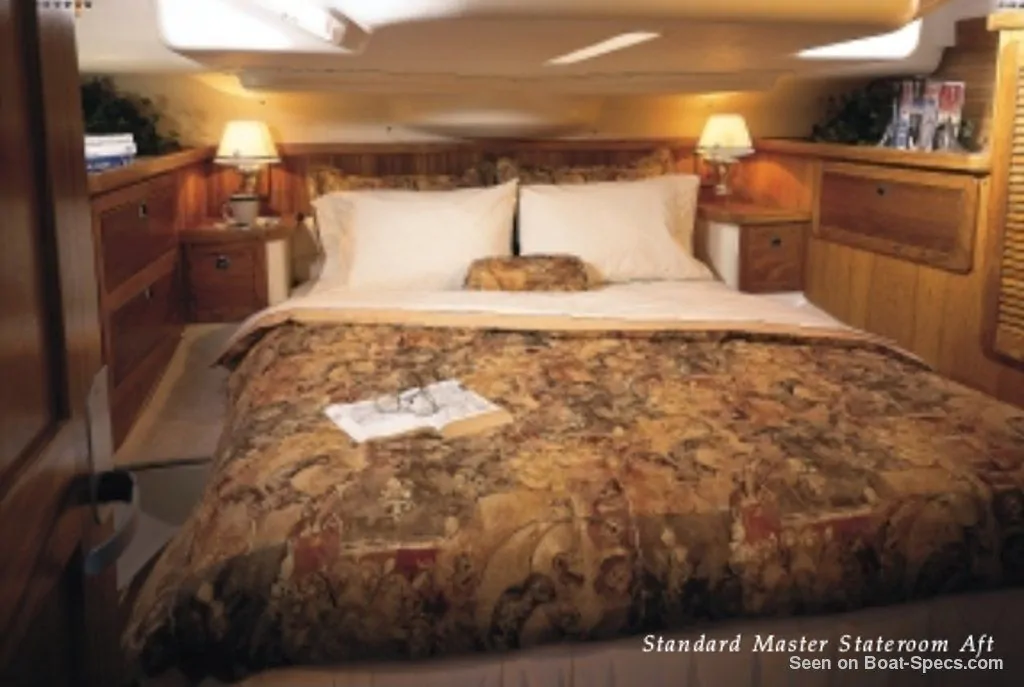

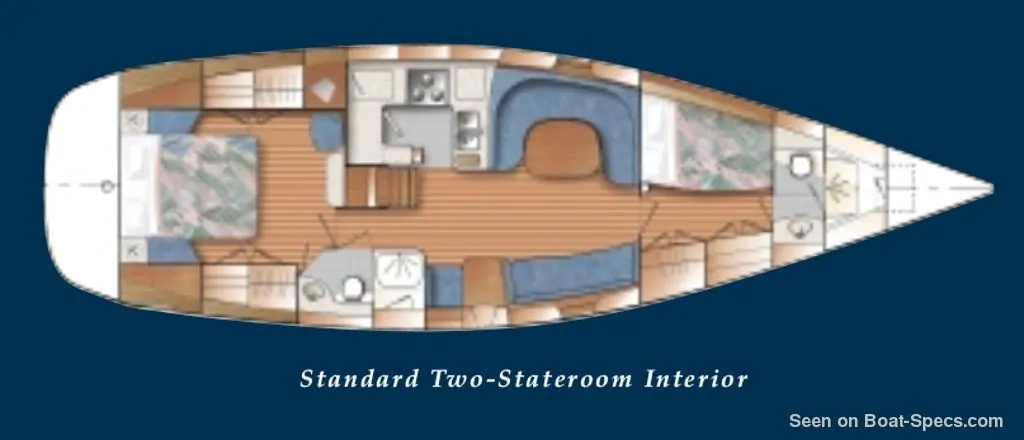

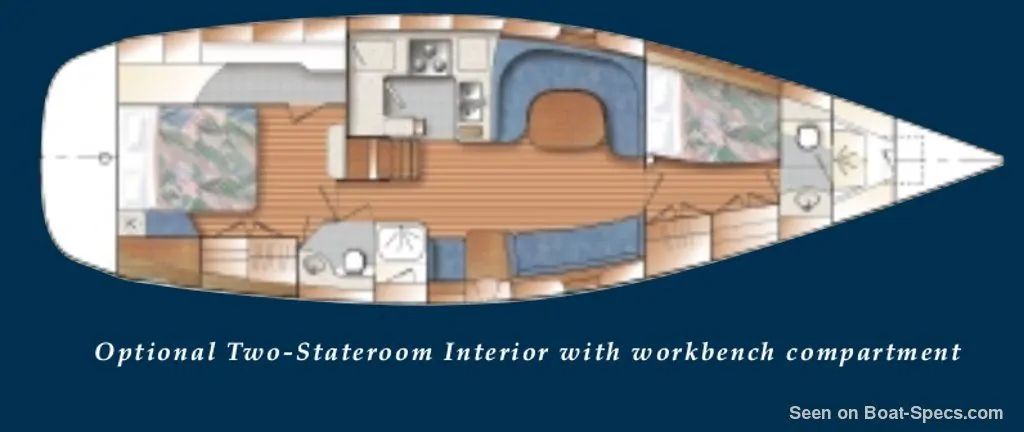

Catalina 470's accommodations and layout
Closing aft cockpit with opening system
2 / 3
4 / 8
2 / 3
Freshwater tank capacity
214 gal810 liters
Holding tank capacity
66 gal250 liters
50.2 gal190 liters
19.8 gal75 liters
7’ 6”2.29 m
