Vision 46 Standard

Sailboat specifications

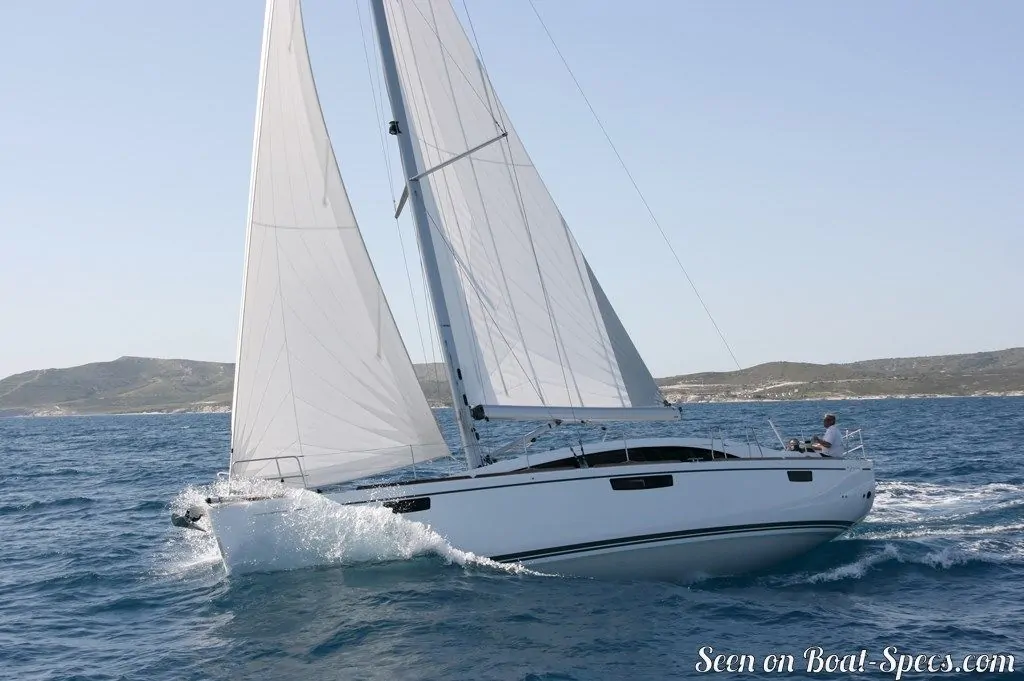

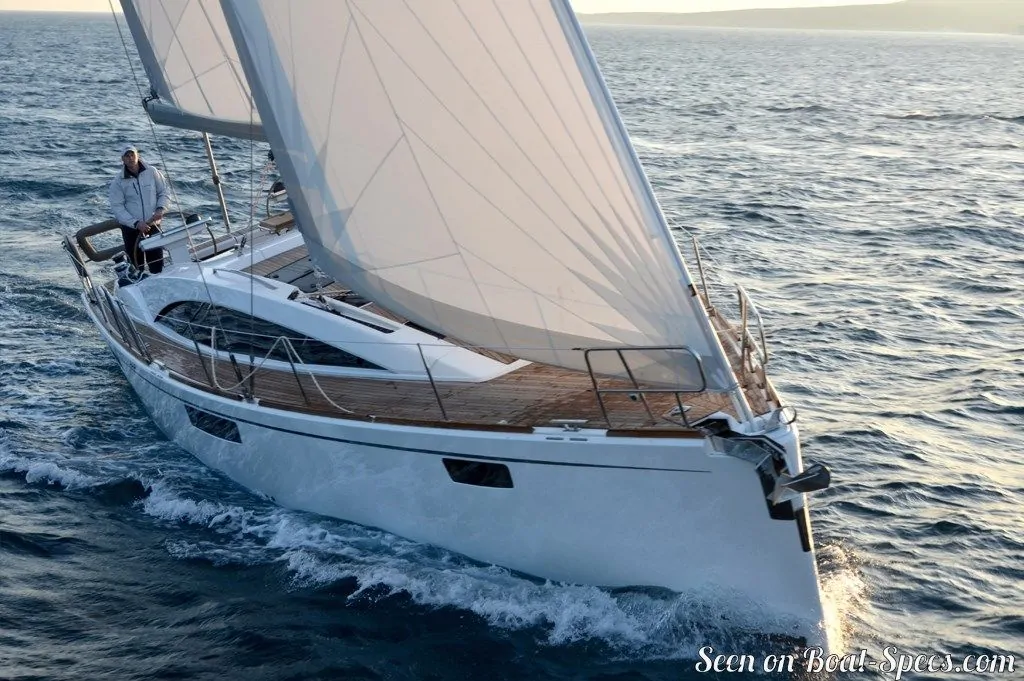

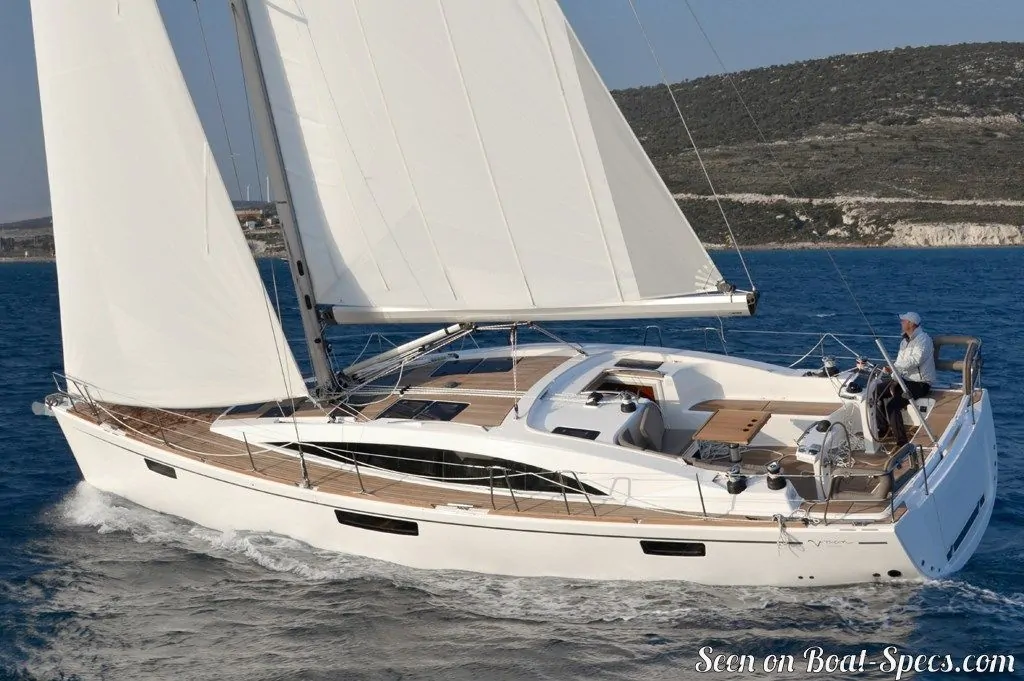

The Vision 46 is a 44’11” (13.7m) cruising sailboat designed by Farr Yacht Design (United States). She is built since 2013 by Bavaria Yachts (Germany).

The Vision 46 is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

Vision 46's main features

Model
Vision 46
Version
Standard
Hull type
Monohull
Category
Offshore cruising sailboat
Sailboat builder
Sailboat designer
Sailboat range
Country
Germany
Construction
GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich fiberglass polyester
First built hull
2013
Last built hull
Still in production
Appendages
Keel : L-shaped keel (with bulb)
Helm
Twin helm wheels
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
A
Standard public price ex. VAT (indicative only)
About
200 000
 (2020)

Vision 46's main dimensions

Overall length
45’ 11”13.99 m
Hull length
44’ 11”13.7 m
Waterline length
42’ 1”12.83 m
Beam (width)
13’ 8”4.19 m
Draft
7’2.14 m
Mast height from DWL
65’ 11”20.1 m
Light displacement (MLC)
27117 lb12300 kg
Ballast weight
7606 lb3450 kg
Ballast type
Cast iron

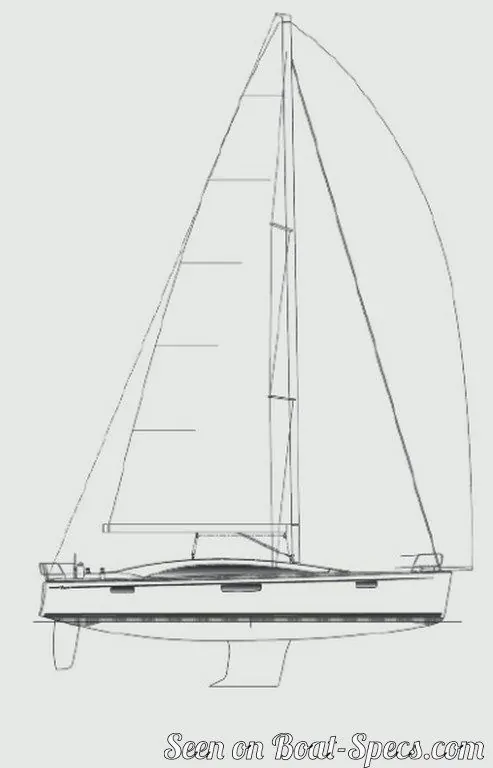

Vision 46's rig and sails

Upwind sail area
1130 ft²105 m²
Downwind sail area
2185 ft²203 m²
Mainsail area
592 ft²55 m²
Genoa area
538 ft²50 m²
Gennaker area
1593 ft²148 m²
I
 iFore triangle height (from mast foot to fore stay top attachment)
56’ 5”17.2 m
J
 iFore triangle base (from mast foot to bottom of forestay)
15’ 5”4.68 m
P
 iMainsail hoist measurement (from tack to head)
54’ 10”16.71 m
E
 iMainsail foot measurement (from tack to clew)
19’ 10”6.05 m
Rigging type
Sloop Marconi 9/10
Mast configuration
Deck stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back
Spars construction
Aluminum spars

Vision 46's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
212 ft²/T19.71 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
410 ft²/T38.1 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
165
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
28 %
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
8.69 knots

Vision 46's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
55 HP
Fuel type
Diesel
Fuel tank capacity
55.5 gal210 liters

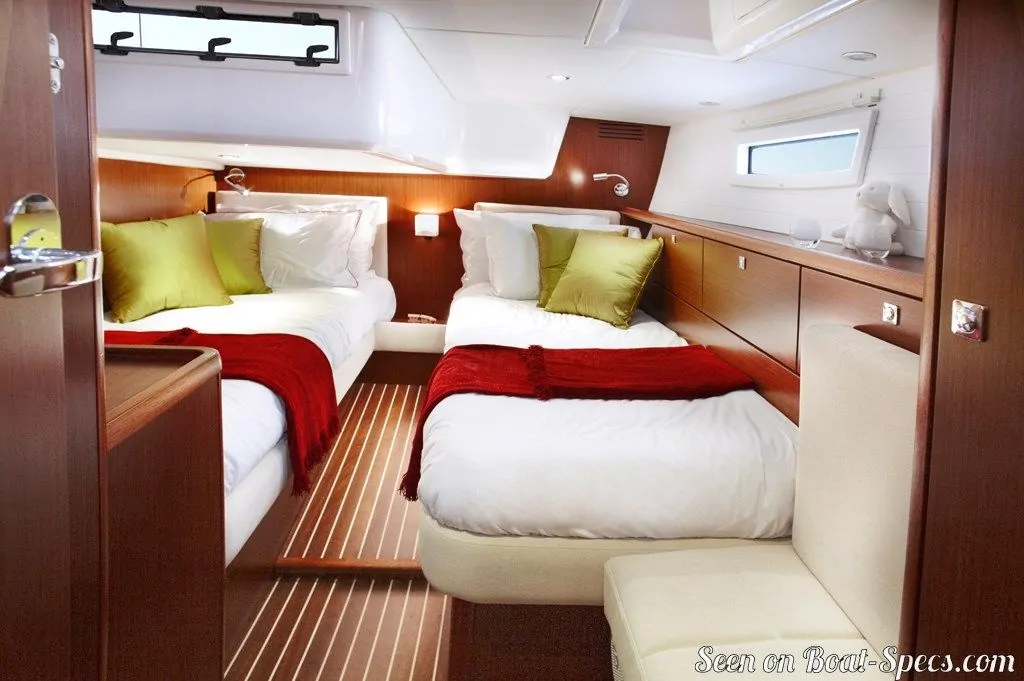

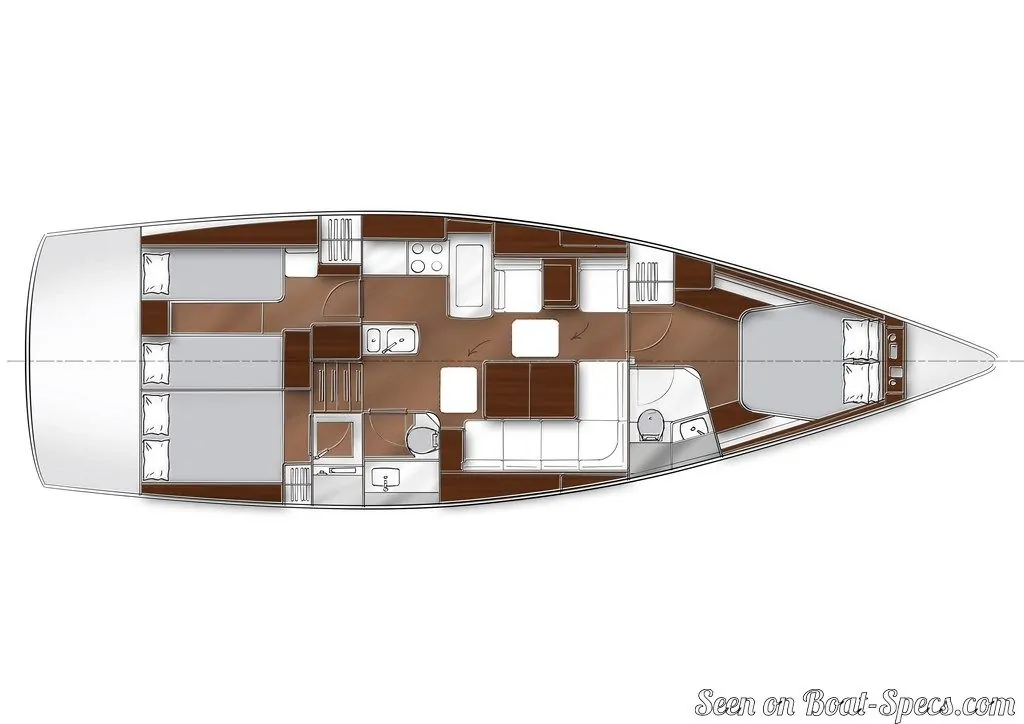

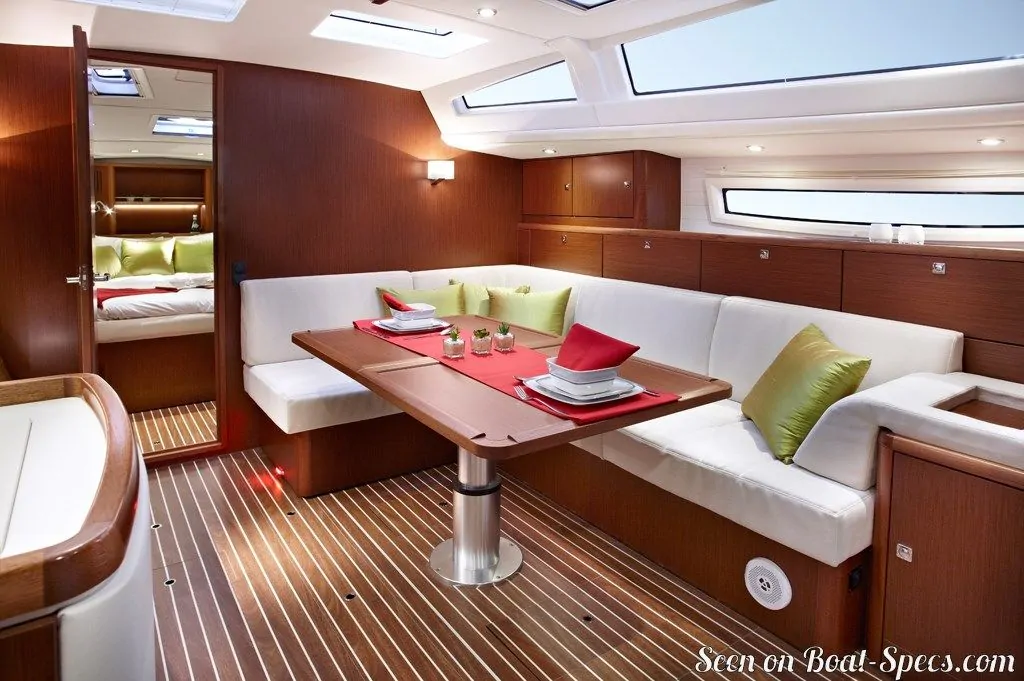

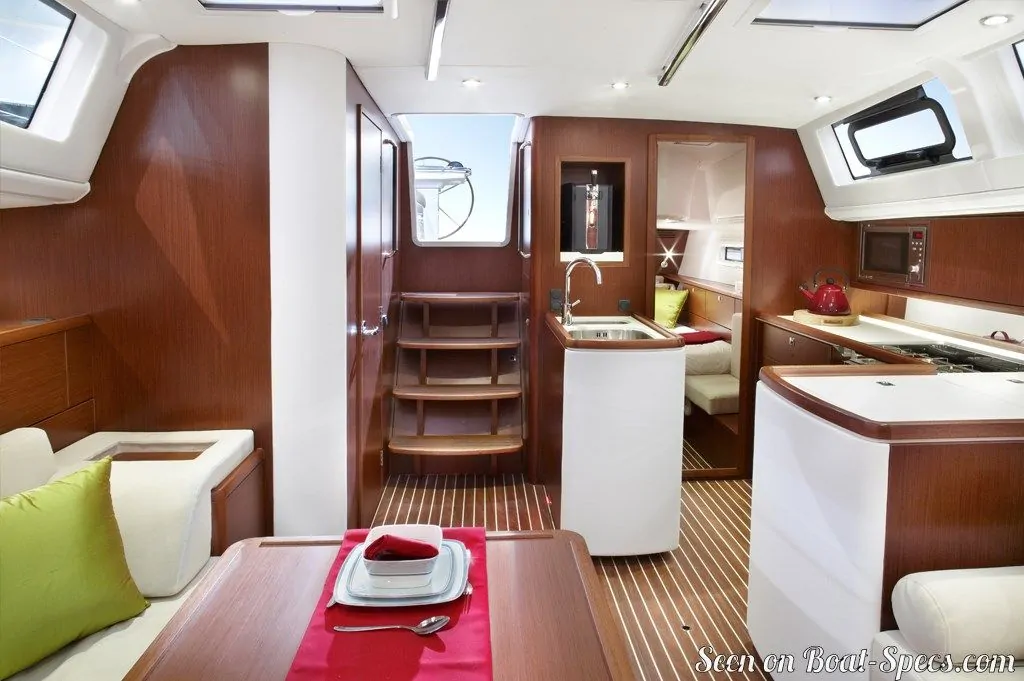

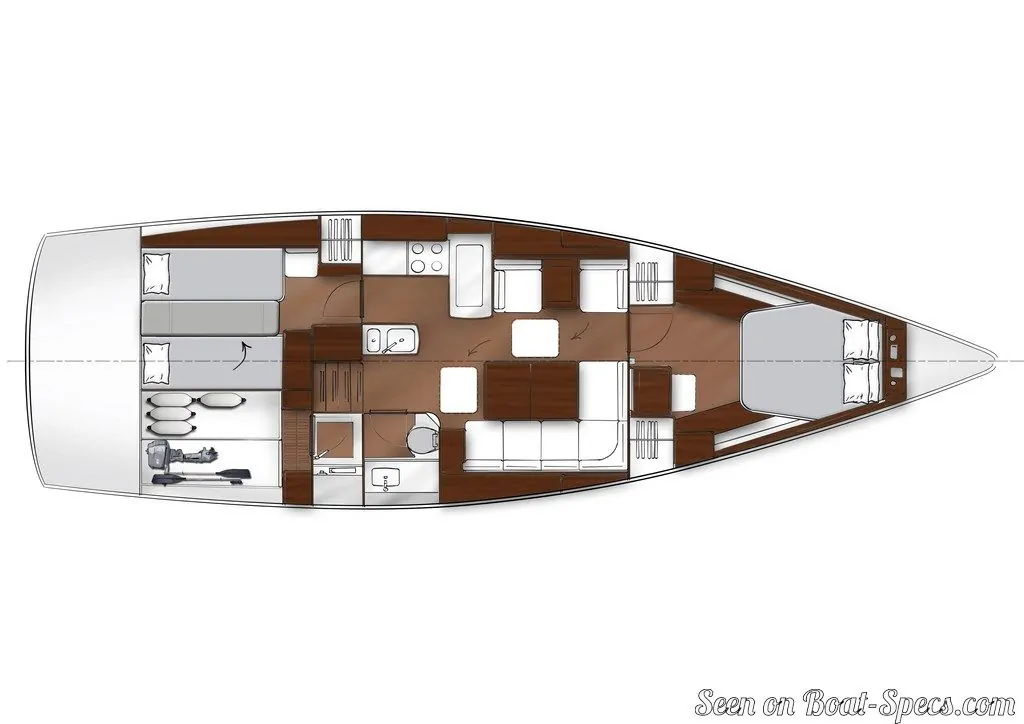

Vision 46's accommodations and layout

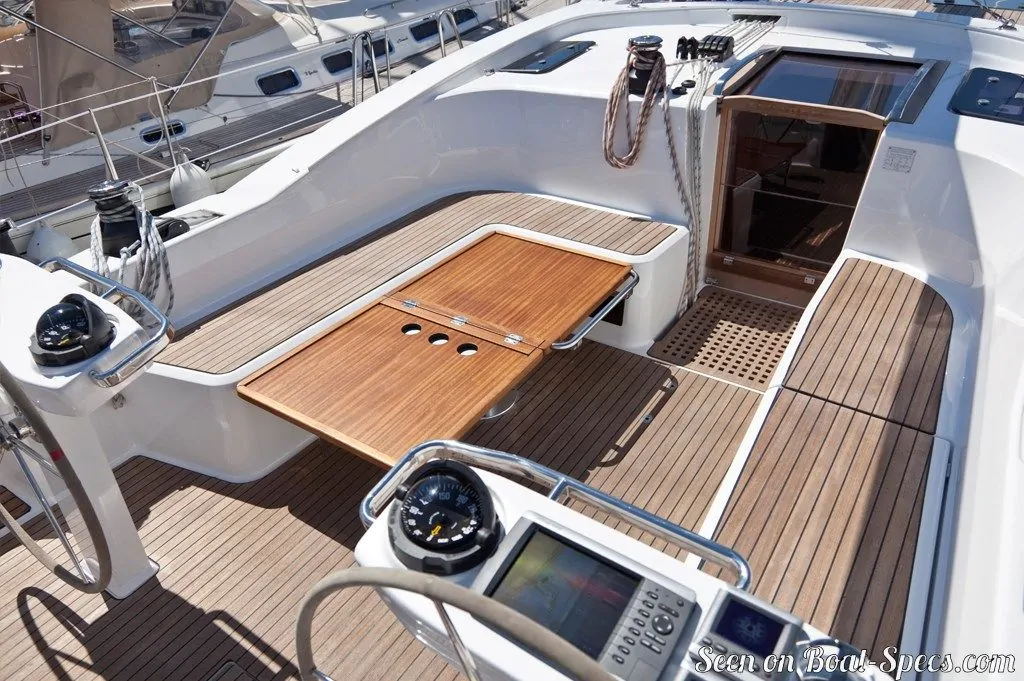

Cockpit
Closing aft cockpit with opening system

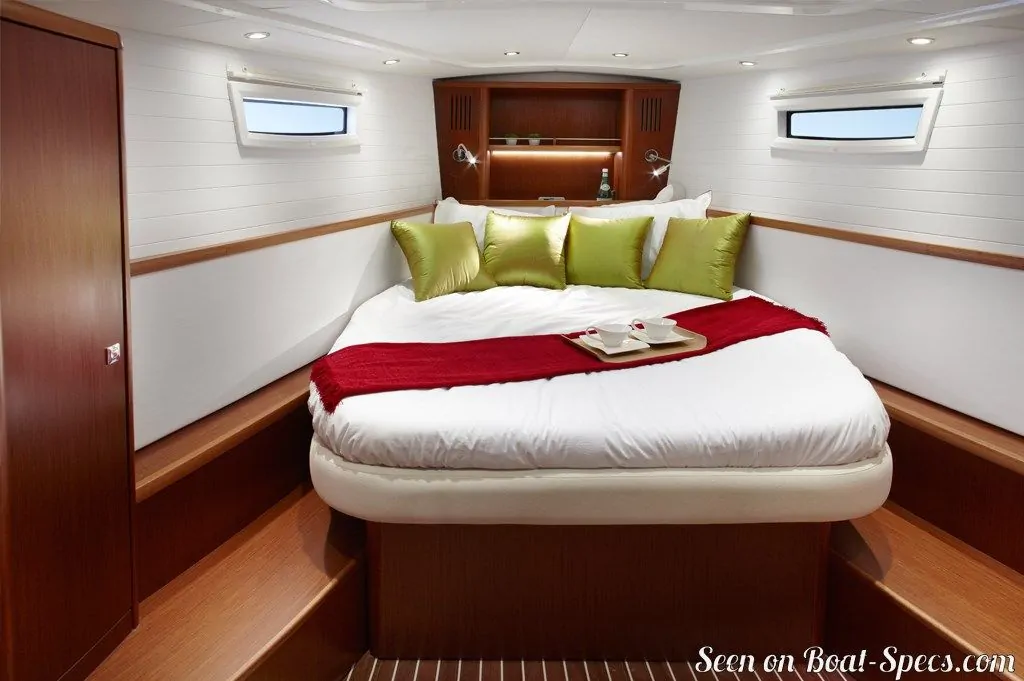

Cabin(s) (min./max.)
2 / 3
Berth(s) (min./max.)
4 / 8

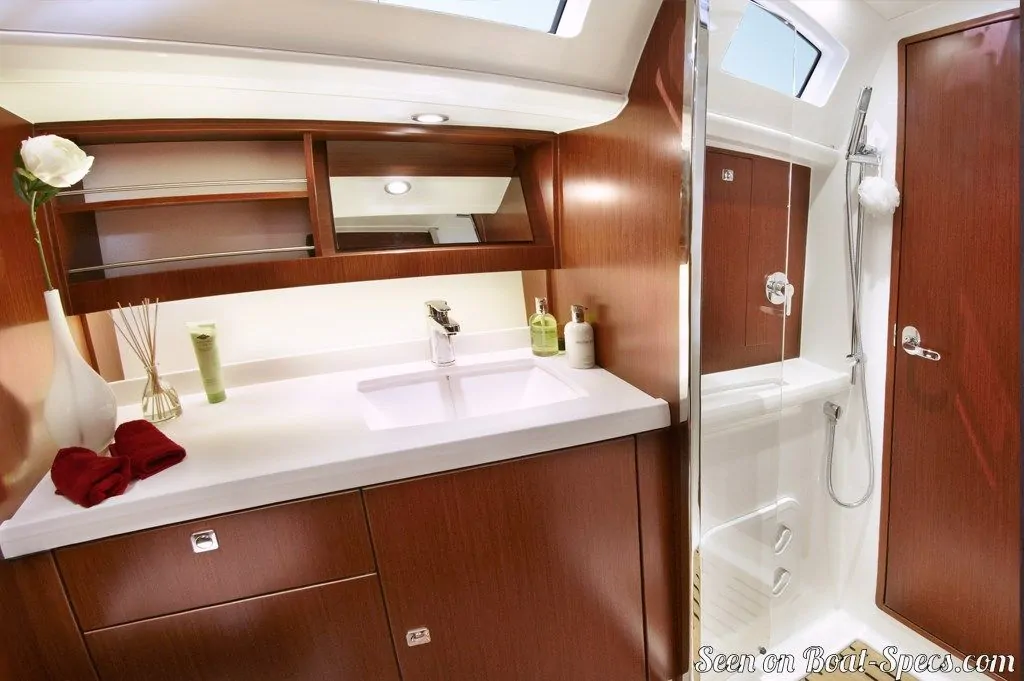

Head(s) (min./max.)
1 / 2
Freshwater tank capacity
153.2 gal580 liters
Maximum headroom
6’ 7”2 m
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
