A35

Sailboat specifications

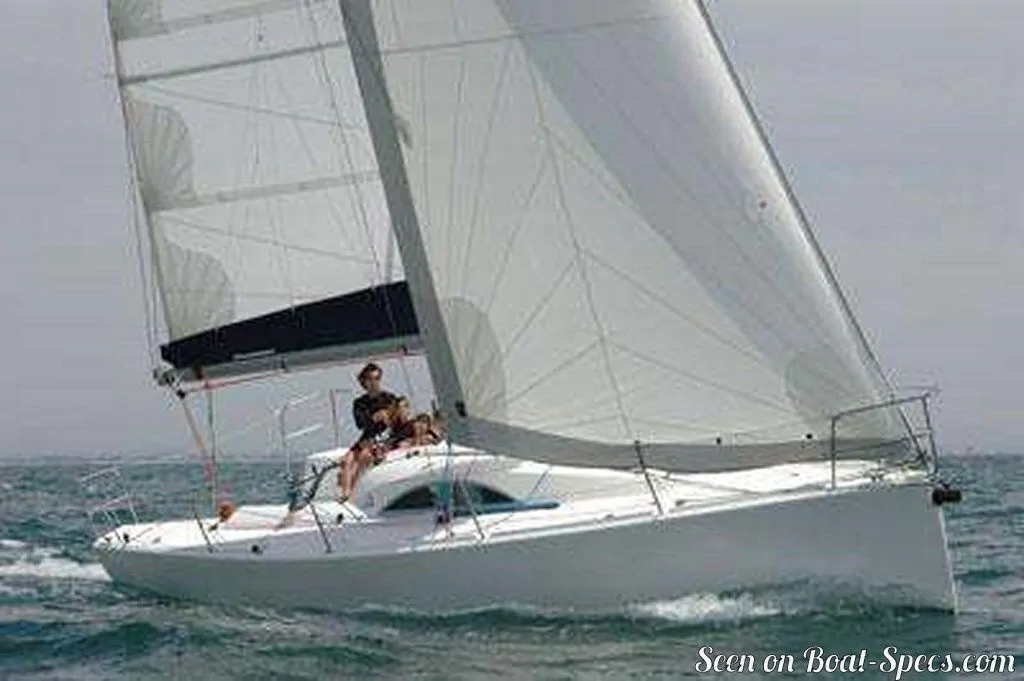

The A35 is a 34’8” (10.59m) racer-cruiser sailboat designed by Joubert Nivelt Design (France). She was built between 2006 and 2013 by Archambault (France).

A35's main features

Model
A35
Hull type
Monohull
Category
Racer-cruiser sailboat
Sailboat builder
Sailboat designer
Country
France
Construction
GRP (glass reinforced polyester):
Sandwich fiberglass polyester
First built hull
2006
Last built hull
2013
Appendages
Keel : fin without bulb
Helm
Single tiller (helm wheel in option)
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
A
Standard public price ex. VAT (indicative only)
N/A

A35's main dimensions

Hull length
34’ 8”10.59 m
Waterline length
30’ 2”9.22 m
Beam (width)
11’ 7”3.55 m
Draft
6’ 11”2.1 m
Mast height from DWL
64’19.5 m
Light displacement (MLC)
10141 lb4600 kg
Ballast weight
4189 lb1900 kg
Ballast type
Lead

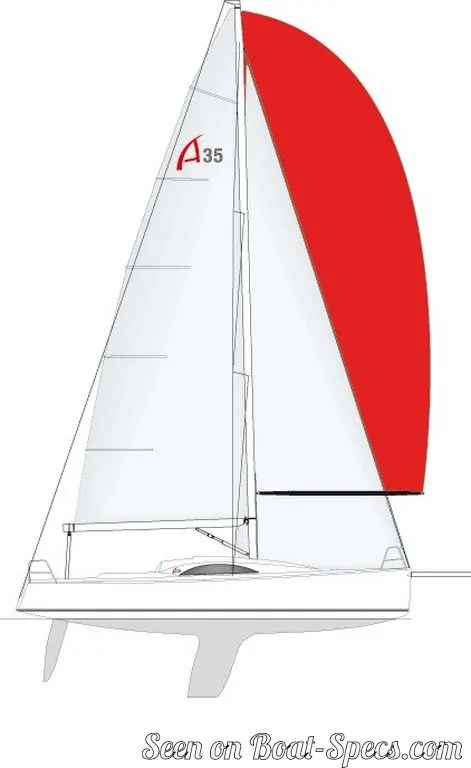

A35's rig and sails

Upwind sail area
727 ft²67.5 m²
Downwind sail area
1432 ft²133 m²
Mainsail area
409 ft²38 m²
Genoa area
318 ft²29.5 m²
Symmetric spinnaker area
883 ft²82 m²
Asymmetric spinnaker area
1023 ft²95 m²
I
 iFore triangle height (from mast foot to fore stay top attachment)
44’ 6”13.55 m
J
 iFore triangle base (from mast foot to bottom of forestay)
13’ 6”4.1 m
P
 iMainsail hoist measurement (from tack to head)
45’13.73 m
E
 iMainsail foot measurement (from tack to clew)
15’ 8”4.79 m
Rigging type
Sloop Marconi 9/10
Mast configuration
Keel stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back
Spars construction
Aluminum spars (carbon fiber spars as an option)
Standing rigging
1x19 strand wire

A35's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
263 ft²/T24.4 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
518 ft²/T48.09 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
166
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
41 %
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
7.37 knots

A35's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power (min./max.)
18 HP / 21 HP
Fuel type
Diesel
Fuel tank capacity
13.2 gal50 liters

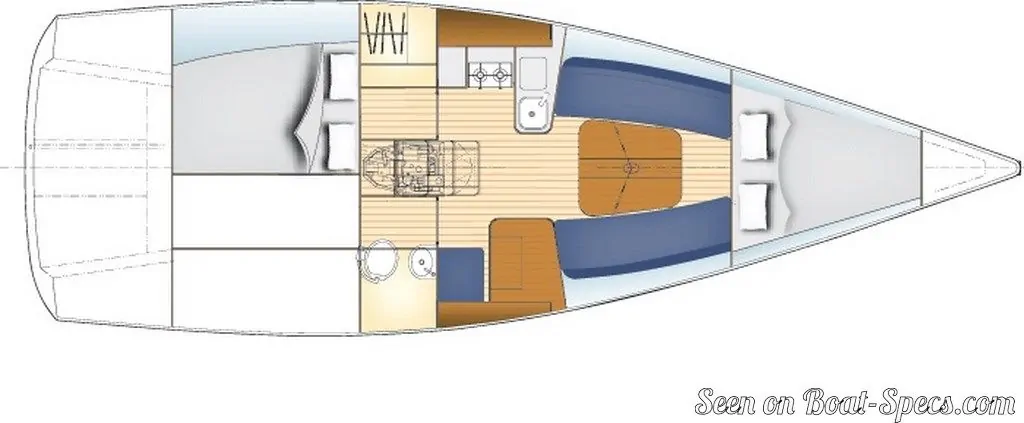

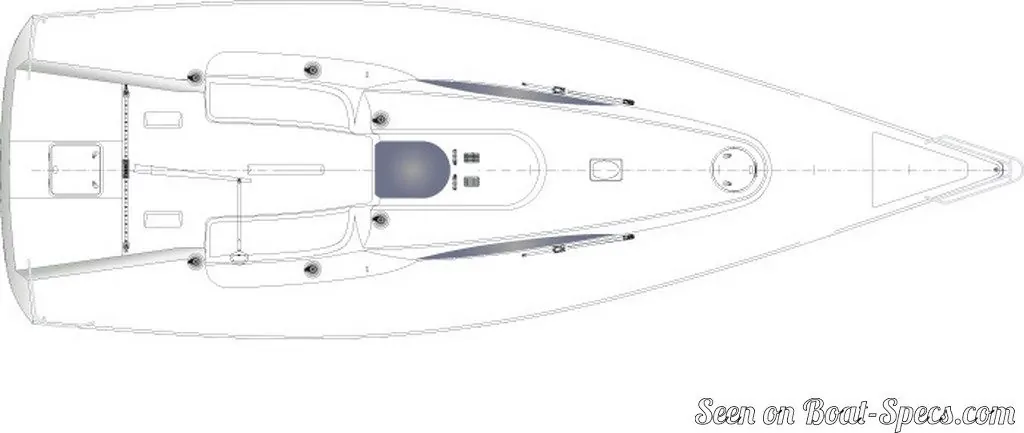

A35's accommodations and layout

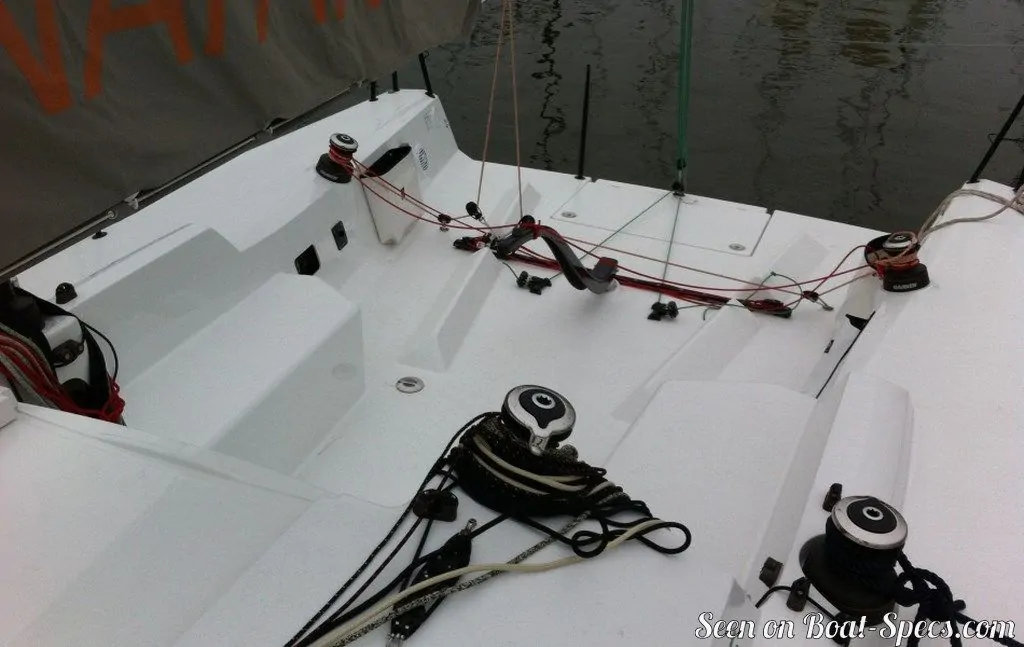

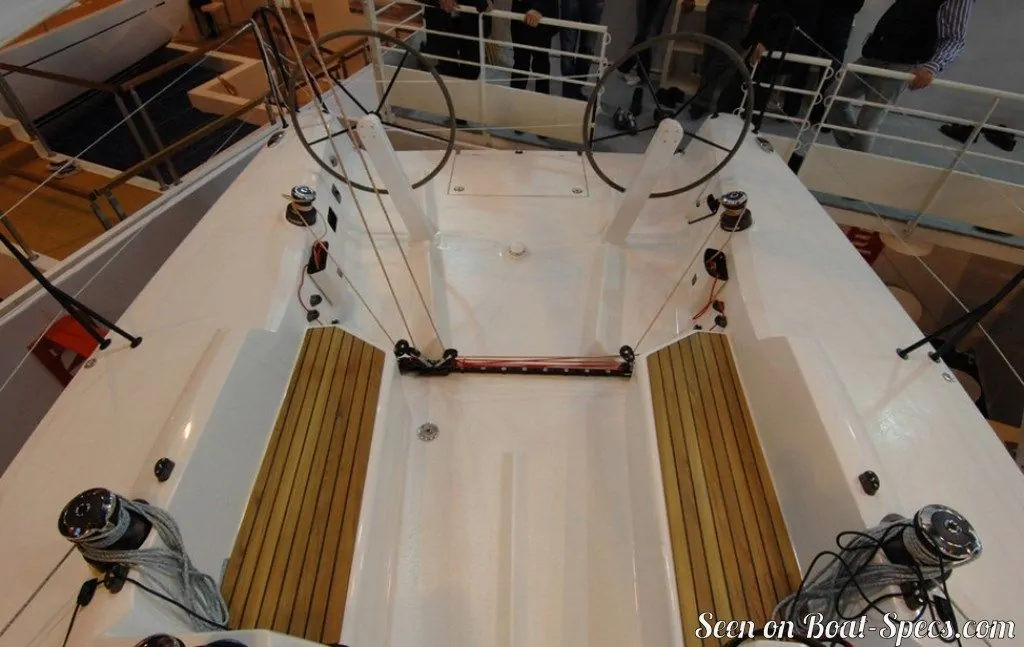

Cockpit
Open aft cockpit
Cabin(s) (min./max.)
2 / 3
Berth(s) (min./max.)
4 / 7
Head(s)
1
Freshwater tank capacity
26.4 gal100 liters
Maximum headroom
6’ 1”1.87 m

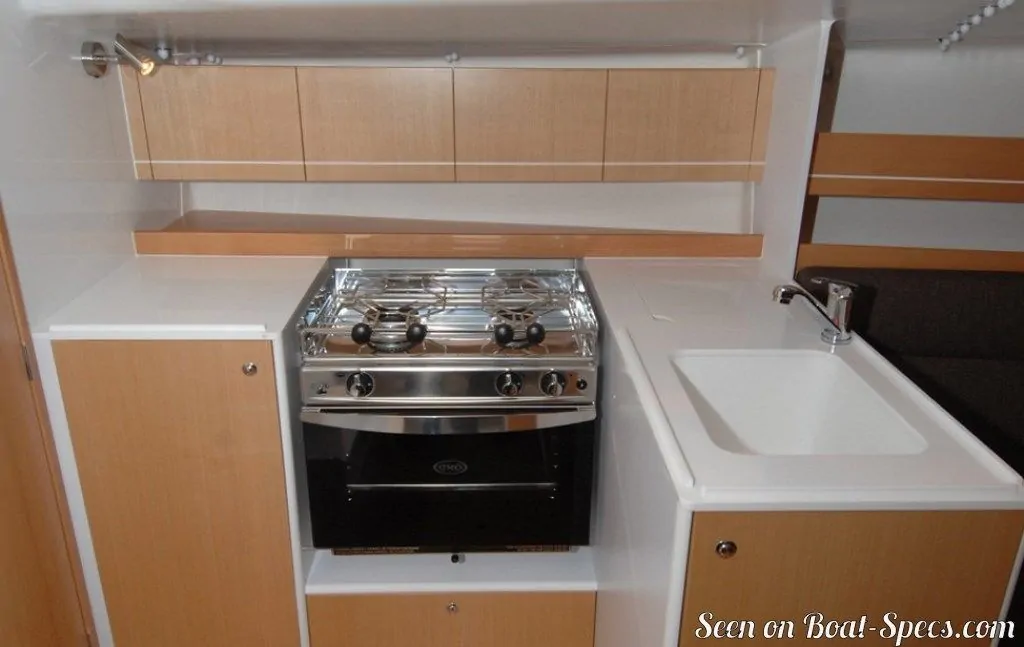

Galley headroom
6’1.84 m
Head headroom
6’ 1”1.85 m

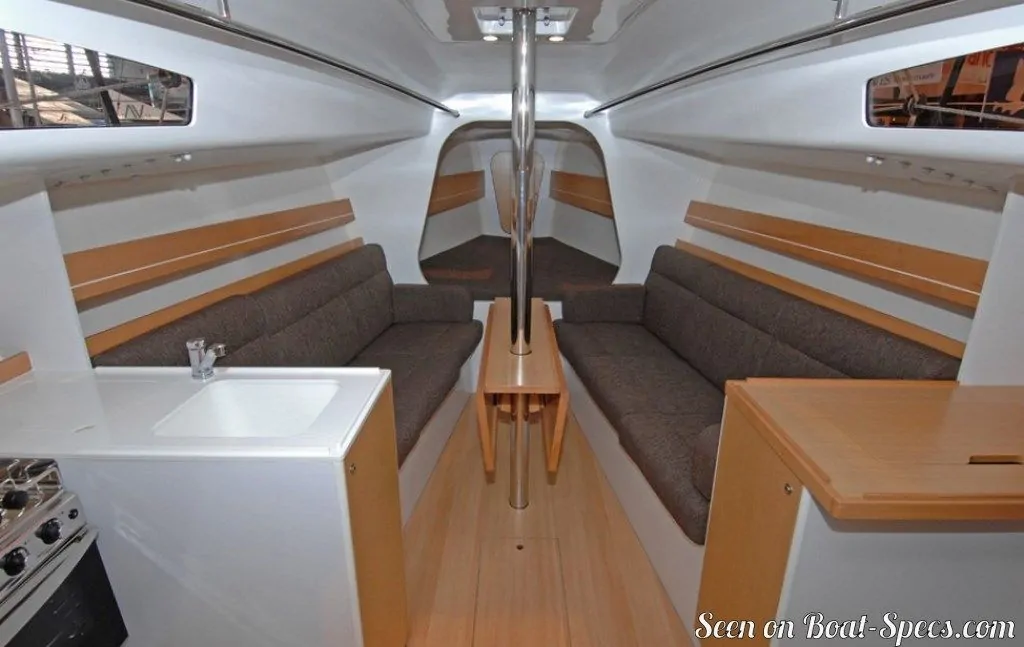

A35's saloon

Maximum headroom
6’ 1”1.87 m
Saloon table length
3’ 4”1 m
Saloon table width (min./max.)
1’0.3 m / 3’0.9 m
Berth length
6’ 4”1.93 m

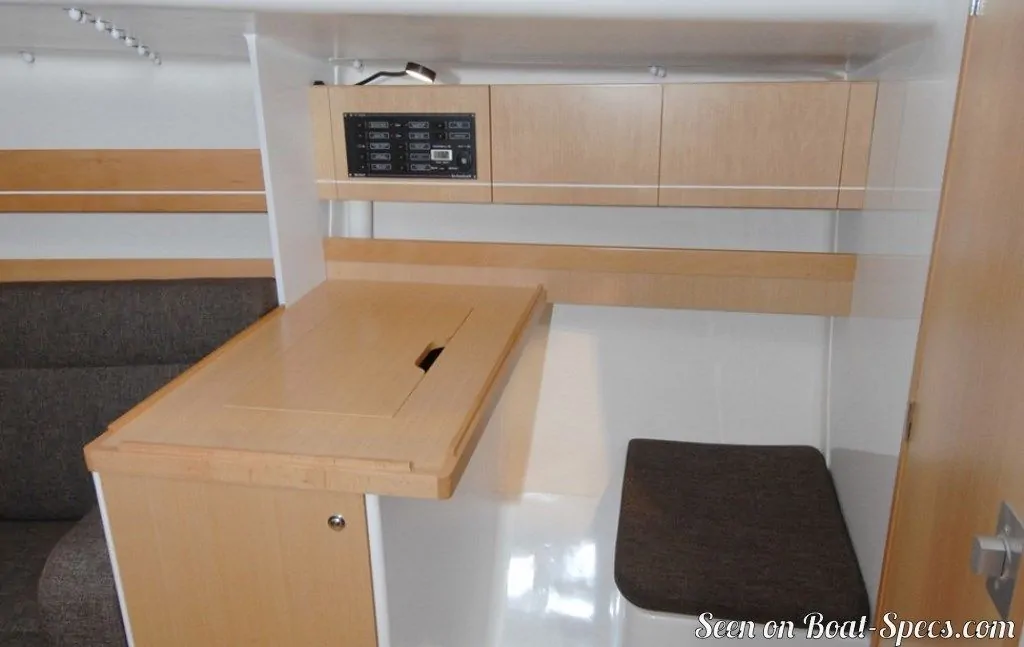

Chart table
2’ 7”0.78 m x 2’ 1”0.63 m
Berth width (head/elbows/knees/feet)
1’ 11”0.58 m / 1’ 11”0.58 m / 1’ 11”0.58 m / 1’ 11”0.58 m

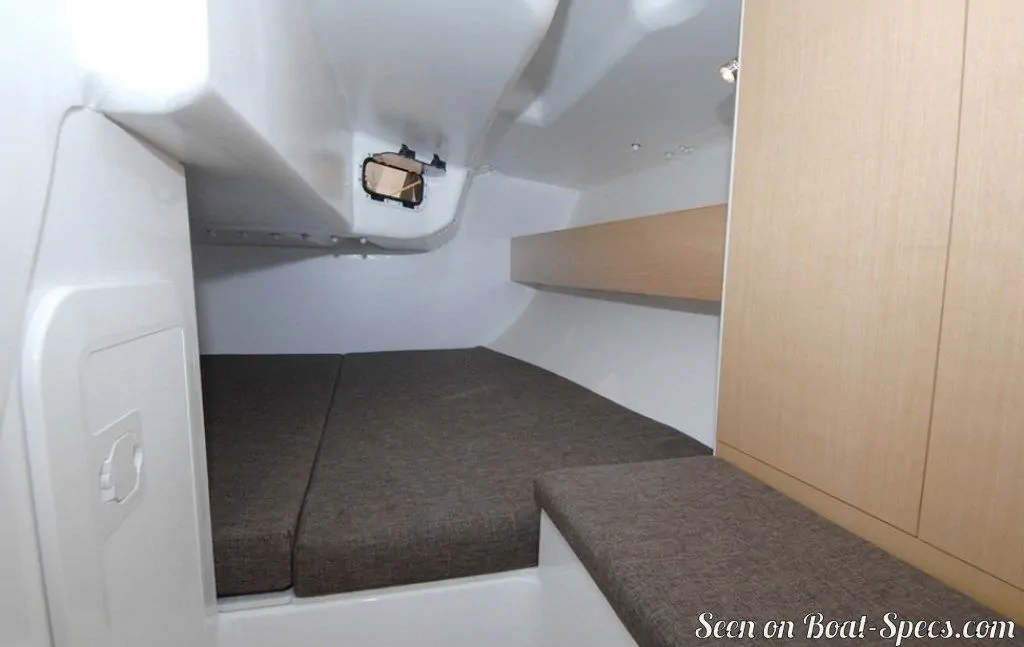

A35's fore cabin

Berth length
6’ 6”1.97 m
Berth width (head/elbows/knees/feet)
5’ 7”1.7 m / 4’ 7”1.41 m / 3’ 5”1.04 m / 2’0.62 m

A35's aft cabin

Maximum headroom
6’ 1”1.85 m
Berth length
6’ 7”2 m
Berth width (head/elbows/knees/feet)
4’ 8”1.42 m / 4’ 6”1.38 m / 4’ 1”1.24 m / 3’ 11”1.19 m
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
