Pogo Foiler
Sailboat specifications
The Pogo Foiler is a 21’4” (6.5m) single handed racing sailboat designed by Guillaume Verdier Architecture Navale (France). She is built since 2019 by Pogo Structures (France).
Pogo Foiler's main features
- Model
- Pogo Foiler
- Hull type
- Monohull
- Category
- Single handed offshore racing sailboat
- Sailboat builder
- Sailboat designer
- Sailboat collection
- Country
- France
- Construction
- Carbon fiber reinforced epoxy:
Sandwich foam carbon fiber vinylester (vacuum infusion) - First built hull
- 2019
- Last built hull
- Still in production
- Appendages
- Canting keel and foils : canting T-shaped keel (with bulb) and 2 T-foils
- Helm
- Single tiller
- Rudder
- Twin spade rudders
- Unsinkable
- Yes
- Trailerable
- No
- Standard public price ex. VAT (indicative only)
- About199 000 €(2020)
Pogo Foiler's main dimensions
- Hull length
- 21’ 4”6.5 m
- Beam (width)
- 9’ 10”3 m
- Draft
- 6’ 7”2 m
- Mast height from DWL
- 39’ 5”12 m
- Light displacement (MLC)
- 1830 lb830 kg
- Ballast type
- Carbon fiber fin with lead bulb
Pogo Foiler's rig and sails
- Upwind sail area
- 527 ft²49 m²
- Downwind sail area
- 1119 ft²104 m²
- Mainsail area
- 301 ft²28 m²
- Genoa area
- 226 ft²21 m²
- Asymmetric spinnaker area
- 818 ft²76 m²
- Gennaker area
- 441 ft²41 m²
- Rigging type
- Sloop Marconi 9/10
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 1
- Spreaders angle
- Swept-back
- Running backstays
- 2 set(s)
- Spars construction
- Carbon fiber spars
- Standing rigging
- PBO, forestay in Dyform discontinuous
Pogo Foiler's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 597 ft²/T55.48 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 1268 ft²/T117.76 m²/T
Pogo Foiler's auxiliary engine
- Engine(s)
- No engine
Pogo Foiler's accommodations and layout
- Cockpit
- Open aft cockpit
- Berth(s)
- 2

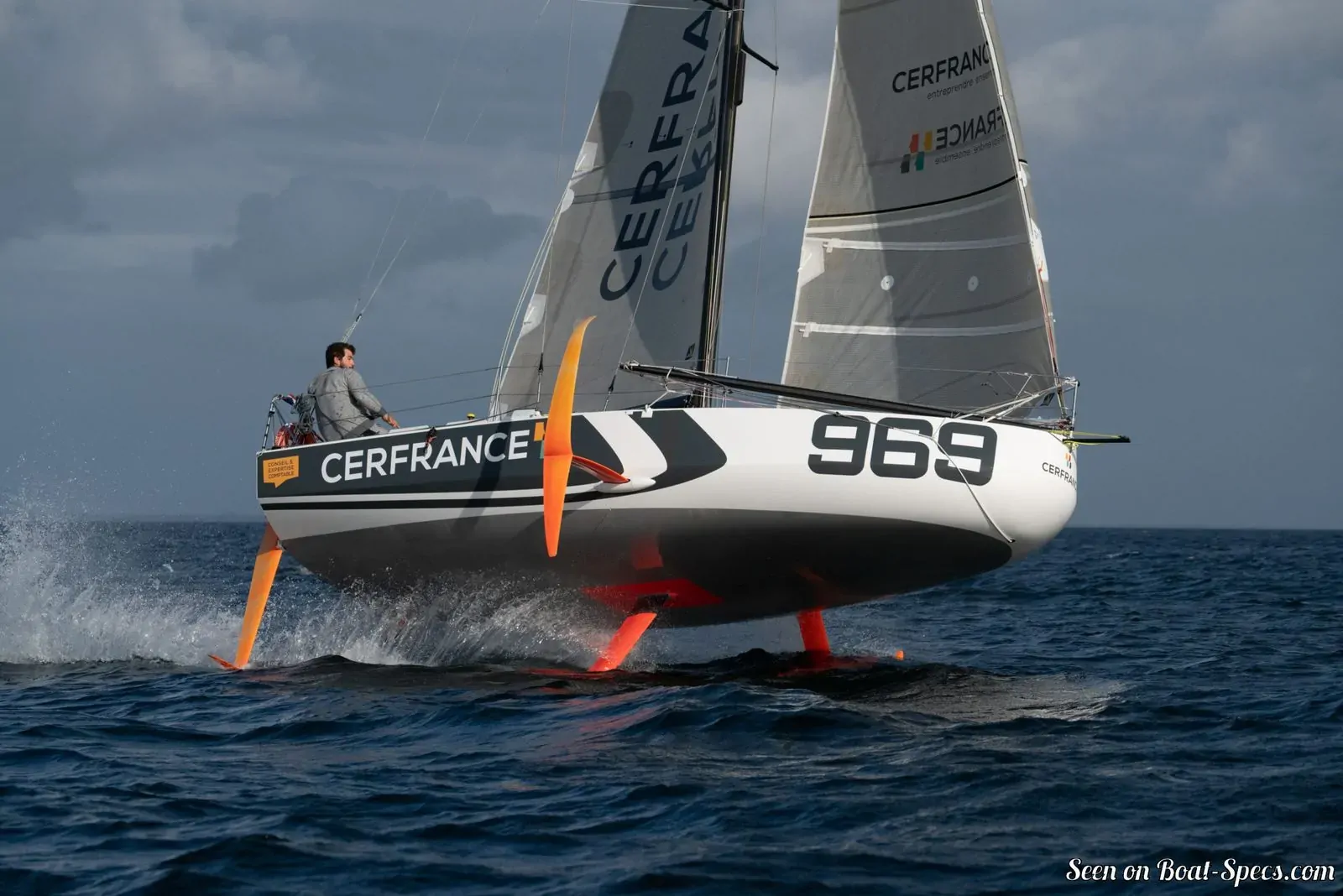

Pogo Structures Pogo Foiler - - 1/10
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

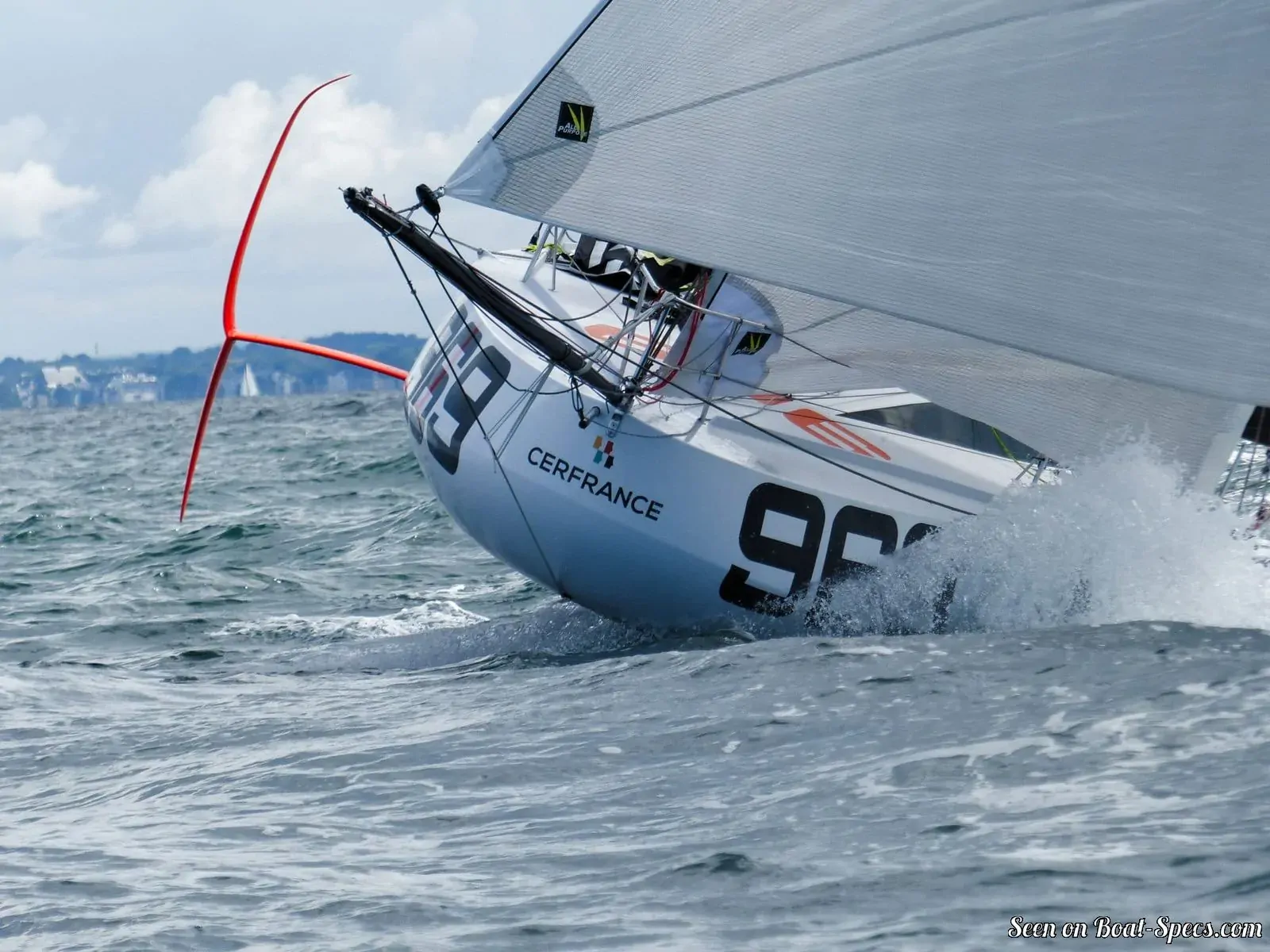

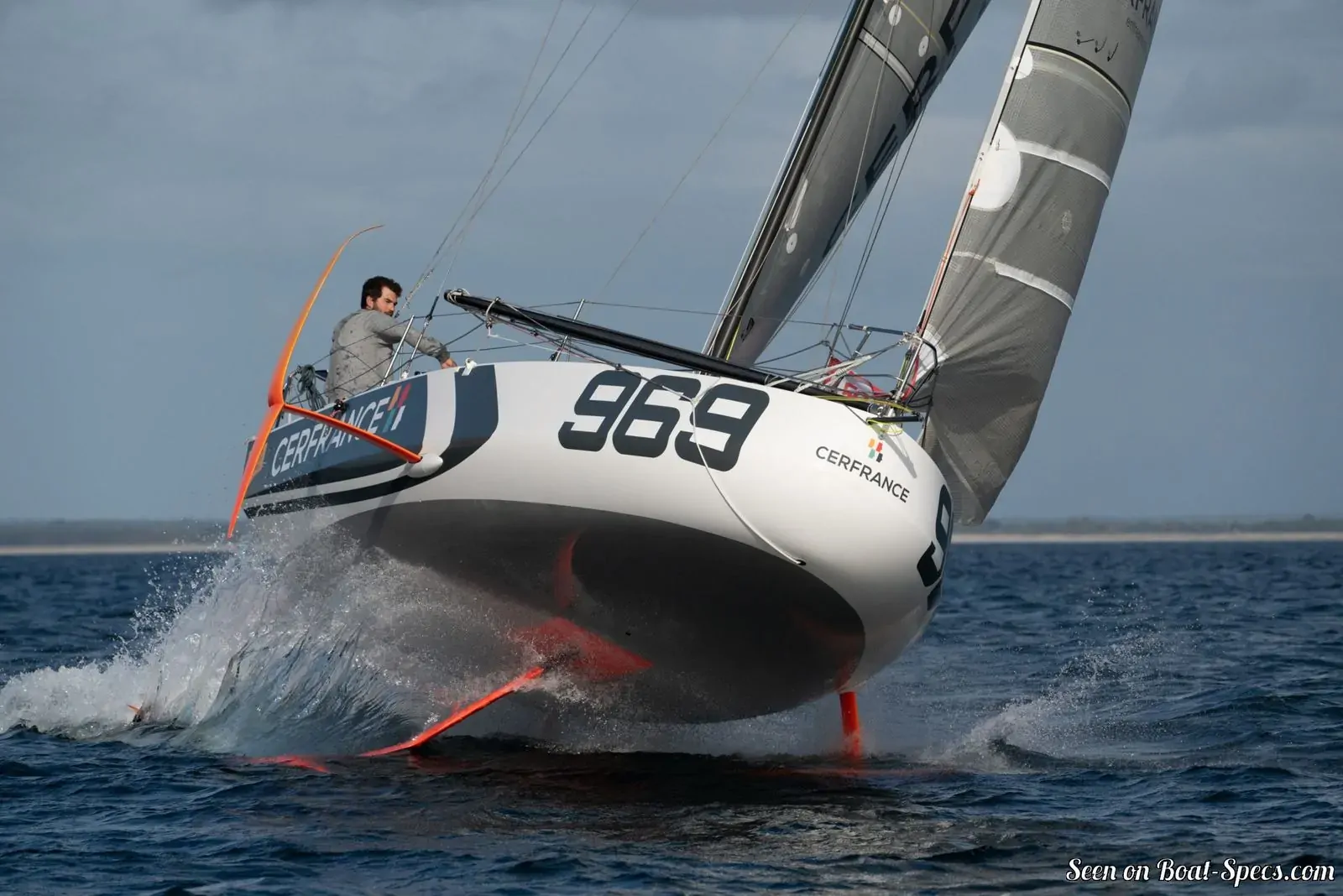

Pogo Structures Pogo Foiler sailing - - 2/10
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

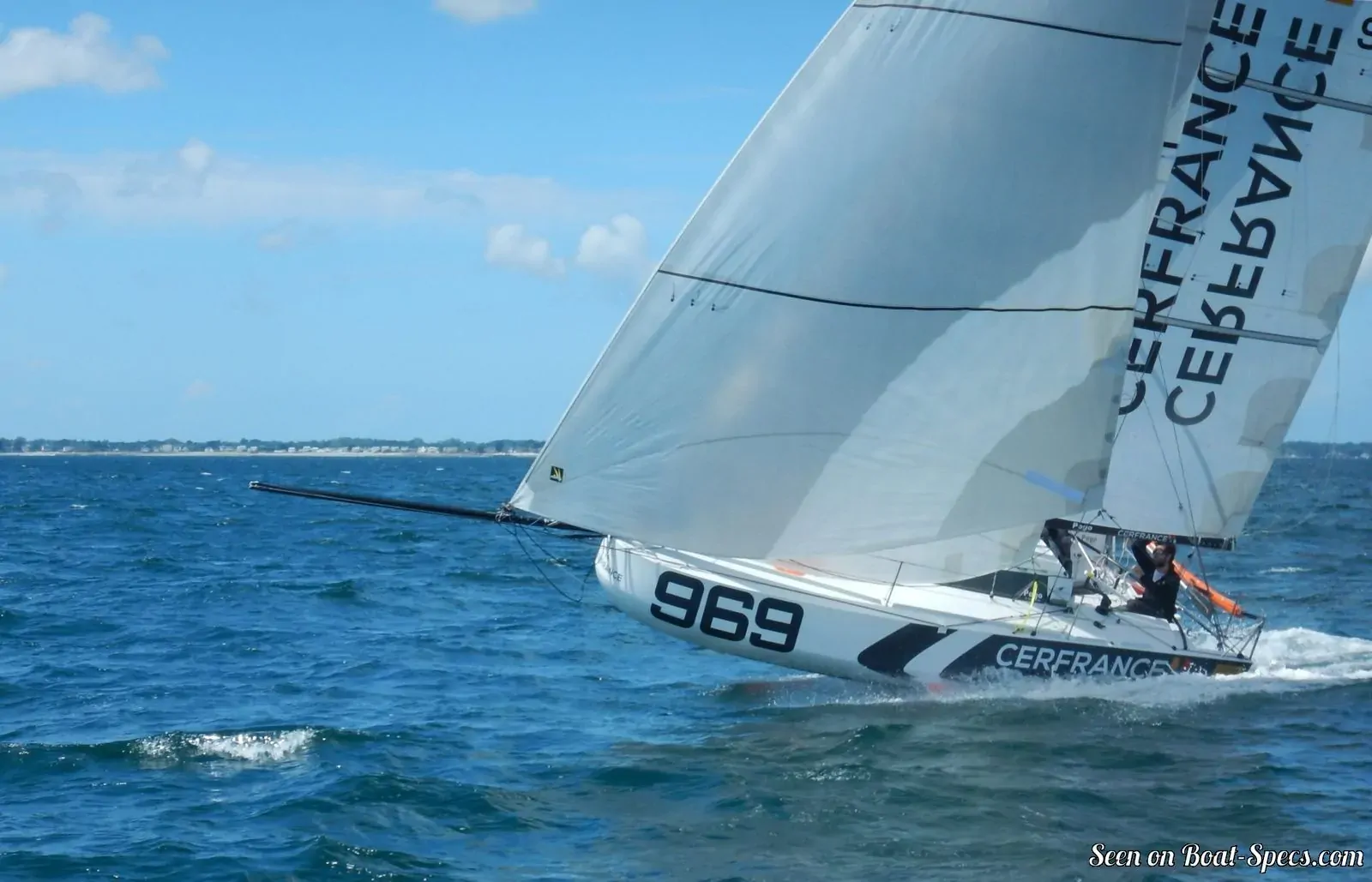

Pogo Structures Pogo Foiler sailing - - 3/10
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

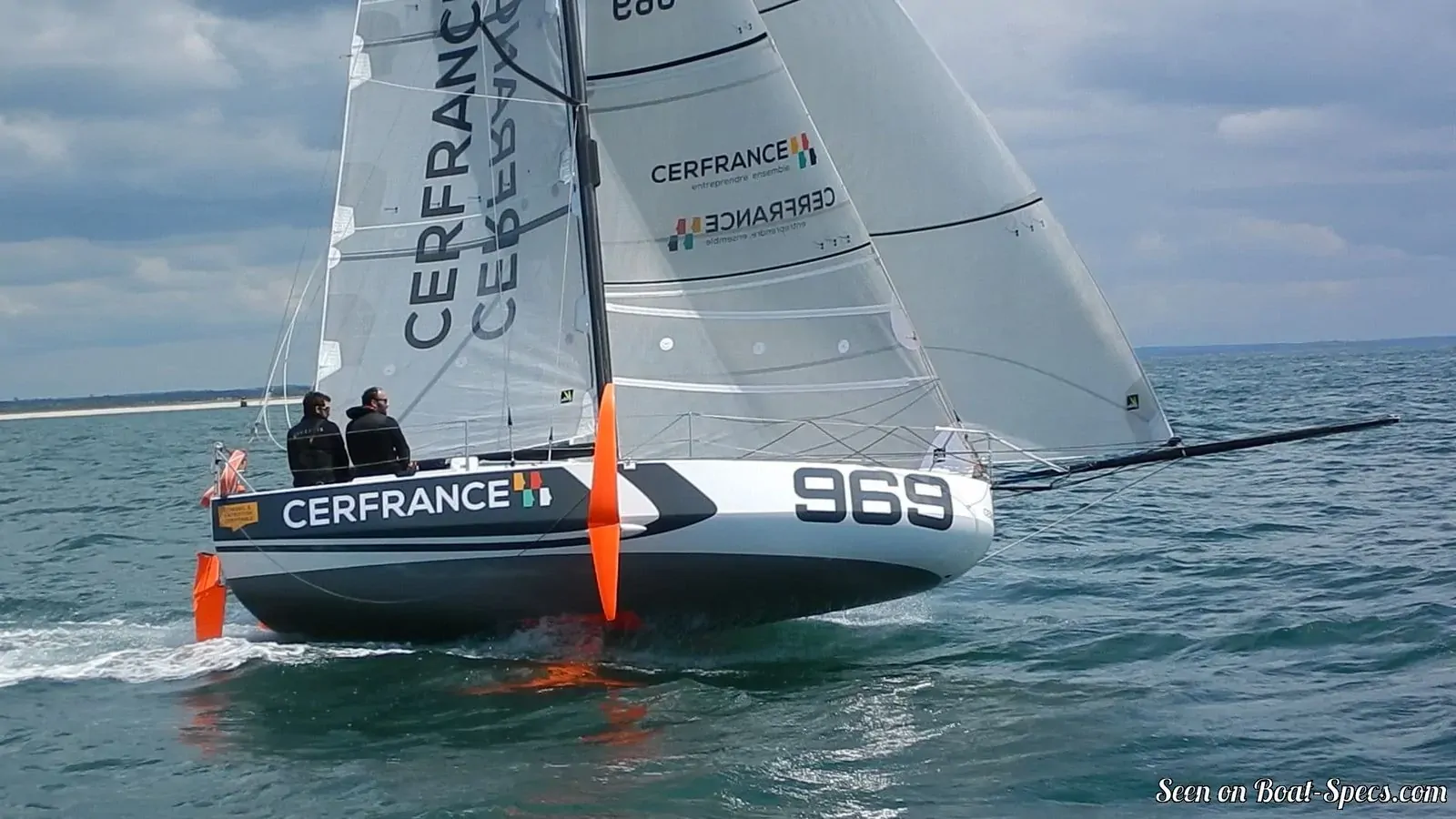

Pogo Structures Pogo Foiler sailing - - 4/10
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

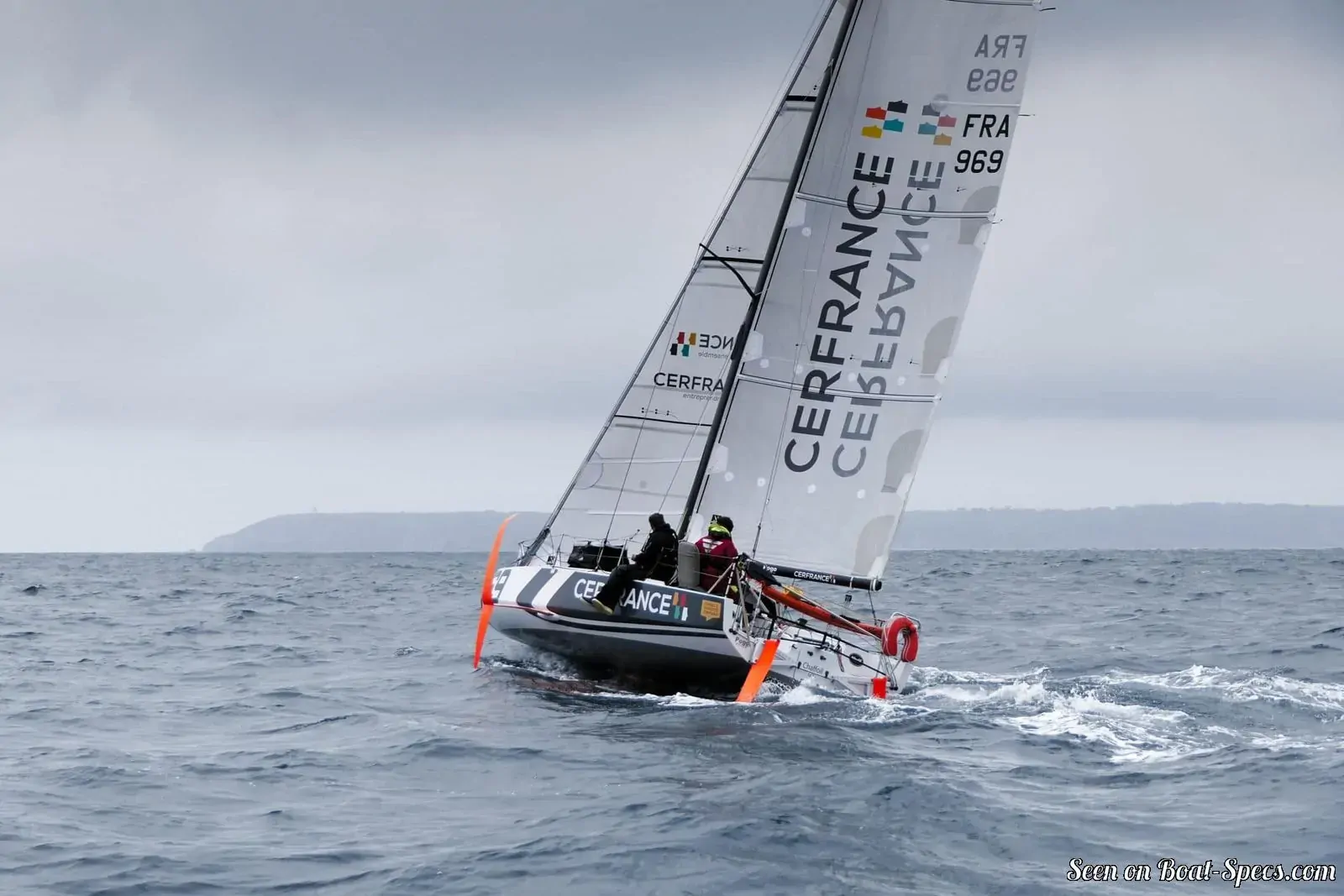

Pogo Structures Pogo Foiler sailing - - 5/10
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

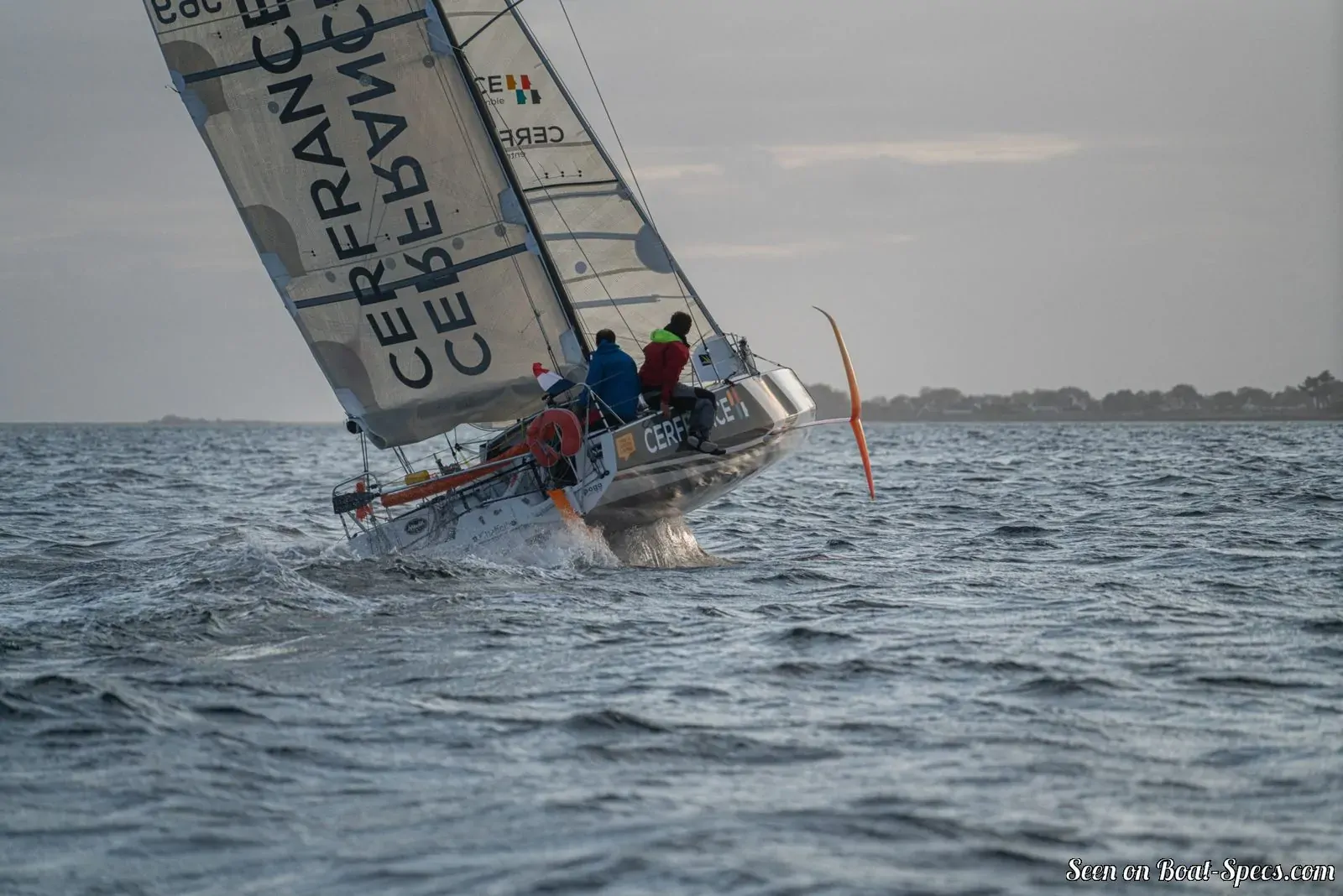

Pogo Structures Pogo Foiler sailing - - 6/10
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures
Pogo Structures Pogo Foiler sailing - - 7/10
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

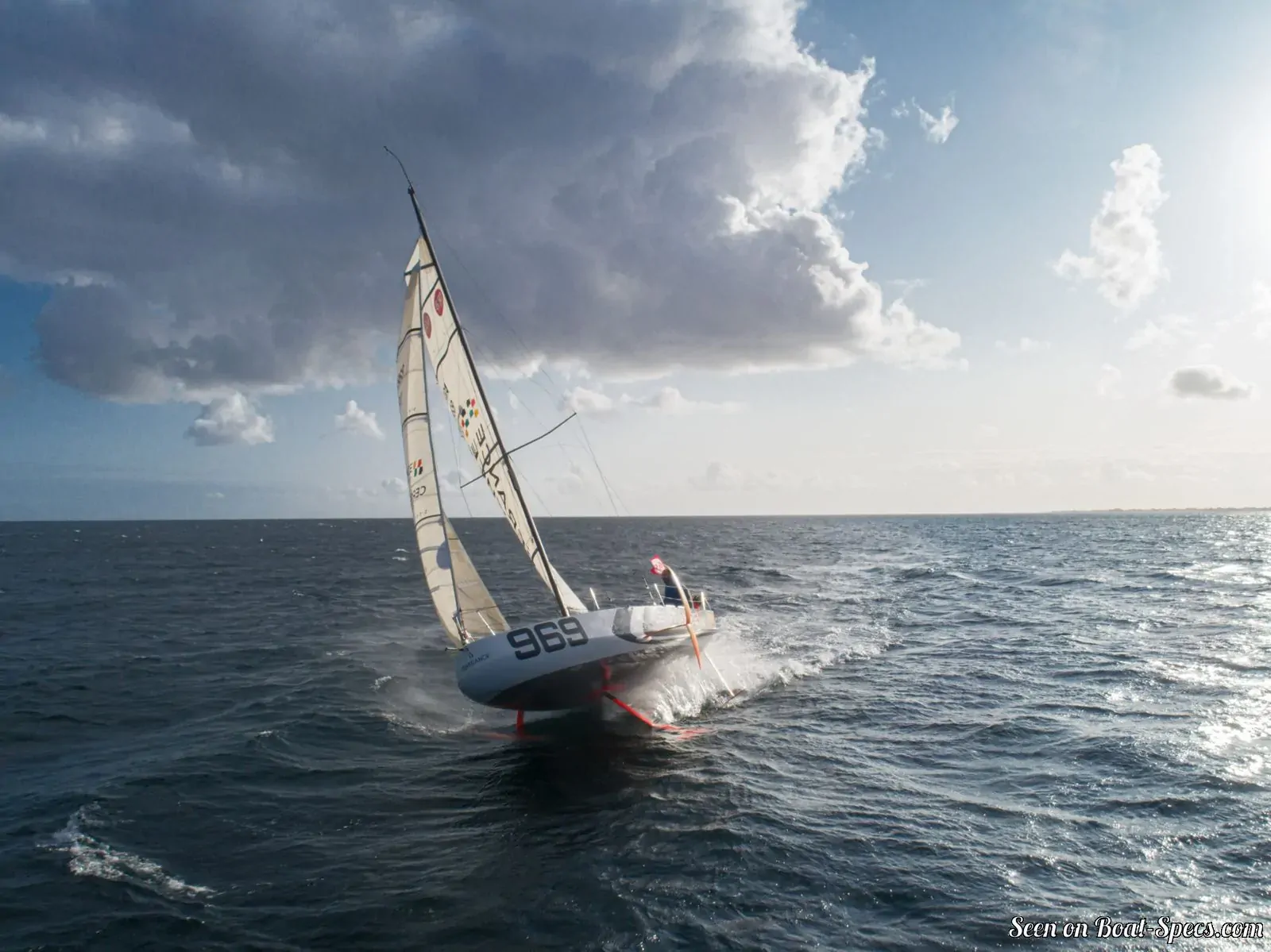

Pogo Structures Pogo Foiler sailing - - 8/10
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures
Pogo Structures Pogo Foiler sailing - - 9/10
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures

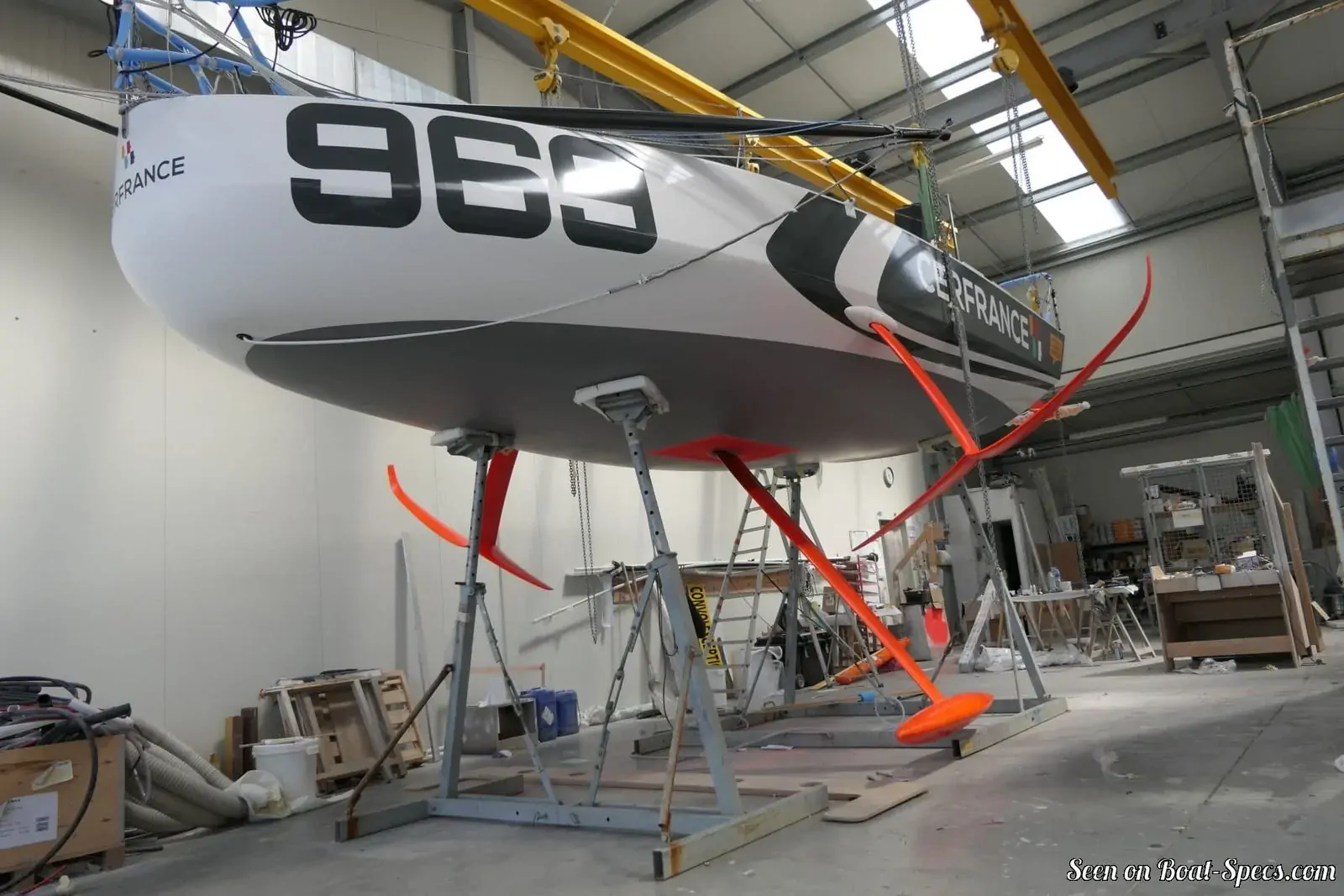

Pogo Structures Pogo Foiler detail - - 10/10
Picture extracted from the commercial documentation © Pogo Structures
Picture extracted from the commercial documentation © Pogo Structures
