Sailboat specifications

The Lite XP is a 19’8” (5.99m) dinghy designed by Sam Manuard Yacht Design (France). She is built since 2018 by LiteBoat (France). She has been awarded "2019 - European Yacht of the Year: Special Yacht".

Lite XP's main features

Model
Lite XP
Hull type
Monohull
Category
Offshore dinghy
Sailboat builder
Sailboat designer
Country
France
Construction
Fiberglass reinforced epoxy:
- Hull: Sandwich Airex fiberglass epoxy (vacuum infusion)
- Deck: Sandwich Airex fiberglass epoxy (vacuum infusion)
First built hull
2018
Last built hull
Still in production
Award(s)

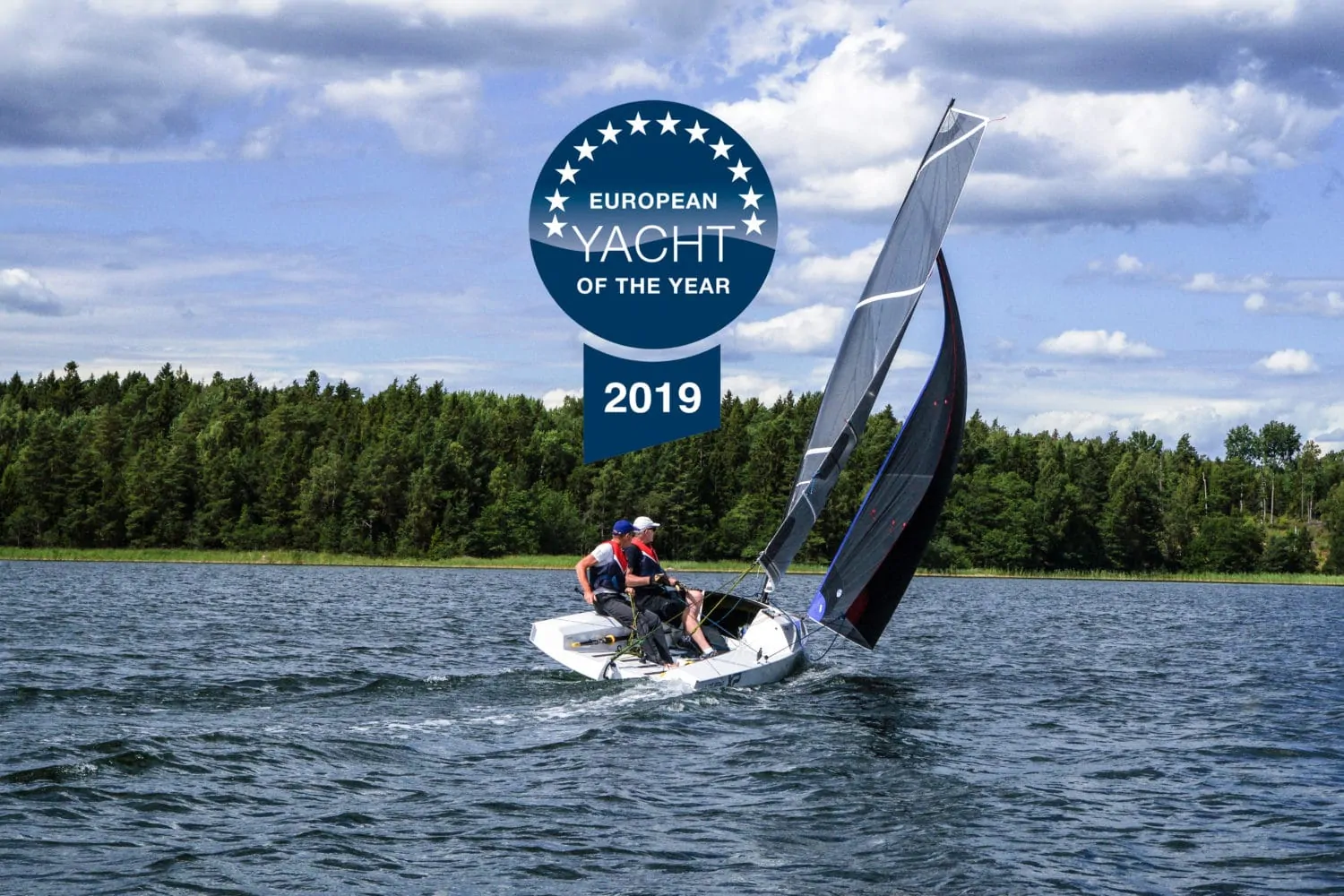

  • 2019: European Yacht of the Year: Special Yacht
    Appendages
    Centerboard : pivoting centerboard
    Helm
    Single tiller
    Rudder
    Single transom hung rudder
    Unsinkable
    Yes
    Trailerable
    Yes
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    C
    Standard public price ex. VAT (indicative only)
    About
    20 800
     (2020)

    Lite XP's main dimensions

    Hull length
    19’ 8”5.99 m
    Beam (width)
    5’ 10”1.78 m
    Draft
    3’ 6”1.07 m
    Draft when appendages up
    0’ 6”0.14 m
    Mast height from DWL
    24’ 7”7.5 m
    Light displacement (MLC)
    320 lb145 kg
    Maximum displacement (MLDC)
    904 lb410 kg

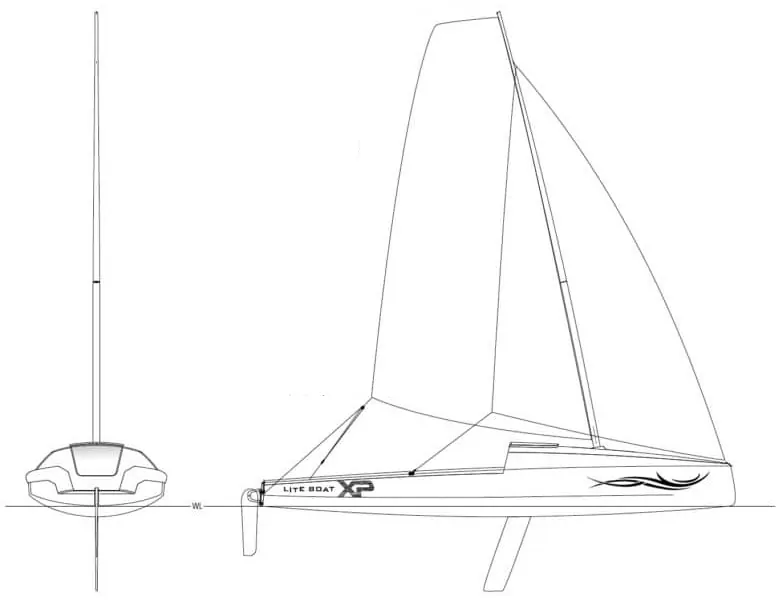

    Lite XP's rig and sails

    Upwind sail area
    108 ft²10 m²
    Downwind sail area
    226 ft²21 m²
    Mainsail area
    108 ft²10 m²
    Gennaker area
    118 ft²11 m²
    Rigging type
    Cat boat Marconi (square top mainsail)
    Mast configuration
    Deck stepped mast
    Rotating spars
    No
    Spreaders angle
    No spreader
    Spars construction
    Carbon fiber spars
    Standing rigging
    Free standing mast: no standing rigging

    Lite XP's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    390 ft²/T36.23 m²/T
    Downwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
    819 ft²/T76.09 m²/T

    Lite XP's auxiliary engine

    Engine(s)
    1 rowing place

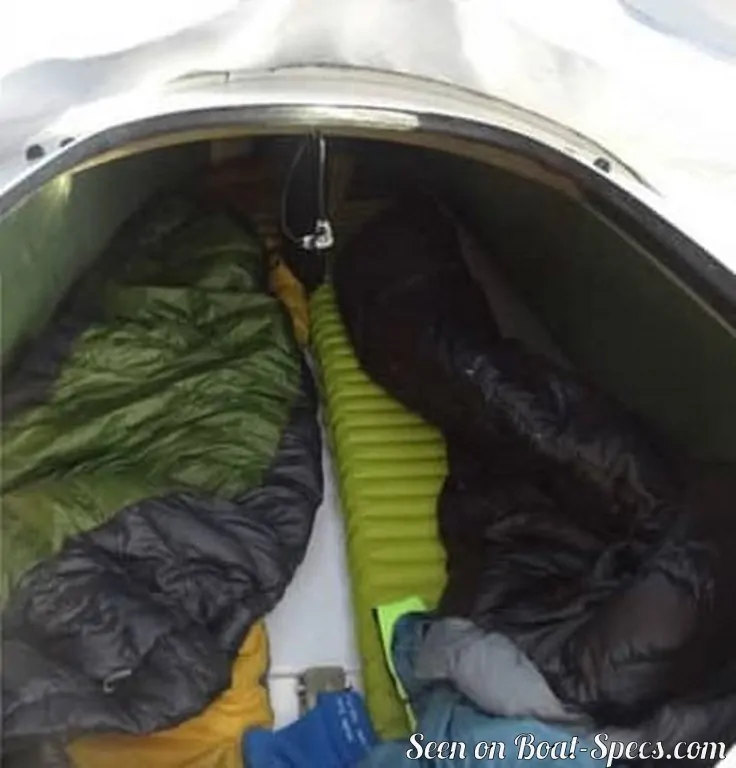

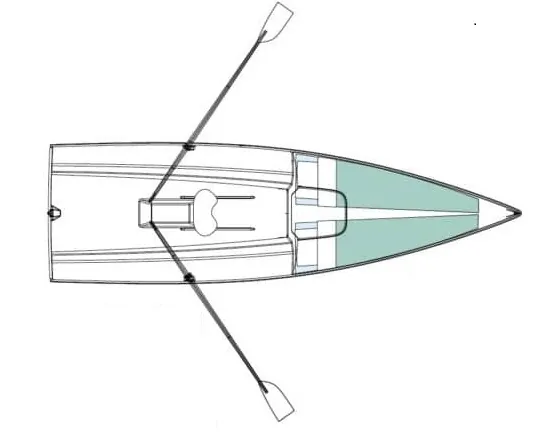

    Lite XP's accommodations and layout

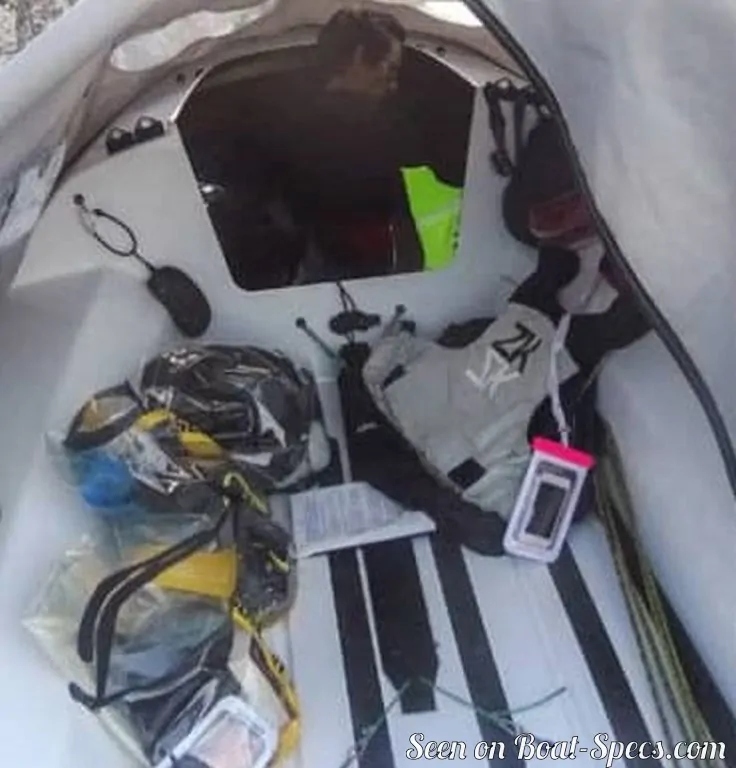

    Cockpit
    Open aft cockpit
    Berth(s)
    2
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
