Marlow Hunter 47 Deep draft

Sailboat specifications

The Marlow Hunter 47 is a 48’5” (14.76m) cruising catamaran designed by Hunter Design (United States). She is built since 2016 by Marlow Hunter (United States). The Deep draft version displays a deeper fin allowing a lower center of gravity and extra performance especially upwind.

The Marlow Hunter 47 is as well listed, on Boat-Specs.com, in Shoal draft and Furling mainsail version (see all the versions compared).

Marlow Hunter 47's main features

Model
Marlow Hunter 47
Version
Deep draft
Hull type
Monohull
Category
Offshore deck saloon cruising catamaran
Sailboat builder
Sailboat designer
Country
United States
Construction
Hull and deck: GRP (glass reinforced polyester)
First built hull
2016
Last built hull
Still in production
Appendages
Keel : fin without bulb
Helm
Single helm wheel
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
A
Standard public price ex. VAT (indicative only)
N/A

Marlow Hunter 47's main dimensions

Overall length
50’ 6”15.39 m
Hull length
48’ 5”14.76 m
Waterline length
44’ 8”13.61 m
Beam (width)
15’4.57 m
Draft
7’2.13 m
Mast height from DWL
68’20.73 m
Light displacement (MLC)
32593 lb14784 kg
Ballast weight
9094 lb4125 kg

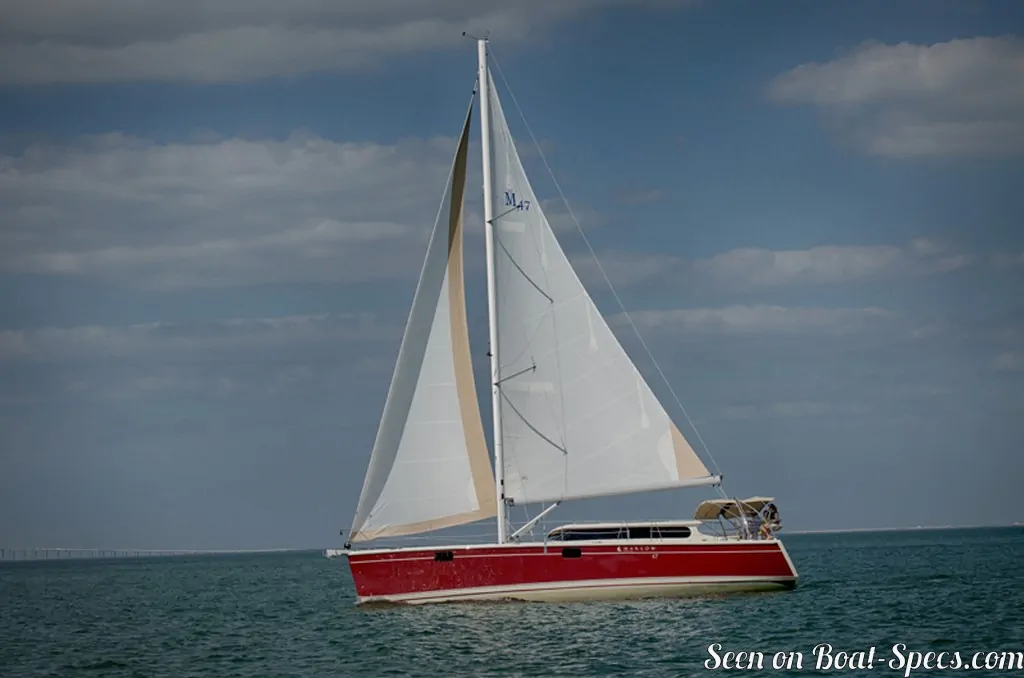

Marlow Hunter 47's rig and sails

Upwind sail area
1277 ft²118.64 m²
Rigging type
Sloop Marconi (in-mast furling mainsail) fractional
Mast configuration
Deck stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back (Bergström)
Spars construction
Aluminum spars
Standing rigging
1x19 strand wire

Marlow Hunter 47's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
212 ft²/T19.7 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
166
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
28 %
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
8.95 knots

Marlow Hunter 47's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
80 HP
Fuel type
Diesel
Fuel tank capacity
150 gal568 liters

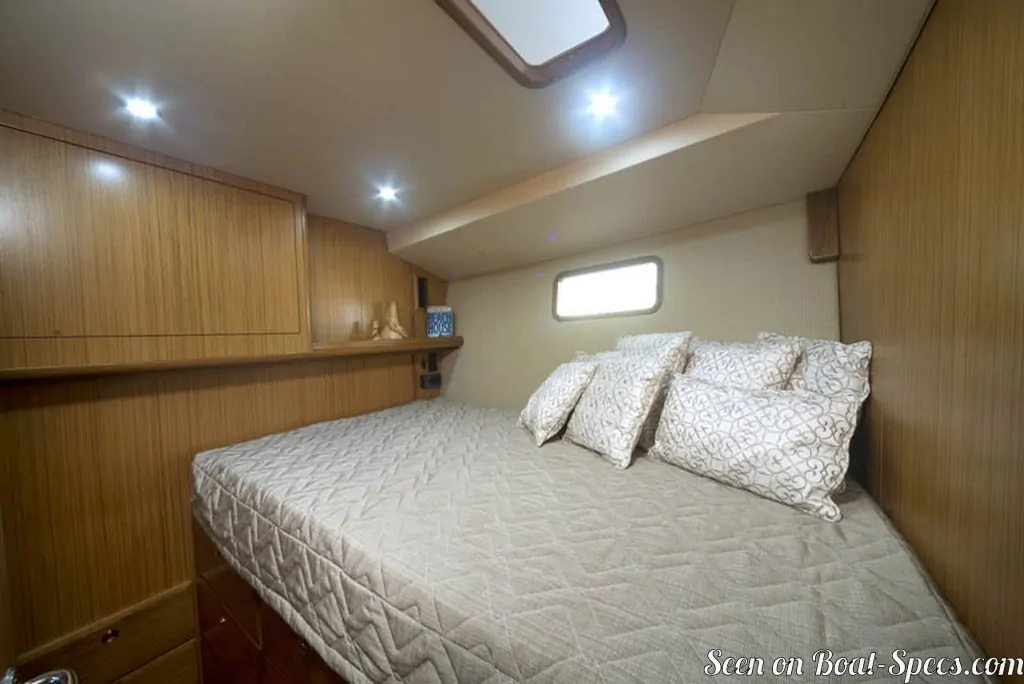

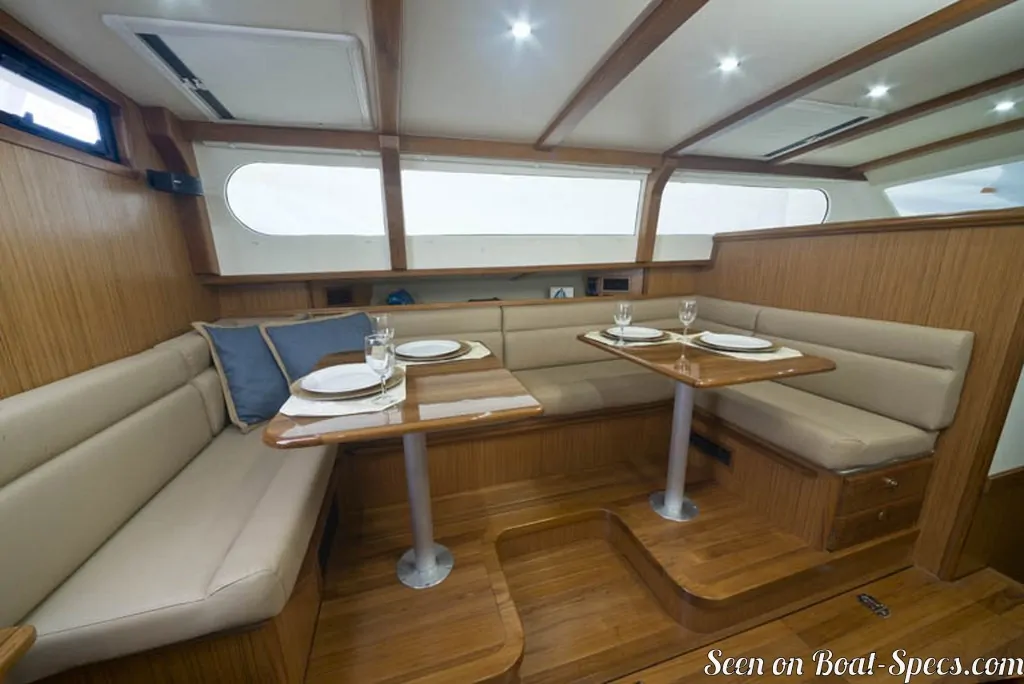

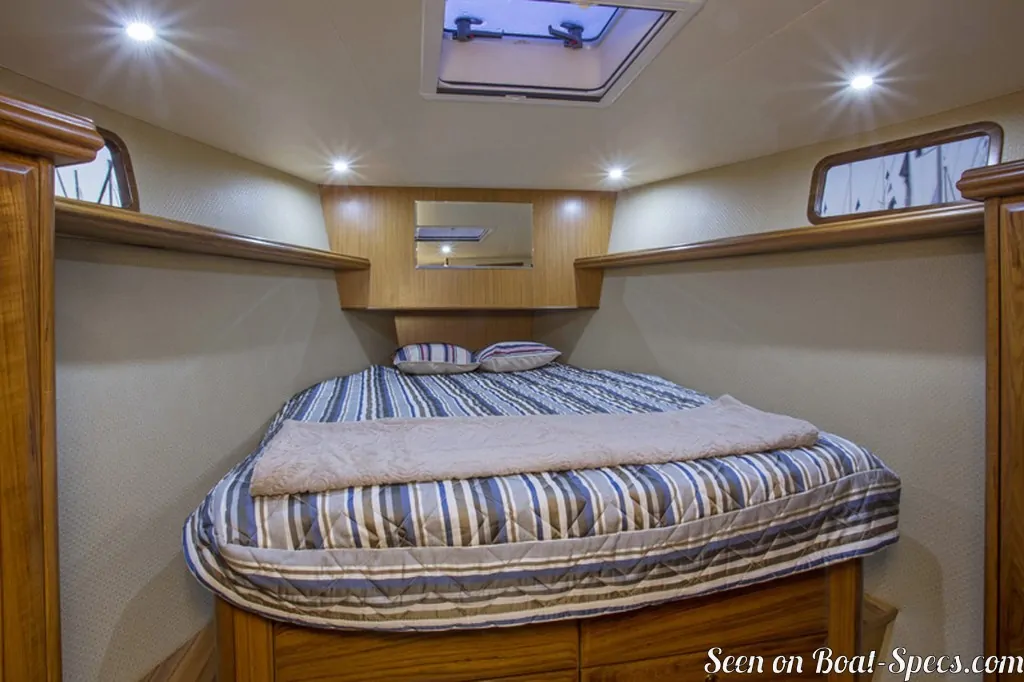

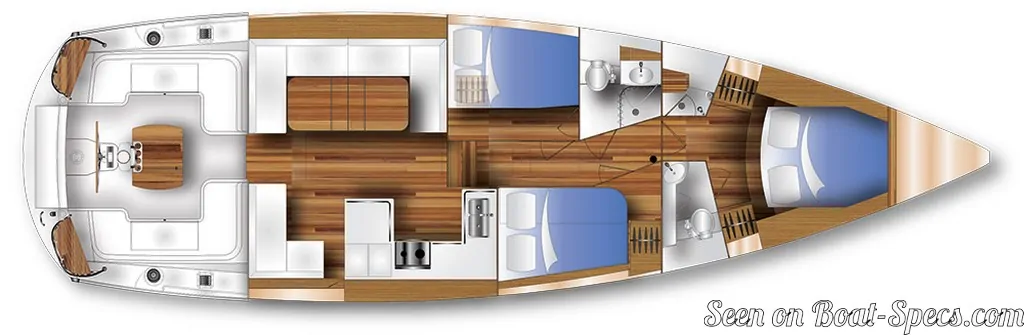

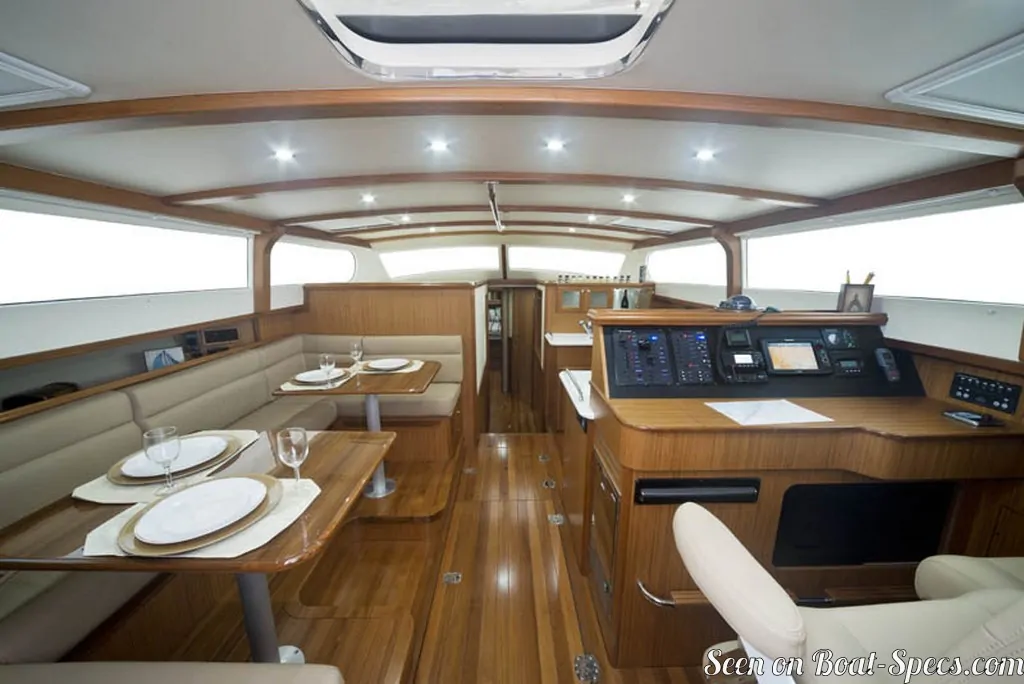

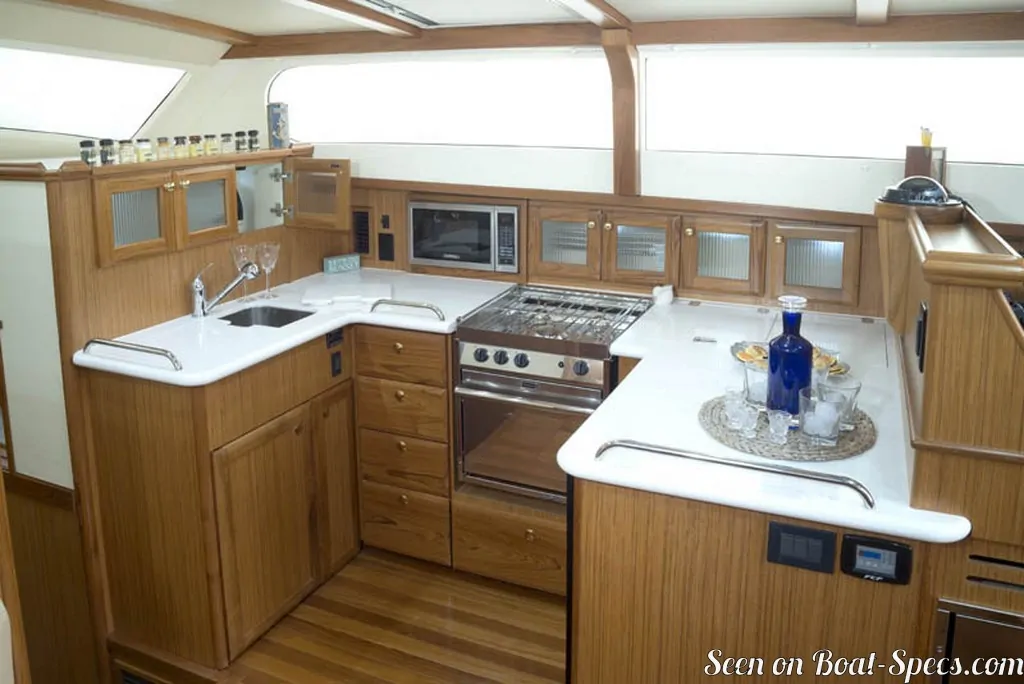

Marlow Hunter 47's accommodations and layout

Cockpit
Open aft cockpit
Cabin(s)
3
Berth(s) (min./max.)
6 / 8

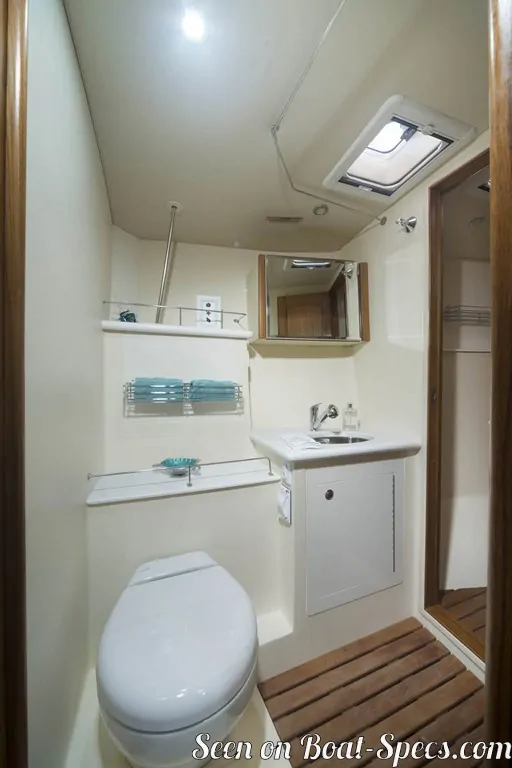

Head(s)
2
Freshwater tank capacity
193.9 gal734 liters
Holding tank capacity
52 gal197 liters
Boiler capacity
11.1 gal42 liters
Maximum headroom
6’ 10”2.06 m
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
