Italia 10.98

Sailboat specifications

The Italia 10.98 is a 36’ (10.98m) cruiser-racer sailboat designed by Cossutti Yacht Design (Italy). She is built since 2011 by Italia Yachts (Italy).

Italia 10.98's main features

Model: Italia 10.98
Hull type: Monohull
Category: Cruiser-racer sailboat
Sailboat builder: Italia Yachts
Sailboat designer: Cossutti Yacht Design
Country: Italy
Construction: GRP (glass reinforced polyester):
- Hull: Sandwich PVC E-glass vinylester with carbon fiber reinforcements
- Deck: Sandwich PVC E-glass vinylester
First built hull: 2011
Last built hull: Still in production
Appendages: Keel : T-shaped keel (with bulb)

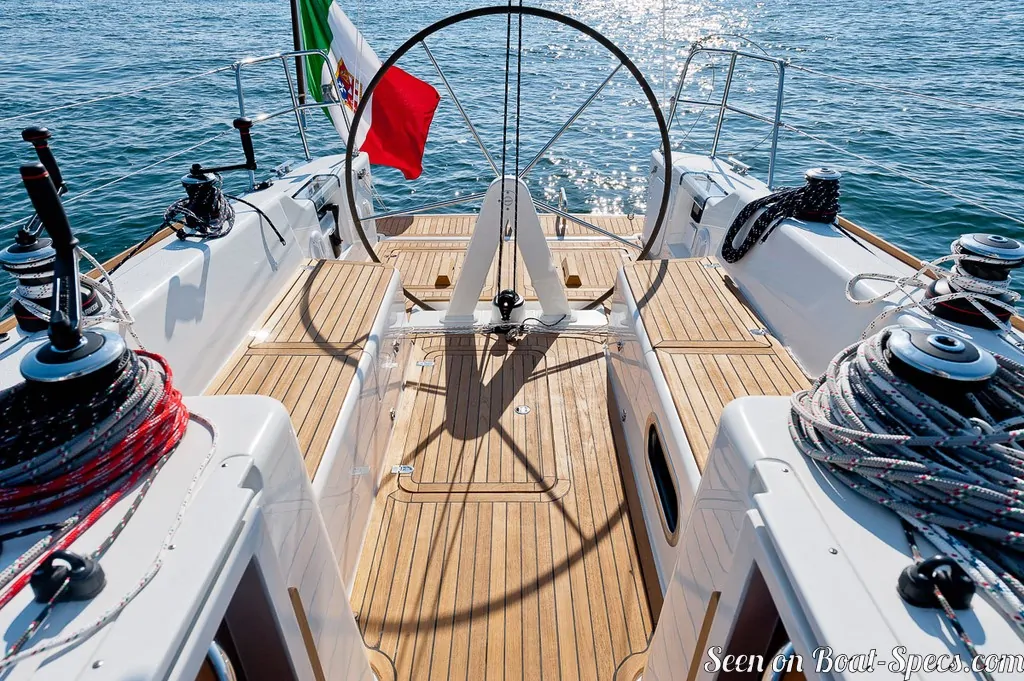

Helm: Single helm wheel
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
185 000 €
(2020)

Italia 10.98's main dimensions

Overall length: 37’11.29 m
Hull length: 36’10.98 m
Waterline length: 31’ 8”9.65 m
Beam (width): 12’3.65 m
Draft: 6’ 2”1.9 m
Light displacement (M_LC): 10582 lb4800 kg
Ballast weight: 3307 lb1500 kg
Ballast type: Steel fin with lead bulb

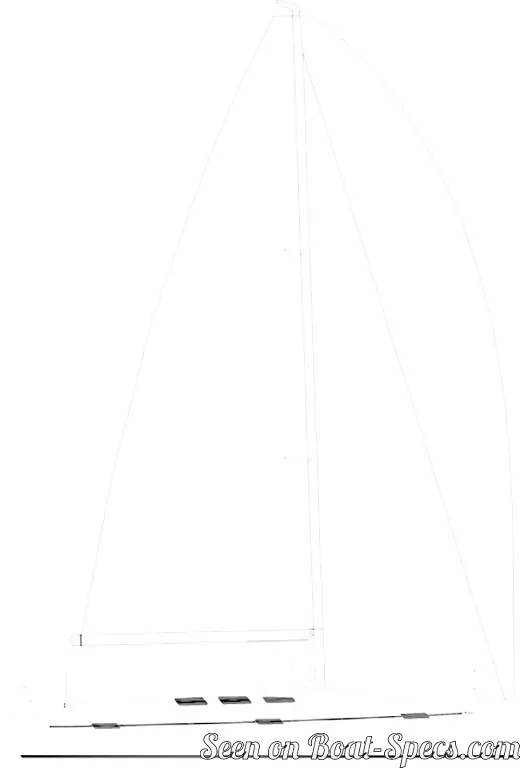

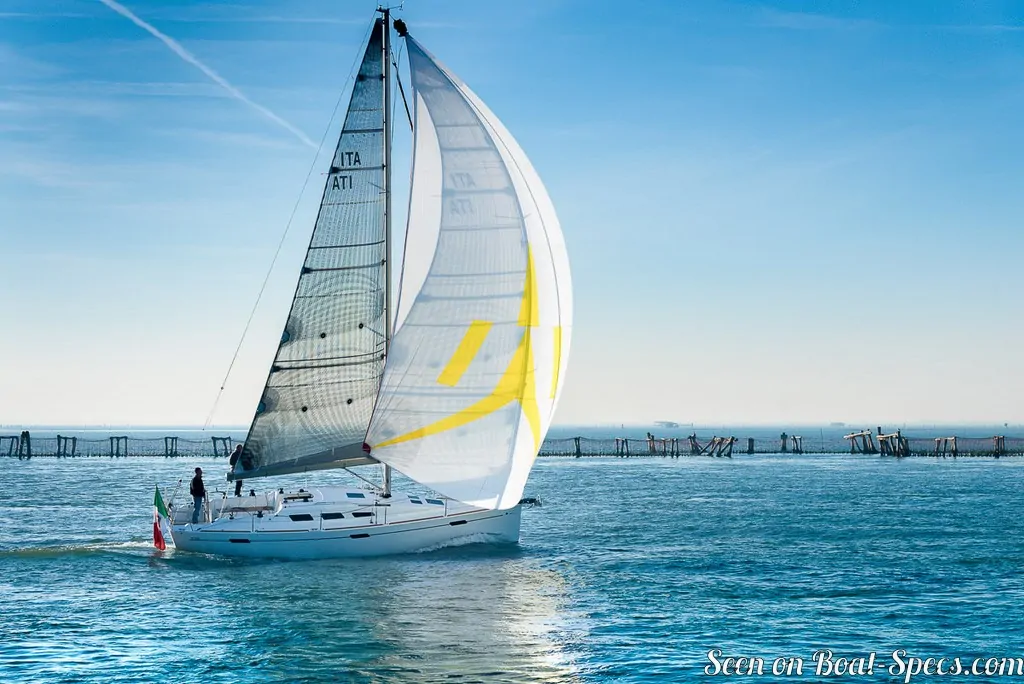

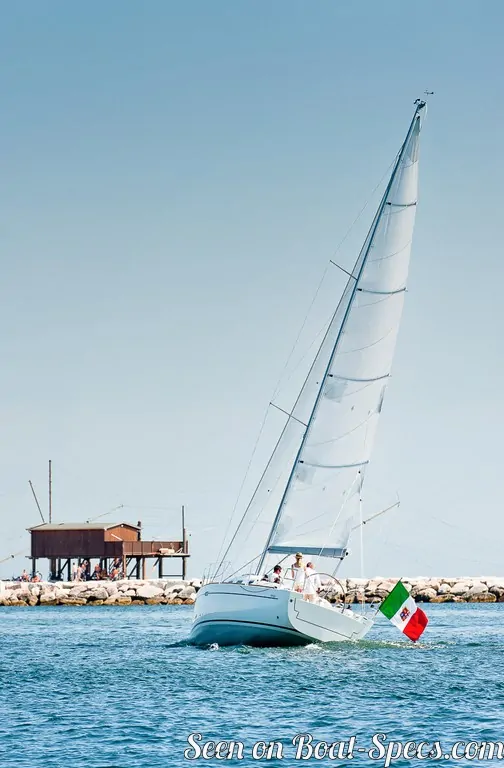

Italia 10.98's rig and sails

Upwind sail area: 775 ft²72 m²
Downwind sail area: 1453 ft²135 m²
Mainsail area: 441 ft²41 m²
Genoa area: 334 ft²31 m²
Rigging type: Sloop Marconi 9/10
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire discontinuous

Italia 10.98's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 272 ft²/T25.3 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 511 ft²/T47.44 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 151
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 31 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.54 knots
