Dehler 32 Standard

Sailboat specifications

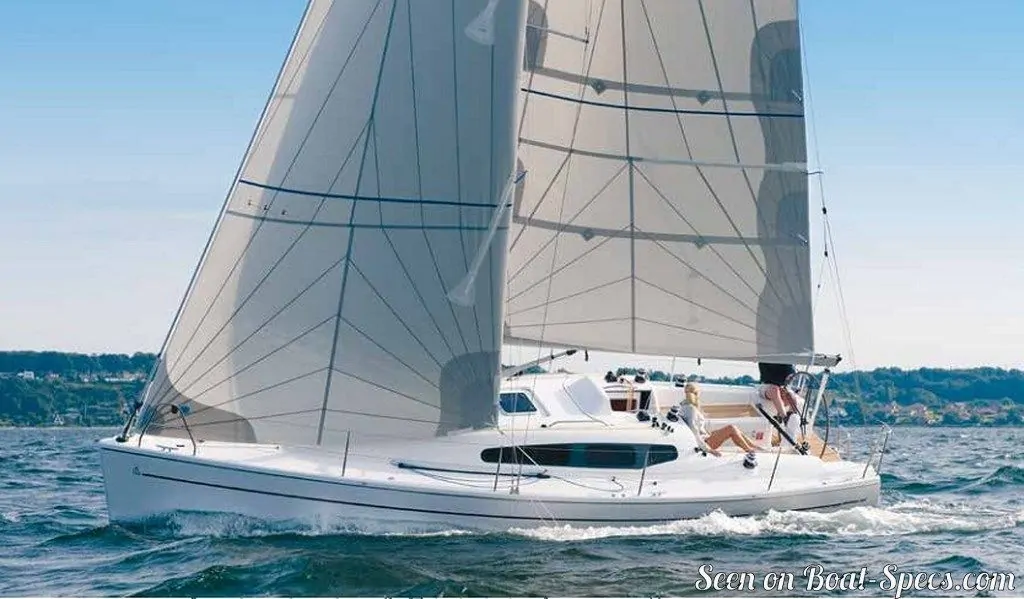

The Dehler 32 is a 32’2” (9.8m) cruiser-racer sailboat designed by Judel/Vrolijk (Germany). She was built between 2010 and 2018 by Dehler (Germany).

The Dehler 32 is as well listed, on Boat-Specs.com, in Competition and Shoal draft version (see all the versions compared).

Dehler 32's main features

Model
Dehler 32
Version
Standard
Hull type
Monohull
Category
Cruiser-racer sailboat
Sailboat builder
Sailboat designer
Country
Germany
Construction
GRP (glass reinforced polyester):
Sandwich fiberglass polyester
First built hull
2010
Last built hull
2018
Appendages
Keel : T-shaped keel (with bulb)
Helm
Single tiller
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
A
Standard public price ex. VAT (indicative only)
About
97 000
 (2017)

Dehler 32's main dimensions

Overall length
32’ 2”9.8 m
Hull length
32’ 2”9.8 m
Waterline length
29’ 4”8.94 m
Beam (width)
10’ 8”3.25 m
Draft
5’ 8”1.74 m
Mast height from DWL
51’15.55 m
Light displacement (MLC)
9502 lb4310 kg
Ballast weight
3263 lb1480 kg
Ballast type
Cast iron

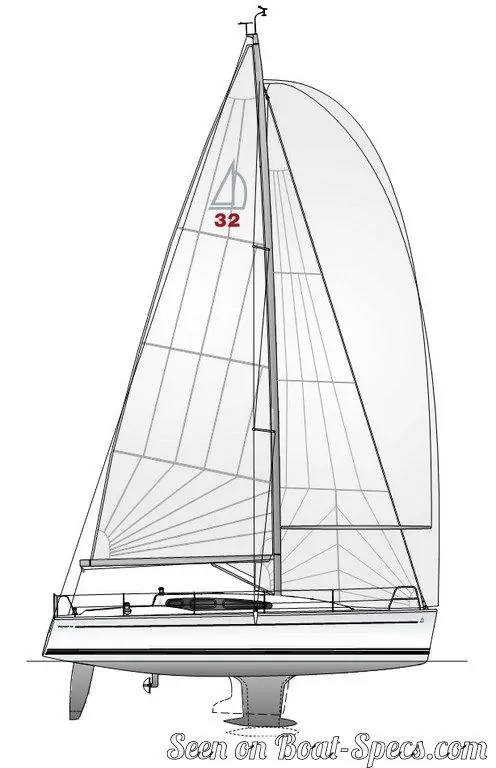

Dehler 32's rig and sails

Upwind sail area
657 ft²61 m²
Downwind sail area
1207 ft²112.1 m²
Mainsail area
355 ft²33 m²
Genoa area
301 ft²28 m²
Symmetric spinnaker area
851 ft²79.1 m²
Gennaker area
843 ft²78.3 m²
I
 iFore triangle height (from mast foot to fore stay top attachment)
43’ 4”13.2 m
J
 iFore triangle base (from mast foot to bottom of forestay)
11’ 10”3.6 m
P
 iMainsail hoist measurement (from tack to head)
41’ 7”12.67 m
E
 iMainsail foot measurement (from tack to clew)
14’ 11”4.55 m
Rigging type
Sloop Marconi 9/10
Mast configuration
Keel stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back
Spars construction
Aluminum spars
Standing rigging
1x19 strand wire

Dehler 32's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
248 ft²/T23.03 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
456 ft²/T42.33 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
171
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
34 %
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
7.26 knots

Dehler 32's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
18 HP
Fuel type
Diesel
Fuel tank capacity
17.2 gal65 liters

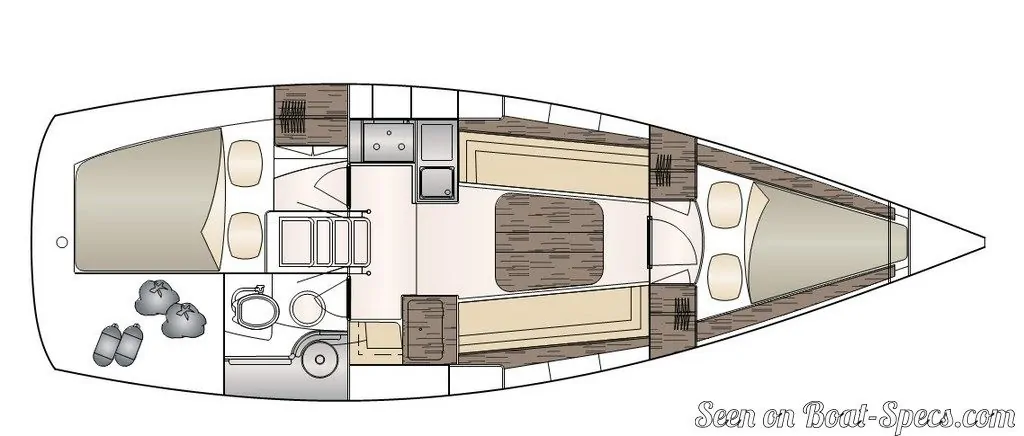

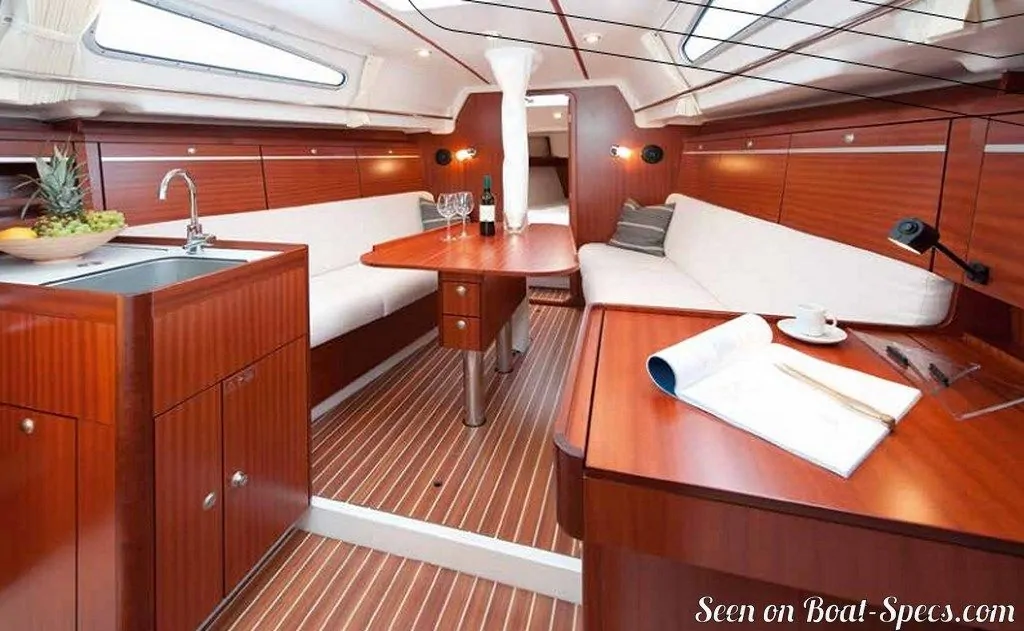

Dehler 32's accommodations and layout

Cockpit
Open aft cockpit
Cabin(s)
2
Berth(s)
6
Freshwater tank capacity
26.4 gal100 liters
Fridge/ice-box capacity
15.9 gal60 liters
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
