Hallberg-Rassy 48 MkII Standard

Sailboat specifications

The Hallberg-Rassy 48 MkII is a 49’2” (14.99m) cruising sailboat designed by Frers Naval Architecture & Engineering (Argentina). She is built since 2014 by Hallberg-Rassy (Sweden).

The Hallberg-Rassy 48 MkII is as well listed, on Boat-Specs.com, in Shoal draft version (see all the versions compared).

Hallberg-Rassy 48 MkII's main features

Model
Hallberg-Rassy 48 MkII
Version
Standard
Hull type
Monohull
Category
Offshore cruising sailboat
Sailboat builder
Sailboat designer
Country
Sweden
Construction
GRP (glass reinforced polyester):
Sandwich fiberglass polyester
First built hull
2014
Last built hull
Still in production
Appendages
Keel : L-shaped keel (with bulb)
Helm
Single helm wheel
Rudder
Single semi-spade rudder
Unsinkable
No
Trailerable
No
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
A
Standard public price ex. VAT (indicative only)
About
740 000
 (2020)

Hallberg-Rassy 48 MkII's main dimensions

Hull length
49’ 2”14.99 m
Waterline length
43’ 6”13.25 m
Beam (width)
14’ 10”4.5 m
Draft
7’ 8”2.35 m
Mast height from DWL
71’ 5”21.75 m
Light displacement (MLC)
40786 lb18500 kg
Ballast weight
17086 lb7750 kg
Ballast type
Lead on deep GRP bilge

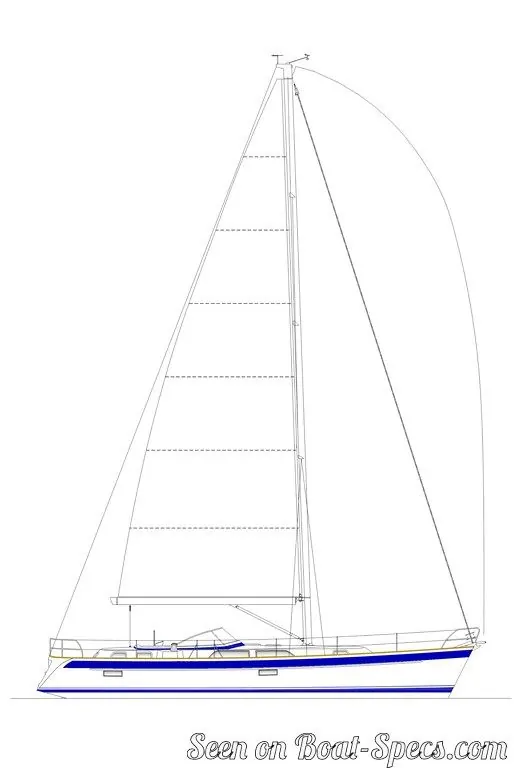

Hallberg-Rassy 48 MkII's rig and sails

Upwind sail area
1495 ft²138.9 m²
Mainsail area
715 ft²66.4 m²
Genoa area
780 ft²72.5 m²
Solent area
527 ft²49 m²
Rigging type
Sloop Marconi masthead
Mast configuration
Deck stepped mast
Rotating spars
No
Number of levels of spreaders
3
Spreaders angle
0 °
Spars construction
Aluminum spars

Hallberg-Rassy 48 MkII's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
214 ft²/T19.86 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
225
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
42 %
Righting moment @ 1°
 iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability.
3378 lb.ft467 kg.m
Righting moment @ 30°
 iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability.
86760 lb.ft11995 kg.m
Maximum righting moment
 iThe righting moment is a moment (torque) that tends to restore a boat to its previous position after heeling. Its value corresponds to the torque needed to heel the boat for this angle.
Higher the righting moment is for an angle, greater is the stability.
127713 lb.ft17657 kg.m @ 70.00 °
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
8.83 knots

Hallberg-Rassy 48 MkII's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power (min./max.)
110 HP / 180 HP
Fuel type
Diesel
Fuel tank capacity
211.3 gal800 liters

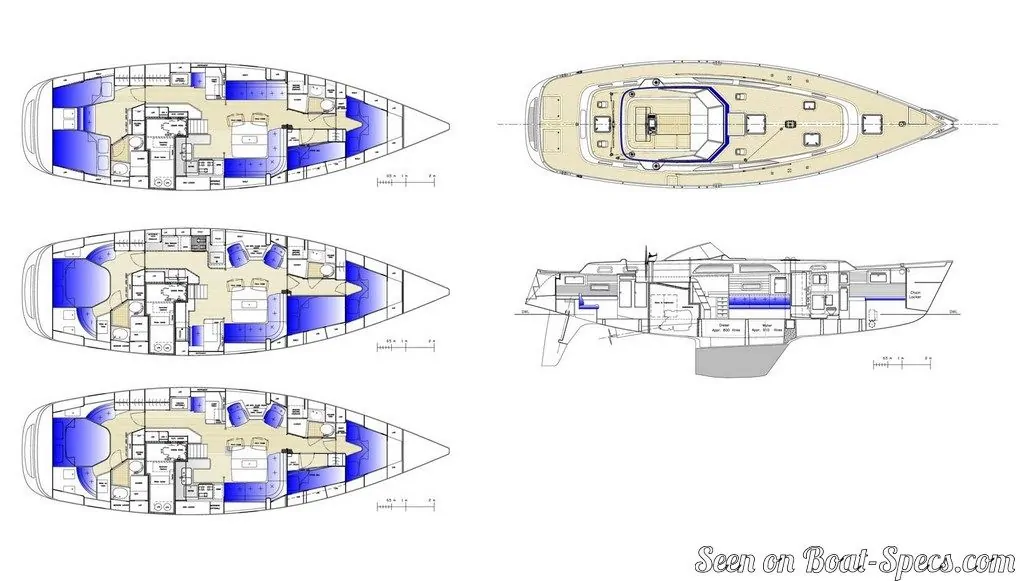

Hallberg-Rassy 48 MkII's accommodations and layout

Cockpit
Center cockpit
Cabin(s)
3
Berth(s) (min./max.)
6 / 7
Head(s)
2
Freshwater tank capacity
240.4 gal910 liters
Holding tank capacity
40.9 gal155 liters
Boiler capacity
14.5 gal55 liters
Maximum headroom
6’ 6”1.99 m

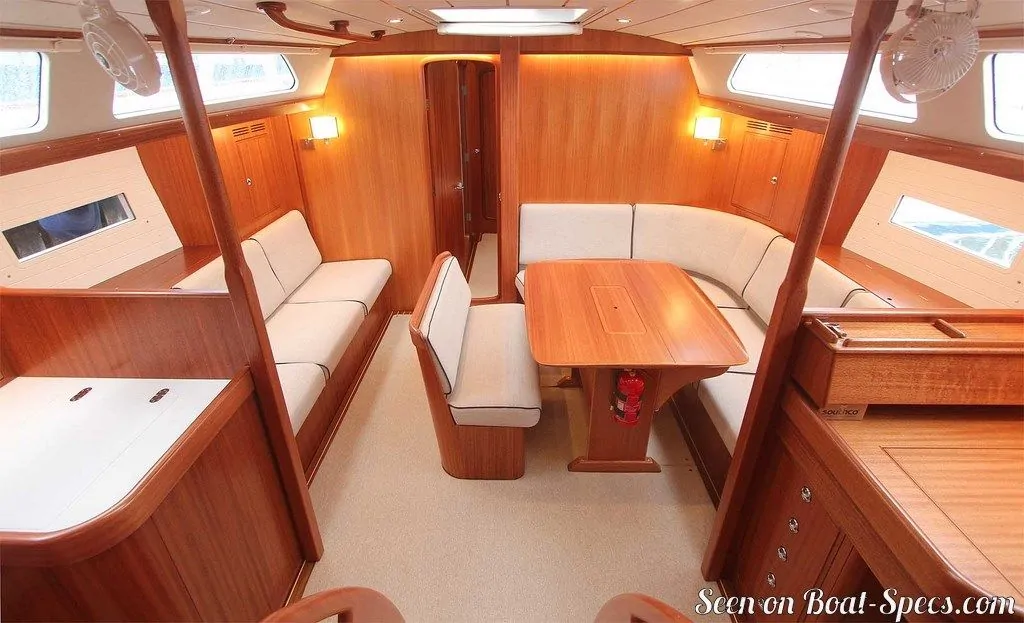

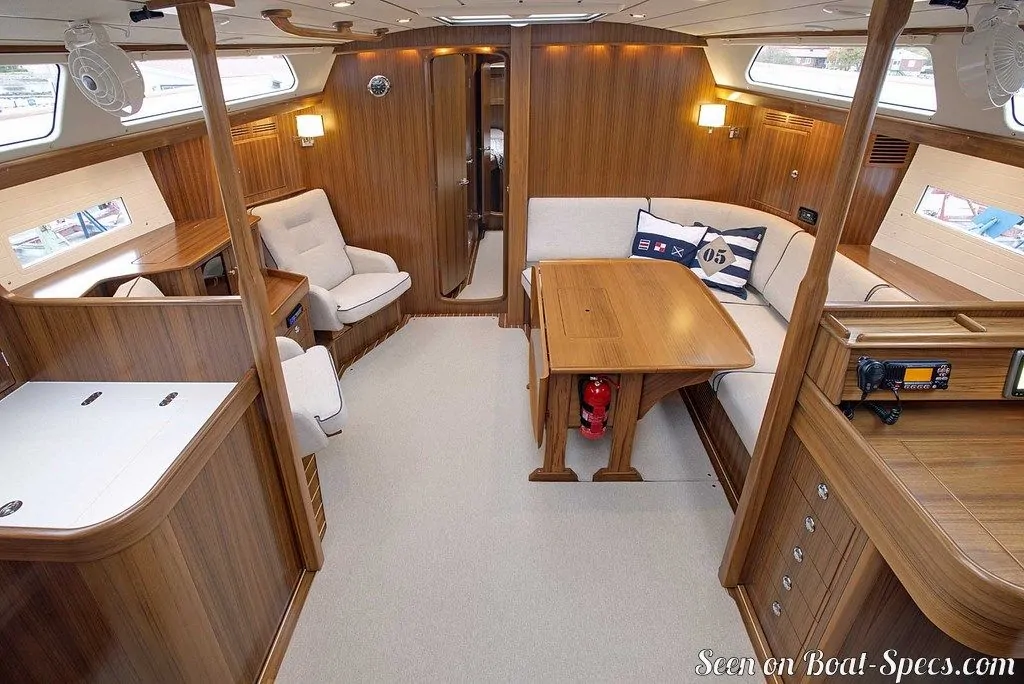

Hallberg-Rassy 48 MkII's saloon

Maximum headroom
6’ 6”1.99 m

Hallberg-Rassy 48 MkII's fore cabin

Berth length
7’2.13 m

Hallberg-Rassy 48 MkII's aft cabin

Berth length
6’ 10”2.07 m
Berth width
4’ 11”1.5 m
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
