Catalina 25 Tall rig
Last update: 25th March 2020
The Catalina 25 is a 25’ (7.62m) cruising sailboat designed by Frank Butler (United States). She was built between 1978 and 1994 by Catalina Yachts (United States) with 5866 hulls completed. The Tall rig version displays a taller mast and larger sail area.

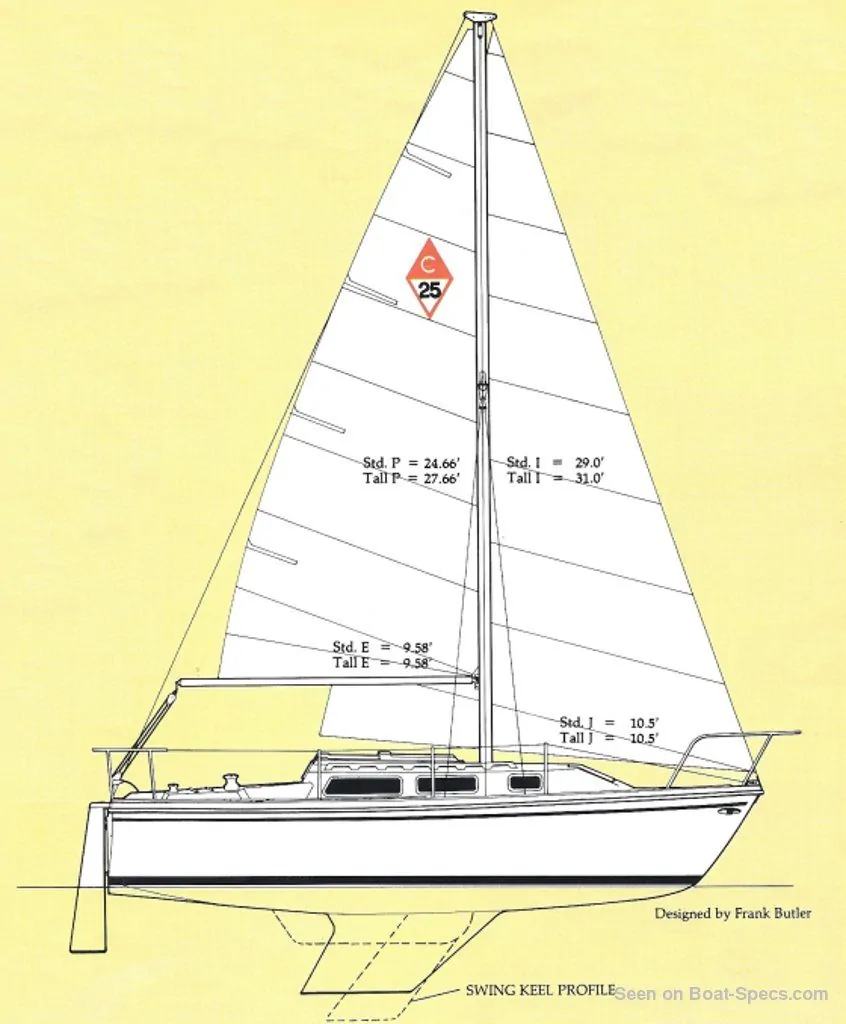

iFore triangle height (from mast foot to fore stay top attachment)
iFore triangle base (from mast foot to bottom of forestay)
10’ 6”3.2 m
iMainsail hoist measurement (from tack to head)
27’ 8”8.43 m
iMainsail foot measurement (from tack to clew)
9’ 8”2.95 m
Sloop Marconi masthead
Deck stepped mast
Number of levels of spreaders
1x19 strand wire continuous
Catalina 25's performances
Upwind sail area to displacement
iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
182 ft²/T16.9 m²/T
Displacement-length ratio (DLR)
iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability.
Critical hull speed
iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
