Trident 80 Shoal draft

Sailboat specifications

The Trident 80 is a 26’2” (8m) cruising sailboat designed by Daniel Tortarolo (France). She was built between 1975 and 1988 by SMAP Neptune (France). The Shoal draft version features a shorter keel to grant access to shallow areas.

The Trident 80 is as well listed, on Boat-Specs.com, in Deep draft version (see all the versions compared).

Trident 80's main features

Model: Trident 80
Version: Shoal draft
Hull type: Monohull
Category: Cruising sailboat
Sailboat builder: SMAP Neptune
Sailboat designer: Daniel Tortarolo
Country: France
Construction: Hull and deck: GRP (glass reinforced polyester)
Number of hulls built: About 600
First built hull: 1975
Last built hull: 1988
Appendages: Keel : fin without bulb
Helm: Single tiller
Rudder: Single semi-spade rudder
Unsinkable: No
Trailerable: No
Former French navigation category: 2
Standard public price ex. VAT (indicative only): N/A €

Trident 80's main dimensions

Hull length: 26’ 2”8 m
Waterline length: 23’ 5”7.14 m
Beam (width): 9’ 6”2.9 m
Draft: 4’ 10”1.45 m
Light displacement (M_LC): 5181 lb2350 kg
Ballast weight: 2094 lb950 kg
French customs tonnage: 6.32 Tx

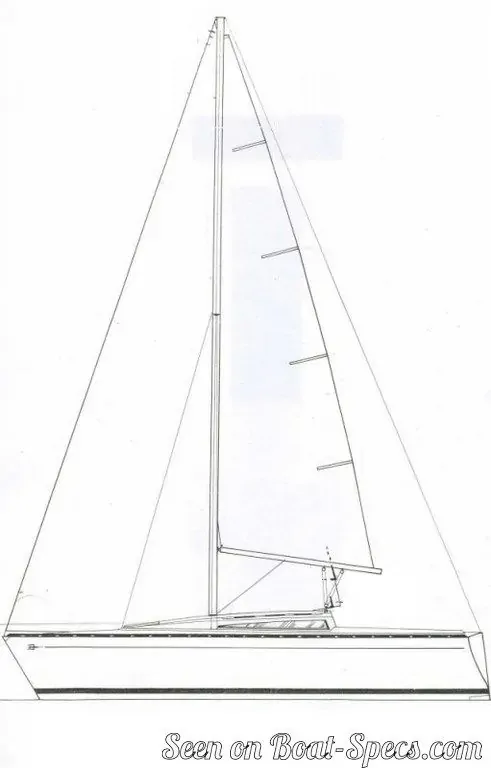

Trident 80's rig and sails

Upwind sail area: 398 ft²37 m²
Downwind sail area: 700 ft²65 m²
Mainsail area: 118 ft²11 m²
Genoa area: 280 ft²26 m²
Jib area: 151 ft²14 m²
Stormjib area: 43 ft²4 m²
Symmetric spinnaker area: 581 ft²54 m²
Gennaker area: 291 ft²27 m²
Rigging type: Sloop Marconi masthead
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 1
Spreaders angle: 0 °
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire continuous

Trident 80's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 225 ft²/T20.93 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 396 ft²/T36.77 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 183
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 40 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 6.49 knots
