The
Océanis 343 Clipper is a 34’1” (10.38m) cruising sailboat designed by
Berret Racoupeau Yachts Design (France). She was built between 2004 and 2008 by
Bénéteau (France). The
Keel and centerboard version features a centerboard inside of a short fin-keel allowing shoal draft while maintaining upwind capabilities.
The
Océanis 343 Clipper has also been marketed as
Bénéteau 343 and she is as well listed, on Boat-Specs.com, in
Deep draft and
Shoal draft version (
see all the versions compared).
Océanis 343 Clipper's main features
Model
Océanis 343 Clipper
Version
Keel and centerboard
Hull type
Monohull
Category
Cruising sailboat
Sailboat builder
Sailboat designer
Sailboat range
Country
France
Construction
GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich balsa fiberglass polyester
First built hull
2004
Last built hull
2008
Appendages
Centerboard : pivoting centerboard in the keel
Helm
Single helm wheel
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5mA
Standard public price ex. VAT (indicative only)
Océanis 343 Clipper's main dimensions
Overall length
35’ 6”10.82 m
Hull length
34’ 1”10.38 m
Waterline length
30’ 10”9.4 m
Beam (width)
11’ 5”3.48 m
Draft
8’ 6”2.6 m
Draft when appendages up
3’ 11”1.2 m
Mast height from DWL
49’ 5”15.06 m
Light displacement (MLC)
14374 lb6520 kg
Ballast weight
4321 lb1960 kg
Ballast type
Cast iron exterior ballast with steel centerboard

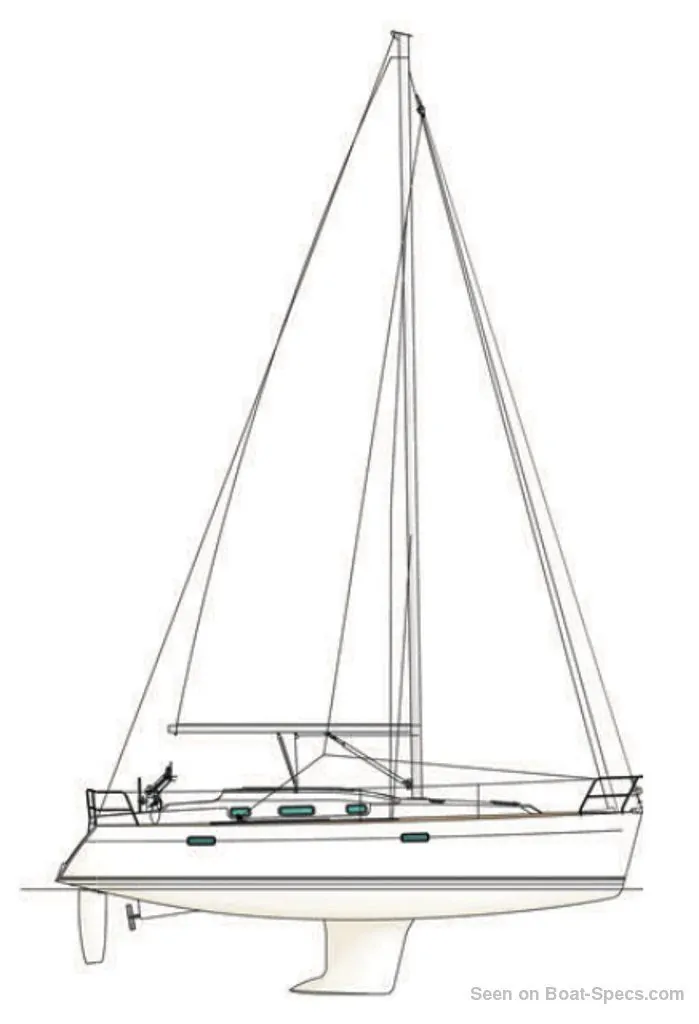

Océanis 343 Clipper's rig and sails
Upwind sail area
649 ft²60.3 m²
Downwind sail area
1245 ft²115.65 m²
Mainsail area
304 ft²28.2 m²
Genoa area
346 ft²32.1 m²

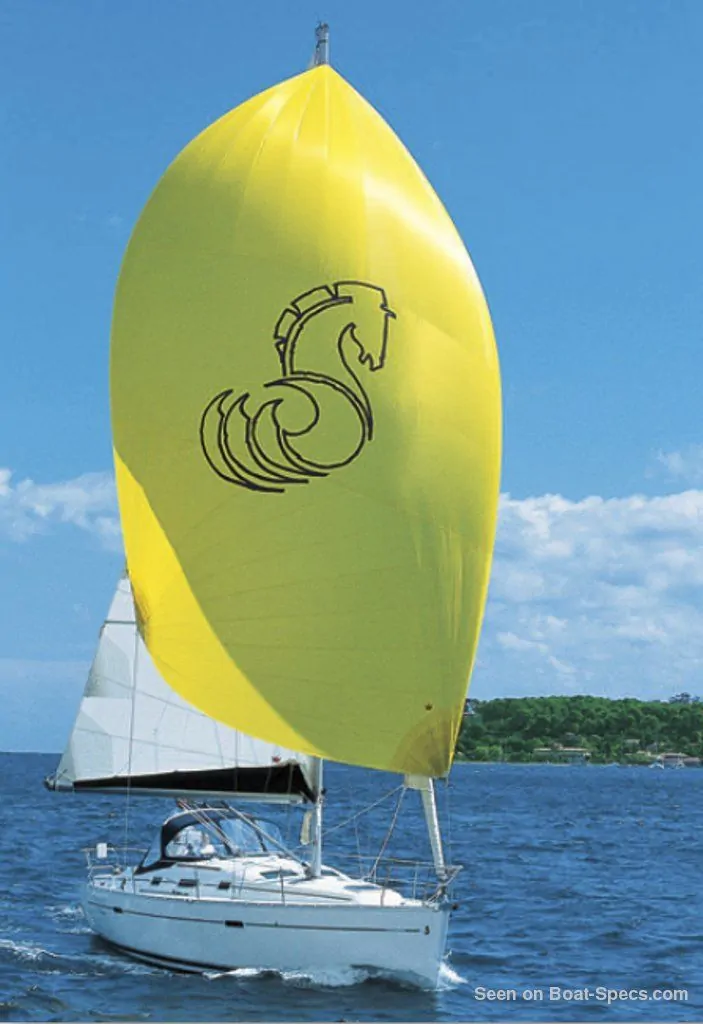

Symmetric spinnaker area
941 ft²87.45 m²
I
iFore triangle height (from mast foot to fore stay top attachment)43’ 5”13.24 m
J
iFore triangle base (from mast foot to bottom of forestay)12’ 10”3.9 m
P
iMainsail hoist measurement (from tack to head)39’ 1”11.93 m
E
iMainsail foot measurement (from tack to clew)13’ 7”4.14 m
Rigging type
Sloop Marconi 9/10
Mast configuration
Deck stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back
Spars construction
Aluminum spars
Standing rigging
1x19 strand wire discontinuous
Océanis 343 Clipper's performances
Upwind sail area to displacement
iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.186 ft²/T17.28 m²/T
Downwind sail area to displacement
iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.357 ft²/T33.14 m²/T
Displacement-length ratio (DLR)
iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.222
Ballast ratio
iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability.30 %
Critical hull speed
iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.7.44 knots
Océanis 343 Clipper's auxiliary engine
Engine(s)
1 inboard engine
Engine(s) power (min./max.)
21 HP / 29 HP
Fuel type
Diesel
Fuel tank capacity
19.8 gal75 liters

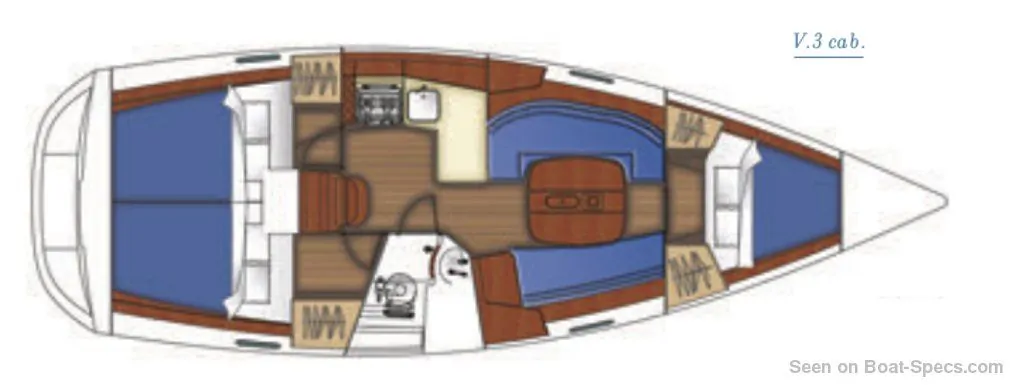

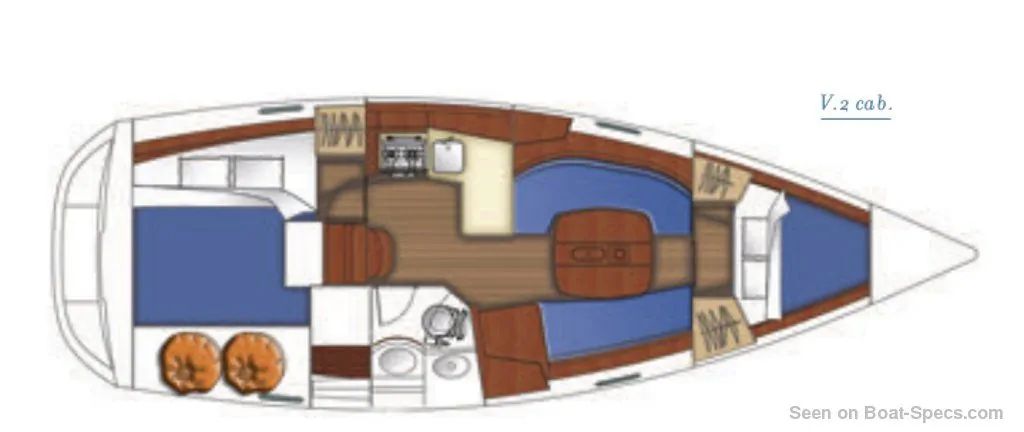

Océanis 343 Clipper's accommodations and layout
Cockpit
Closing aft cockpit with opening system
Cabin(s) (min./max.)
2 / 3
Berth(s) (min./max.)
4 / 8
Head(s)
1
Freshwater tank capacity
67.4 gal255 liters
Holding tank capacity
21.1 gal80 liters
Fridge/ice-box capacity
34.3 gal130 liters
Boiler capacity
6.6 gal25 liters
Maximum headroom
6’ 7”2.01 m
Galley headroom
6’ 6”1.98 m
Head headroom
6’ 7”2 m

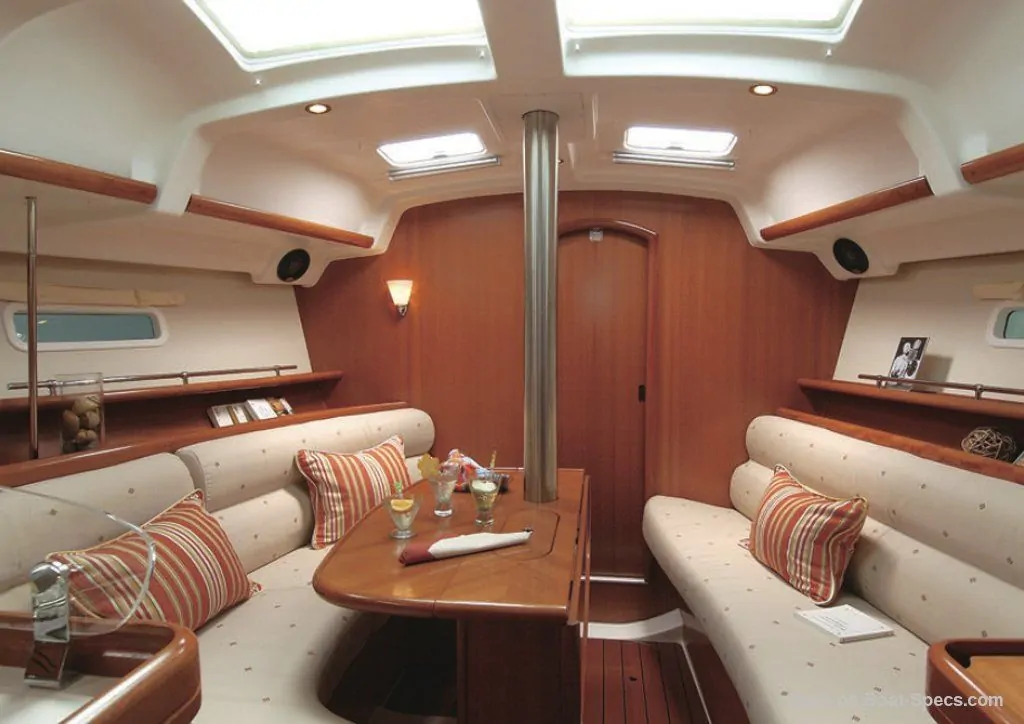

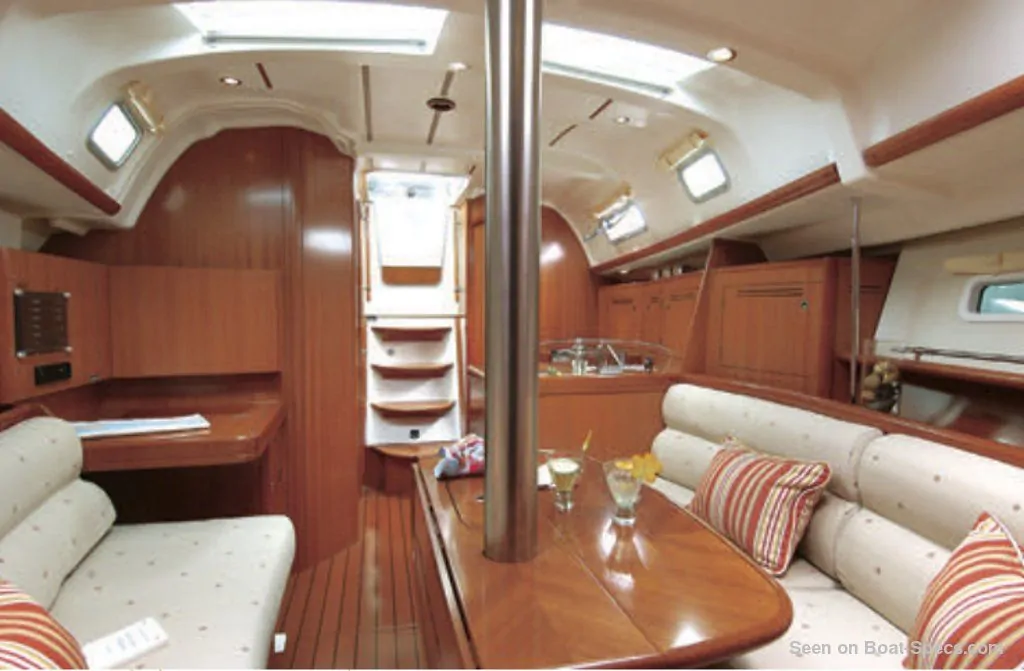

Océanis 343 Clipper's saloon
Maximum headroom
6’ 6”1.98 m
Berth length
6’ 7”2 m
Berth width (head/feet)
1’ 8”0.52 m / 1’ 8”0.52 m

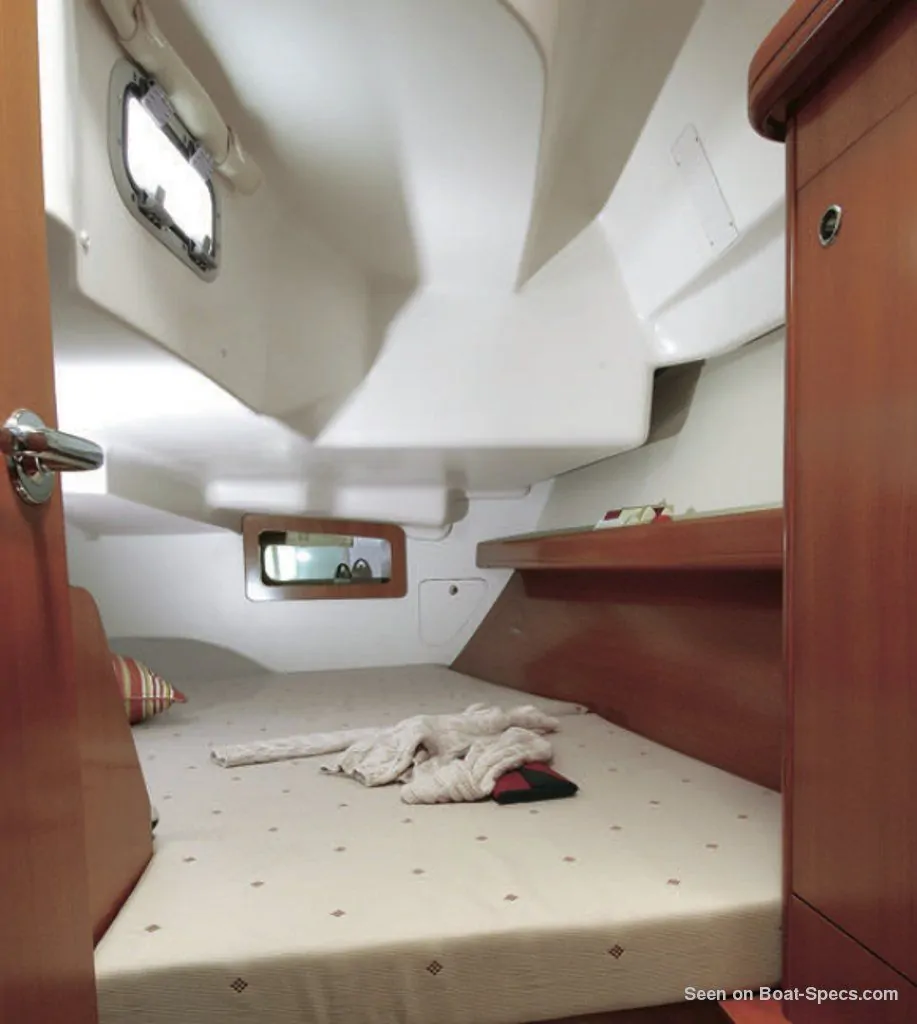

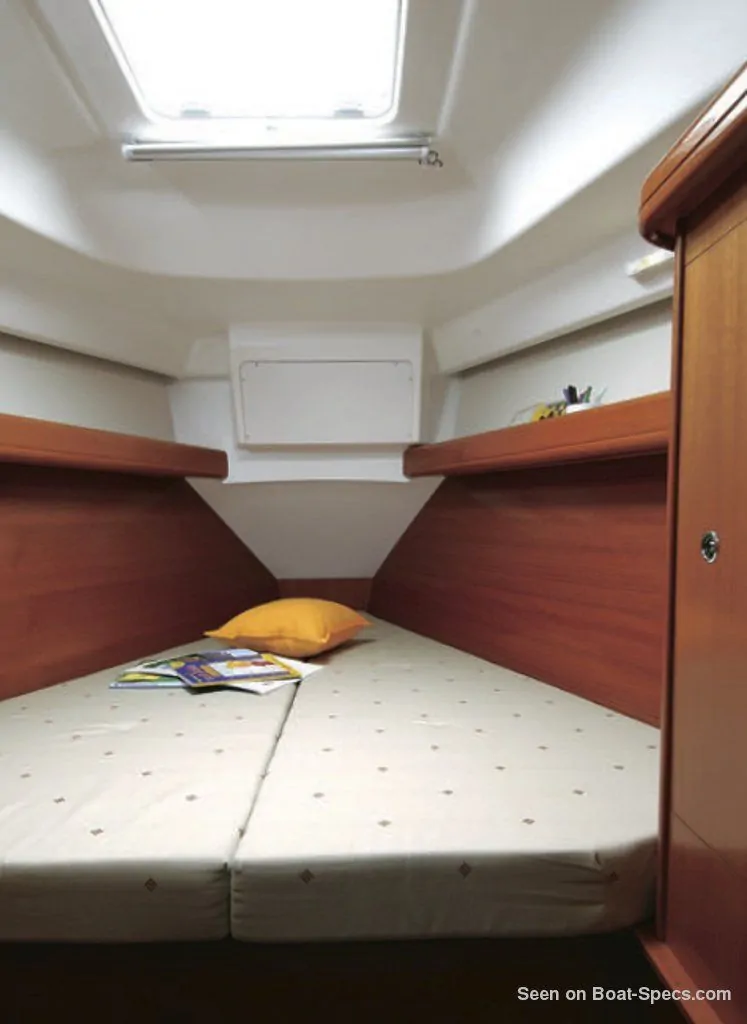

Océanis 343 Clipper's fore cabin
Maximum headroom
6’ 1”1.86 m
Berth length
6’ 7”2 m
Berth width (head/feet)
5’ 5”1.66 m / 1’ 4”0.4 m
Océanis 343 Clipper's aft cabin
Maximum headroom
6’ 7”2.02 m
Berth length
6’ 7”2.01 m
Berth width
4’ 6”1.36 m
