Xp 50 Deep draft

Sailboat specifications

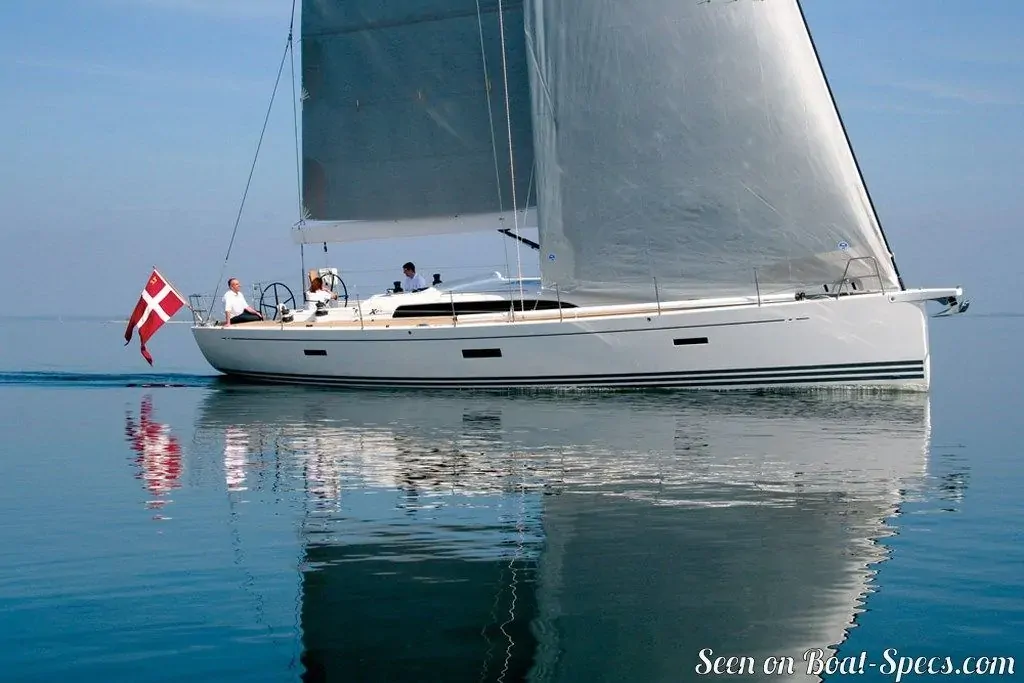

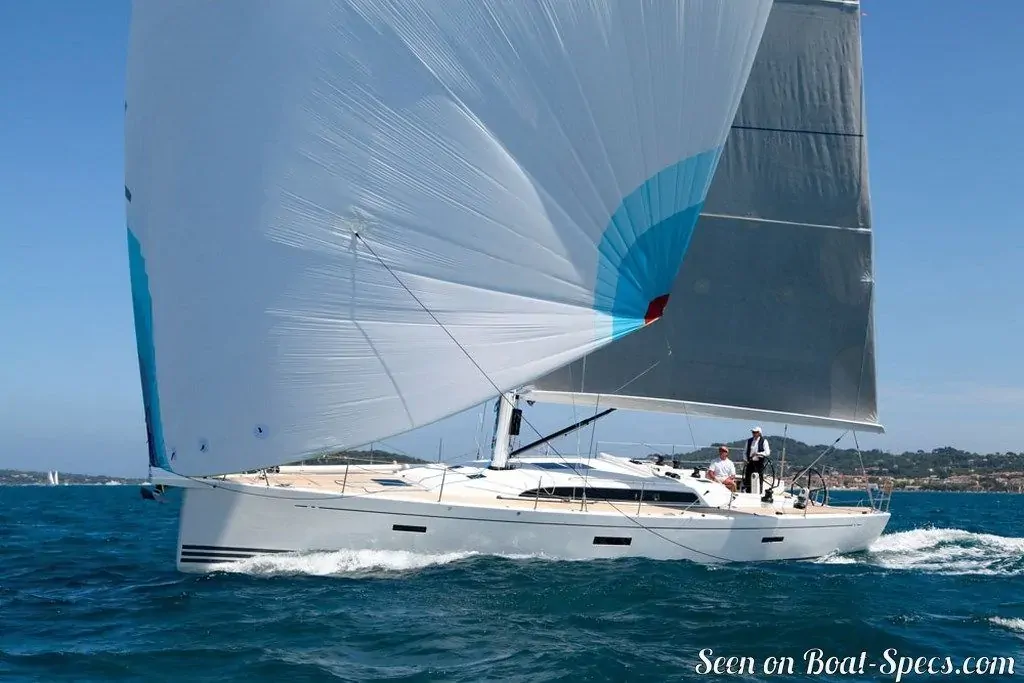

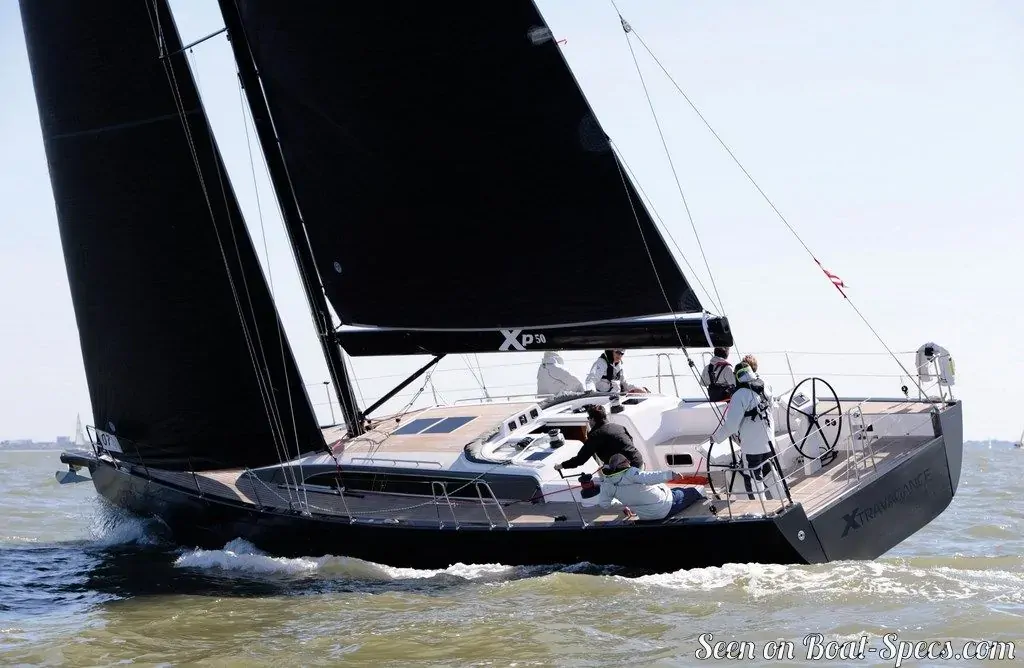

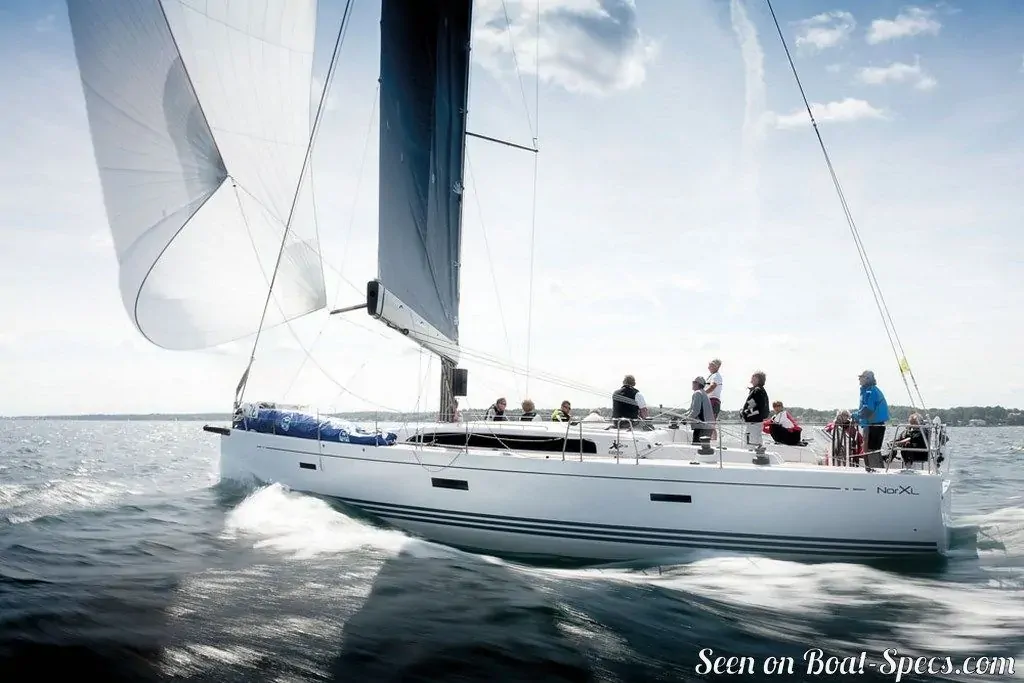

The Xp 50 is a 49’2” (14.99m) racer-cruiser sailboat designed by X-Yachts Design Group (Denmark). She is built since 2012 by X-Yachts (Denmark). The Deep draft version features a deeper T-shaped keel to grant extra performance especially upwind.

The Xp 50 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).

Xp 50's main features

Model: Xp 50
Version: Deep draft
Hull type: Monohull
Category: Offshore racer-cruiser sailboat
Sailboat builder: X-Yachts
Sailboat designer: X-Yachts Design Group
Sailboat range: Xp
Country: Denmark
Construction: Fiberglass reinforced epoxy:
Sandwich Core-Cell fiberglass epoxy
First built hull: 2012
Last built hull: Still in production
Appendages: Keel : T-shaped keel (with bulb)
Helm: Twin helm wheels
Rudder: Single spade rudder
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): About
595 000 €
(2020)

Xp 50's main dimensions

Hull length: 49’ 2”14.99 m
Waterline length: 43’ 8”13.31 m
Beam (width): 14’ 6”4.41 m
Draft: 9’ 10”3 m
Light displacement (M_LC): 26235 lb11900 kg
Ballast weight: 11332 lb5140 kg
Ballast type: Cast iron fin with lead bulb

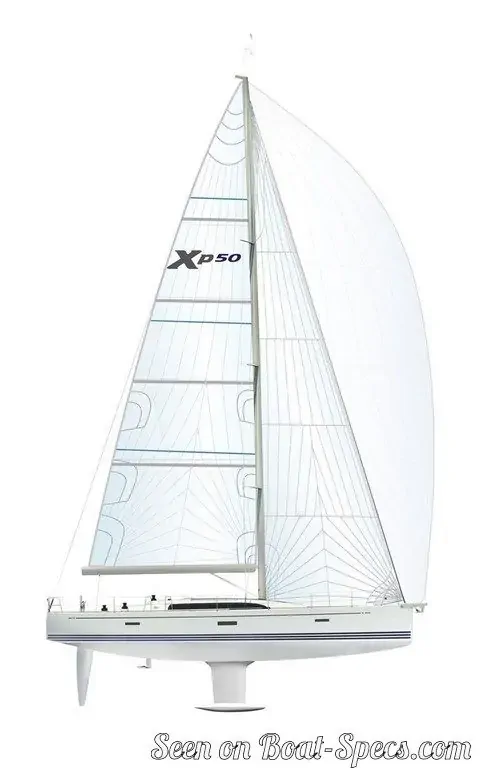

Xp 50's rig and sails

Upwind sail area: 1635 ft²151.9 m²
Downwind sail area: 3203 ft²297.6 m²
Mainsail area: 943 ft²87.6 m²
Genoa area: 692 ft²64.3 m²
Symmetric spinnaker area: 2260 ft²210 m²
Rigging type: Sloop Marconi fractional
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 3
Spreaders angle: Swept-back
Spars construction: Aluminum spars (carbon fiber spars as an option)
Standing rigging: Single-strand (ROD)

Xp 50's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 314 ft²/T29.14 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 615 ft²/T57.1 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 143
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 43 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.85 knots
