RS Cat 14 Club

Sailboat specifications

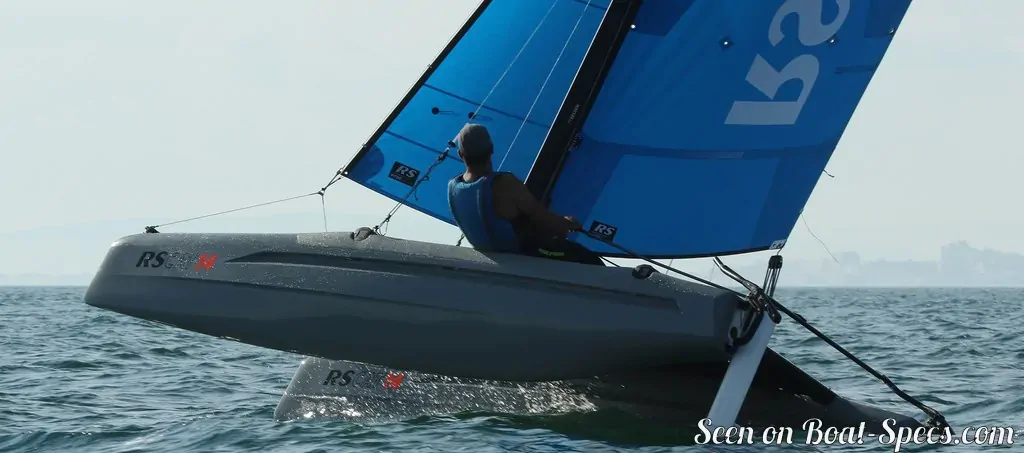

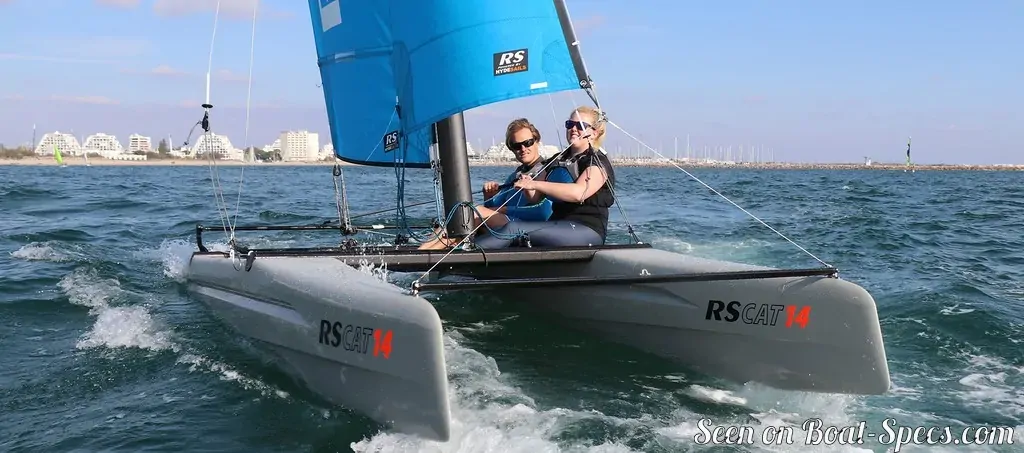

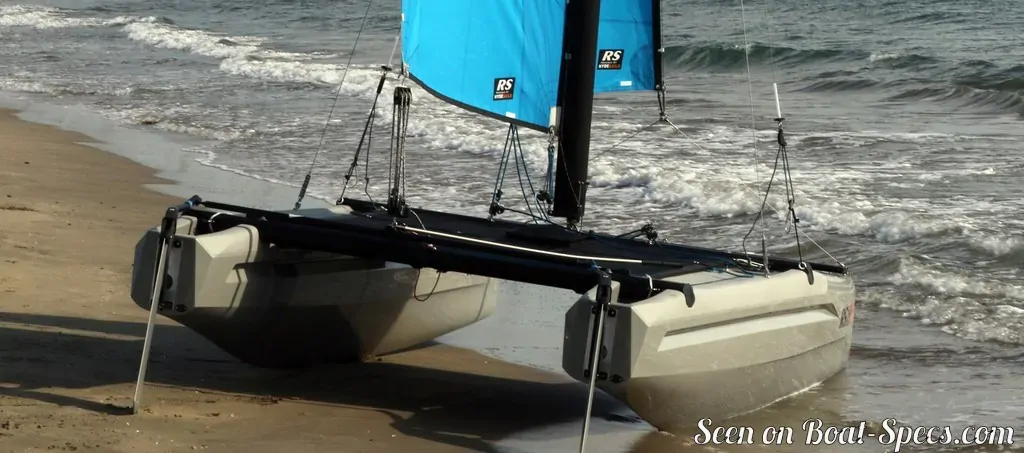

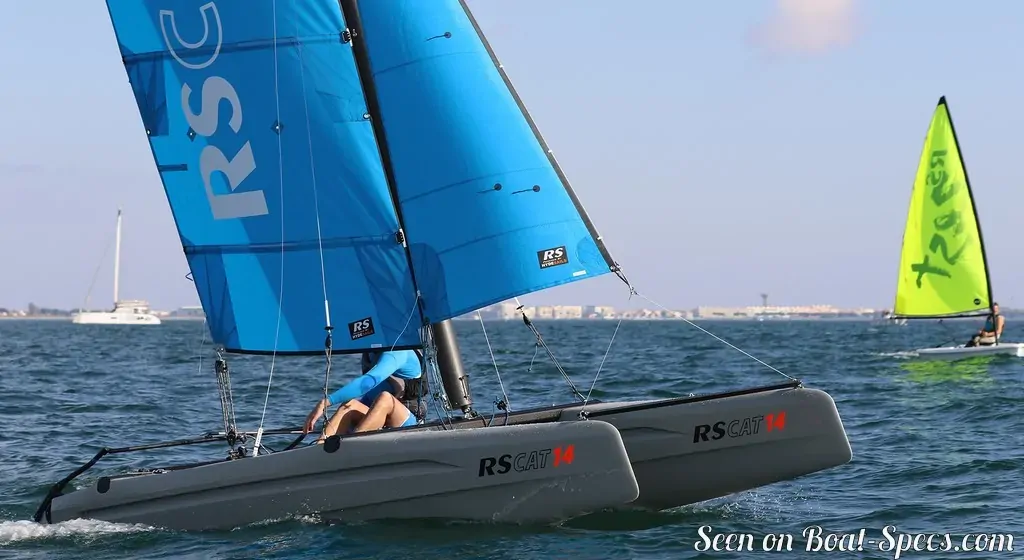

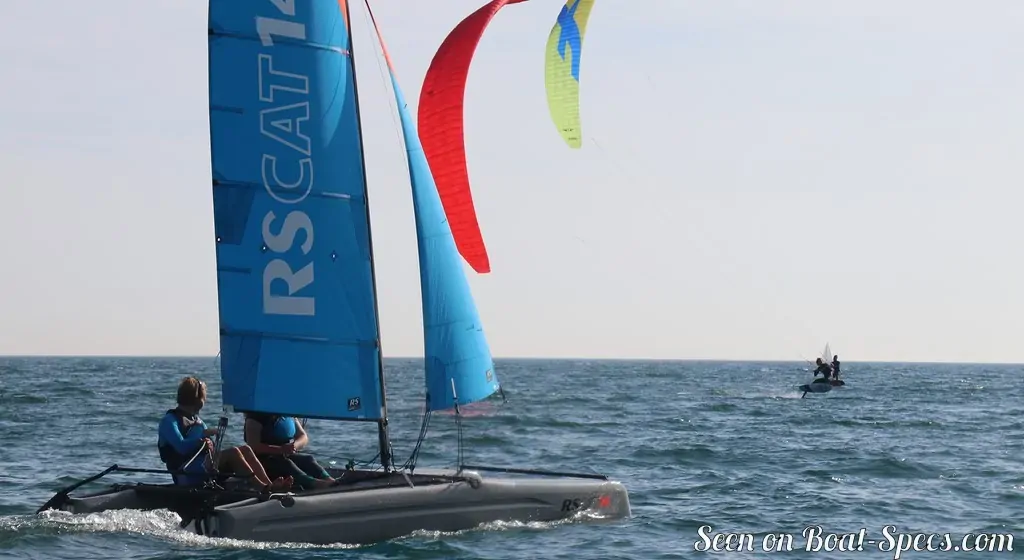

The RS Cat 14 is a 13’11” (4.25m) double handed sport/beach catamaran designed by Jo Richards (United Kingdom) and RS Sailing (United Kingdom). She is built since 2017 by RS Sailing (United Kingdom). The Club version comes with the basic equipment needed to start sailing.

The RS Cat 14 is as well listed, on Boat-Specs.com, in S and XL version (see all the versions compared).

RS Cat 14's main features

Model
RS Cat 14
Version
Club
Hull type
Catamaran
Category
Double handed sport/beach catamaran
Sailboat builder
Sailboat designer
Country
United Kingdom
Construction
Hull and deck: rotomolded
First built hull
2017
Last built hull
Still in production
Appendages
Hull : asymmetric hulls
Helm
Single tiller
Rudder

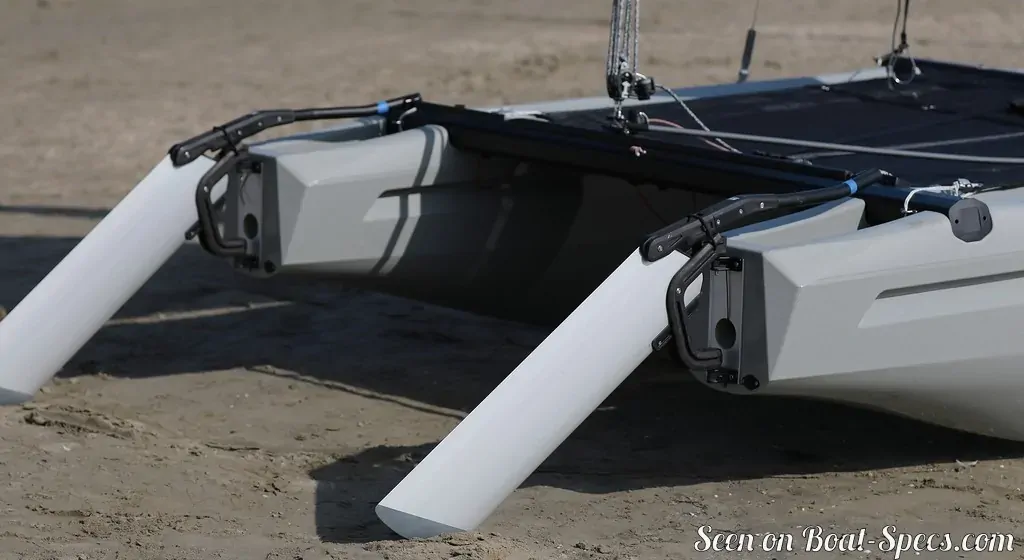

Twin transom hung rudders
Unsinkable
No
Trailerable
Yes
Standard public price ex. VAT (indicative only)
About
6 400
 (2020)

RS Cat 14's main dimensions

Hull length
13’ 11”4.25 m
Beam (width)
7’2.14 m
Light displacement (MLC)
276 lb125 kg

RS Cat 14's rig and sails

Upwind sail area
87 ft²8.1 m²
Mainsail area
87 ft²8.1 m²
Rigging type
Cat boat Marconi
Mast configuration
Fore beam stepped mast
Rotating spars
Yes
Spreaders angle
No spreader
Spars construction
Aluminum mast and no boom
Standing rigging
1x19 strand wire

RS Cat 14's performances

Crew
1 - 2
Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
349 ft²/T32.4 m²/T

RS Cat 14's auxiliary engine

Engine(s)
No engine

RS Cat 14's accommodations and layout

Cockpit
No cockpit
