Nacra 460 School

Sailboat specifications

The Nacra 460 is a 14’10” (4.5m) double handed sport/beach catamaran designed by Performance Catamarans (United States). She is built since 2004 by Nacra (United States). The School version comes with the basic equipment needed to start sailing.

The Nacra 460 is as well listed, on Boat-Specs.com, in Fun and Sport version (see all the versions compared).

Nacra 460's main features

Model
Nacra 460
Version
School
Hull type
Catamaran
Category
Double handed sport/beach catamaran
Sailboat builder
Sailboat designer
Country
United States
Construction
GRP (glass reinforced polyester):
Sandwich foam fiberglass polyester
First built hull
2004
Last built hull
Still in production
Appendages
Skegs : skeg on each hull
Helm
Single tiller
Rudder
Twin transom hung rudders
Unsinkable
No
Trailerable
Yes
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
C
Standard public price ex. VAT (indicative only)
About
11 700
 (2020)

Nacra 460's main dimensions

Hull length
14’ 10”4.5 m
Beam (width)
7’ 8”2.35 m
Light displacement (MLC)
287 lb130 kg

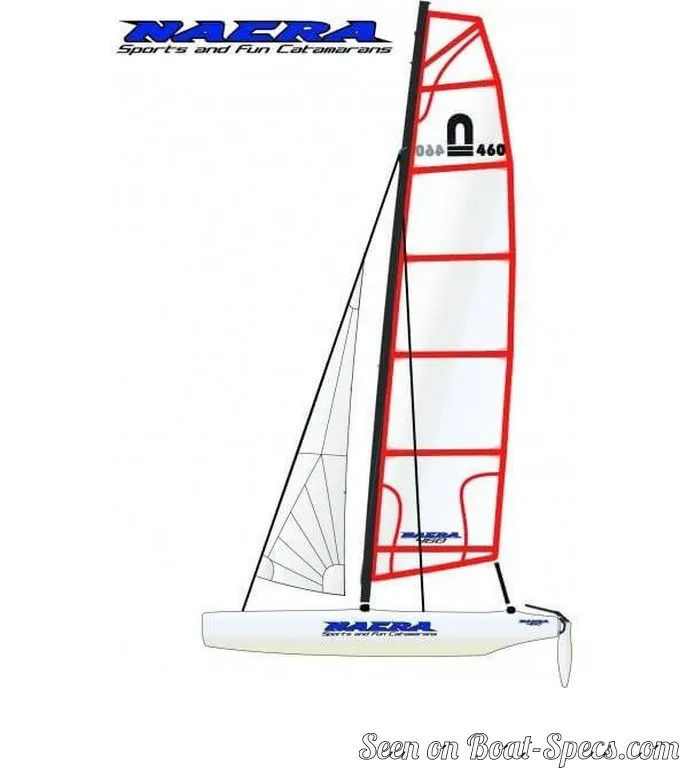

Nacra 460's rig and sails

Upwind sail area
163 ft²15.18 m²
Downwind sail area
294 ft²27.3 m²
Mainsail area
132 ft²12.3 m²
Jib area
31 ft²2.88 m²
Rigging type
Sloop Marconi fractional
Mast configuration
Fore beam stepped mast
Rotating spars
Yes
Spreaders angle
No spreader
Spars construction
Aluminum mast and no boom
Standing rigging
1x19 strand wire

Nacra 460's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
637 ft²/T59.15 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
1145 ft²/T106.38 m²/T

Nacra 460's auxiliary engine

Engine(s)
No engine

Nacra 460's accommodations and layout

Cockpit
No cockpit
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
