Nacra 15

Sailboat specifications

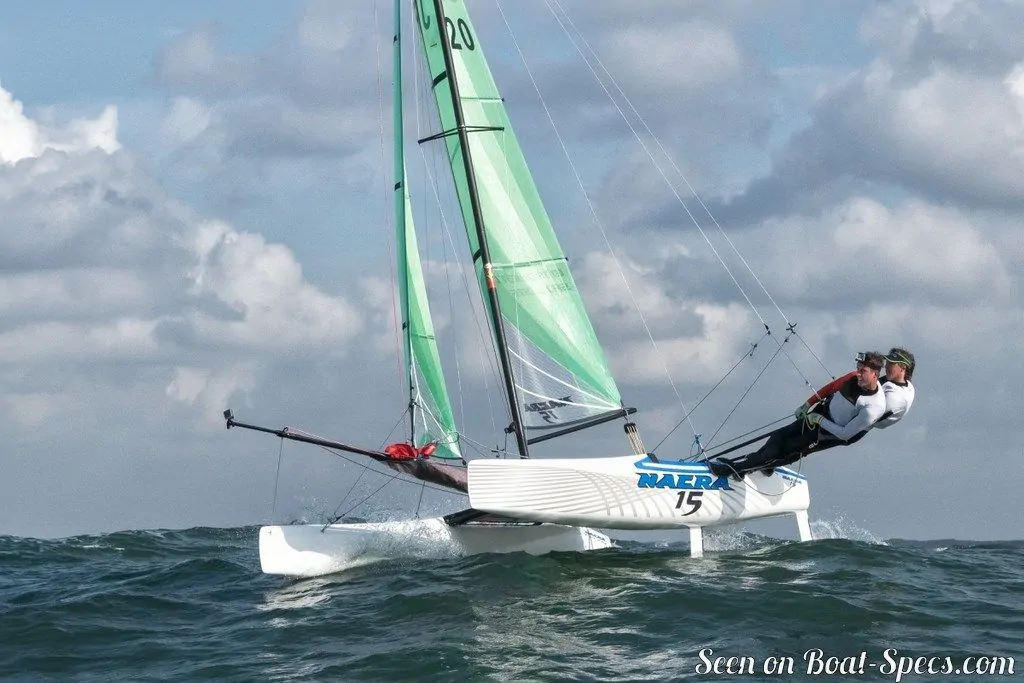

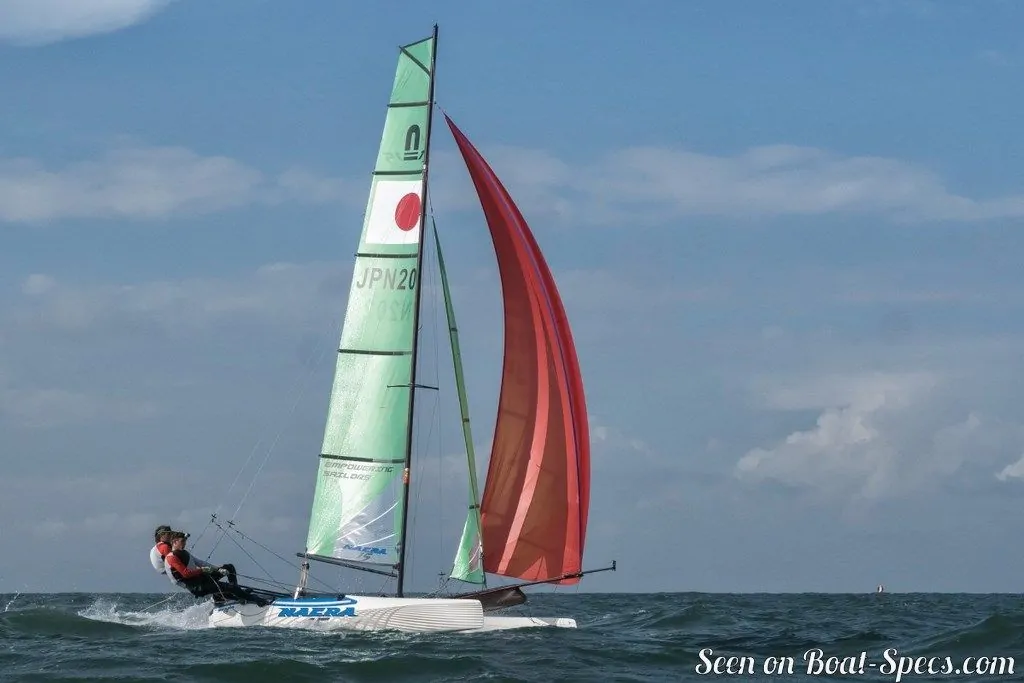

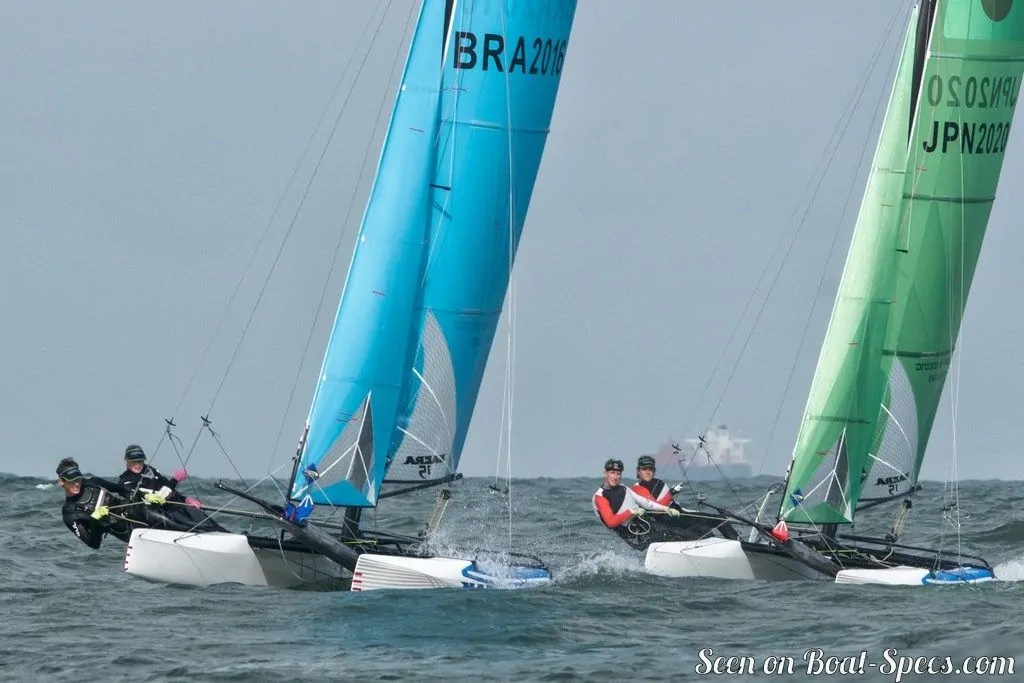

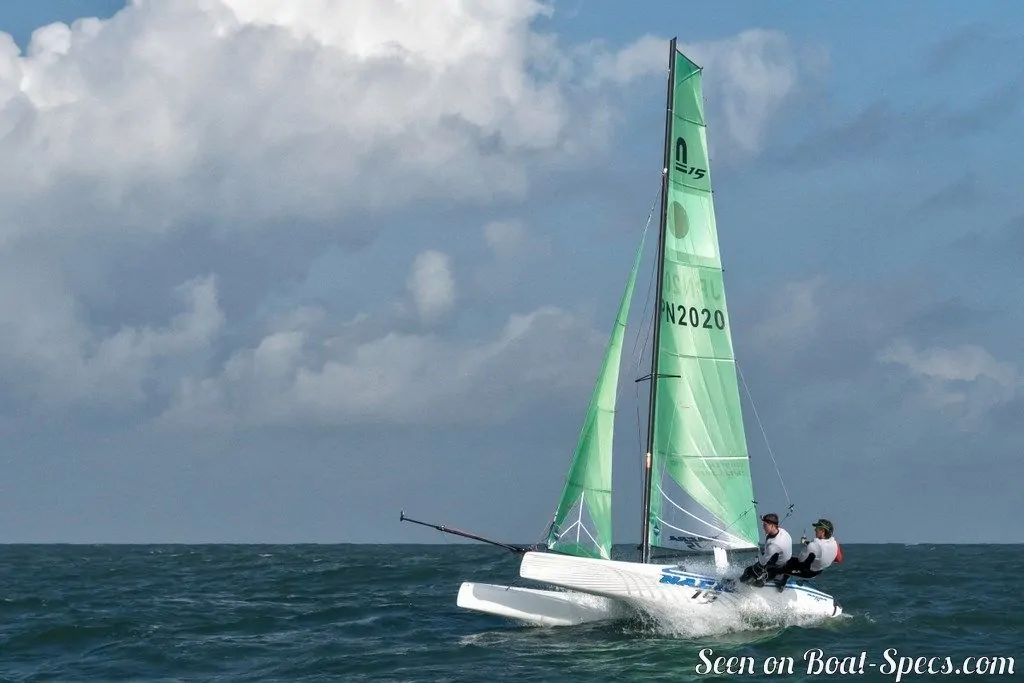

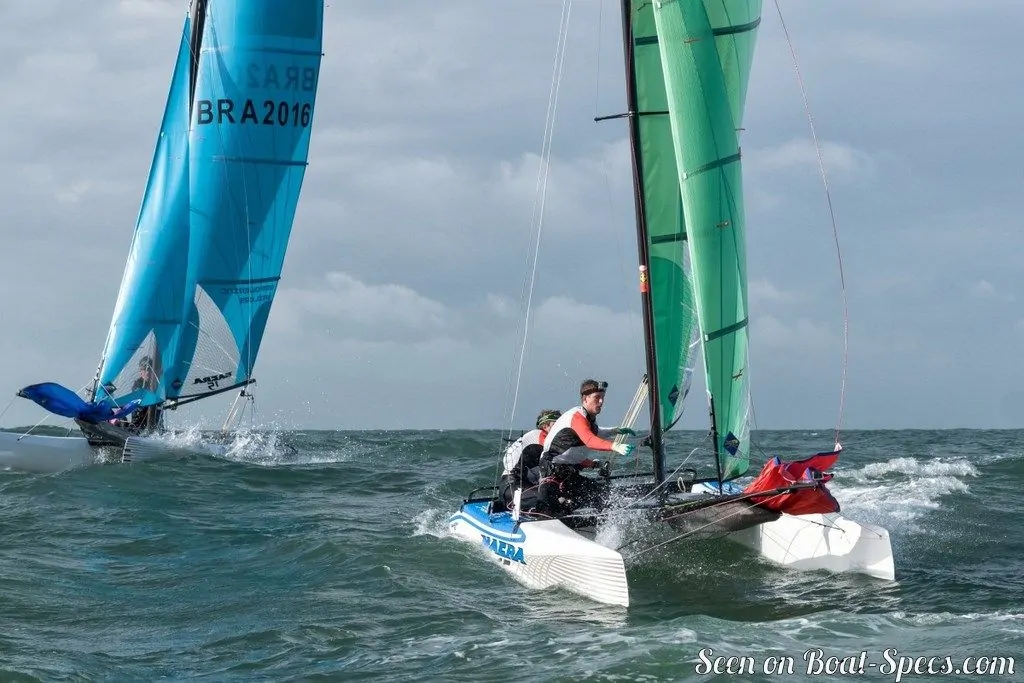

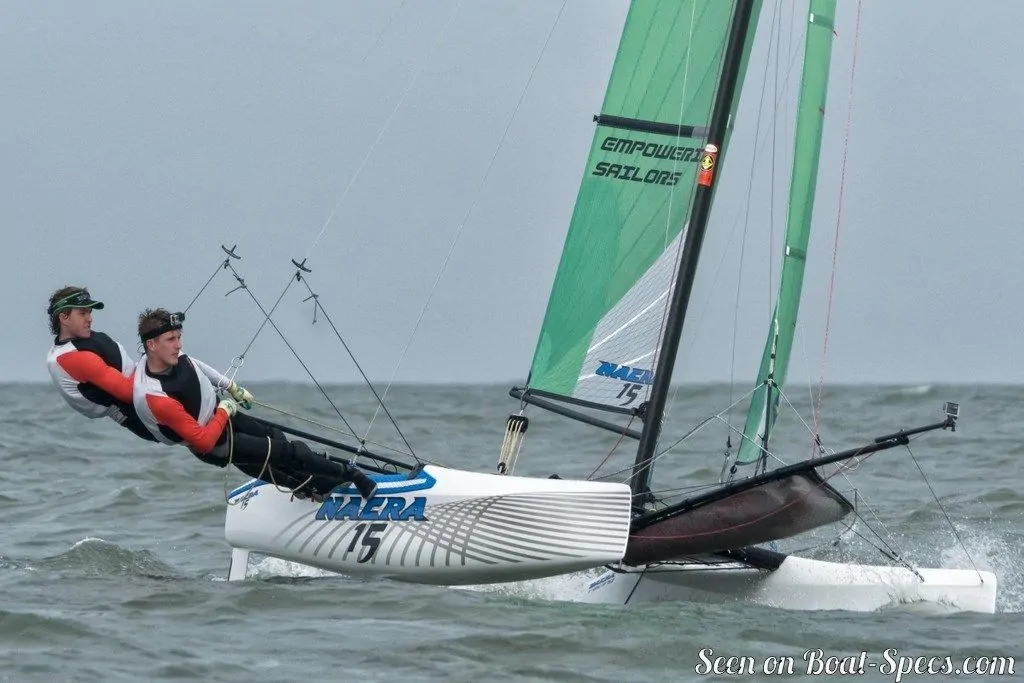

The Nacra 15 is a 15’5” (4.7m) double handed sport/beach catamaran designed by Morrelli & Melvin (United States). She is built since 2015 by Nacra (United States).

Nacra 15's main features

Model
Nacra 15
Hull type
Catamaran
Category
Double handed sport/beach catamaran
Sailboat builder
Sailboat designer
Country
United States
Construction
Hull and deck: GRP (glass reinforced polyester)
First built hull
2015
Last built hull
Still in production
Appendages
Foils : twin C foils
Helm
Single tiller
Rudder
Twin transom hung rudders
Unsinkable
No
Trailerable
Yes
Standard public price ex. VAT (indicative only)
About
16 200
 (2020)

Nacra 15's main dimensions

Hull length
15’ 5”4.7 m
Beam (width)
7’ 8”2.35 m
Draft
3’ 4”1.02 m
Draft when appendages up
0’ 5”0.13 m
Light displacement (MLC)
309 lb140 kg

Nacra 15's rig and sails

Upwind sail area
182 ft²16.9 m²
Downwind sail area
324 ft²30.1 m²
Mainsail area
146 ft²13.6 m²
Jib area
36 ft²3.3 m²
Asymmetric spinnaker area
178 ft²16.5 m²
Rigging type
Sloop Marconi fractional
Mast configuration
Fore beam stepped mast
Rotating spars
Yes
Number of levels of spreaders
1
Spreaders angle
Swept-back (diamond)
Spars construction
Aluminum spars
Standing rigging
1x19 strand wire continuous

Nacra 15's performances

Crew
2
Trapezes
2 set(s)
Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
675 ft²/T62.68 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
1202 ft²/T111.64 m²/T

Nacra 15's auxiliary engine

Engine(s)
No engine

Nacra 15's accommodations and layout

Cockpit
No cockpit
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
