Hunter 36 - 2011 Performance

Sailboat specifications

The Hunter 36 - 2011 is a 34’7” (10.56m) cruising sailboat designed by Glenn Henderson (United States). She was built between 2011 and 2013 by Marlow Hunter (United States). The Performance version offers a deeper keel, longer mast, and larger sail area.

The Hunter 36 - 2011 is as well listed, on Boat-Specs.com, in Shoal draft, Deep draft and Furling mainsail version (see all the versions compared).

Hunter 36 - 2011's main features

Model
Hunter 36 - 2011
Version
Performance
Hull type
Monohull
Category
Cruising sailboat
Sailboat builder
Sailboat designer
Country
United States
Construction
Hull and deck: GRP (glass reinforced polyester)
First built hull
2011
Last built hull
2013
Appendages
Keel : fin without bulb
Helm
Single helm wheel
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
A
Standard public price ex. VAT (indicative only)
N/A

Hunter 36 - 2011's main dimensions

Hull length
34’ 7”10.56 m
Waterline length
31’ 6”9.61 m
Beam (width)
12’ 4”3.76 m
Draft
6’ 6”1.98 m
Mast height from DWL
55’ 2”16.84 m
Light displacement (MLC)
15699 lb7121 kg
Ballast weight
5044 lb2288 kg
Ballast type
Lead

Hunter 36 - 2011's rig and sails

Upwind sail area
856 ft²79.5 m²
I
 iFore triangle height (from mast foot to fore stay top attachment)
44’ 10”13.66 m
J
 iFore triangle base (from mast foot to bottom of forestay)
13’ 2”4.01 m
P
 iMainsail hoist measurement (from tack to head)
44’ 11”13.7 m
E
 iMainsail foot measurement (from tack to clew)
15’4.57 m
Rigging type
Sloop Marconi (square top mainsail) fractional
Mast configuration
Deck stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back (Bergström)
Spars construction
Aluminum spars
Standing rigging
1x19 strand wire

Hunter 36 - 2011's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
231 ft²/T21.48 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
227
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
32 %
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
7.52 knots

Hunter 36 - 2011's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
29 HP
Fuel type
Diesel
Fuel tank capacity
36.5 gal138 liters

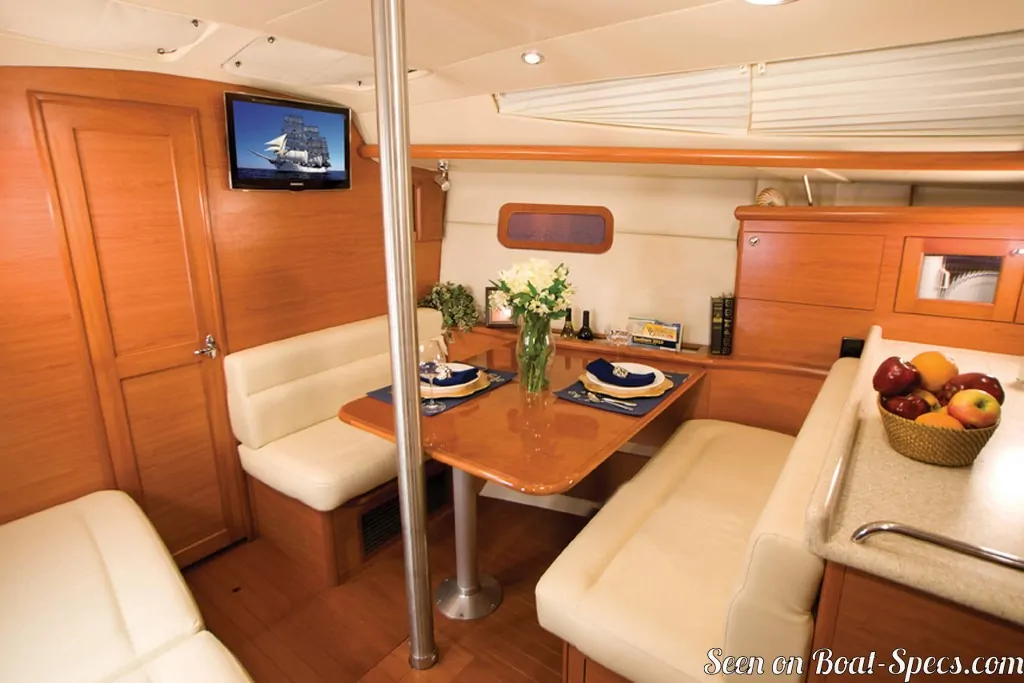

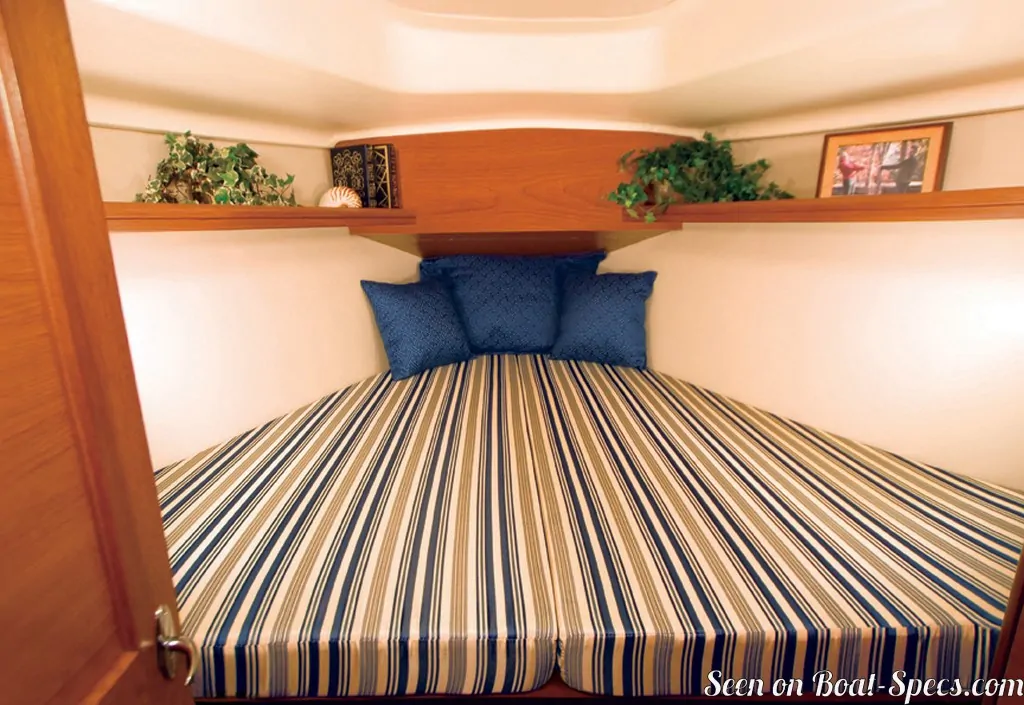

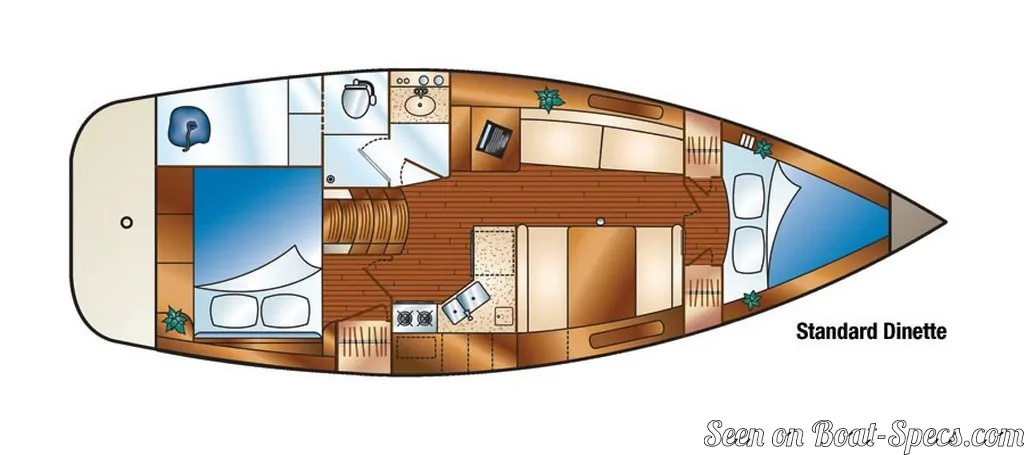

Hunter 36 - 2011's accommodations and layout

Cockpit
Open aft cockpit
Cabin(s)
2
Berth(s) (min./max.)
4 / 7
Head(s)
1
Freshwater tank capacity
75 gal284 liters
Holding tank capacity
19.8 gal75 liters
Boiler capacity
5 gal19 liters
Maximum headroom
6’ 5”1.96 m
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
