J/108

Sailboat specifications

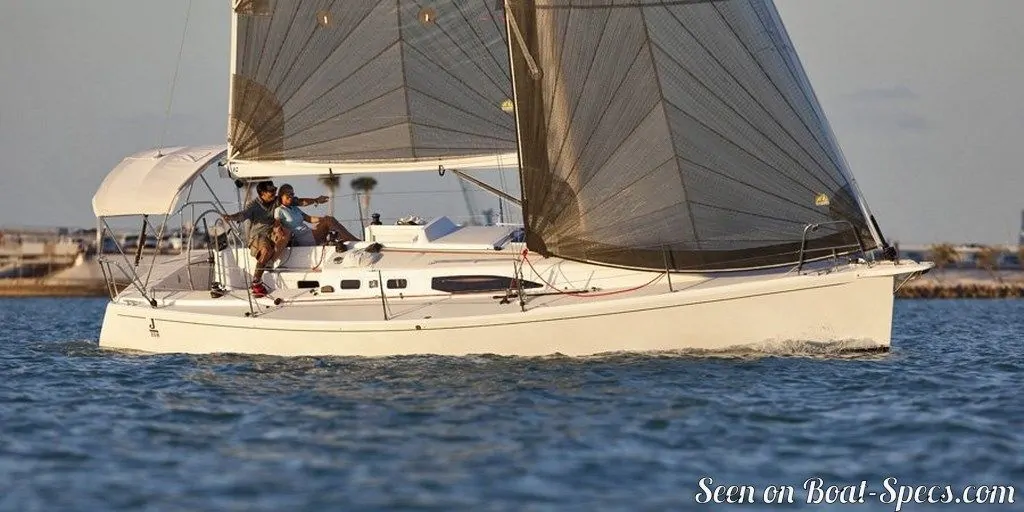

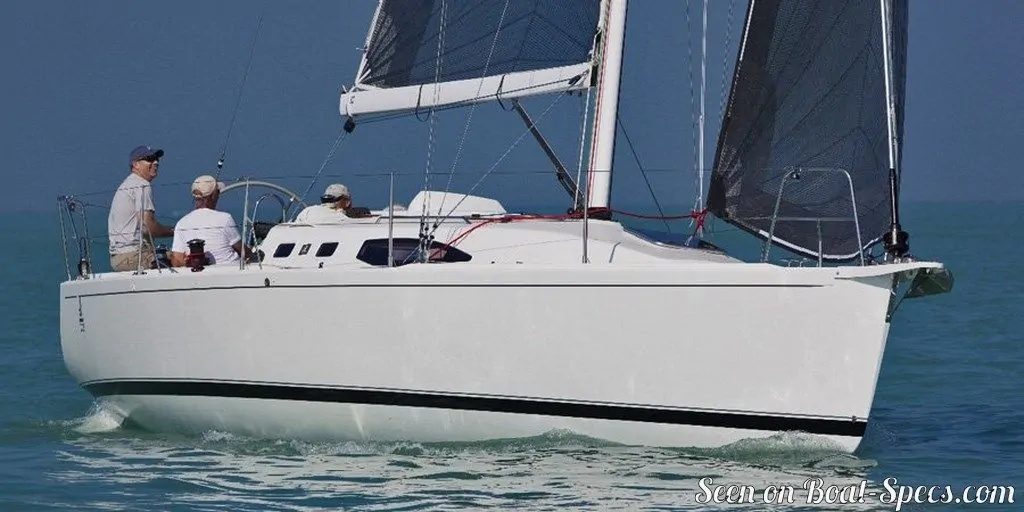

The J/108 is a 35’4” (10.75m) fast cruising sailboat designed by Rod Johnstone (United States). She was built since 2011 (and now discontinued) by J/Boats (United States).

J/108's main features

Model: J/108
Hull type: Monohull
Category: Fast cruising sailboat
Sailboat builder: J/Boats
Sailboat designer: Rod Johnstone
Country: United States
Construction: GRP (glass reinforced polyester):
Sandwich balsa fiberglass vinylester (vacuum infusion)
First built hull: 2011
Last built hull: Discontinued

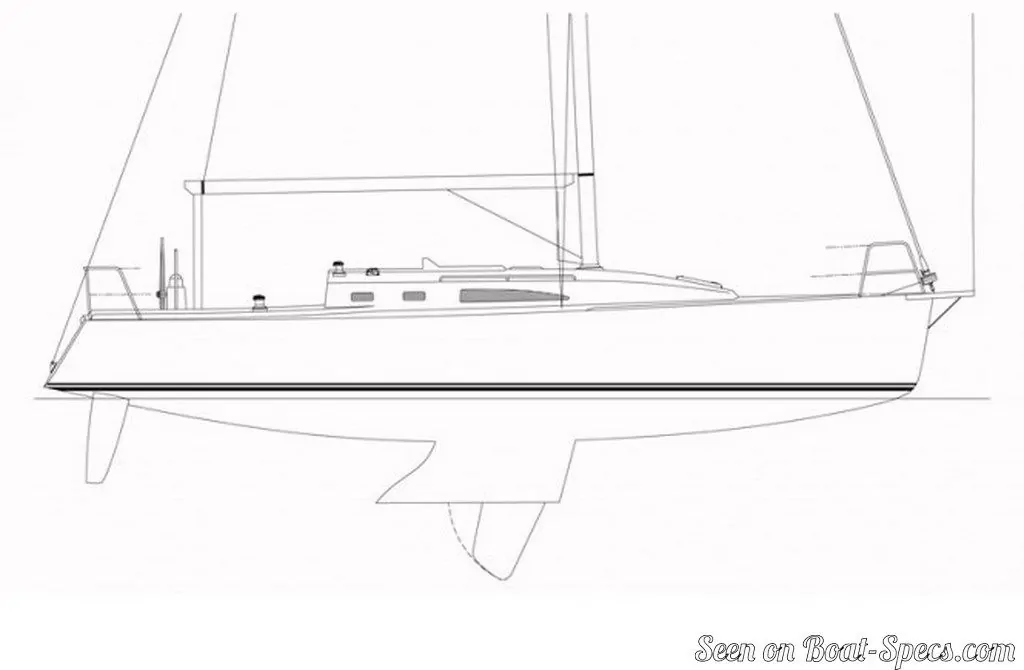

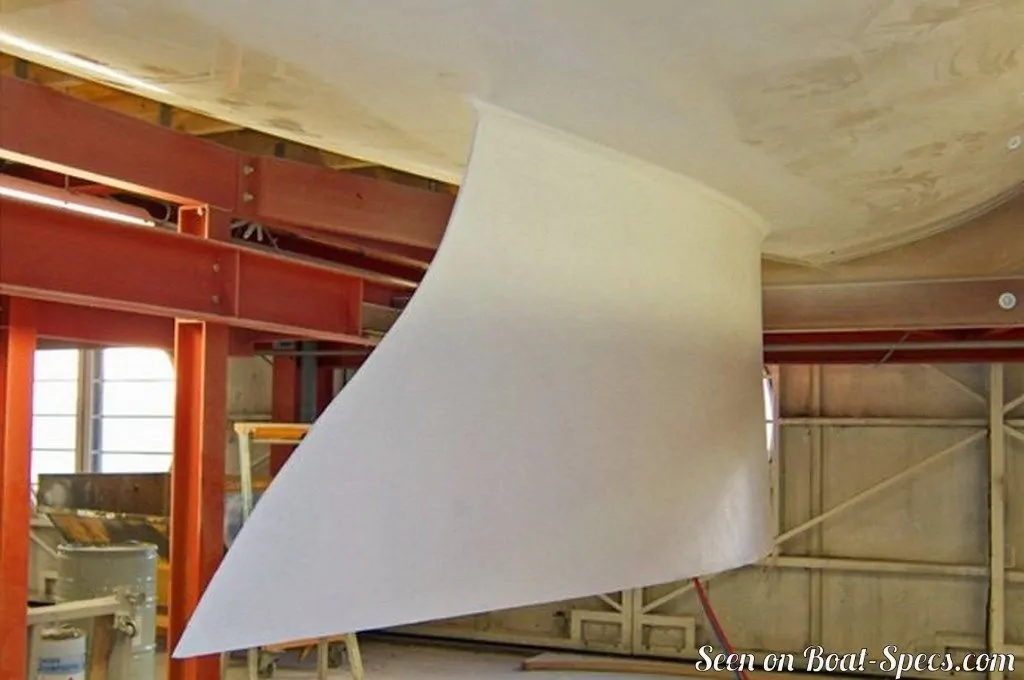

Appendages: Centerboard : pivoting centerboard in the keel
Helm: Single helm wheel
Rudder: Twin spade rudders
Unsinkable: No
Trailerable: No
EC design category iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions) A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m: A
Standard public price ex. VAT (indicative only): N/A €

J/108's main dimensions

Overall length: 36’ 11”11.25 m
Hull length: 35’ 4”10.75 m
Waterline length: 30’ 6”9.3 m
Beam (width): 11’ 6”3.51 m
Draft: 6’ 11”2.1 m
Draft when appendages up: 4’ 1”1.25 m
Light displacement (M_LC): 11420 lb5180 kg
Ballast weight: 4409 lb2000 kg
Ballast type: Cast iron

J/108's rig and sails

Upwind sail area: 578 ft²53.7 m²
Downwind sail area: 1351 ft²125.5 m²
Mainsail area: 307 ft²28.5 m²
Genoa area: 271 ft²25.2 m²
Solent area: 194 ft²18 m²
Stormjib area: 54 ft²5 m²

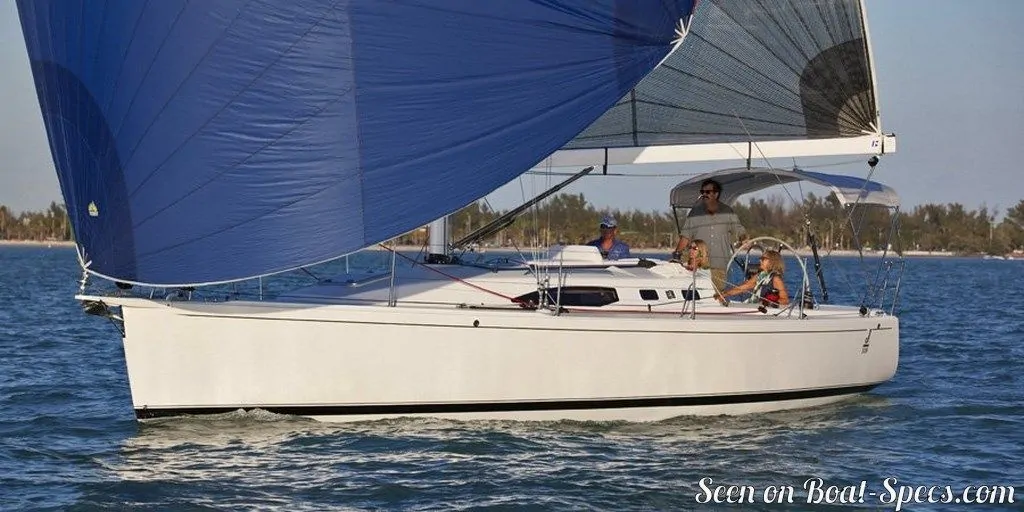

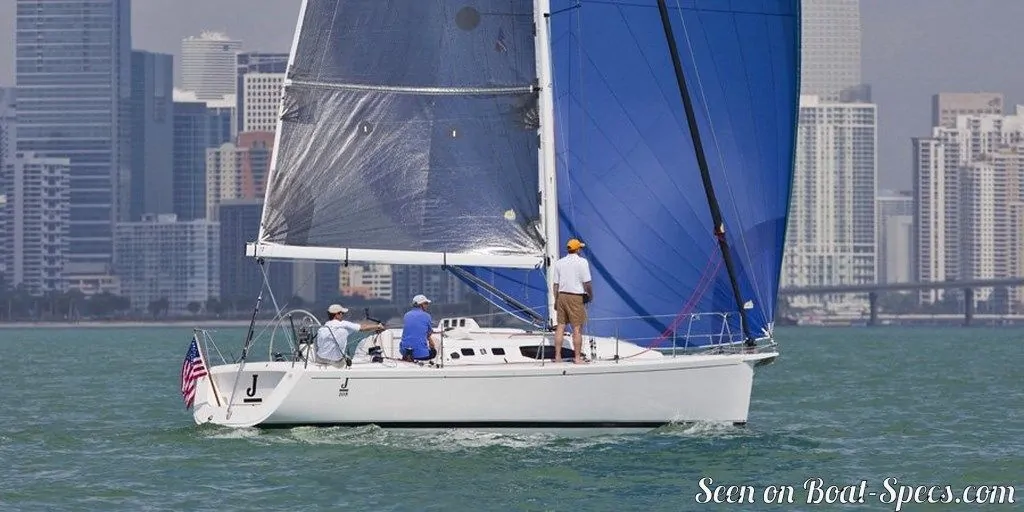

Asymmetric spinnaker area: 1044 ft²97 m²
I iFore triangle height (from mast foot to fore stay top attachment): 44’ 6”13.56 m
J iFore triangle base (from mast foot to bottom of forestay): 13’ 4”4.05 m
P iMainsail hoist measurement (from tack to head): 41’ 5”12.62 m
E iMainsail foot measurement (from tack to clew): 14’ 10”4.52 m
Rigging type: Sloop Marconi fractional
Mast configuration: Keel stepped mast
Rotating spars: No
Number of levels of spreaders: 2
Spreaders angle: Swept-back
Spars construction: Aluminum spars
Standing rigging: Single-strand (ROD)

J/108's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 193 ft²/T17.94 m²/T
Downwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.: 451 ft²/T41.92 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 182
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 39 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 7.40 knots
