Catalina 310 Fin keel
Last update: 25th March 2020

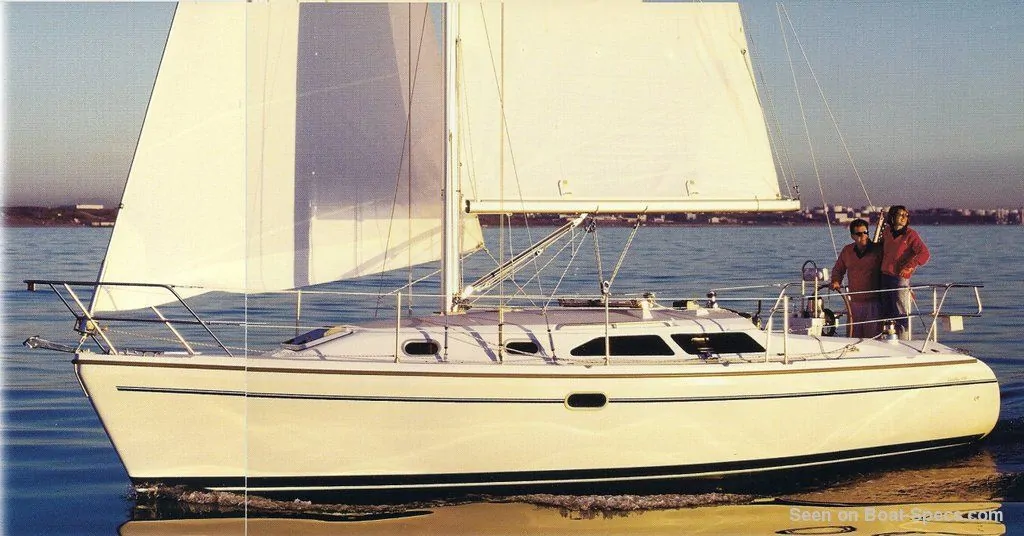

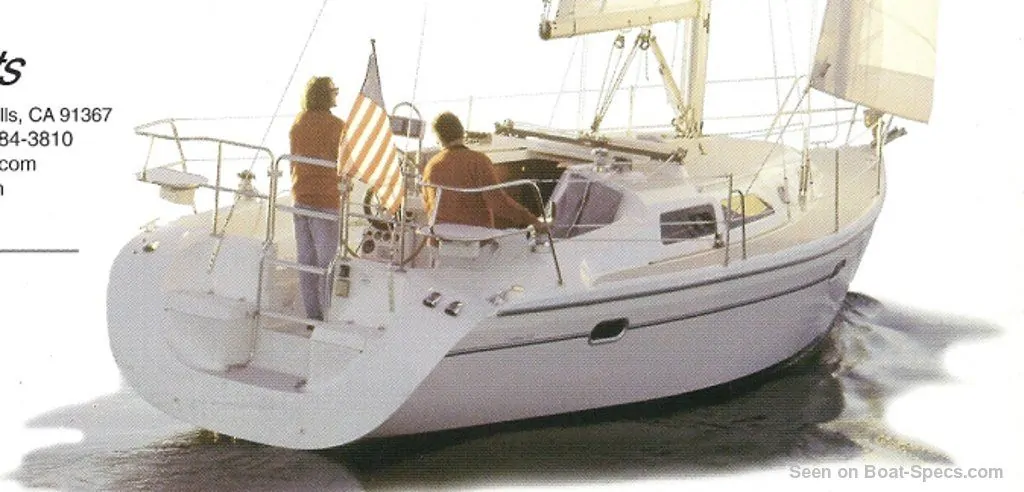

The Catalina 310 is a 31’1” (9.49m) cruising sailboat designed by Gerry Douglas (United States). She was built between 1999 and 2012 by Catalina Yachts (United States). The Fin keel version offers a deeper L-shaped keel bringing extra performance especially upwind. She has been awarded "2000 - Cruising World - Boat of the Year: Pocket Cruiser ".
2000: Cruising World - Boat of the Year: Pocket Cruiser
Keel : L-shaped keel (with bulb)
Single helm wheel
Single spade rudder
EC design category
iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m B: Wind < force 8, Waves < 8m C: Wind < force 6, Waves < 4m D: Wind < force 4, Waves < 0,5m
Standard public price ex. VAT (indicative only)
Catalina 310's main dimensions
31’ 1”9.49 m
26’ 6”8.08 m
11’ 6”3.51 m
5’ 8”1.75 m
Light displacement (MLC)
10701 lb4854 kg
4400 lb1996 kg

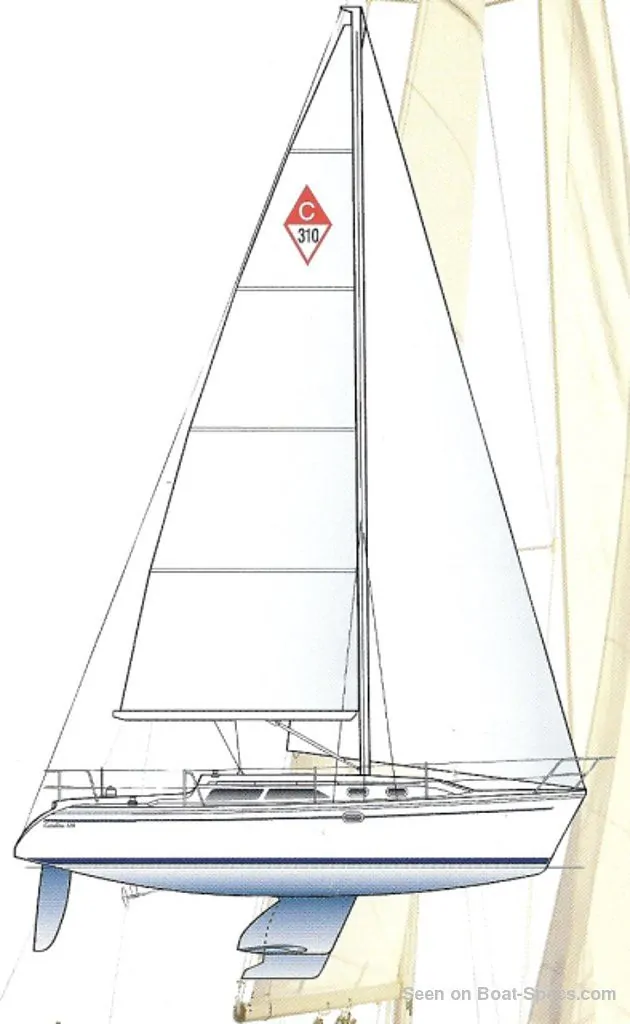

Catalina 310's rig and sails
Upwind sail area
490 ft²45.52 m²
Sloop Marconi masthead
Keel stepped mast
Number of levels of spreaders
1x19 strand wire
Catalina 310's performances
Upwind sail area to displacement
iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
171 ft²/T15.88 m²/T
Displacement-length ratio (DLR)
iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability.
Critical hull speed
iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
