Catalina 275 Sport Wing keel

Sailboat specifications

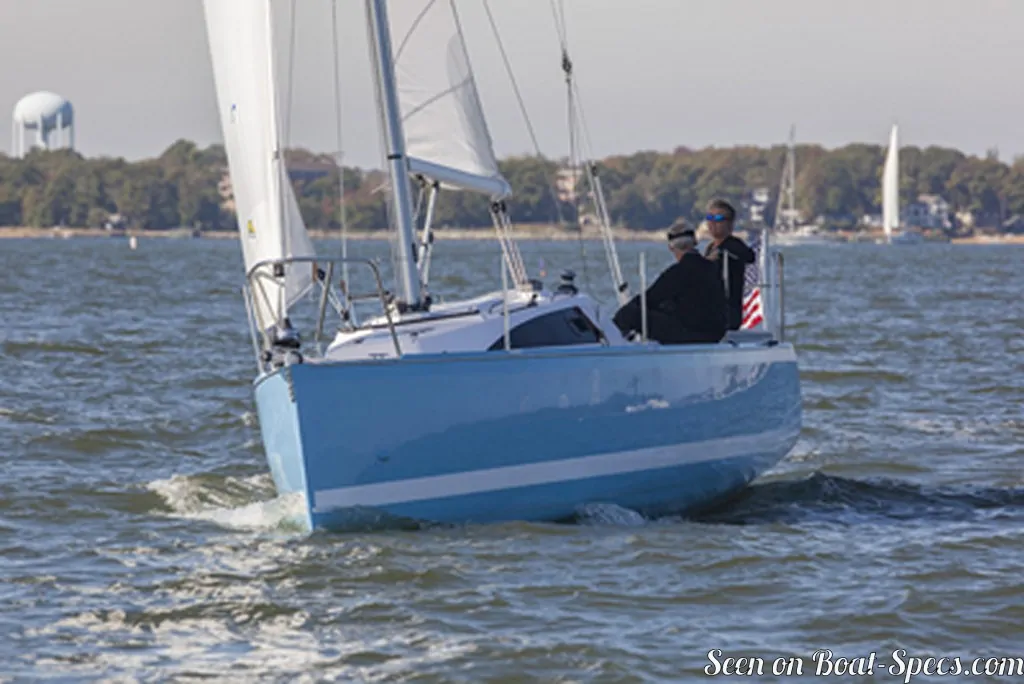

The Catalina 275 Sport is a 27’6” (8.38m) dayboat designed by Gerry Douglas (United States). She is built since 2013 by Catalina Yachts (United States). The Wing keel version is offered with a short keel fitted with large winglets. This configuration provides an interesting draft / low center of gravity / upwind performance trade-off. She has been awarded "2014 - Cruising World - Boat of the Year: Pocket Cruiser ".

The Catalina 275 Sport is as well listed, on, in Fin keel version (see all the versions compared).

Catalina 275 Sport's main features

Catalina 275 Sport
Wing keel
Hull type
Sailboat builder
Sailboat designer
United States
Hull and deck: GRP (glass reinforced polyester)
First built hull
Last built hull
Still in production
  • 2014: Cruising World - Boat of the Year: Pocket Cruiser
    Keel : wing keel
    Single tiller
    Single spade rudder
    Standard public price ex. VAT (indicative only)

    Catalina 275 Sport's main dimensions

    Overall length
    27’ 6”8.38 m
    Hull length
    27’ 6”8.38 m
    Waterline length
    26’ 7”8.1 m
    Beam (width)
    8’ 6”2.59 m
    3’ 7”1.11 m
    Mast height from DWL
    39’11.89 m
    Light displacement (MLC)
    5170 lb2345 kg
    Ballast weight
    2200 lb998 kg
    Ballast type
    Cast iron

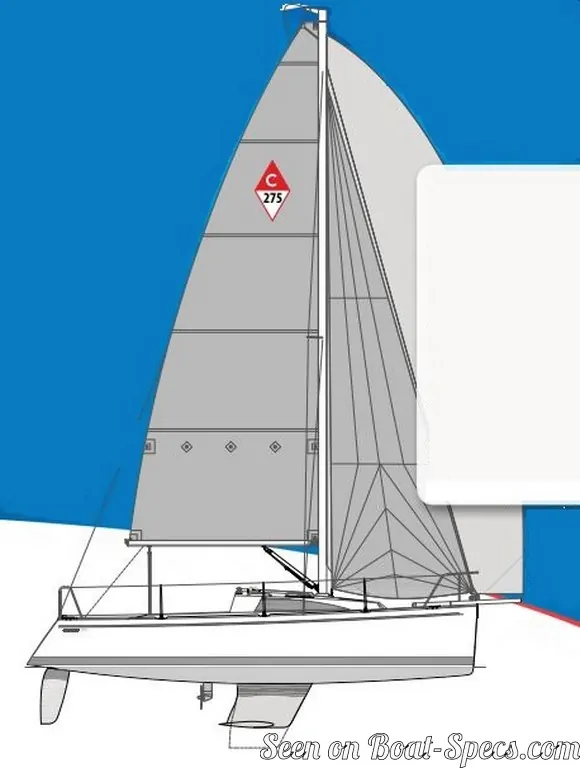

    Catalina 275 Sport's rig and sails

    Upwind sail area
    380 ft²35.3 m²
     iFore triangle height (from mast foot to fore stay top attachment)
    34’ 5”10.49 m
     iFore triangle base (from mast foot to bottom of forestay)
    9’2.74 m
     iMainsail hoist measurement (from tack to head)
    31’ 6”9.6 m
     iMainsail foot measurement (from tack to clew)
    11’ 6”3.5 m
    Rigging type
    Sloop Marconi 9/10
    Mast configuration
    Deck stepped mast
    Rotating spars
    Number of levels of spreaders
    Spreaders angle
    Spars construction
    Aluminum spars
    Standing rigging
    1x19 strand wire continuous

    Catalina 275 Sport's performances

    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    215 ft²/T20 m²/T
    Displacement-length ratio (DLR)
     iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
    The DLR can be used to compare the relative mass of different sailboats no matter what their length:

    a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
    Ballast ratio
     iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

    The higher the ballast ratio is, the greater is the stability.
    43 %
    Critical hull speed
     iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
    The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
    6.91 knots

    Catalina 275 Sport's auxiliary engine

    1 inboard engine
    Engine(s) power
    15 HP
    Fuel type

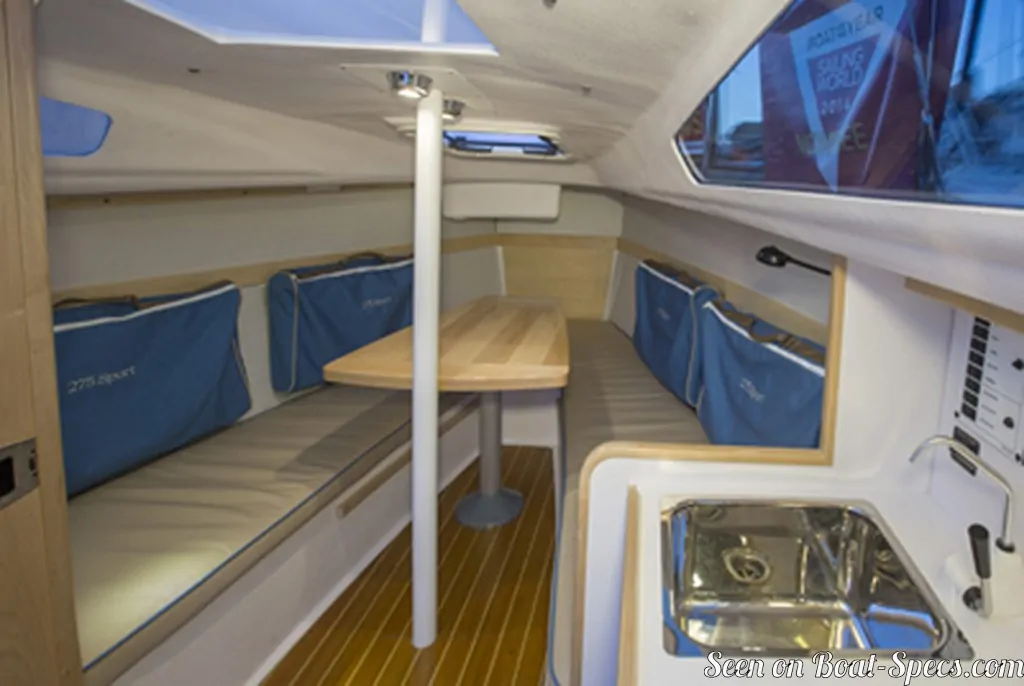

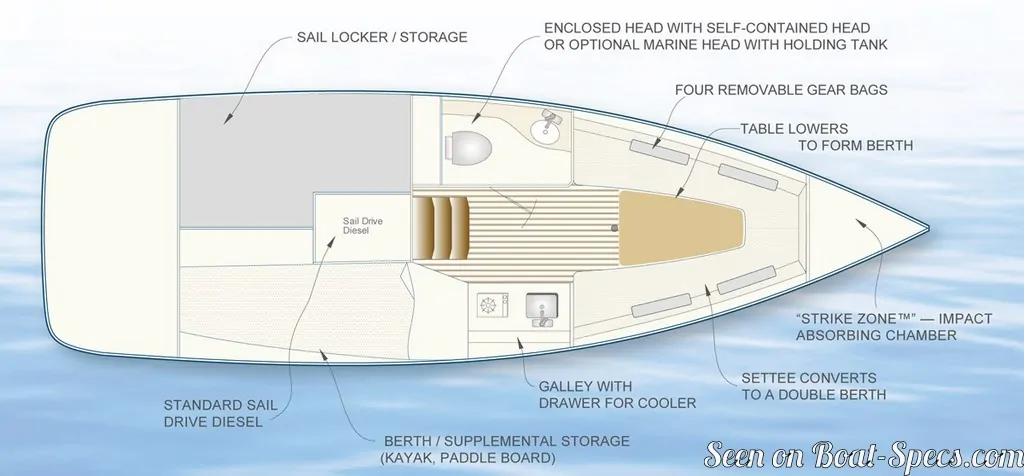

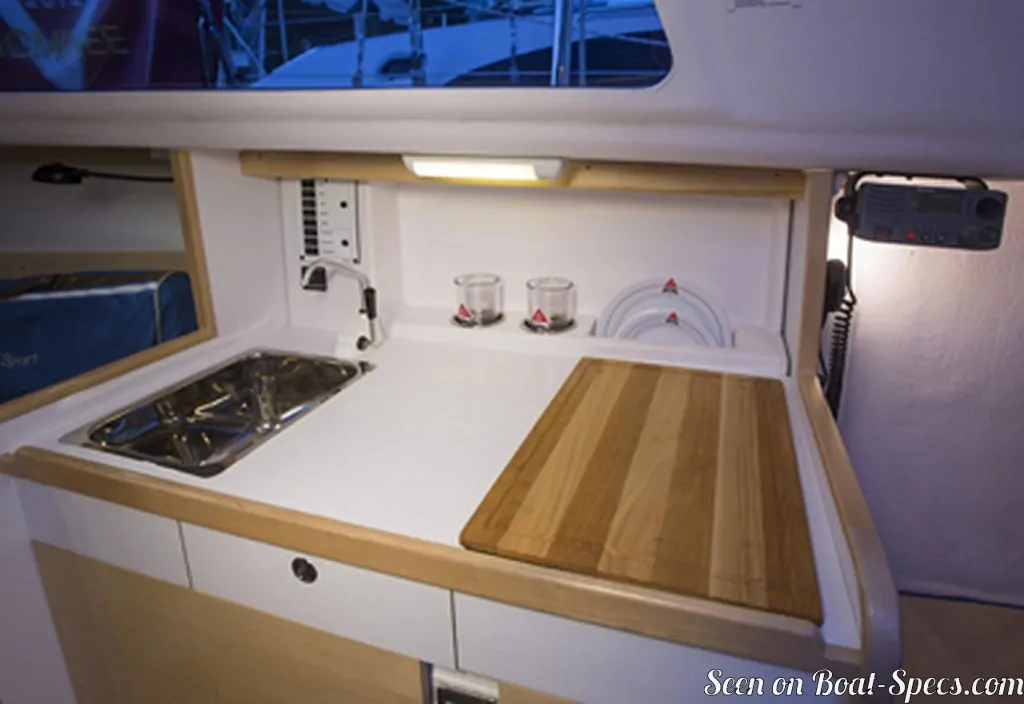

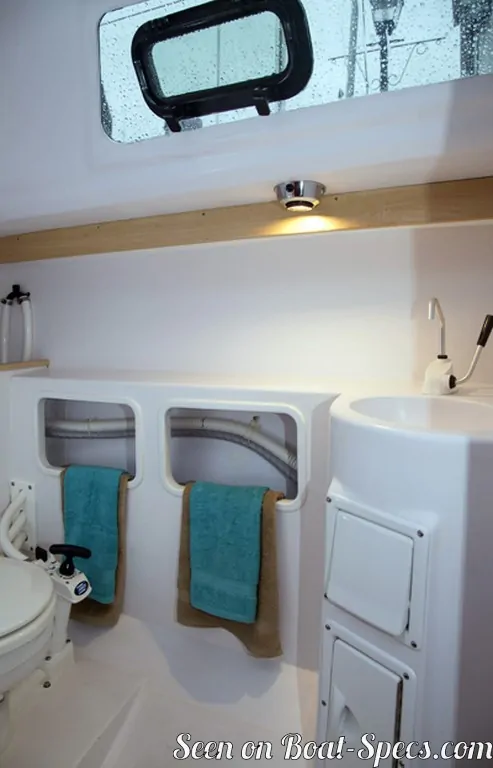

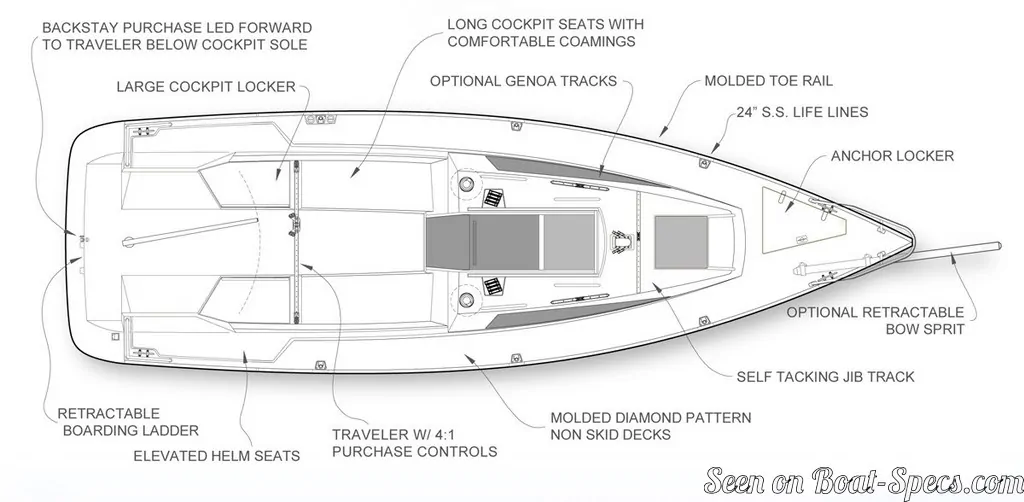

    Catalina 275 Sport's accommodations and layout

    Open aft cockpit
    Berth(s) (min./max.)
    1 / 3
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
