Tiwal 3

Sailboat specifications

The Tiwal 3 is a 10’6” (3.2m) dinghy designed by Marion Excoffon (France). She is built since 2013 by Tiwal (France). She has been awarded "2014 - Sailing World - Boat of the Year: Best Innovation".

Tiwal 3's main features

Model
Tiwal 3

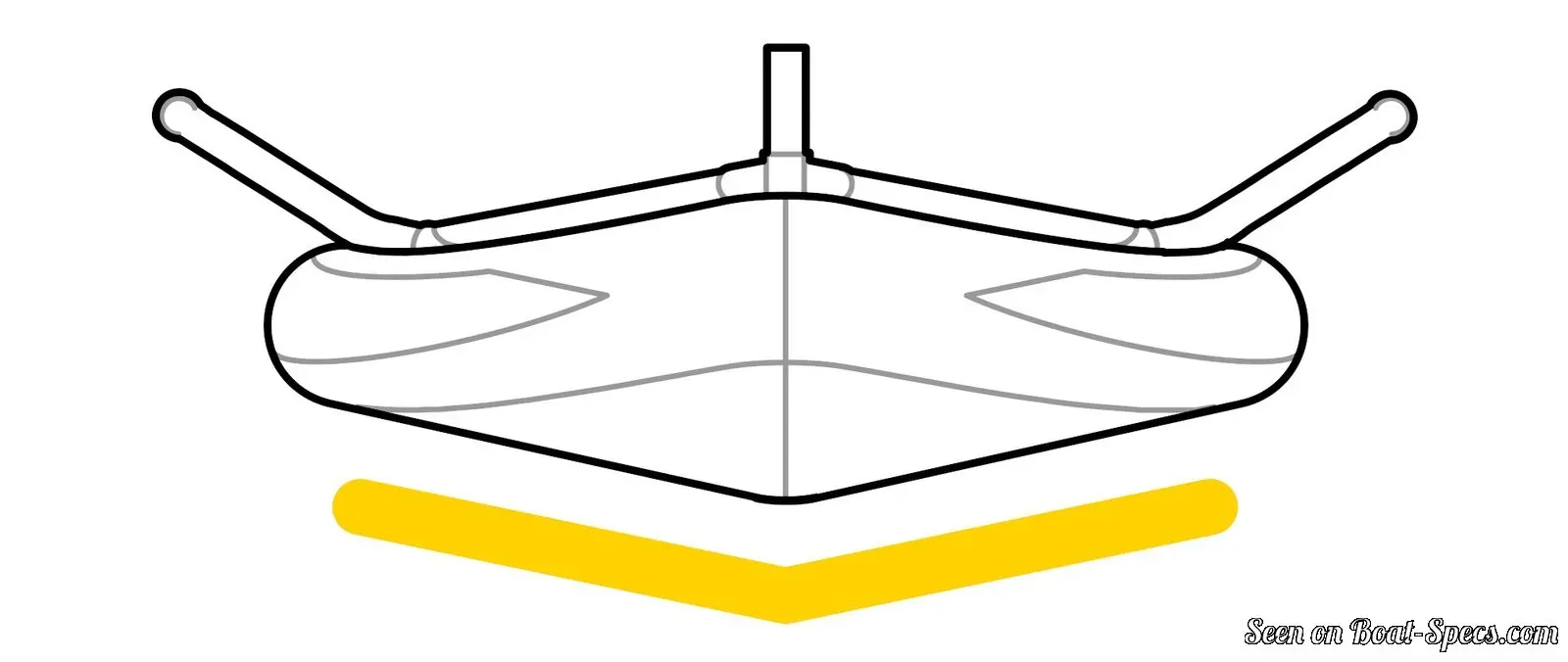

Hull type
Monohull
Category
Dinghy
Sailboat builder
Sailboat designer
Country
France
Construction

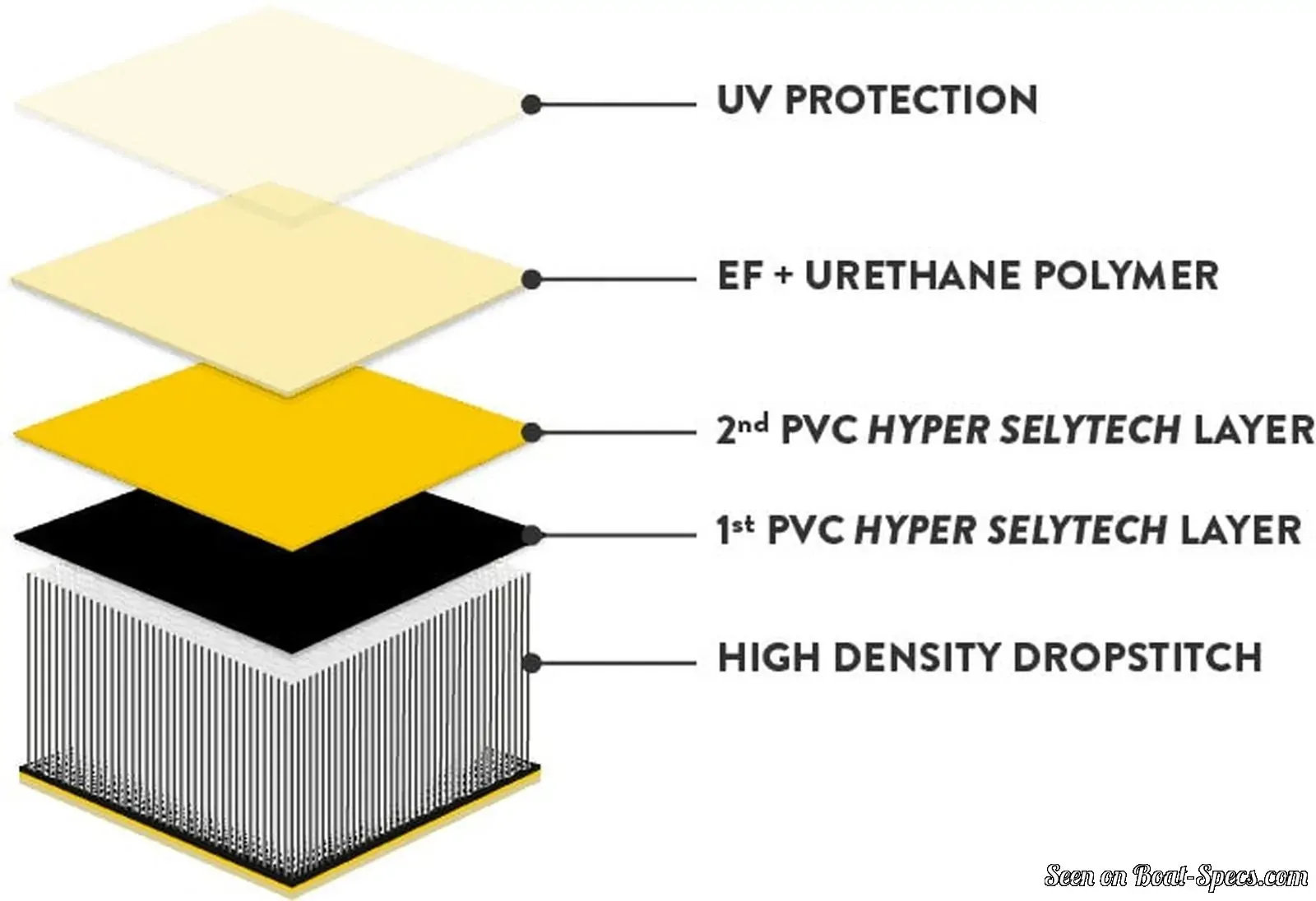

Hull and deck: inflatable 3D textile hull
First built hull
2013
Last built hull
Still in production
Award(s)
  • 2014: Sailing World - Boat of the Year: Best Innovation
    Appendages
    Centerboard : daggerboard
    Helm
    Single tiller
    Rudder
    Single transom hung rudder
    Unsinkable
    No
    Trailerable
    Yes
    EC design category
     iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

    A: Wind < force 9, Waves < 10m
    B: Wind < force 8, Waves < 8m
    C: Wind < force 6, Waves < 4m
    D: Wind < force 4, Waves < 0,5m
    D
    Standard public price ex. VAT (indicative only)
    About
    4 600
     (2020)

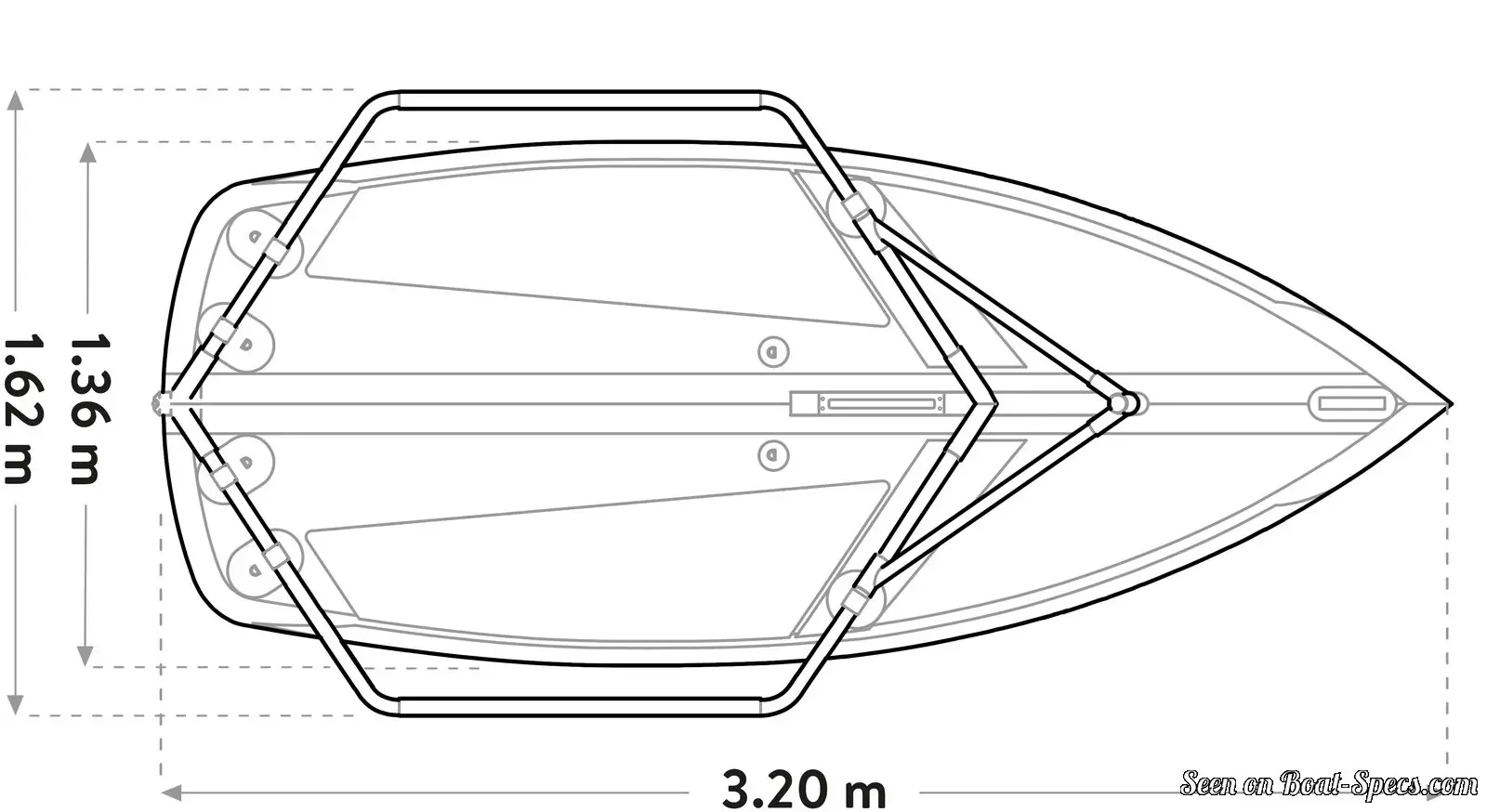

    Tiwal 3's main dimensions

    Hull length
    10’ 6”3.2 m
    Beam (width)
    5’ 4”1.62 m
    Draft
    2’ 6”0.75 m
    Draft when appendages up
    0’ 2”0.05 m

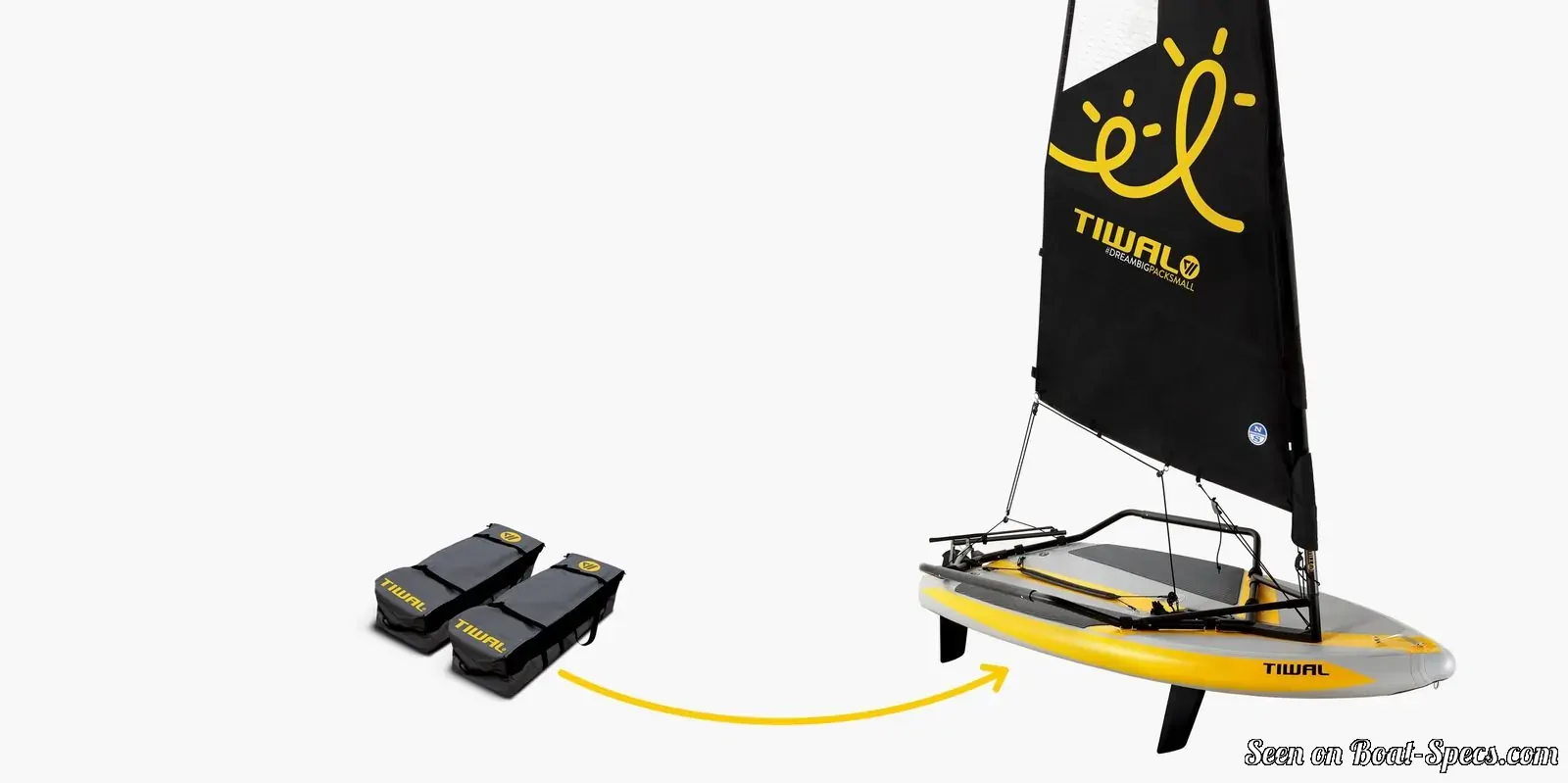

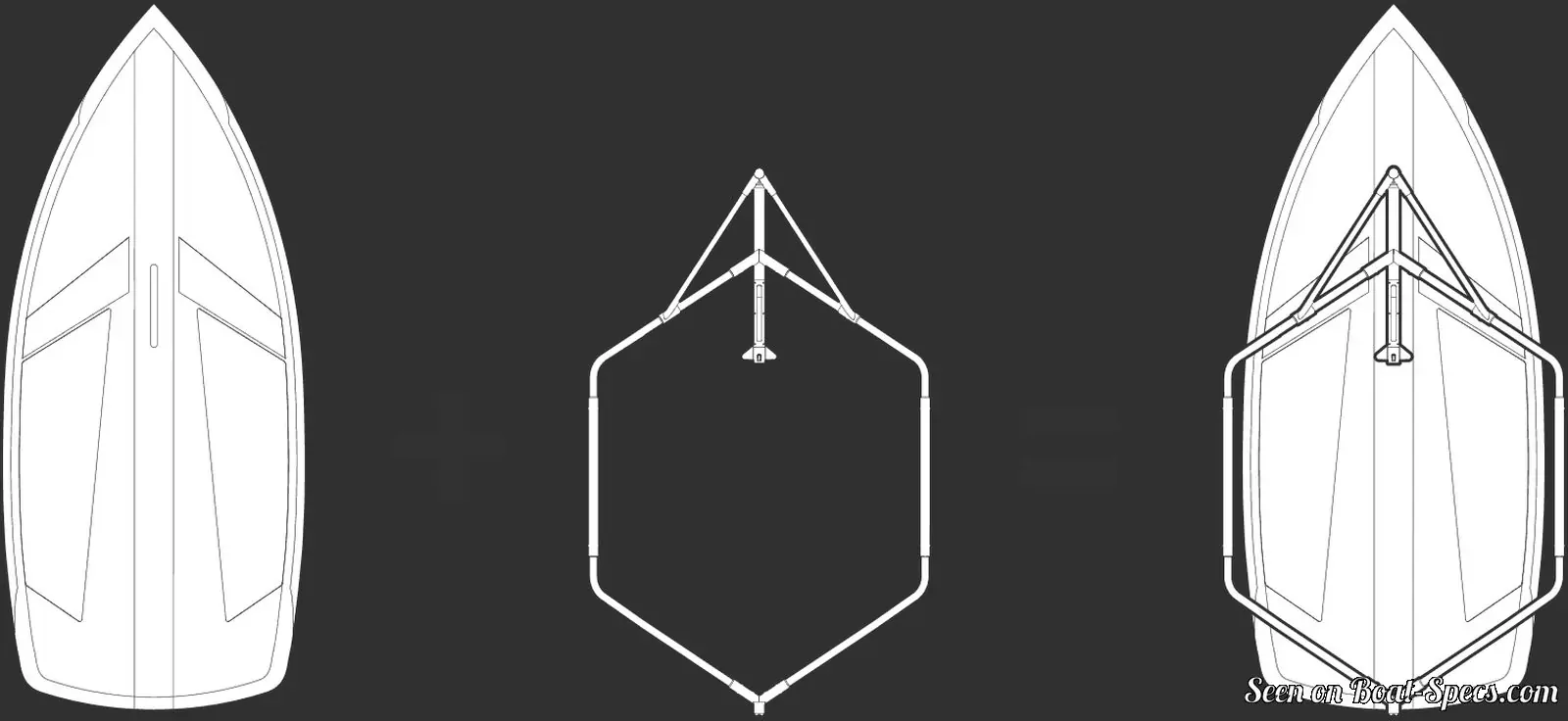

    Folding type
    Dismountable

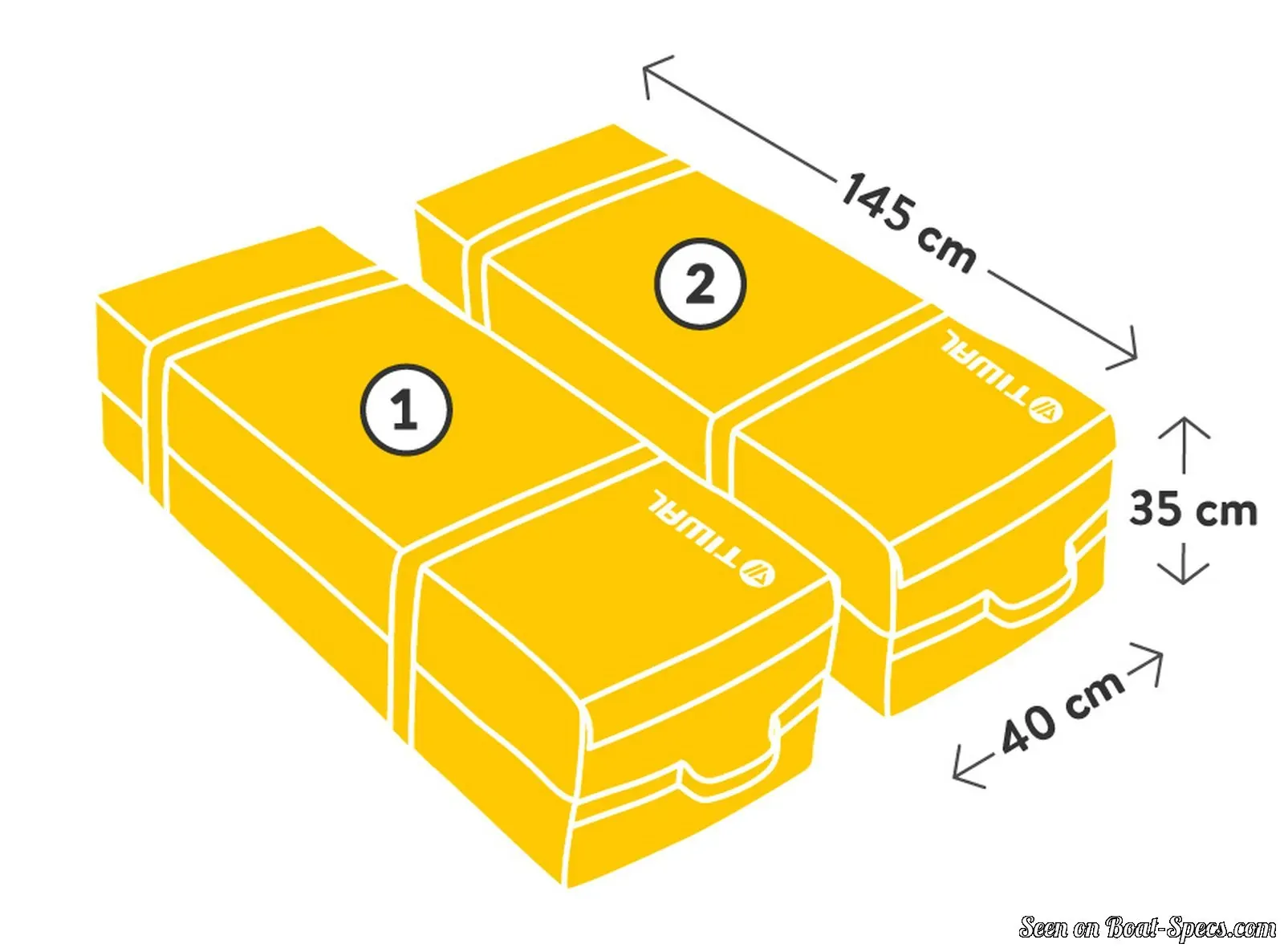

    Overall width folded
    4’ 10”1.45 m
    Overall length folded
    2’ 4”0.7 m
    Light displacement (MLC)
    110 lb50 kg
    Capacity
    441 lb200 kg

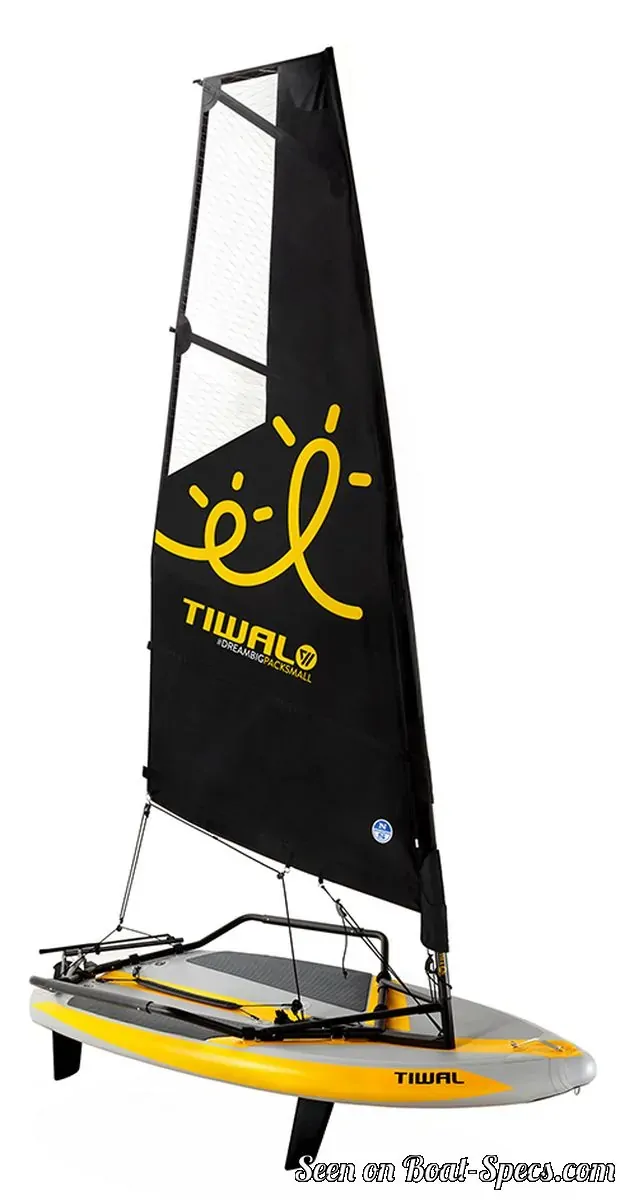

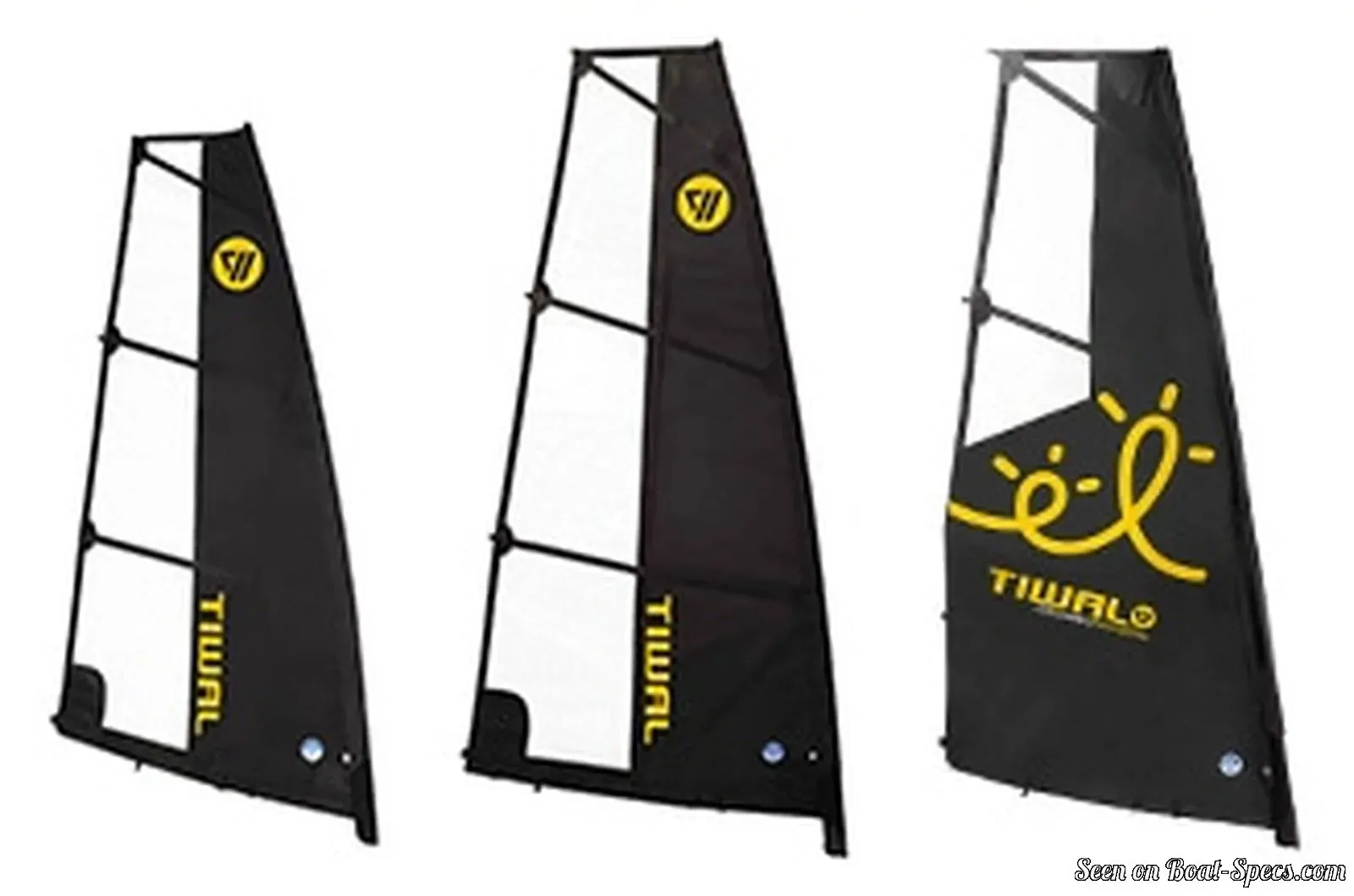

    Tiwal 3's rig and sails

    Upwind sail area
    75 ft²7 m²
    Mainsail area
    75 ft²7 m²
    Rigging type
    Cat boat Marconi (square top mainsail)
    Mast configuration
    Mast foot integrated on deck
    Rotating spars
    No
    Spreaders angle
    No spreader
    Spars construction
    Carbon fiber spars

    Tiwal 3's performances

    Crew
    1 - 2 (max 200kg)
    Upwind sail area to displacement
     iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

    The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

    Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
    555 ft²/T51.58 m²/T

    Tiwal 3's auxiliary engine

    Engine(s)
    No engine

    Tiwal 3's accommodations and layout

    Cockpit
    Aft cockpit with racks
    Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
