Moody 52 Deep draft

Sailboat specifications

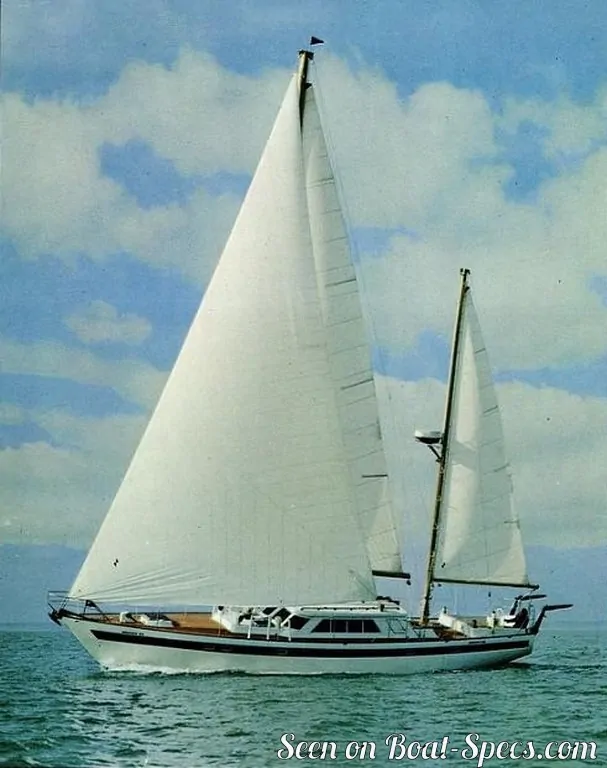

The Moody 52 is a 52’ (15.86m) cruising sailboat designed by John Laurent Giles (United Kingdom). She was built between 1976 and 1983 by Moody (United Kingdom) with 7 hulls completed. The Deep draft version displays a deeper fin allowing a lower center of gravity and extra performance especially upwind.

The Moody 52 is as well listed, on Boat-Specs.com, in Standard version (see all the versions compared).

Moody 52's main features

Model: Moody 52
Version: Deep draft
Hull type: Monohull
Category: Offshore deck saloon cruising sailboat
Sailboat builder: Moody
Sailboat designer: John Laurent Giles
Country: United Kingdom
Construction: Hull and deck: GRP (glass reinforced polyester)
Number of hulls built: 7
First built hull: 1976
Last built hull: 1983
Appendages: Keel : semi-full keel
Helm: Single helm wheel
Rudder: Single rudder on skeg
Unsinkable: No
Trailerable: No
Former French navigation category: 1
Standard public price ex. VAT (indicative only): N/A €

Moody 52's main dimensions

Hull length: 52’15.86 m
Waterline length: 39’11.89 m
Beam (width): 14’ 2”4.32 m
Draft: 7’ 5”2.26 m
Light displacement (M_LC): 43211 lb19600 kg
Ballast weight: 17284 lb7840 kg

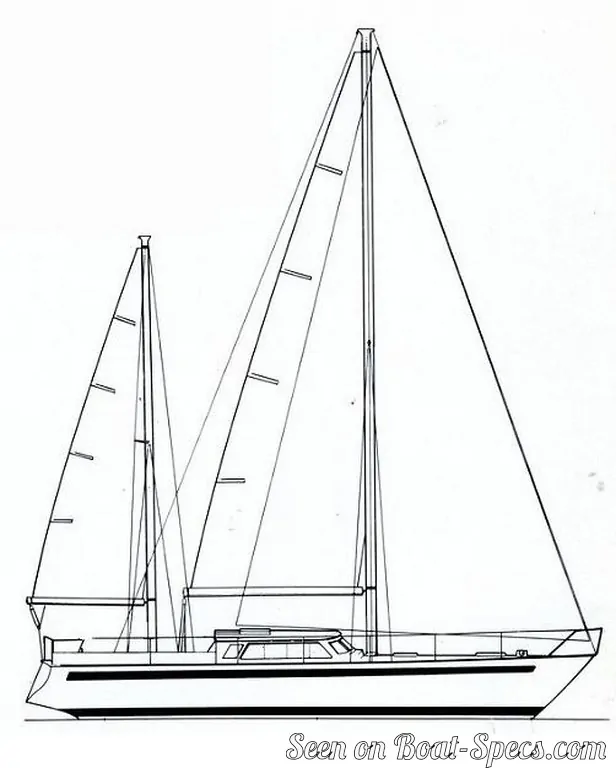

Moody 52's rig and sails

Upwind sail area: 1124 ft²104.4 m²
Mainsail area: 398 ft²37 m²
Mizzen sail area: 170 ft²15.8 m²
Genoa area: 555 ft²51.6 m²
Rigging type: Ketch Marconi masthead
Mast configuration: Deck stepped mast
Rotating spars: No
Number of levels of spreaders: 1
Spreaders angle: 0 °
Spars construction: Aluminum spars
Standing rigging: 1x19 strand wire continuous

Moody 52's performances

Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds. The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.: 155 ft²/T14.36 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet). The DLR can be used to compare the relative mass of different sailboats no matter what their length: a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.: 330
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared. The higher the ballast ratio is, the greater is the stability.: 40 %
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed". The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.: 8.37 knots
