Sun Odyssey 419 Shoal draft

Sailboat specifications

The Sun Odyssey 419 is a 39’4” (11.98m) cruising sailboat designed by Philippe Briand (France). She was built between 2015 and 2019 by Jeanneau (France). The Shoal draft version features a shorter keel to grant access to shallow areas.

The Sun Odyssey 419 has also been marketed as Sun Odyssey 409 and she is as well listed, on Boat-Specs.com, in Deep draft version (see all the versions compared).

Sun Odyssey 419's main features

Model
Sun Odyssey 419
Version
Shoal draft
Hull type
Monohull
Category
Cruising sailboat
Sailboat builder
Sailboat designer
Sailboat range
Country
France
Construction
Hull and deck: GRP (glass reinforced polyester)
Number of hulls built
About 300
First built hull
2015
Last built hull
2019
Appendages
Keel : L-shaped keel (with bulb)
Helm
Twin helm wheels
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
 iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)

A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m
A
Standard public price ex. VAT (indicative only)
N/A

Sun Odyssey 419's main dimensions

Overall length
40’ 6”12.34 m
Hull length
39’ 4”11.98 m
Waterline length
36’ 1”11 m
Beam (width)
13’ 1”3.99 m
Draft
5’ 1”1.55 m
Mast height from DWL
60’ 5”18.42 m
Light displacement (MLC)
17791 lb8070 kg
Ballast weight
5445 lb2470 kg
Ballast type
Cast iron

Sun Odyssey 419's rig and sails

Upwind sail area
964 ft²89.6 m²
Downwind sail area
1738 ft²161.5 m²
Mainsail area
468 ft²43.5 m²
Genoa area
496 ft²46.1 m²
Solent area
350 ft²32.5 m²
Jib area
304 ft²28.2 m²
Symmetric spinnaker area
1270 ft²118 m²
Asymmetric spinnaker area
1173 ft²109 m²
Code 0 area
753 ft²70 m²
I
 iFore triangle height (from mast foot to fore stay top attachment)
50’ 11”15.5 m
J
 iFore triangle base (from mast foot to bottom of forestay)
14’ 10”4.52 m
P
 iMainsail hoist measurement (from tack to head)
49’ 2”15 m
E
 iMainsail foot measurement (from tack to clew)
16’ 1”4.9 m
Rigging type
Sloop Marconi 9/10
Mast configuration
Deck stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back
Spars construction
Aluminum spars
Standing rigging
1x19 strand wire

Sun Odyssey 419's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
240 ft²/T22.27 m²/T
Downwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
432 ft²/T40.14 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
172
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
31 %
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
8.05 knots

Sun Odyssey 419's auxiliary engine

Engine(s)
1 inboard engine
Engine(s) power
40 HP
Fuel type
Diesel
Fuel tank capacity
52.8 gal200 liters

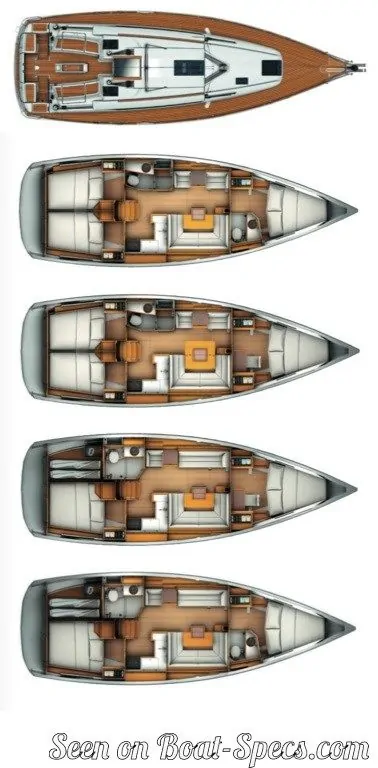

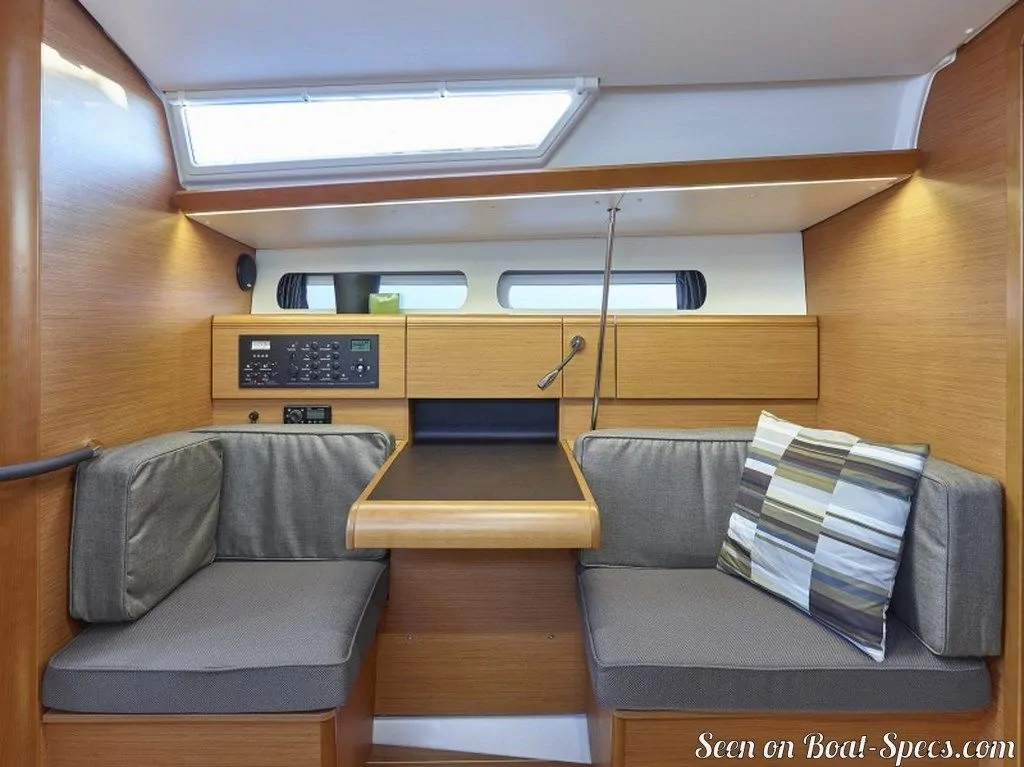

Sun Odyssey 419's accommodations and layout

Cockpit
Closing aft cockpit with opening system
Cabin(s) (min./max.)
2 / 3
Berth(s) (min./max.)
4 / 8

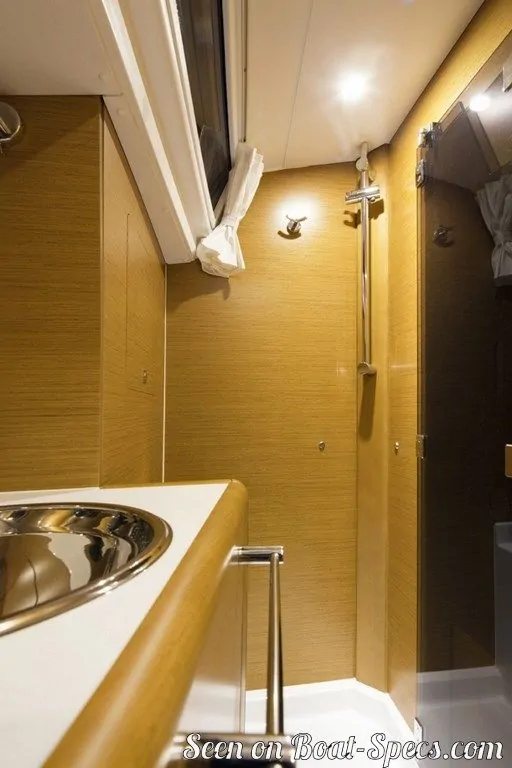

Head(s) (min./max.)
1 / 2
Freshwater tank capacity
87.2 gal330 liters
Holding tank capacity
21.1 gal80 liters
Fridge/ice-box capacity
48.9 gal185 liters
Boiler capacity
10.6 gal40 liters
Maximum headroom
6’ 5”1.95 m
Galley headroom
6’ 4”1.91 m

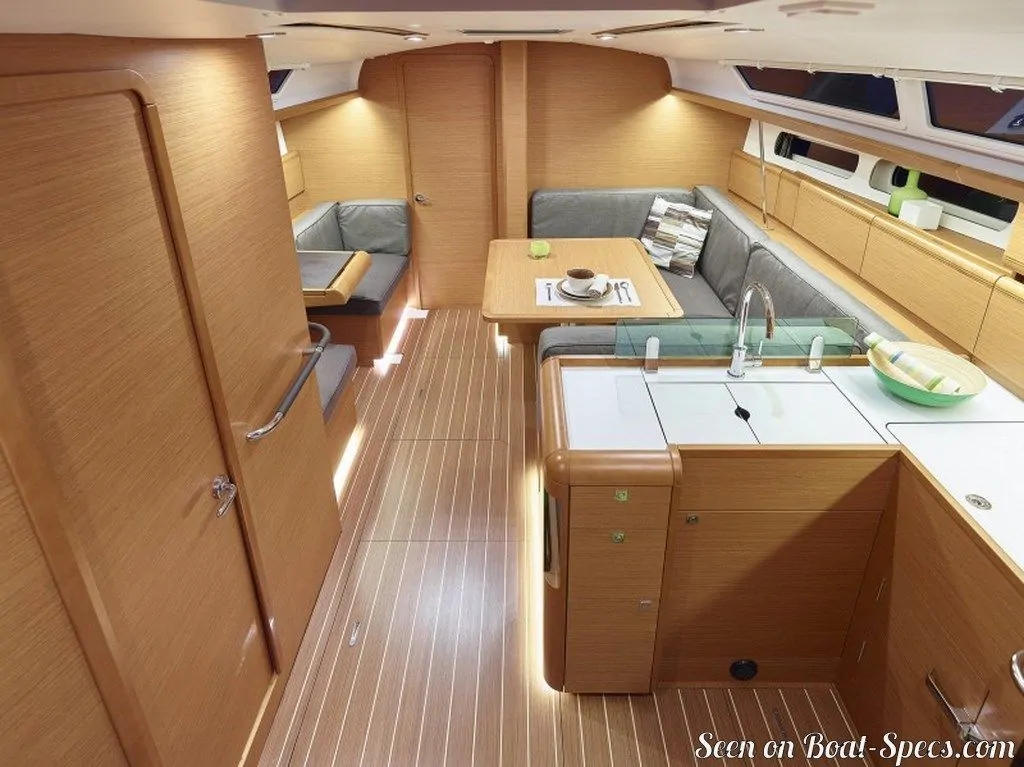

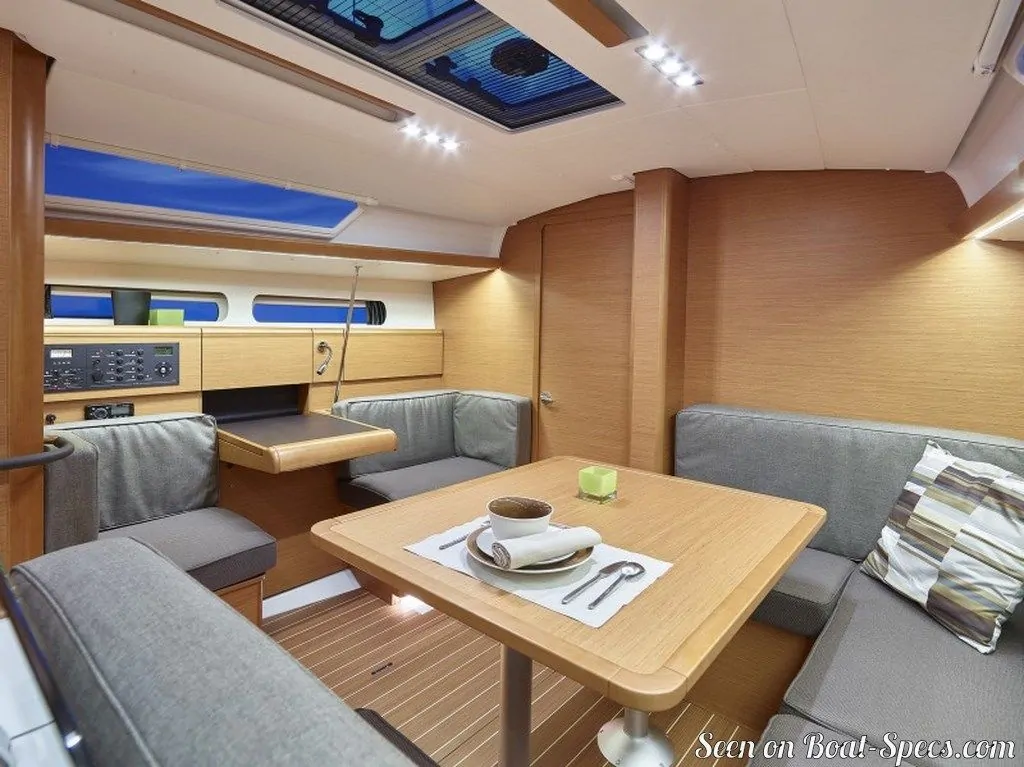

Sun Odyssey 419's saloon

Maximum headroom
6’ 4”1.92 m

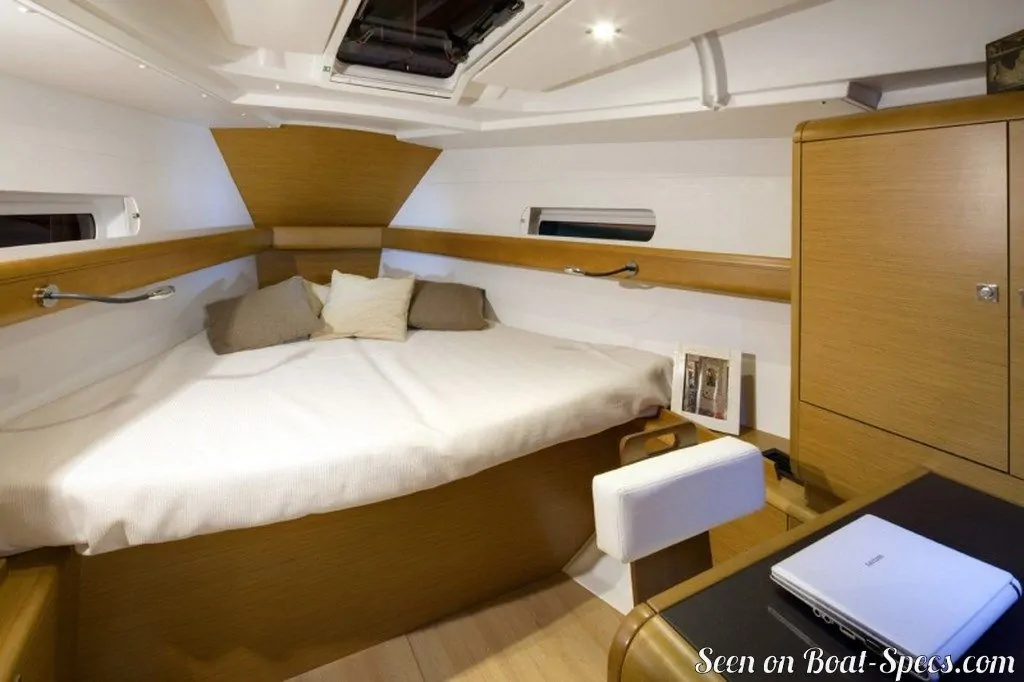

Sun Odyssey 419's fore cabin

Maximum headroom
6’1.84 m
Berth length
6’ 11”2.1 m
Berth width
6’ 7”2 m

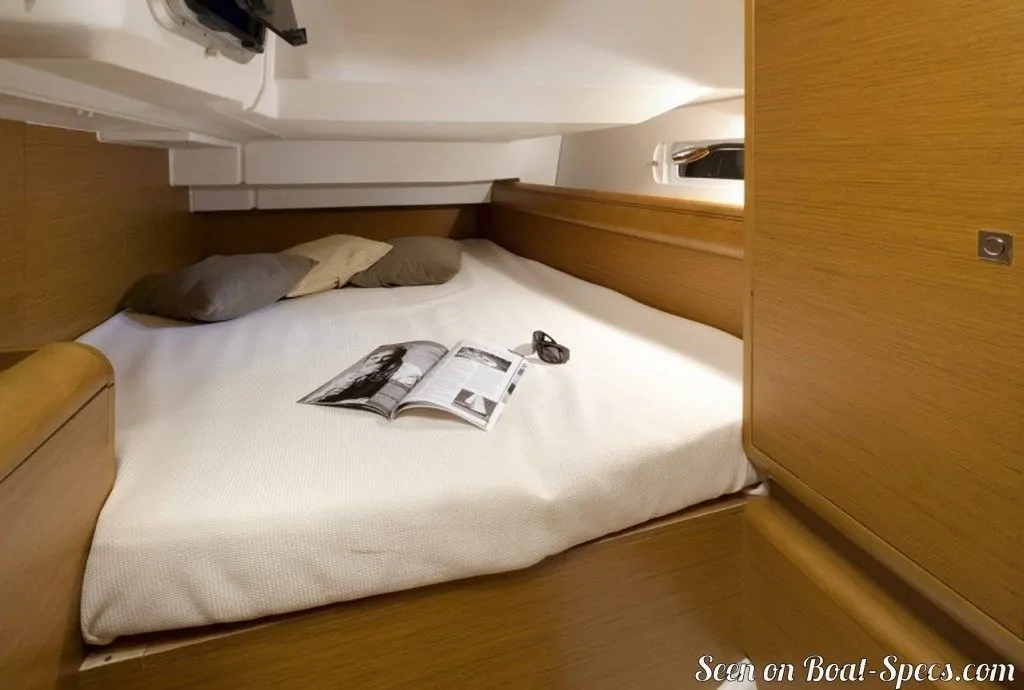

Sun Odyssey 419's aft cabin

Maximum headroom
6’ 5”1.95 m
Berth length
6’ 7”2 m
Berth width
5’ 2”1.57 m
