Dufour 45E Performance's main features
Model
Dufour 45E Performance
Hull type
Monohull
Category
Offshore cruiser-racer sailboat
Sailboat builder
Sailboat designer
Country
France
Construction
GRP (glass reinforced polyester):
- Hull: Single skin bottom, sandwich sides and deck: PVC fiberglass polyester vacuum bagged
- Deck: Sandwich PVC fiberglass polyester (injection molding process)
First built hull
2010
Last built hull
2017
Appendages
Keel : L-shaped keel (with bulb)
Helm
Twin helm wheels
Rudder
Single spade rudder
Unsinkable
No
Trailerable
No
EC design category
iThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5mA
Standard public price ex. VAT (indicative only)
Dufour 45E Performance's main dimensions
Overall length
45’ 10”13.95 m
Hull length
44’ 7”13.6 m
Waterline length
39’ 11”12.16 m
Beam (width)
14’ 1”4.3 m
Draft
6’ 5”1.95 m
Light displacement (MLC)
24068 lb10917 kg
Ballast weight
7452 lb3380 kg
Ballast type
Cast iron
Dufour 45E Performance's rig and sails
Upwind sail area
1216 ft²113 m²
Mainsail area
581 ft²54 m²
Genoa area
635 ft²59 m²
I
iFore triangle height (from mast foot to fore stay top attachment)53’ 1”16.2 m
J
iFore triangle base (from mast foot to bottom of forestay)16’ 5”5 m
P
iMainsail hoist measurement (from tack to head)51’ 7”15.74 m
E
iMainsail foot measurement (from tack to clew)19’ 8”6 m
Rigging type
Sloop Marconi 9/10
Mast configuration
Keel stepped mast
Rotating spars
No
Number of levels of spreaders
2
Spreaders angle
Swept-back
Spars construction
Aluminum spars
Standing rigging
Dyform discontinuous
Dufour 45E Performance's performances
Upwind sail area to displacement
iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.247 ft²/T22.96 m²/T
Displacement-length ratio (DLR)
iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.172
Ballast ratio
iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability.31 %
Critical hull speed
iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.8.46 knots
Dufour 45E Performance's auxiliary engine
Engine(s)
1 inboard engine
Engine(s) power
55 HP
Fuel type
Diesel
Fuel tank capacity
66 gal250 liters

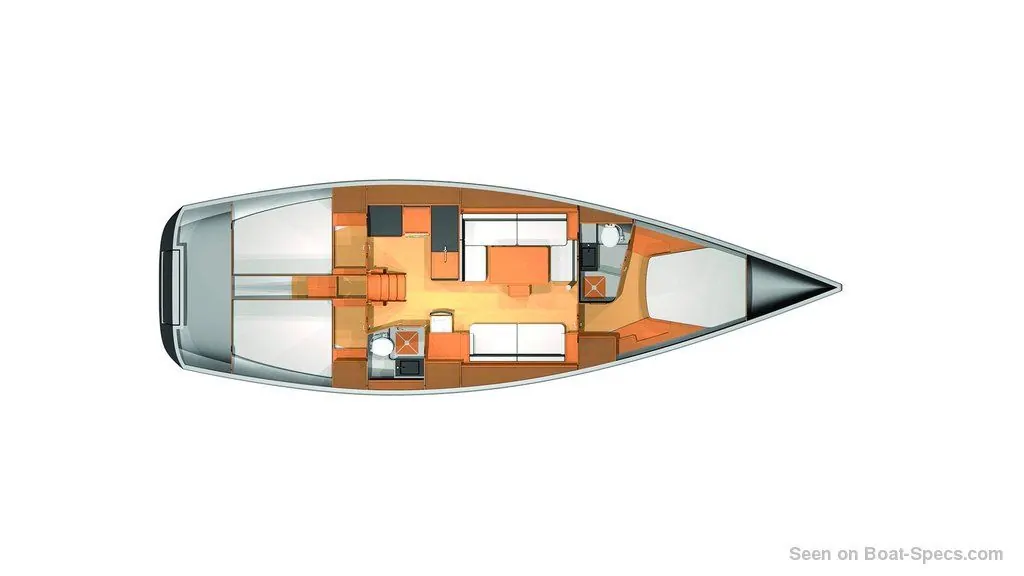

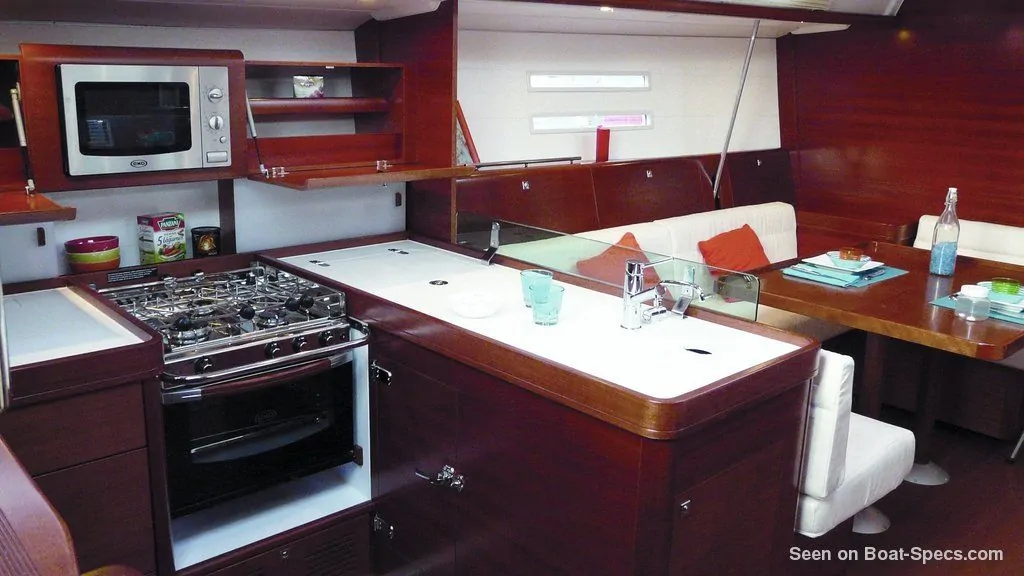

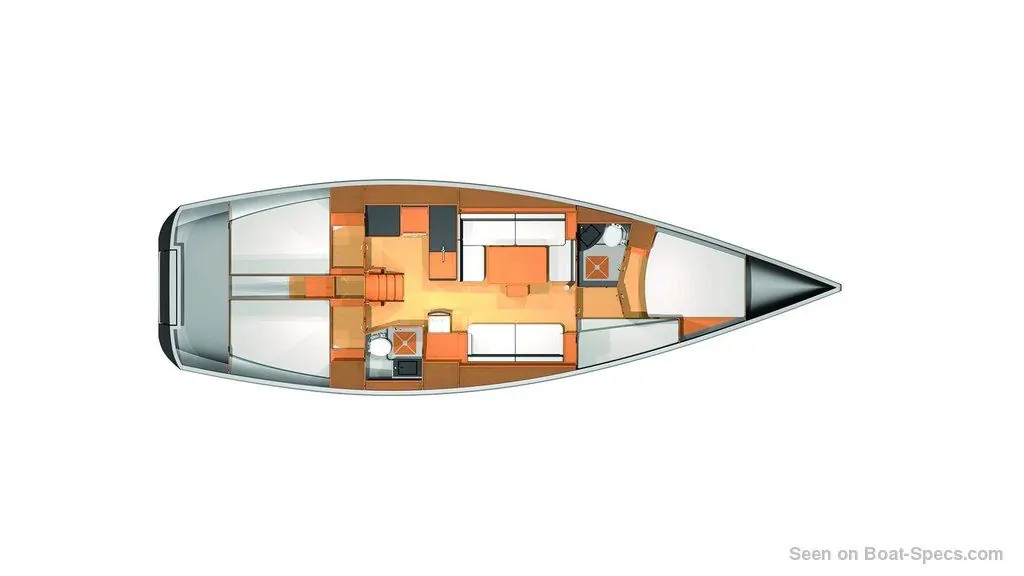

Dufour 45E Performance's accommodations and layout
Cockpit
Closing aft cockpit with opening system
Cabin(s) (min./max.)
3 / 4
Berth(s) (min./max.)
6 / 10
Head(s)
2
Freshwater tank capacity
150.6 gal570 liters

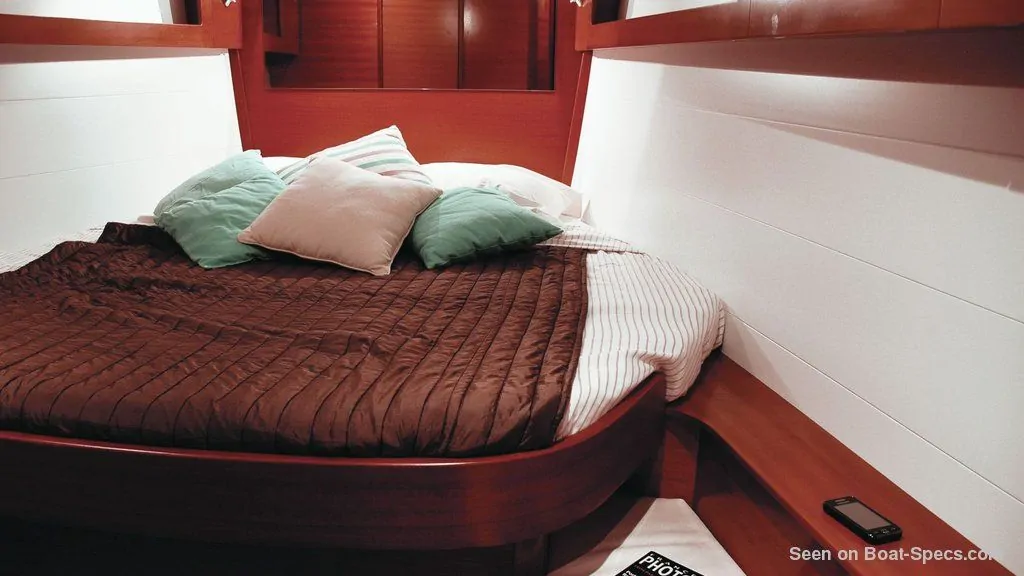

Dufour 45E Performance's fore cabin
Berth length
6’ 7”2 m
Berth width
5’ 8”1.75 m
Dufour 45E Performance's aft cabin
Berth length
6’ 7”2.02 m
Berth width
4’ 10”1.46 m
