Catana 62
Sailboat specifications
The Catana 62 is a 61’4” (18.68m) fast cruising catamaran designed by Catana Design Office (France). She is built since 2016 by Catana (France).
Catana 62's main features
- Model
- Catana 62
- Hull type
- Catamaran
- Category
- Offshore fast cruising catamaran
- Sailboat builder
- Sailboat designer
- Country
- France
- Construction
- GRP (glass reinforced polyester):
Sandwich foam fiberglass vinylester (vacuum infusion) - First built hull
- 2016
- Last built hull
- Still in production
- Appendages
- Foils : twin C foils
- Helm
- Twin helm wheels
- Rudder
- Twin spade rudders
- Unsinkable
- No
- Trailerable
- No
- EC design categoryiThe CE design category indicates the ability to cope with certain weather conditions (the sailboat is designed for these conditions)
A: Wind < force 9, Waves < 10m
B: Wind < force 8, Waves < 8m
C: Wind < force 6, Waves < 4m
D: Wind < force 4, Waves < 0,5m - A
- Standard public price ex. VAT (indicative only)
- N/A €
Catana 62's main dimensions
- Hull length
- 61’ 4”18.68 m
- Beam (width)
- 31’ 1”9.49 m
- Draft
- 12’ 4”3.75 m
- Draft when appendages up
- 5’ 1”1.56 m
- Mast height from DWL
- 86’ 10”26.47 m
- Light displacement (MLC)
- 42329 lb19200 kg

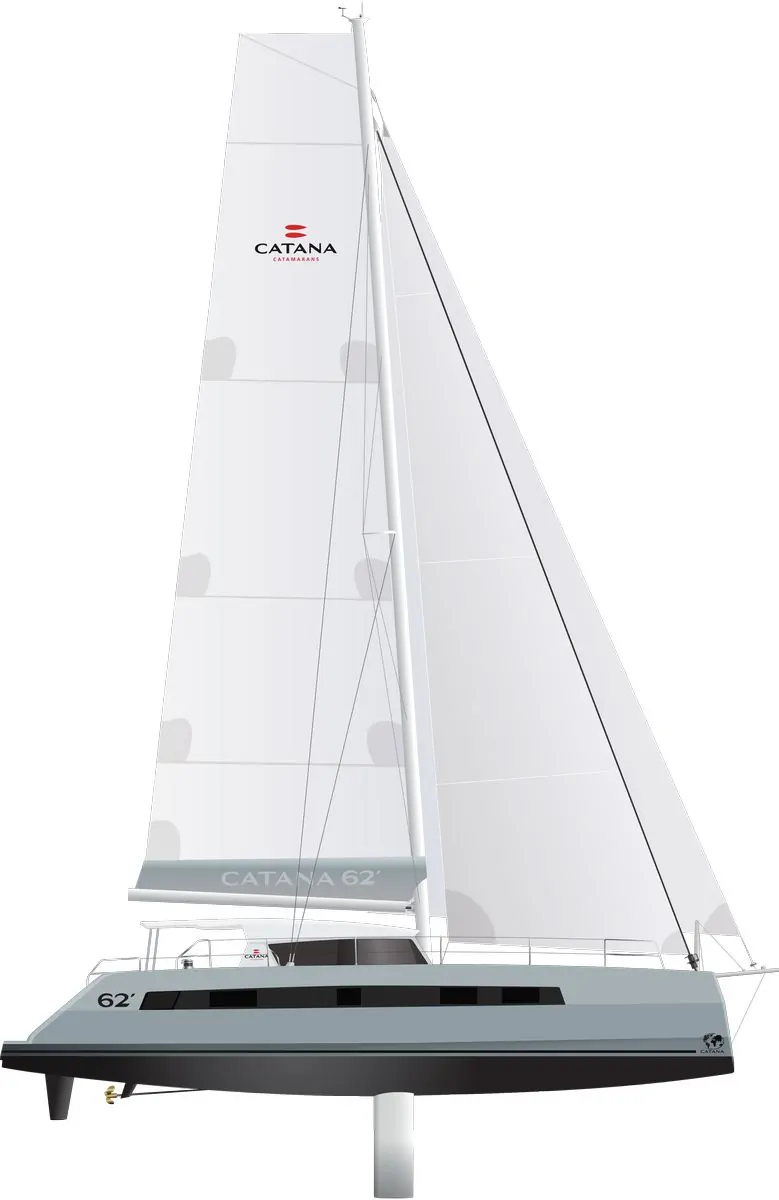

Catana 62's rig and sails
- Upwind sail area
- 2185 ft²203 m²
- Downwind sail area
- 2605 ft²242 m²
- Mainsail area
- 1302 ft²121 m²
- Genoa area
- 883 ft²82 m²
- Solent area
- 678 ft²63 m²
- Gennaker area
- 1302 ft²121 m²
- Rigging type
- Sloop Marconi (square top mainsail) 9/10
- Mast configuration
- Deck stepped mast
- Rotating spars
- No
- Number of levels of spreaders
- 1
- Spreaders angle
- Swept-back (diamond)
- Spars construction
- Aluminum spars
- Standing rigging
- 1x19 strand wire discontinuous
Catana 62's performances
- Upwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat. - 305 ft²/T28.31 m²/T
- Downwind sail area to displacementiThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size. - 363 ft²/T33.75 m²/T
Catana 62's auxiliary engine
- Engine(s)
- 2 inboard engines
- Engine(s) power
- 110 HP
- Fuel type
- Diesel
- Fuel tank capacity
- 227.2 gal860 liters

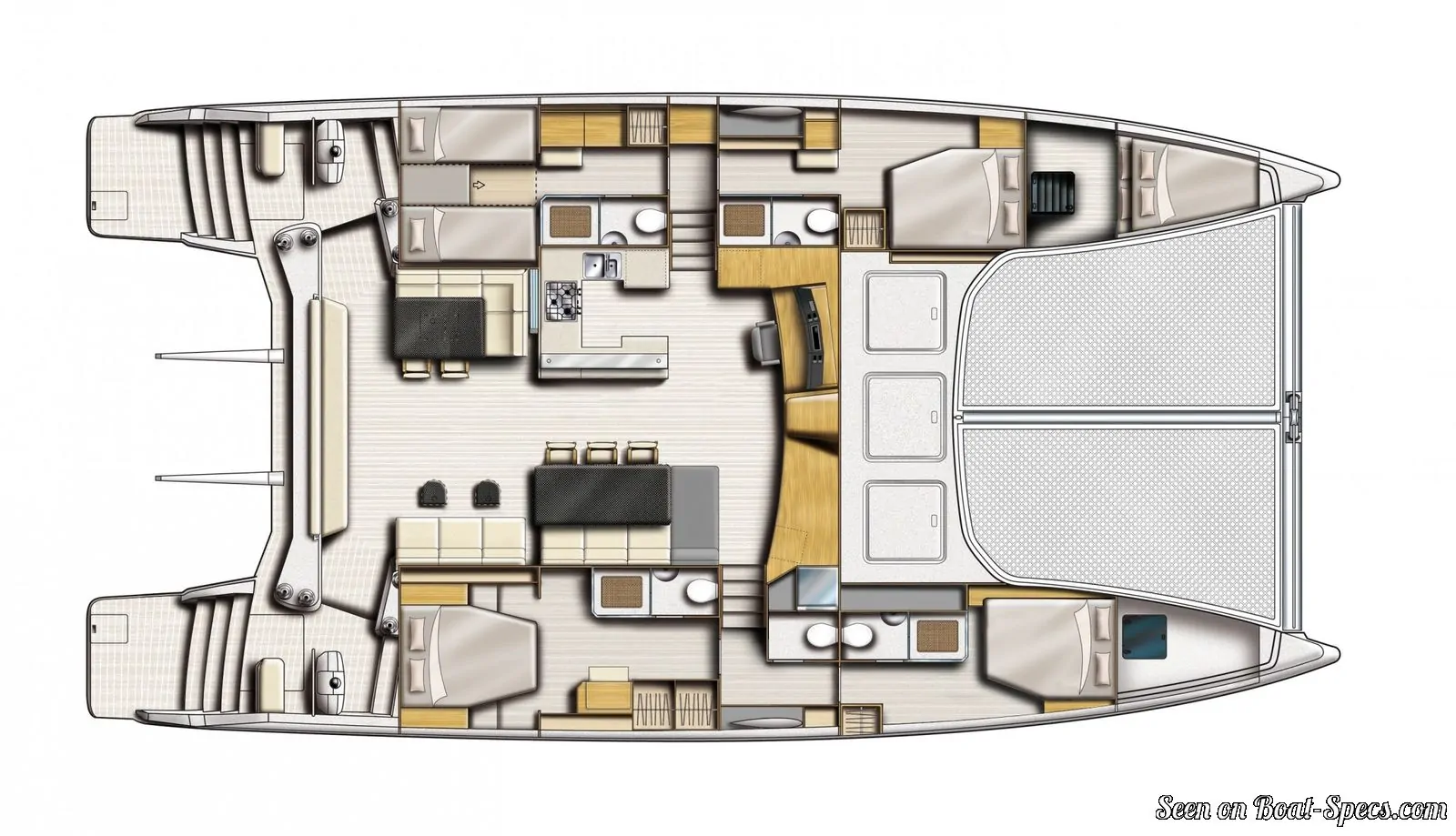

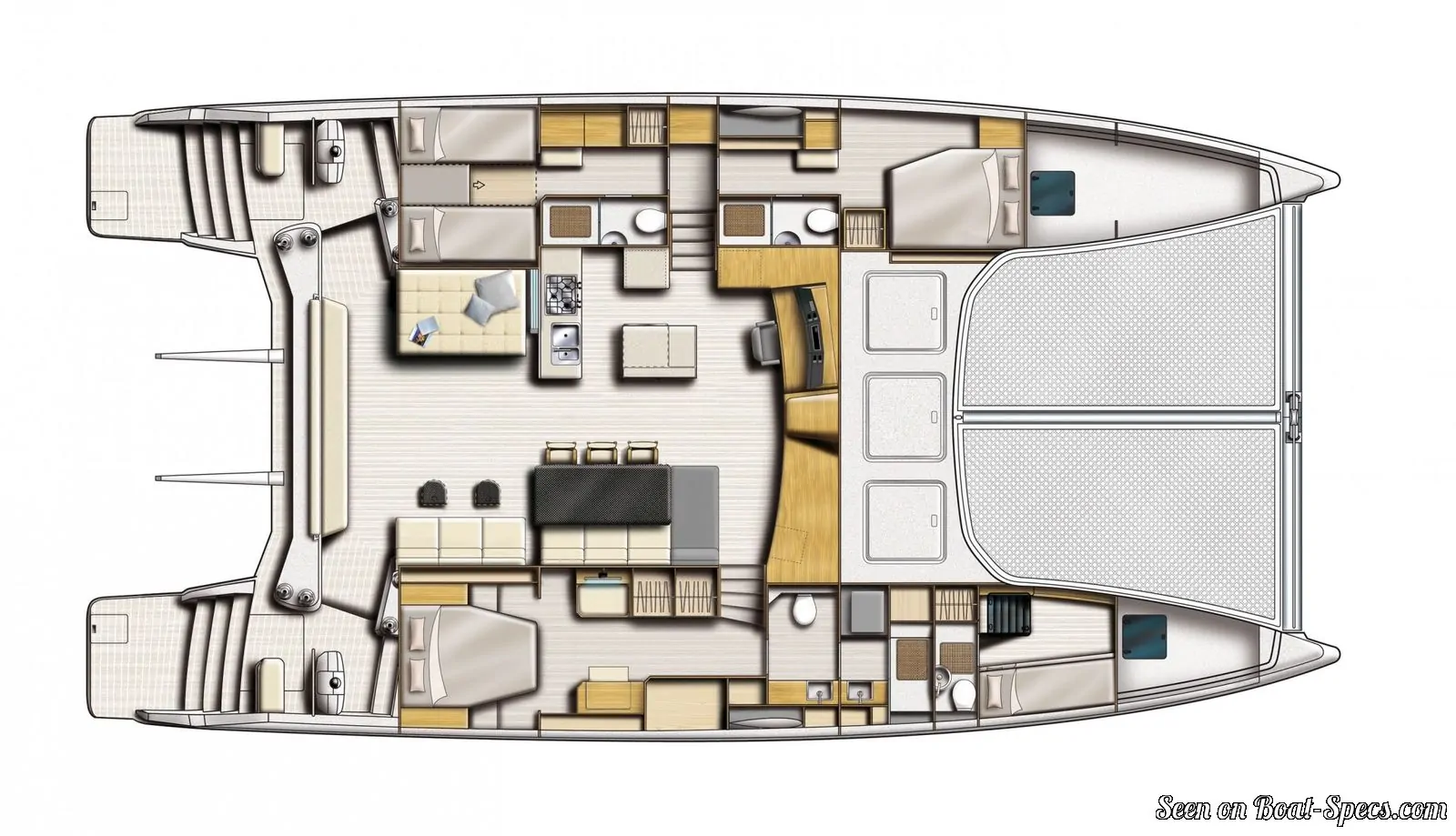

Catana 62's accommodations and layout

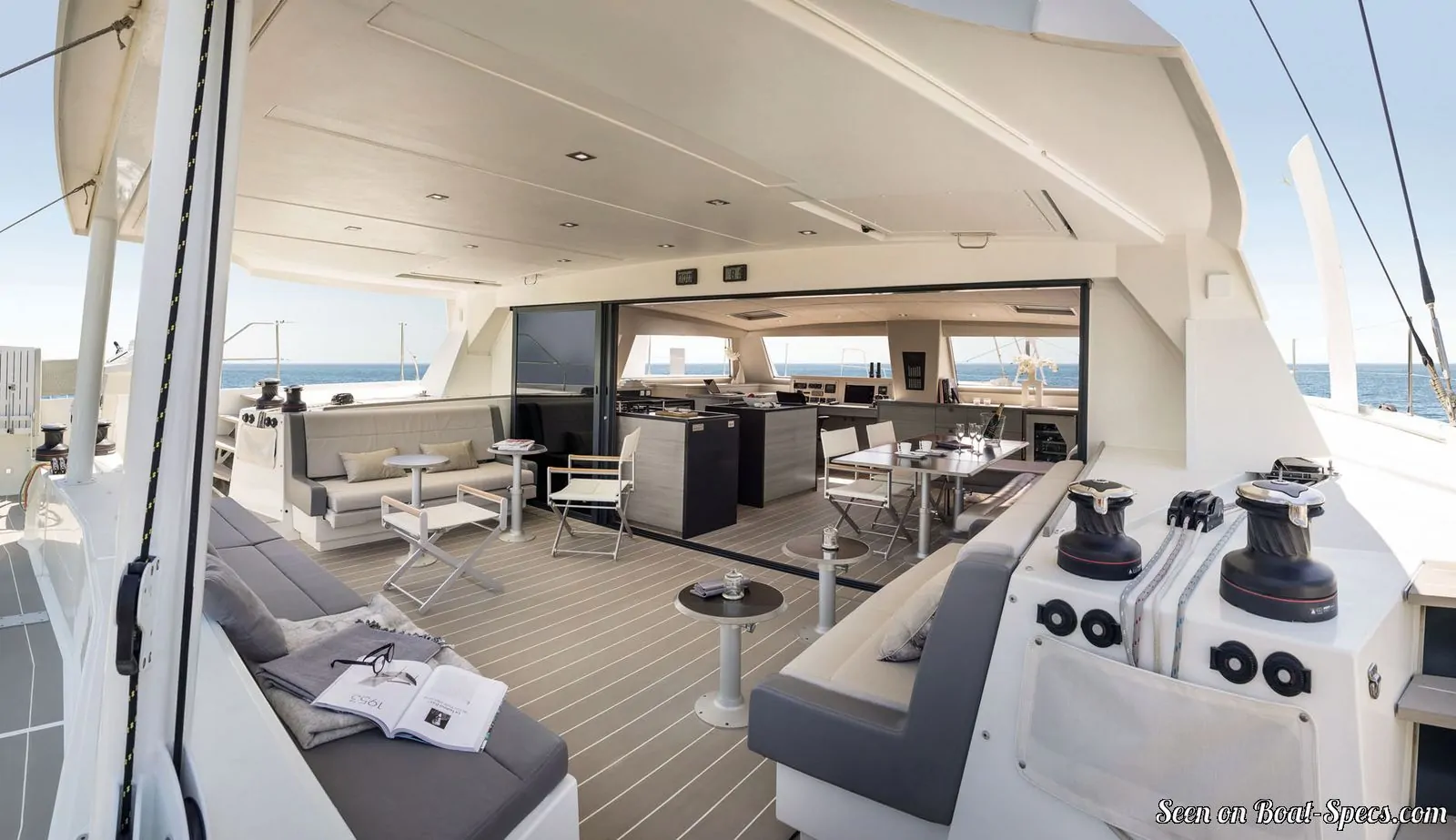

- Cockpit
- Open aft cockpit
- Cabin(s) (min./max.)
- 3 / 5
- Berth(s) (min./max.)
- 6 / 10
- Head(s) (min./max.)
- 3 / 5
- Freshwater tank capacity
- 211.3 gal800 liters
- Fridge/ice-box capacity
- 68.7 gal260 liters
- Boiler capacity
- 29.1 gal110 liters

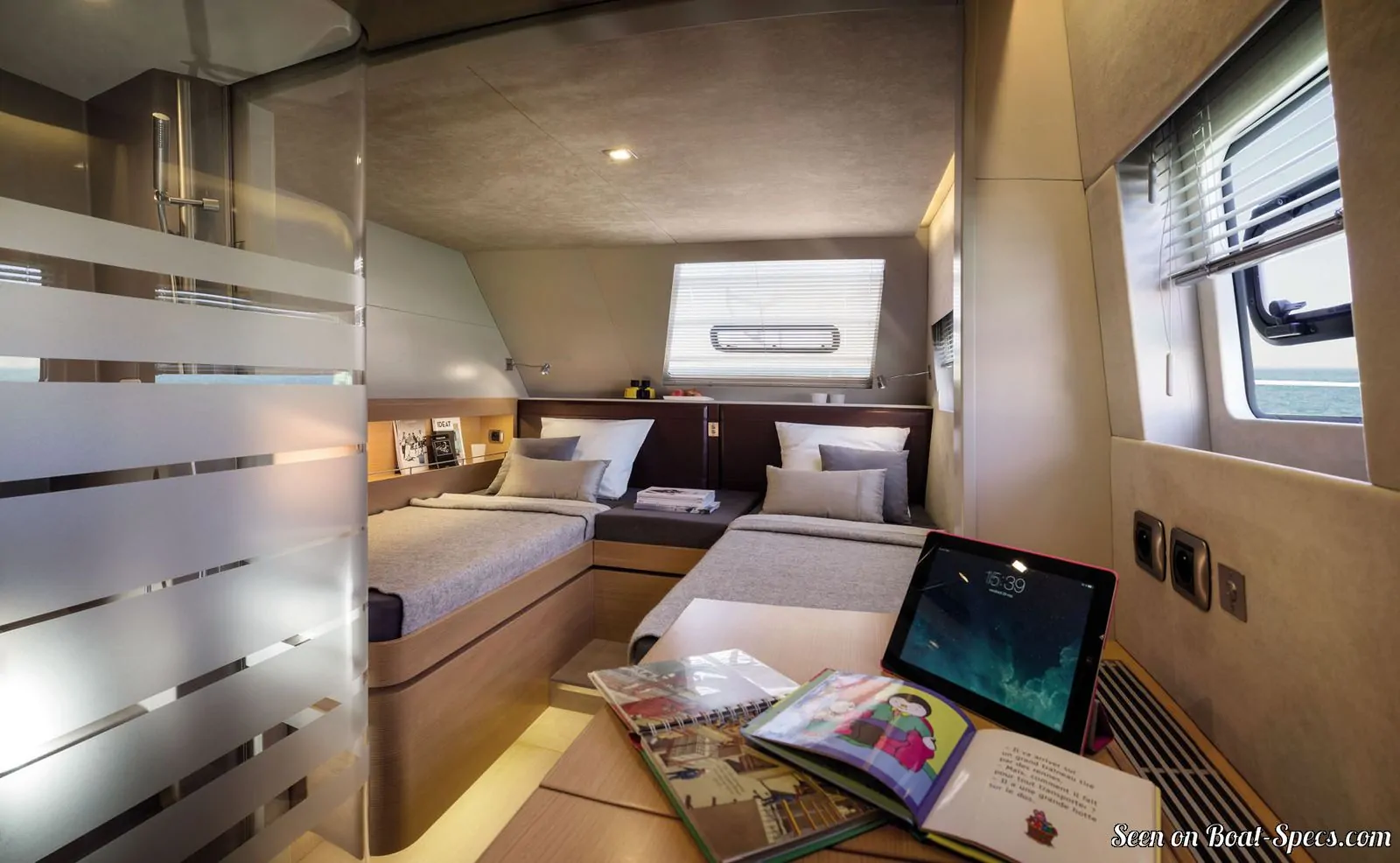

Catana 62's aft cabin
- Berth length
- 6’ 7”2 m
- Berth width
- 5’ 11”1.8 m

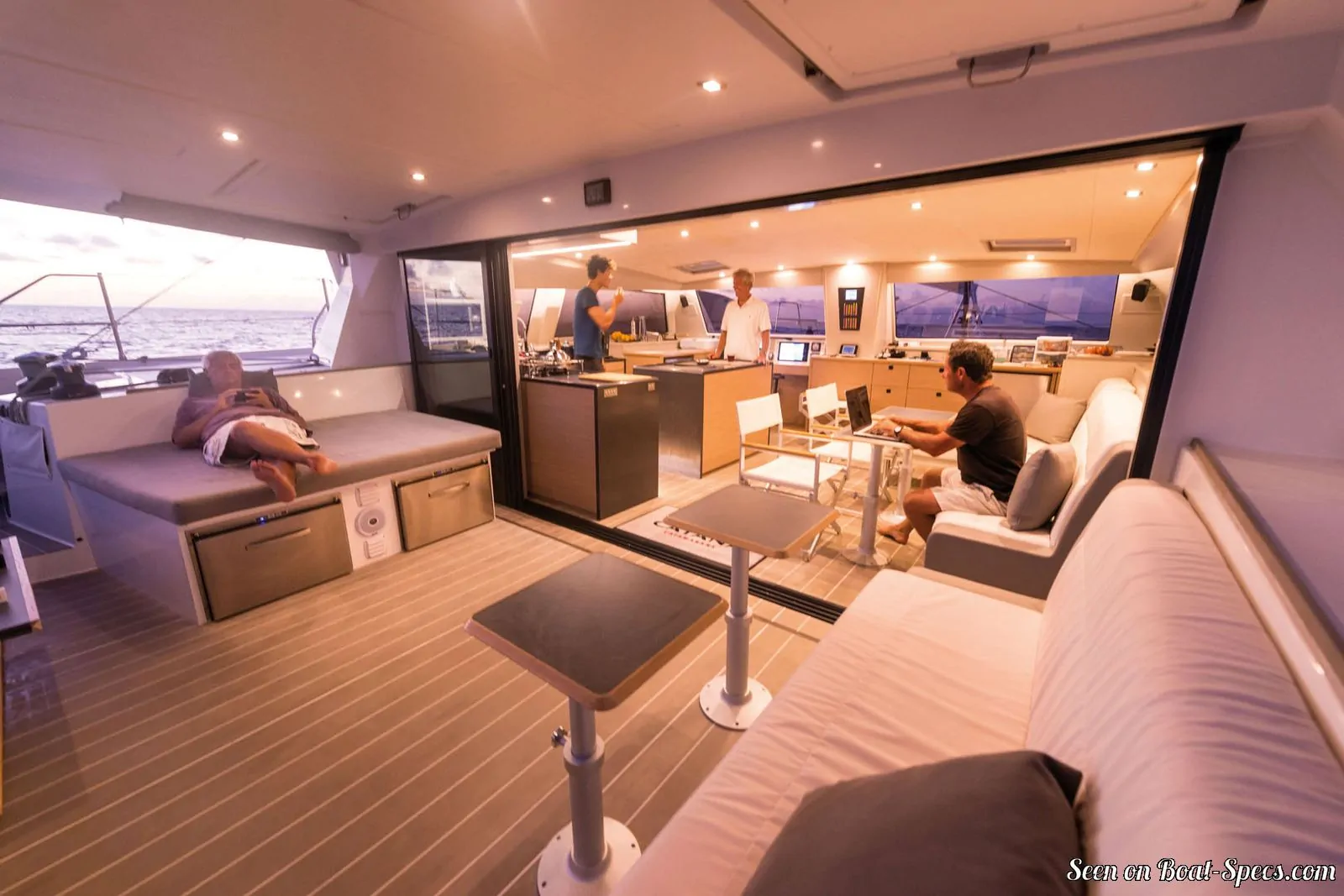

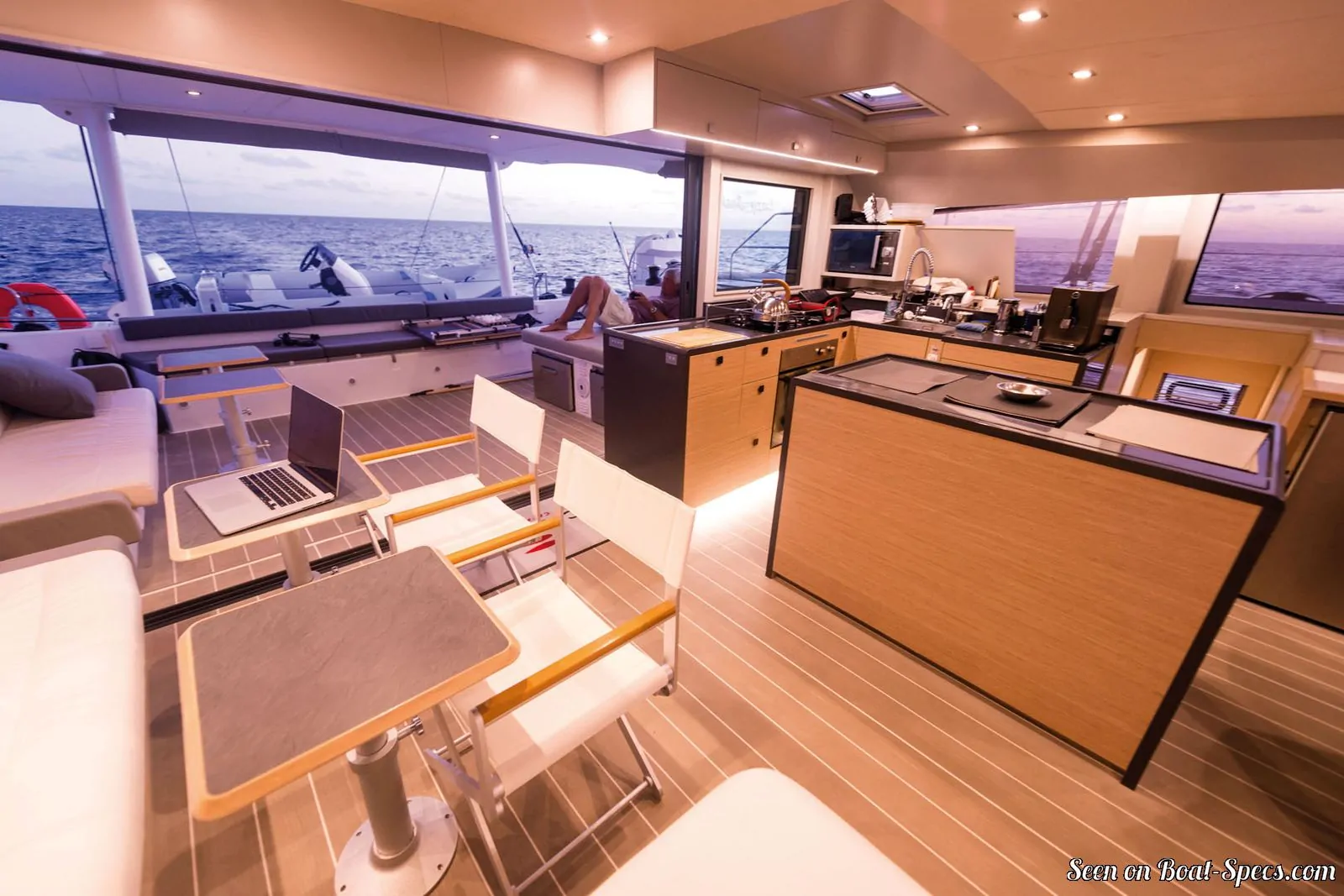

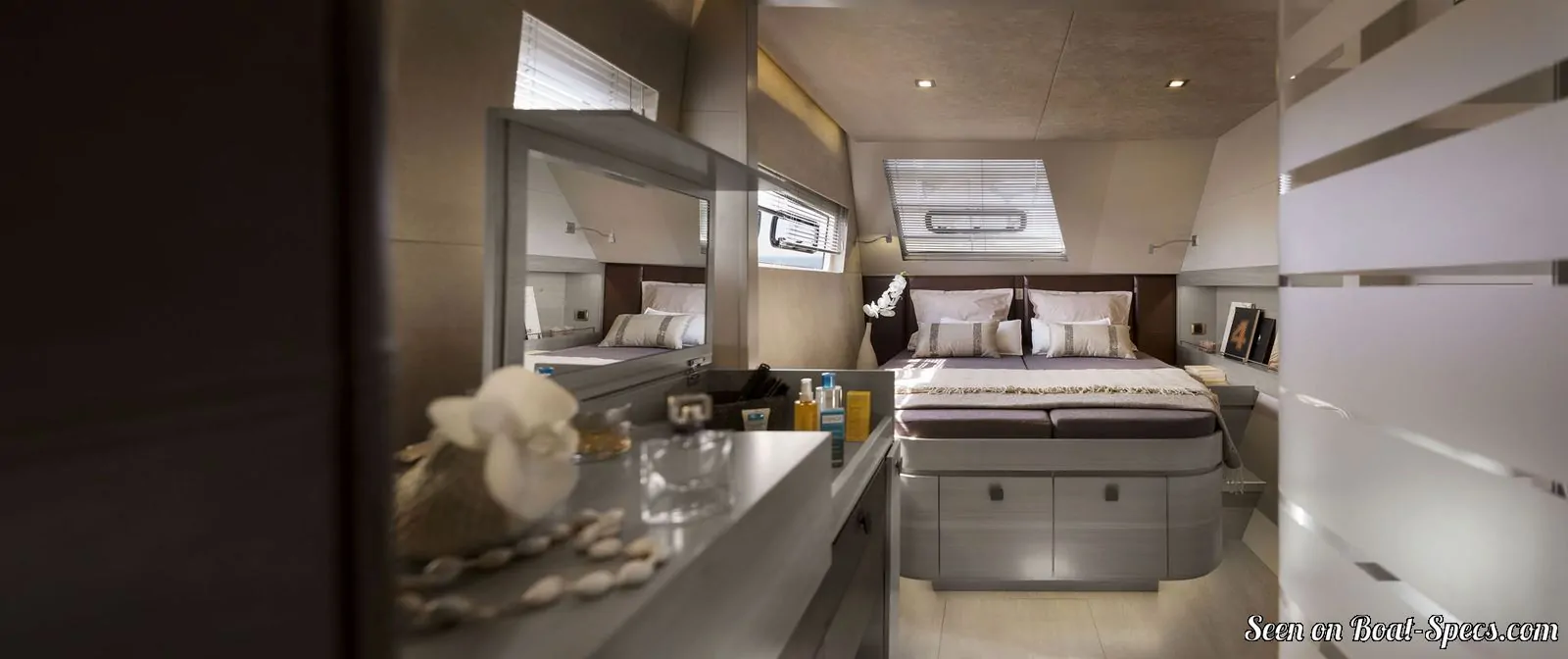

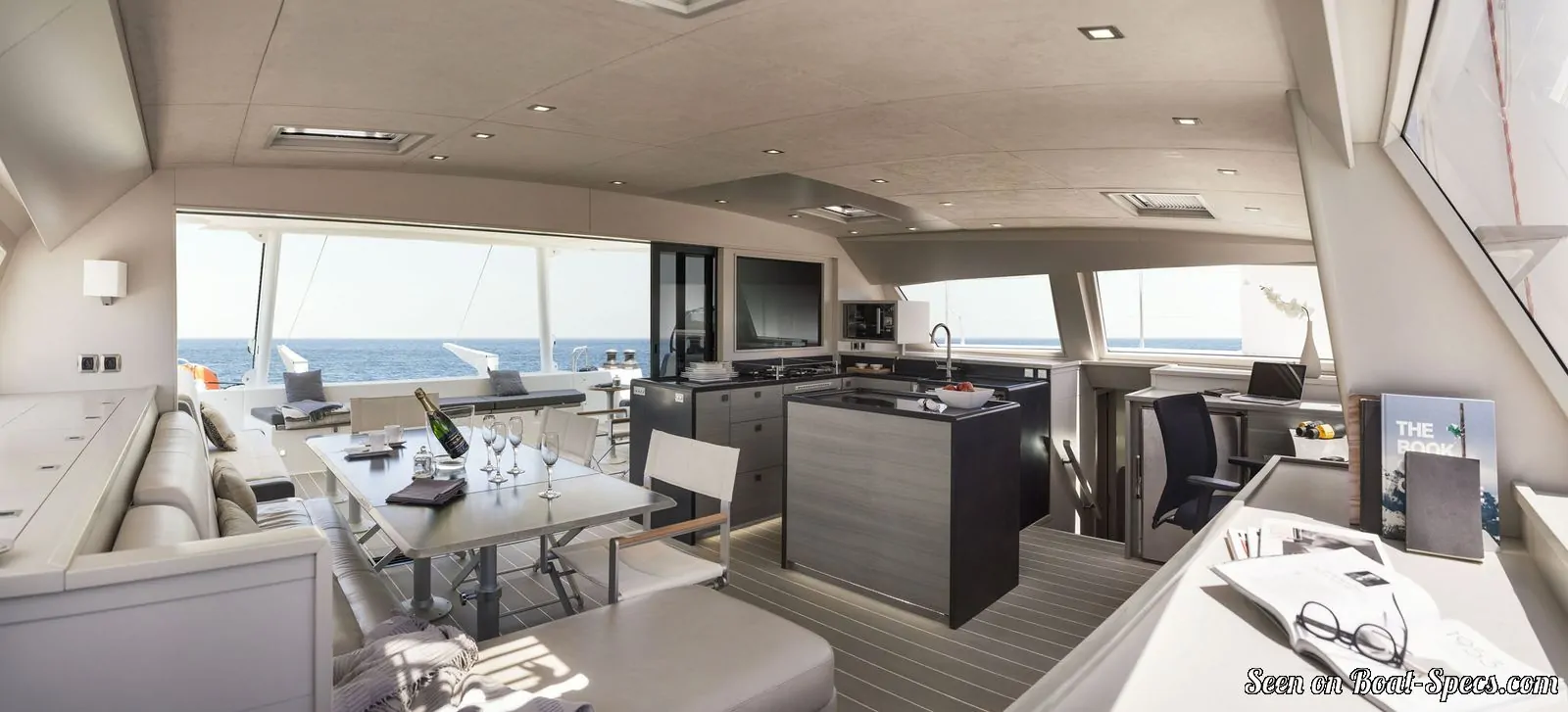

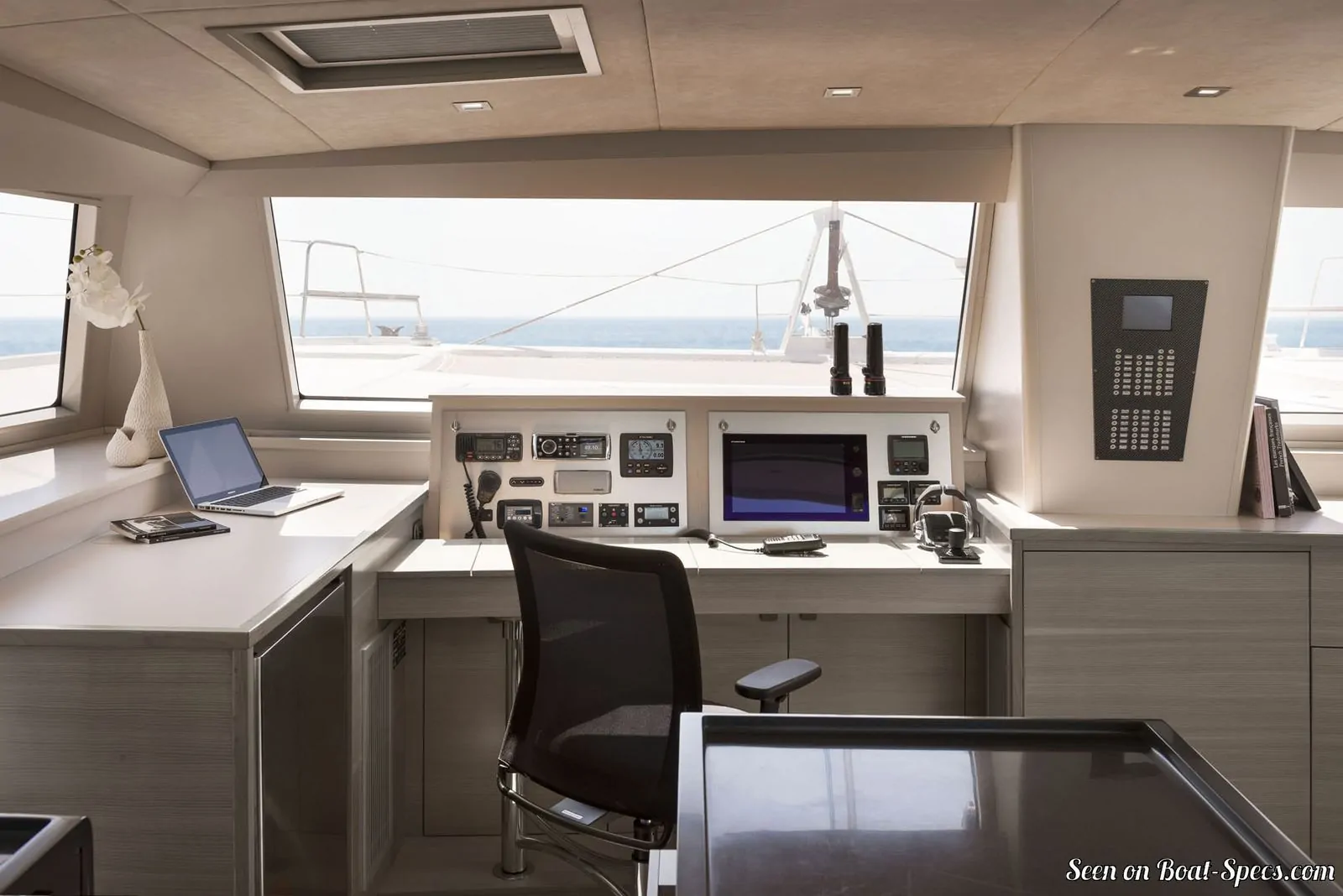

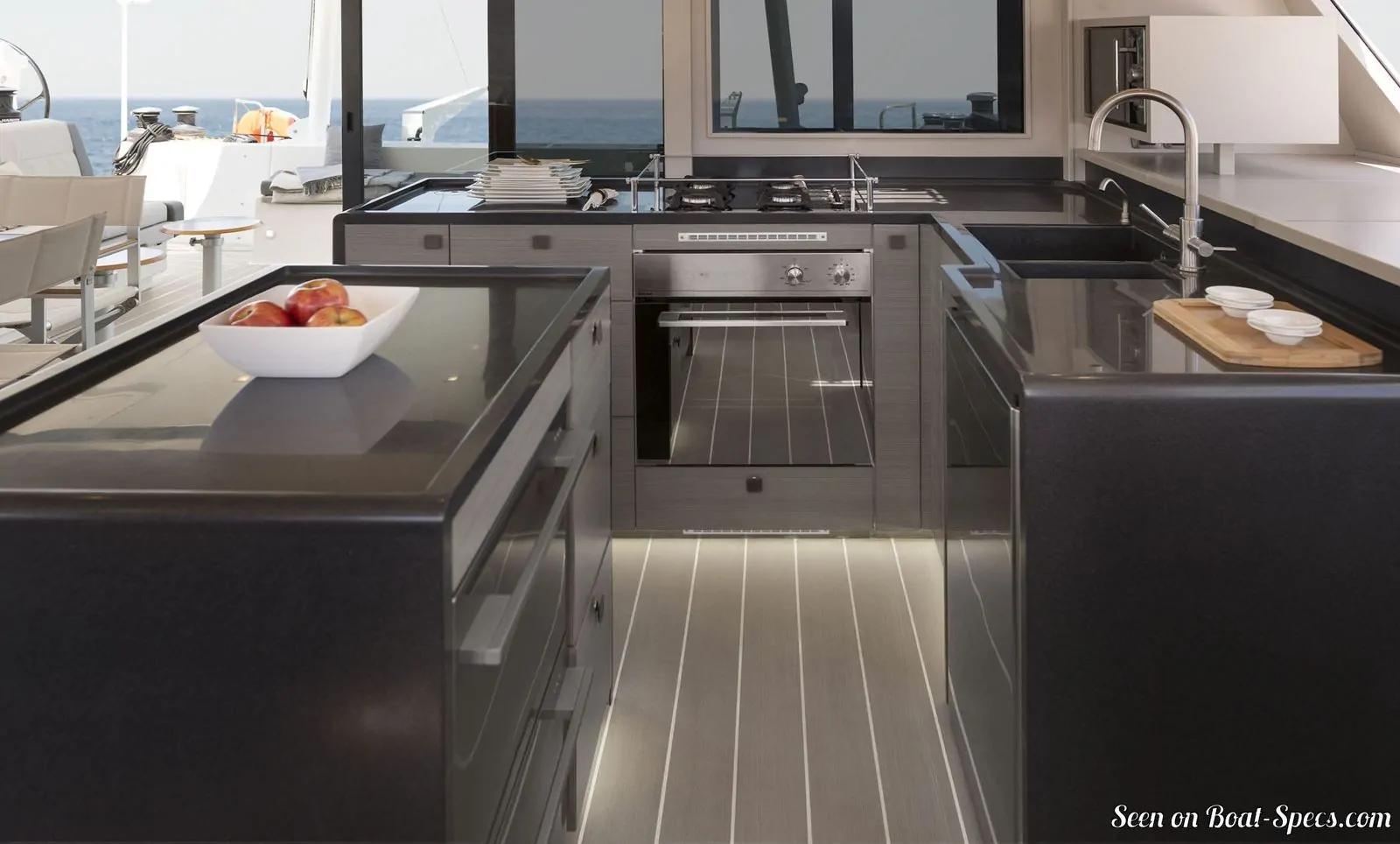

Catana 62 interior and accommodations - - 12/19
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
Catana 62 interior and accommodations - - 13/19
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
Catana 62 interior and accommodations - - 14/19
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
Catana 62 interior and accommodations - - 15/19
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
Catana 62 interior and accommodations - - 16/19
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
Catana 62 interior and accommodations - - 17/19
Picture extracted from the commercial documentation © Catana
Picture extracted from the commercial documentation © Catana
