Catalina 36 MkI Wing keel

Sailboat specifications

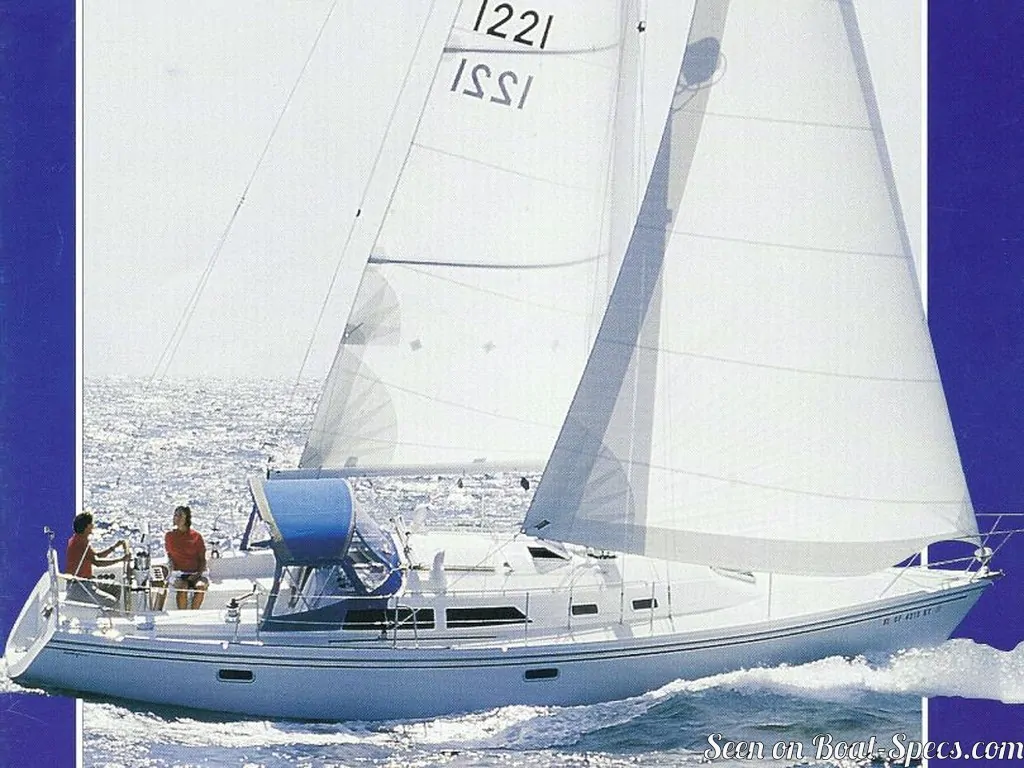

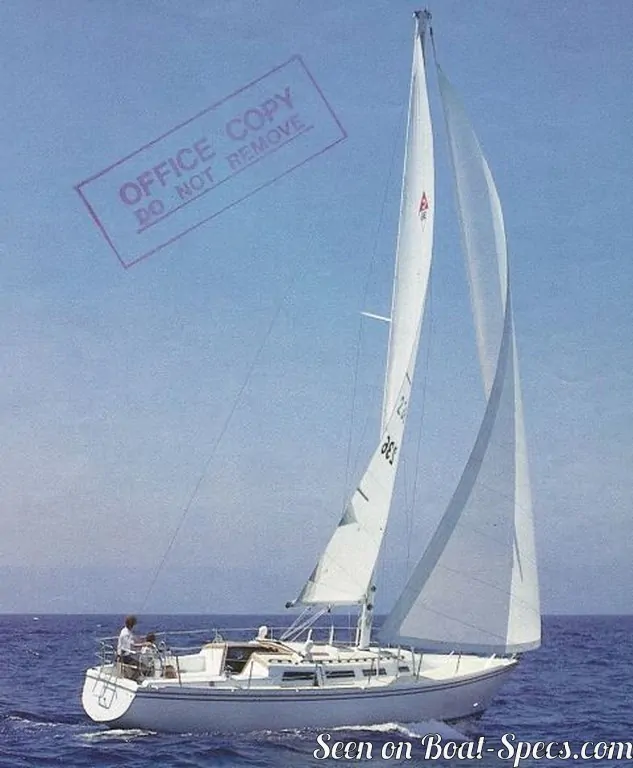

The Catalina 36 MkI is a 36’4” (11.07m) cruising sailboat designed by Frank Butler (United States). She was built between 1982 and 1994 by Catalina Yachts (United States). The Wing keel version is offered with a short keel fitted with large winglets. This configuration provides an interesting draft / low center of gravity / upwind performance trade-off.

The Catalina 36 MkI is as well listed, on, in Fin keel and Tall rig version (see all the versions compared).

Catalina 36 MkI's main features

Catalina 36 MkI
Wing keel
Hull type
Offshore cruising sailboat
Sailboat builder
Sailboat designer
United States
Hull and deck: GRP (glass reinforced polyester)
Number of hulls built
About 1800
First built hull
Last built hull
Keel : wing keel
Single helm wheel
Single spade rudder
Standard public price ex. VAT (indicative only)

Catalina 36 MkI's main dimensions

Hull length
36’ 4”11.07 m
Waterline length
30’ 2”9.22 m
Beam (width)
11’ 11”3.63 m
4’ 5”1.35 m
Light displacement (MLC)
14081 lb6387 kg
Ballast weight
6592 lb2990 kg
Ballast type
Cast iron

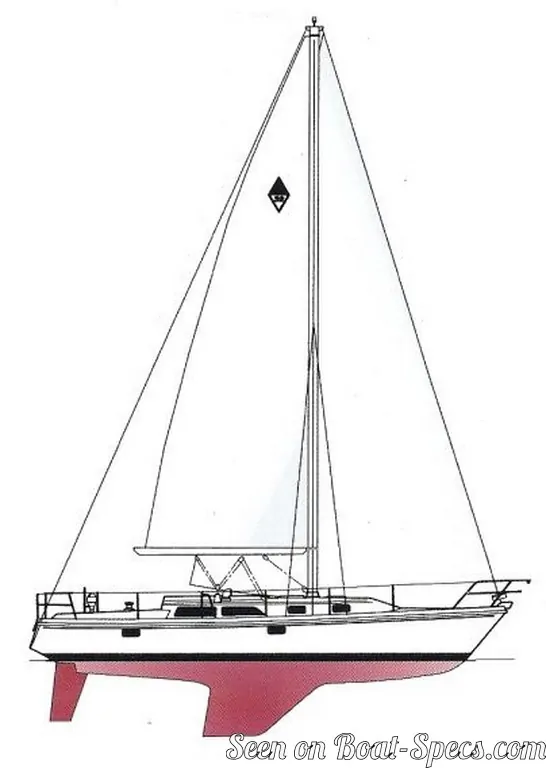

Catalina 36 MkI's rig and sails

Upwind sail area
555 ft²51.56 m²
 iFore triangle height (from mast foot to fore stay top attachment)
44’ 10”13.64 m
 iFore triangle base (from mast foot to bottom of forestay)
14’4.27 m
 iMainsail hoist measurement (from tack to head)
39’11.89 m
 iMainsail foot measurement (from tack to clew)
12’3.66 m
Rigging type
Sloop Marconi masthead
Mast configuration
Deck stepped mast
Rotating spars
Number of levels of spreaders
Spreaders angle
0 °
Spars construction
Aluminum spars
Standing rigging
1x19 strand wire

Catalina 36 MkI's performances

Upwind sail area to displacement
 iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.

The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.

Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
161 ft²/T14.98 m²/T
Displacement-length ratio (DLR)
 iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:

a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
Ballast ratio
 iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.

The higher the ballast ratio is, the greater is the stability.
47 %
Critical hull speed
 iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
7.37 knots

Catalina 36 MkI's auxiliary engine

1 inboard engine
Engine(s) power
30 HP
Fuel type
Fuel tank capacity
33 gal125 liters

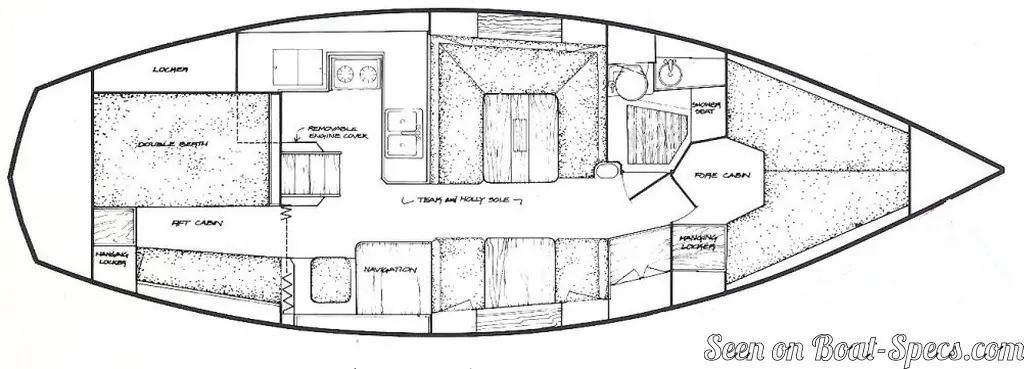

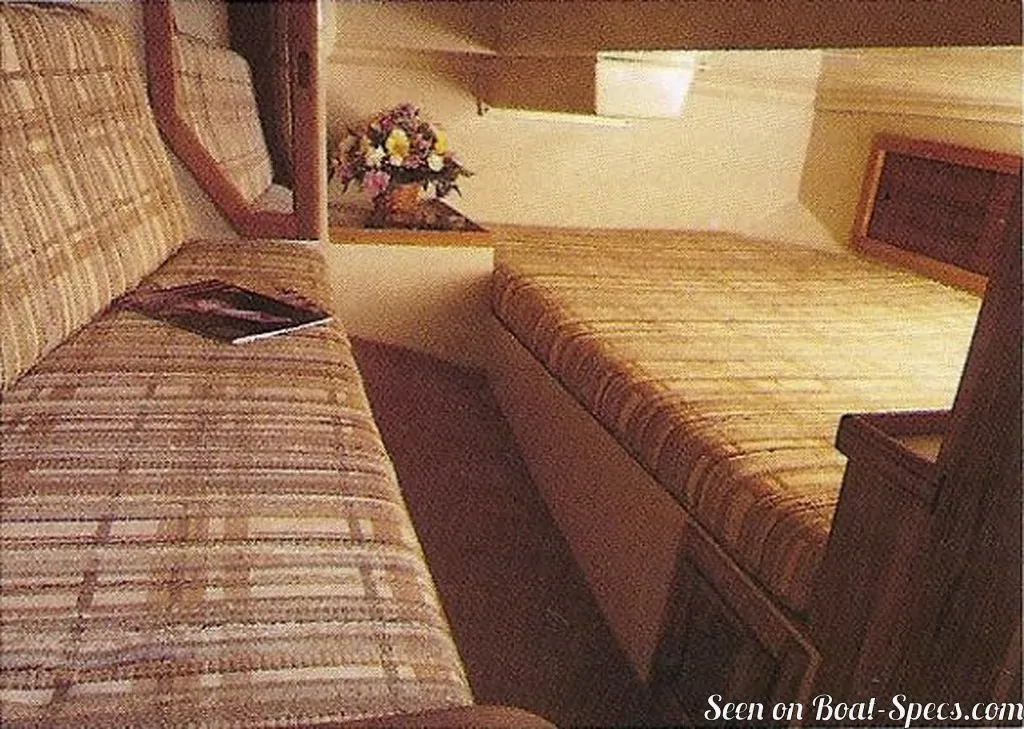

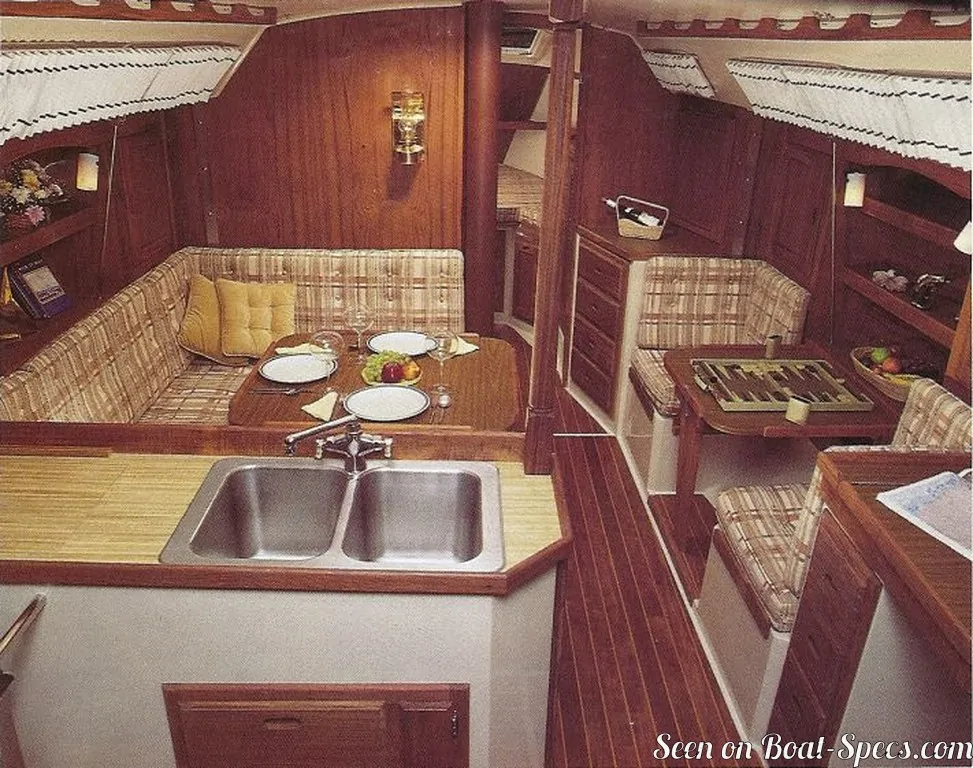

Catalina 36 MkI's accommodations and layout

Closed aft cockpit
Berth(s) (min./max.)
4 / 6
Freshwater tank capacity
47.6 gal180 liters
Have you spotted incorrect data?  You can report it in the forum or contact the webmaster
