The Albin Nimbus 42
is a 41’4” (12.6m) cruiser-racer sailboat designed by Kaufman & Ladd
(United States). She was built between 1981 and 1985 by Albin Marine
The Albin Nimbus 42
is as well listed, on Boat-Specs.com, in Keel and centerboard
version (see all the versions compared
Albin Nimbus 42's main features
Albin Nimbus 42
Offshore cruiser-racer sailboat
GRP (glass reinforced polyester):
- Hull: Single skin fiberglass polyester
- Deck: Sandwich Airex fiberglass polyester
First built hull
Last built hull
Keel : fin without bulb
Single helm wheel
Single rudder on skeg
Standard public price ex. VAT (indicative only)
Albin Nimbus 42's main dimensions
41’ 4”12.6 m
34’ 1”10.4 m
12’ 6”3.8 m
Waterline beam (width)
10’ 10”3.3 m
5’ 11”1.8 m
Mast height from DWL
58’ 1”17.7 m
Light displacement (MLC)
21499 lb9752 kg
10000 lb4536 kg

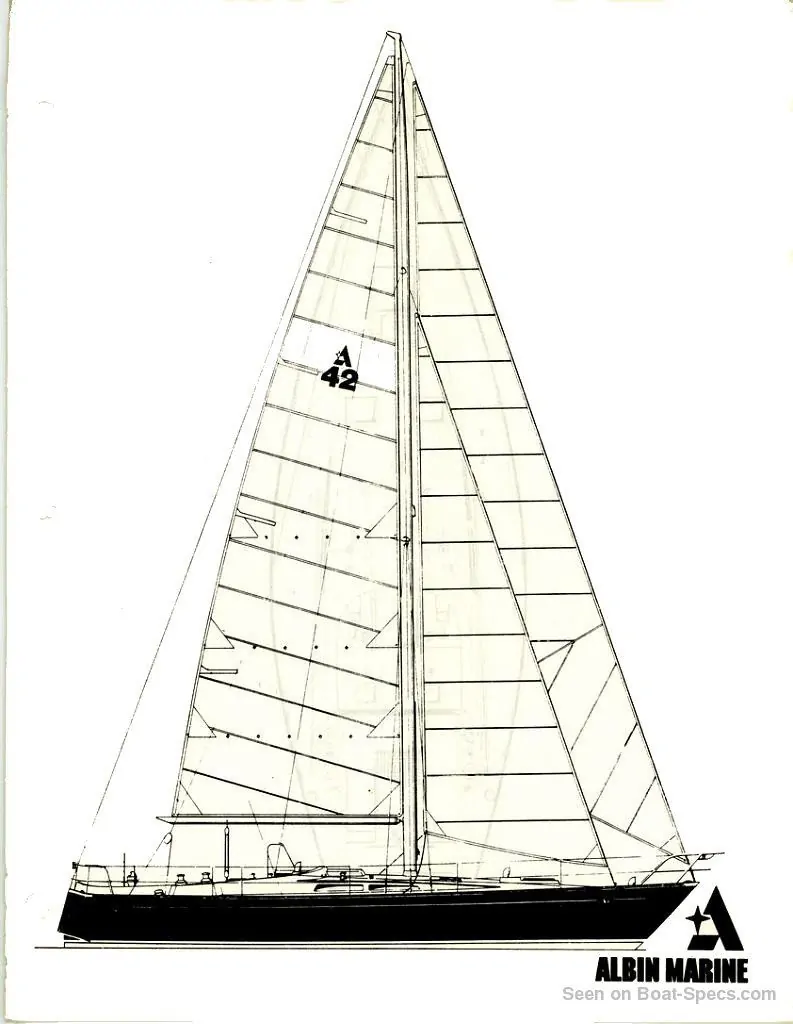

Albin Nimbus 42's rig and sails
Upwind sail area
871 ft²80.9 m²
385 ft²35.8 m²
485 ft²45.1 m²
I iFore triangle height (from mast foot to fore stay top attachment)
J iFore triangle base (from mast foot to bottom of forestay)
P iMainsail hoist measurement (from tack to head)
E iMainsail foot measurement (from tack to clew)
Cutter Marconi masthead
Keel stepped mast
Number of levels of spreaders
1x19 strand wire
Albin Nimbus 42's performances
Upwind sail area to displacement iThe ratio sail area to displacement is obtained by dividing the sail area by the boat's displaced volume to the power two-thirds.
The ratio sail area to displacement can be used to compare the relative sail plan of different sailboats no matter what their size.
Upwind: under 18 the ratio indicates a cruise oriented sailboat with limited performances especially in light wind, while over 25 it indicates a fast sailboat.
191 ft²/T17.72 m²/T
Displacement-length ratio (DLR) iThe Displacement Length Ratio (DLR) is a figure that points out the boat's weight compared to its waterline length. The DLR is obtained by dividing the boat's displacement in tons by the cube of one one-hundredth of the waterline length (in feet).
The DLR can be used to compare the relative mass of different sailboats no matter what their length:
a DLR less than 180 is indicative of a really light sailboat (race boat made for planning), while a DLR greater than 300 is indicative of a heavy cruising sailboat.
Ballast ratio iThe Ballast ratio is an indicator of stability; it is obtained by dividing the boat's displacement by the mass of the ballast. Since the stability depends also of the hull shapes and the position of the center of gravity, only the boats with similar ballast arrangements and hull shapes should be compared.
The higher the ballast ratio is, the greater is the stability.
Critical hull speed iAs a ship moves in the water, it creates standing waves that oppose its movement. This effect increases dramatically the resistance when the boat reaches a speed-length ratio (speed-length ratio is the ratio between the speed in knots and the square root of the waterline length in feet) of about 1.2 (corresponding to a Froude Number of 0.35) . This very sharp rise in resistance, between speed-length ratio of 1.2 to 1.5, is insurmountable for heavy sailboats and so becomes an apparent barrier. This leads to the concept of "hull speed".
The hull speed is obtained by multiplying the square root of the waterline length (in feet) by 1.34.
Albin Nimbus 42's auxiliary engine
1 inboard engine
Fuel tank capacity
60 gal227 liters

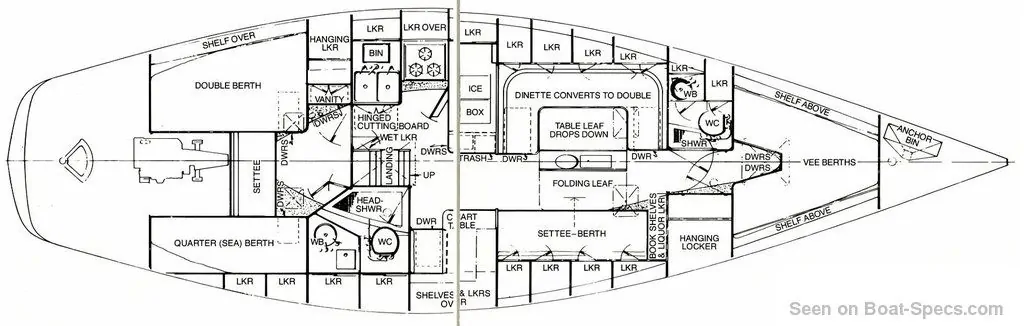

Albin Nimbus 42's accommodations and layout
Closed aft cockpit
5 / 8
Freshwater tank capacity
120.2 gal455 liters
6’ 4”1.93 m
